3.2.2.2 OpenVMS CPU Mode Summary and Process States

Figure 3-6 shows sample OpenVMS CPU Mode Summary and CPU Process States, which are the left and right top panes of the CPU Modes page.

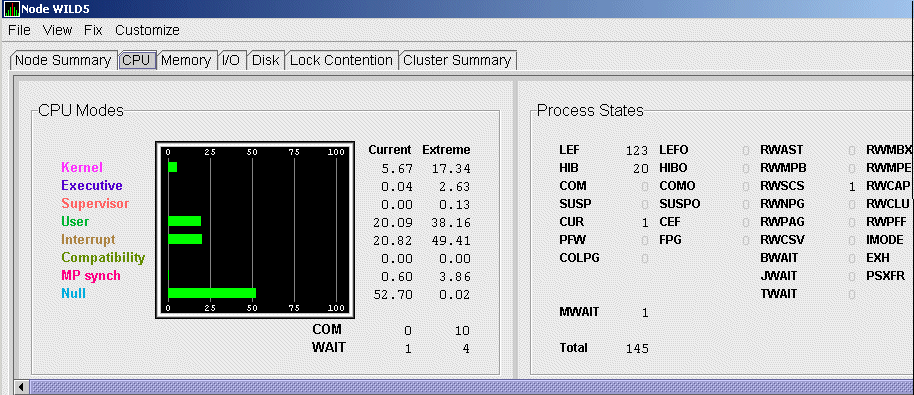

Figure 3-6 OpenVMS CPU Mode Summary and Process States


CPU Mode Summary

In the CPU Mode Summary section of the pane, percentages are averaged across all the CPUs and are displayed as a single value on symmetric multiprocessing (SMP) nodes.

To the left of the graph is a list of CPU modes. The bars in the graph represent the percentage of CPU cycles used for each mode. To the right of the graph are current and extreme percentages of time spent in each mode.

Below the graph, the Availability Manager displays the COM and WAIT process queues:

CPU Process States

The right side of Figure 3-6 shows a sample CPU Process States display. Note that the value for MWAIT, in the left column, is the sum of all values for the states in the two right columns.

This display shows the number of processes in each process state. This number is tallied from the data in CPU Process view of the CPU page (Figure 3-6). For systems with many processes, the data in the CPU Process view is collected in segments over a short period of time because the amount of data a network packet can contain is limited. Because of this, the number of processes in the Process States pane might differ slightly from what is reported in $MONITOR STATES.

Appendix A contains explanations of the CPU process states.

3.2.2.3 OpenVMS CPU Mode Details

The lower pane of the CPU Modes page contains CPU mode details, as shown in Figure 3-7.

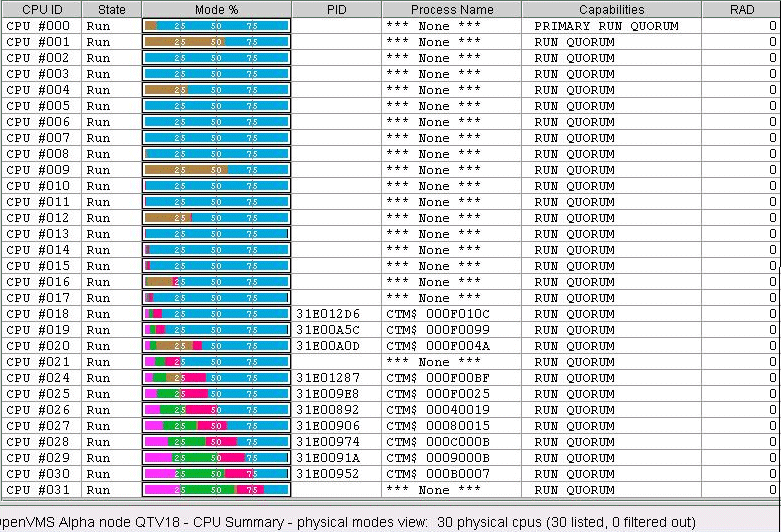

Figure 3-7 OpenVMS CPU Mode Details Pane


In the OpenVMS CPU Mode Details pane, the following data is displayed:
Data Description
CPU ID Decimal value representing the identity of a processor in a multiprocessing system. On a uniprocessor, this value is always CPU #00.
State One of the following CPU states: Boot, Booted, Init, Rejected, Reserved, Run, Stopped, Stopping, or Timeout.
Mode % Graphical representation of the percentage of active modes on that CPU. The color displayed coincides with the mode color in the graph in the top pane.
PID Process identifier (PID) value of the process that is using the CPU. If the PID is unknown to the Data Analyzer application, the internal PID (IPID) is listed.
Process Name Name of the process active on the CPU. If no active process is found on the CPU, the name is listed as *** None ***.
Capabilities One or more of the following CPU capabilities or flags:
  • Capabilities: Primary, Quorum, Run, or Vector.
  • Flags: Idle, Lckmgr, Fastpath_CPU, Fastpath_Ports, Low_power, and Cothread_of_ nn.
RAD Number of the RAD where the CPU exists.

3.2.2.4 OpenVMS CPU Process Summary

To display the OpenVMS CPU Process Summary pane at the bottom of the CPU page, select CPU Process Summary from the View menu (Figure 3-6). Figure 3-8 shows a sample OpenVMS CPU Process Summary pane.

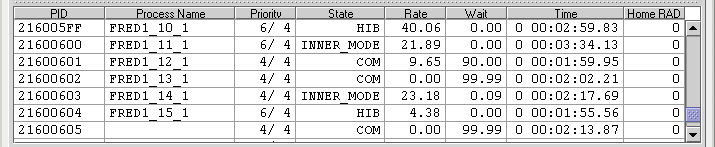

Figure 3-8 OpenVMS CPU Process Summary Pane


The OpenVMS CPU Process Summary pane displays the following data:
Data Description
PID Process identifier, a 32-bit value that uniquely identifies a process.
Process Name Name of the process active on the CPU.
Priority Computable (xx) and base (yy) process priority in the format xx/yy.
State One of the process states listed in Appendix A.
Rate Percentage of CPU time used by this process. This is the ratio of CPU time to elapsed time. The CPU rate is also displayed in the bar graph.
Wait Percentage of time the process is in the COM or COMO state.
Time Amount of actual CPU time charged to the process.
Home RAD Where most of the resources of the process reside.

Displaying Single Process Information

When you double-click a PID on the lower part of an OpenVMS CPU Process Summary (Figure 3-8), Memory Summary (Figure 3-10), or I/O Summary (Figure 3-12) page, the Availability Manager displays the first of several OpenVMS Single Process pages.

On these pages, you can click tabs to display specific data about one process. Alternatively, you can display all of the information on the pages on a single vertical or horizontal grid page.

This data includes a combination of data elements from the CPU Process, Memory, and I/O pages, as well as data for specific quota utilization, current image, and queue wait time. These pages are described in more detail in Section 3.3.

3.2.3 Memory Summaries and Details

The Memory Summary and Memory Details pages contain statistics about memory usage on the node you select. The Memory Summary pages displayed for OpenVMS and Windows nodes are somewhat different, as described in the following sections. The Memory Details page exists only for OpenVMS systems.

3.2.3.1 Windows Memory Summary

To display the Windows Memory Summary page, you can use either of the following methods:

The Availability Manager displays the Windows Memory page (Figure 3-9).

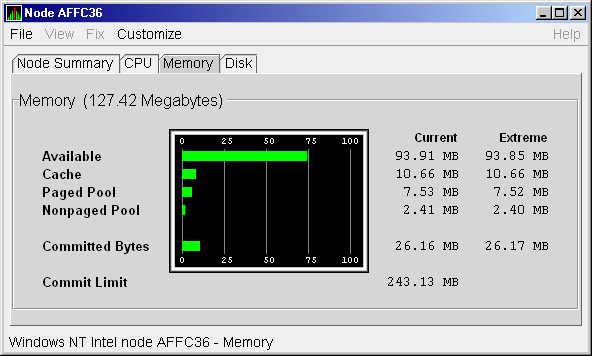

Figure 3-9 Windows Memory


The Current and Extreme amounts on the page display the data shown in the following table. The table also indicates what the graph amounts represent.
Data Description
Available Size (in bytes) of the virtual memory currently on the zeroed, free, and standby lists. Zeroed and free memory are ready for use, with zeroed memory cleared to zeros. Standby memory is removed from a process's working set but is still available. The graph shows the percentage of physical memory that is available for use.
Cache Number of bytes currently in use by the system cache. The system cache is used to buffer data retrieved from disk or LAN. The system cache uses memory not in use by active processes on the computer. The graph shows the percentage of physical memory devoted to the cache.
Paged Pool Number of bytes in paged pool, a system memory area where operating system components acquire space as they complete their tasks. Paged pool pages can be paged out to the paging file when the system does not access them for long periods of time. The graph shows the percentage of physical memory devoted to paged pool.
Nonpaged Pool Number of bytes in nonpaged pool, a system memory area where operating system components acquire space as they complete their tasks. Nonpaged pool pages cannot be paged out to the paging file; instead, they remain in memory as long as they are allocated. The graph shows the percentage of physical memory devoted to nonpaged pool.
Committed Bytes Amount of available virtual memory (the Commit Limit) that is in use. Note that the commit limit can change if the paging file is extended. The graph shows the percentage of the Commit Limit used by the Committed Bytes.
Commit Limit Size (in bytes) of virtual memory that can be committed without having to extend the paging files. If the paging files can be extended, this limit can be raised.

3.2.3.2 OpenVMS Memory Summary

When you double-click a value under the MEM heading in an OpenVMS Node pane, or if you click the Memory tab, the Availability Manager displays the OpenVMS Memory Summary page (Figure 3-10).

Alternatively, if you click the View menu on the OpenVMS Memory Summary page, the following options are displayed in a shortcut menu:

You can click Memory Summary View to select the Memory Summary page.

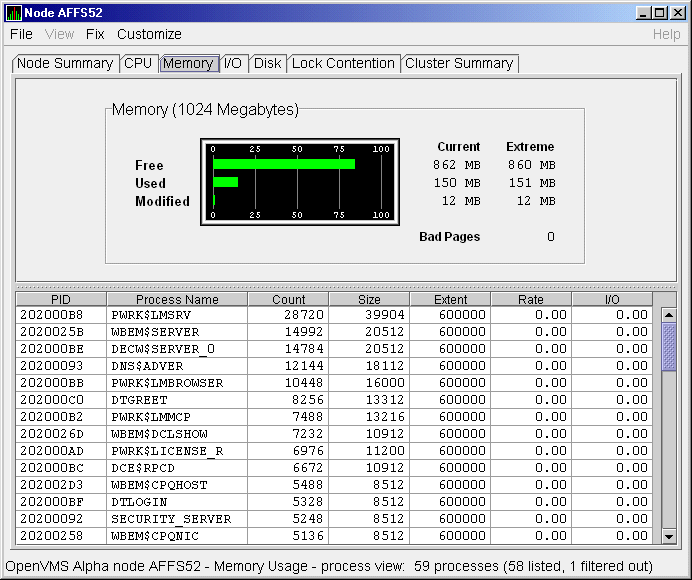

Figure 3-10 OpenVMS Memory Summary


The graph in the top pane of Figure 3-10 shows memory distribution (Free, Used, and Modified) as absolute values, in megabytes of memory. Current and extreme values are also listed for each type of memory distribution. (Free memory uses the lowest seen value as its extreme.) Bad Pages show the number of pages that the operating system has marked as bad.

The thresholds that you see in the graph are the ones set for the LOMEMY event. (The LOMEMY thresholds are also in the display of values for the MEM field in the OpenVMS Group/Node pane shown in Figure 2-1.)

The lower pane in Figure 3-10 displays the data shown in the following table, including an abbreviation of the event that is related to each type of data, where applicable.
Data Description Related Events
PID Process identifier. A 32-bit value that uniquely identifies a process. n/a
Process Name Name of the process. NOPROC,
PRCFND
Count Number of physical pages or pagelets of memory that the process is using for the working set count. LOWEXT
Size Number of pages or pagelets of memory the process is allowed to use for the working set size (also known as the working set list size). The operating system periodically adjusts this value based on an analysis of page faults relative to CPU time used. LOWSQU
Extent Number of pages or pagelets of memory in the process's working set extent (WSEXTENT) quota as defined in the user authorization file (UAF). Number of pages or pagelets cannot exceed the value of the system parameter WSMAX. LOWEXT
Rate Number of page faults per second for the process. LOWSQU,
LOWEXT,
PRPGFL
I/O Rate of I/O read attempts necessary to satisfy page faults (also known as page read I/O or the hard fault rate). PRPIOR

When you double-click a PID on the lower part of the Memory Summary page (Figure 3-10), the Availability Manager displays an OpenVMS Single Process (Figure 3-23), where you can click tabs to display pages containing specific data about one process. This data includes a combination of data from the CPU Process, Memory, and I/O pages, as well as data for specific quota utilization, current image, and queue wait time. These pages are described in Section 3.3.

3.2.3.3 OpenVMS Memory Details

When you click the View menu on the OpenVMS Memory Summary page (Figure 3-10), the following options are displayed in a shortcut menu. To display memory details, select that option.

The Availability Manager displays the OpenVMS Memory Details page (Figure 3-11).

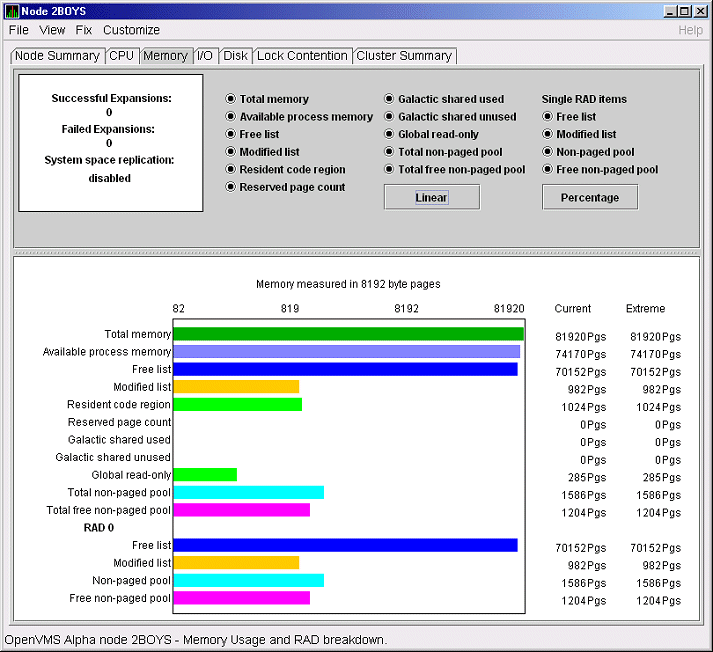

Figure 3-11 OpenVMS Memory Details


The following data items are in a box at the top left of the page:
Heading Description
Successful Expansions Number of successful nonpaged pool expansions.
Failed Expansions Number of failed attempts to expand nonpaged pool.
System space replication Whether system space replication is enabled or disabled.

To the right of the box is a list of system memory data that is displayed in the bar graphs at the bottom of the page. You can toggle these data items on or off (that is, to display them as bar graphs). You can also click a small box to choose between Linear and Logarithmic bar graph displays.

The system memory data items are described in Table 3-5.

Table 3-5 System Memory Data
Data Description
Total memory Total physical memory size, as seen by OpenVMS.
Available process memory Amount of total physical memory available to processes. This is the total memory minus memory allocated to OpenVMS.
Free list Size of the free page list.
Modified list Size of the modified page list.
Resident code region Size of the resident image code region.
Reserved page count Number of reserved memory pages.
Galactic shared used Galaxy shared memory pages currently in use.
Galactic shared unused Galaxy shared memory pages currently not in use.
Global read-only Read-only pages, which are installed as resident when system space replication is enabled, that will also be replicated for improved performance.
Total nonpaged pool Total size of system nonpaged pool.
Total free nonpaged pool Amount of nonpaged pool that is currently free.

To the right of the system memory data is a list of single RAD data items, which are described in Section 3.3.7. You can toggle these items to display them in bar graphs.

Table 3-6 Single RAD Data Items
Data Description
Free list Size of the free page list.
Modified list Size of the modified page list.
Nonpaged pool Total size of system nonpaged pool.
Free nonpaged pool Amount of nonpaged pool that is currently free.

Below the list of single RAD items is a box where you can toggle between Percentage and Raw Data to display Current and Extreme values to the right of the bar graphs.

3.2.4 OpenVMS I/O Summary and Page/Swap Files

By clicking the I/O tab on any OpenVMS node data page, you can display a page that contains summaries of accumulated I/O rates. In the top pane, the summary covers all processes; in the lower pane, the summary is for one process.

From the View menu, you can also choose to display (in the lower pane) a list of page and swap files.

3.2.4.1 OpenVMS I/O Summary

The OpenVMS I/O Summary page displays the rate, per second, at which I/O transfers take place, including paging write I/O (WIO), direct I/O (DIO), and buffered I/O (BIO). In the top pane, the summary is for all CPUs; in the lower pane, the summary is for one process.

When you double-click a data item under the DIO or BIO heading on the Node pane, or if you click the I/O tab, the Availability Manager displays, by default, the OpenVMS I/O Summary (Figure 3-12).

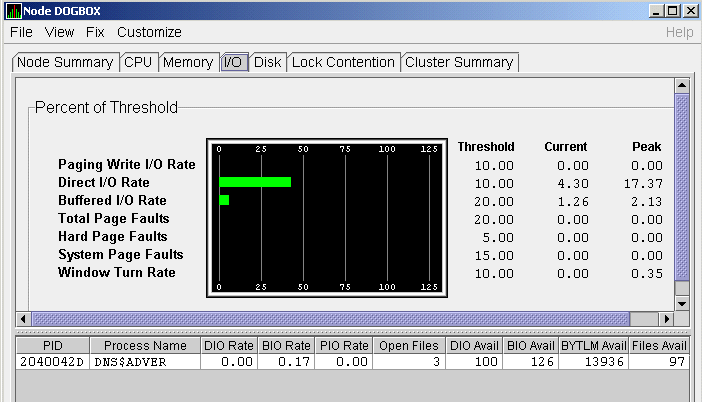

Figure 3-12 OpenVMS I/O Summary


The graph in the top pane represents the percentage of thresholds for the types of I/O shown in Table 3-7. The table also shows the event that is related to each data item. For information about setting event thresholds, see Section 7.8.)

Table 3-7 I/O Data Displayed
Type of I/O I/O Description Related Event
Paging Write I/O Rate Rate of write I/Os to one or more paging files. HIPWIO
Direct I/O Rate Transfers are from the pages or pagelets containing the process buffer that the system locks in physical memory to the system devices. HIDIOR
Buffered I/O Rate Transfers are for the process buffer from an intermediate buffer from the system buffer pool. HIBIOR
Total Page Faults Total of hard and soft page faults on the system, as well as peak values seen during an Availability Manager session. HITTLP
Hard Page Faults Total of hard page faults on the system. HIHRDP
System Page Faults Page faults generated by OpenVMS itself. HISYSP
Window Turn Rate Number of times that the file extent cache had to be refreshed. WINTRN

Current and peak values are listed for each type of I/O. Values that exceed thresholds set by the events indicated in the table are displayed in red on the screen. Appendix B describes OpenVMS and Windows events.

To the right of the graph, the following values are listed:
Value Description
Threshold Defined in Event Configuration Properties.
Current Current value or rate.
Peak Highest value or rate seen since start of data collection.

The lower pane displays summary accumulated I/O rates on a per-process basis. The following data is displayed:
Data Description
PID Process identifier. A 32-bit value that uniquely identifies a process.
Process Name Name of the current process.
DIO Rate Direct I/O rate. The rate at which I/O transfers occur between the system devices and the pages or pagelets that contain the process buffer that the system locks in physical memory.
BIO Rate Buffered I/O rate. The rate at which I/O transfers occur between the process buffer and an intermediate buffer from the system buffer pool.
PIO Rate Paging I/O rate. The rate of read attempts necessary to satisfy page faults (also known as page read I/O or the hard fault rate).
Open Files Number of open files.
DIO Avail Direct I/O limit remaining. The number of remaining direct I/O limit operations available before the process reaches its quota. DIOLM quota is the maximum number of direct I/O operations a process can have outstanding at one time.
BIO Avail Buffered I/O limit remaining. The number of remaining buffered I/O operations available before the process reaches its quota. BIOLM quota is the maximum number of buffered I/O operations a process can have outstanding at one time.
BYTLM The number of buffered I/O bytes available before the process reaches its quota. BYTLM is the maximum number of bytes of nonpaged system dynamic memory that a process can claim at one time.
Files Open file limit remaining. The number of additional files the process can open before reaching its quota. The FILLM quota is the maximum number of files that can be opened simultaneously by the process, including active network logical links.

When you double-click a PID on the lower part of the I/O Summary page, the Availability Manager displays an OpenVMS Single Process, where you can click tabs to display specific data about one process. See Section 3.3 for more details.
