This chapter discusses queuing topics specific to OpenVMS Cluster systems. Because queues in an OpenVMS Cluster system are established and controlled with the same commands used to manage queues on a standalone computer, the discussions in this chapter assume some knowledge of queue management on a standalone system, as described in the OpenVMS System Manager's Manual.
Note: See the OpenVMS System Manager's Manual for information about
Users can submit jobs to any queue in the OpenVMS Cluster system, regardless of the processor on which the job will actually execute. Generic queues can balance the work load among the available processors.
The system manager can use one or several queue managers to manage batch and print queues for an entire OpenVMS Cluster system. Although a single queue manager is sufficient for most systems, multiple queue managers can be useful for distributing the batch and print work load across nodes in the cluster.
Note: OpenVMS Cluster systems that include both VAX
and Alpha computers must use the queue manager described in this
7.2 Controlling Queue Availability
Once the batch and print queue characteristics are set up, the system manager can rely on the distributed queue manager to make queues available across the cluster.
The distributed queue manager prevents the queuing system from being affected when a node enters or leaves the cluster during cluster transitions. The following table describes how the distributed queue manager works.
|The node on which the queue manager is running leaves the OpenVMS Cluster system.||The queue manager automatically fails over to another node.||This failover occurs transparently to users on the system.|
|Nodes are added to the cluster.||The queue manager automatically serves the new nodes.||The system manager does not need to enter a command explicitly to start queuing on the new node.|
|The OpenVMS Cluster system reboots.||The queuing system automatically restarts by default.||Thus, you do not have to include commands in your startup command procedure for queuing.|
|The operating system automatically restores the queuing system with the parameters defined in the queuing database.||This is because when you start the queuing system, the characteristics you define are stored in a queue database.|
To control queues, the queue manager maintains a clusterwide queue
database that stores information about queues and jobs. Whether you use
one or several queue managers, only one queue database is shared across
the cluster. Keeping the information for all processes in one database
allows jobs submitted from any computer to execute on any queue
(provided that the necessary mass storage devices are accessible).
7.3 Starting a Queue Manager and Creating the Queue Database
You start up a queue manager using the START/QUEUE/MANAGER command as you would on a standalone computer. However, in an OpenVMS Cluster system, you can also provide a failover list and a unique name for the queue manager. The /NEW_VERSION qualifier creates a new queue database.
The following command example shows how to start a queue manager:
The following table explains the components of this sample command.
|START/QUEUE/MANAGER||Creates a single, clusterwide queue manager named SYS$QUEUE_MANAGER.|
Creates a new queue database in SYS$COMMON:[SYSEXE] that consists of
the following three files:
Rule: Use the /NEW_VERSION qualifier only on the first invocation of the queue manager or if you want to create a new queue database.
Specifies an ordered list of nodes that can claim the queue manager if
the node running the queue manager should exit the cluster. In the
Allows you to assign a unique name to the queue manager. Unique queue
manager names are necessary if you run multiple queue managers. For
example, using the /NAME_OF_MANAGER qualifier causes queue and journal
files to be created using the queue manager name instead of the default
name SYS$QUEUE_MANAGER. For example, adding the
/NAME_OF_MANAGER=PRINT_MANAGER qualifier command creates these files:
Rules for OpenVMS Cluster systems with multiple system
Running multiple queue managers balances the work load by distributing
batch and print jobs across the cluster. For example, you might create
separate queue managers for batch and print queues in clusters with CPU
or memory shortages. This allows the batch queue manager to run on one
node while the print queue manager runs on a different node.
7.4.1 Command Format
To start additional queue managers, include the /ADD and /NAME_OF_MANAGER qualifiers on the START/QUEUE/MANAGER command. Do not specify the /NEW_VERSION qualifier. For example:
Multiple queue managers share one QMAN$MASTER.DAT master file, but an additional queue file and journal file is created for each queue manager. The additional files are named in the following format, respectively:
By default, the queue database and its files are located in
SYS$COMMON:[SYSEXE]. If you want to relocate the queue database files,
refer to the instructions in Section 7.6.
7.5 Stopping the Queuing System
When you enter the STOP/QUEUE/MANAGER/CLUSTER command, the queue manager remains stopped, and requests for queuing are denied until you enter the START/QUEUE/MANAGER command (without the /NEW_VERSION qualifier).
The following command shows how to stop a queue manager named PRINT_MANAGER:
Rule: You must include the /CLUSTER qualifier on the
command line whether or not the queue manager is running on an OpenVMS
Cluster system. If you omit the /CLUSTER qualifier, the command stops
all queues on the default node without stopping the queue manager.
(This has the same effect as entering the STOP/QUEUE/ON_NODE command.)
7.6 Moving Queue Database Files
The files in the queue database can be relocated from the default
location of SYS$COMMON:[SYSEXE] to any disk that is mounted clusterwide
or that is accessible to the computers participating in the clusterwide
queue scheme. For example, you can enhance system performance by
locating the database on a shared disk that has a low level of activity.
7.6.1 Location Guidelines
The master file QMAN$MASTER can be in a location separate from the queue and journal files, but the queue and journal files must be kept together in the same directory. The queue and journal files for one queue manager can be separate from those of other queue managers.
The directory you specify must be available to all nodes in the cluster. If the directory specification is a concealed logical name, it must be defined identically in the SYS$COMMON:SYLOGICALS.COM startup command procedure on every node in the cluster.
Reference: The OpenVMS System Manager's Manual contains complete
information about creating or relocating the queue database files. See
also Section 7.12 for a sample common procedure that sets up an
OpenVMS Cluster batch and print system.
7.7 Setting Up Print Queues
To establish print queues, you must determine the type of queue configuration that best suits your OpenVMS Cluster system. You have several alternatives that depend on the number and type of print devices you have on each computer and on how you want print jobs to be processed. For example, you need to decide:
Once you determine the appropriate strategy for your cluster, you can create your queues. Figure 7-1 shows the printer configuration for a cluster consisting of the active computers JUPITR, SATURN, and URANUS.

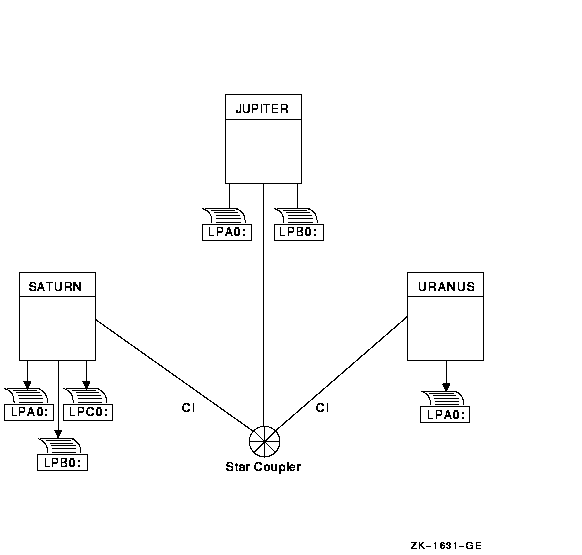

Figure 7-1 Sample Printer Configuration
You set up OpenVMS Cluster print queues using the same method that you
would use for a standalone computer. However, in an OpenVMS Cluster
system, you must provide a unique name for each queue you create.
7.7.2 Command Format
You create and name a print queue by specifying the INITIALIZE/QUEUE command at the DCL prompt in the following format:
|/ON||Specifies the computer and printer to which the queue is assigned. If you specify the /START qualifier, the queue is started.|
|/NAME_OF_MANAGER||If you are running multiple queue managers, you should also specify the queue manager with the qualifier.|
You can also use the autostart feature to simplify startup and ensure high availability of execution queues in an OpenVMS Cluster. If the node on which the autostart queue is running leaves the OpenVMS Cluster, the queue automatically fails over to the next available node on which autostart is enabled. Autostart is particularly useful on LAT queues. Because LAT printers are usually shared among users of multiple systems or in OpenVMS Cluster systems, many users are affected if a LAT queue is unavailable.
Format for creating autostart queues:
Create an autostart queue with a list of nodes on which the queue can run by specifying the DCL command INITIALIZE/QUEUE in the following format:
When you use the /AUTOSTART_ON qualifier, you must initially activate the queue for autostart, either by specifying the /START qualifier with the INITIALIZE /QUEUE command or by entering a START/QUEUE command. However, the queue cannot begin processing jobs until the ENABLE AUTOSTART /QUEUES command is entered for a node on which the queue can run. Generic queues cannot be autostart queues.
Rules: Generic queues cannot be autostart queues. Note that you cannot specify both /ON and /AUTOSTART_ON.
Reference: Refer to Section 7.13 for information
about setting the time at which autostart is disabled.
The following commands make the local print queue assignments for JUPITR shown in Figure 7-2 and start the queues:
$ INITIALIZE/QUEUE/ON=JUPITR::LPA0/START/NAME_OF_MANAGER=PRINT_MANAGER JUPITR_LPA0 $ INITIALIZE/QUEUE/ON=JUPITR::LPB0/START/NAME_OF_MANAGER=PRINT_MANAGER JUPITR_LPB0

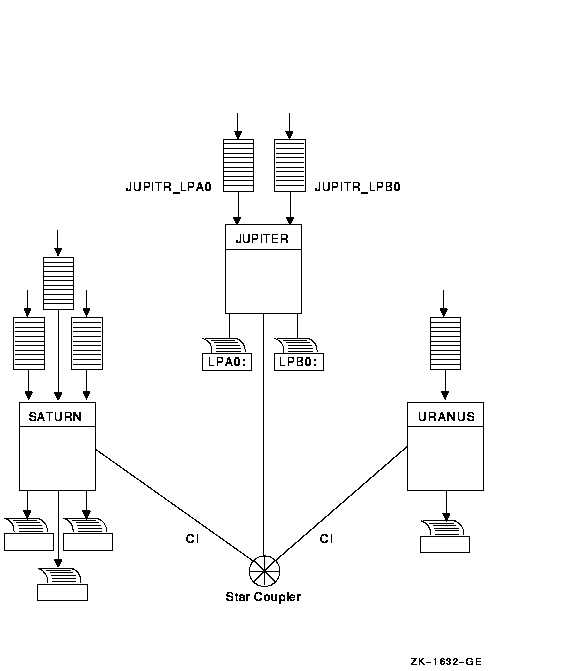

Figure 7-2 Print Queue Configuration
The clusterwide queue database enables you to establish generic queues
that function throughout the cluster. Jobs queued to clusterwide
generic queues are placed in any assigned print queue that is
available, regardless of its location in the cluster. However, the file
queued for printing must be accessible to the computer to which the
printer is connected.
7.8.1 Sample Configuration
Figure 7-3 illustrates a clusterwide generic print queue in which the queues for all LPA0 printers in the cluster are assigned to a clusterwide generic queue named SYS$PRINT.
A clusterwide generic print queue needs to be initialized and started only once. The most efficient way to start your queues is to create a common command procedure that is executed by each OpenVMS Cluster computer (see Section 7.12.3).

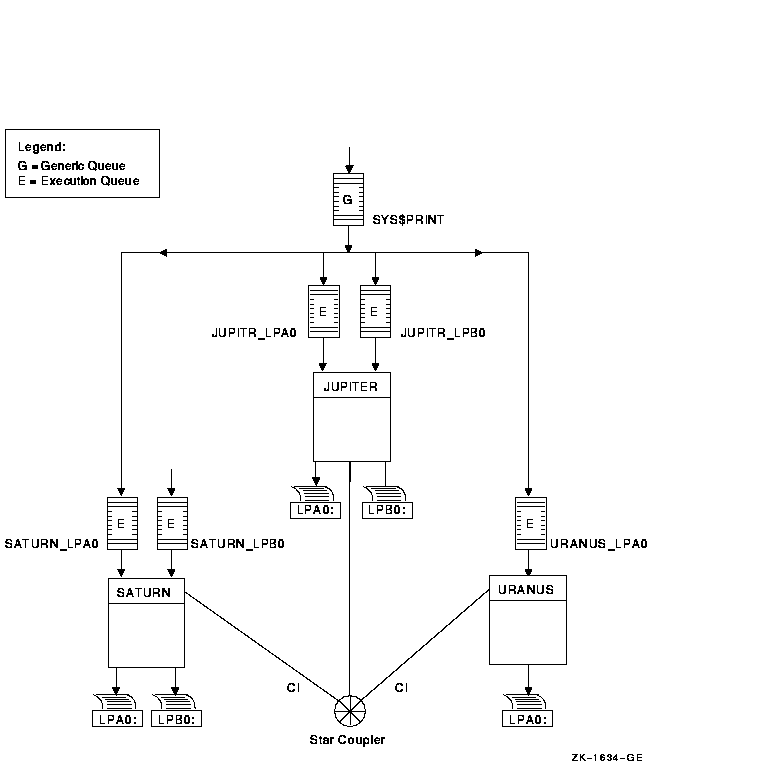

Figure 7-3 Clusterwide Generic Print Queue Configuration
The following command initializes and starts the clusterwide generic queue SYS$PRINT:
$ INITIALIZE/QUEUE/GENERIC=(JUPITR_LPA0,SATURN_LPA0,URANUS_LPA0)/START SYS$PRINT
Jobs queued to SYS$PRINT are placed in whichever assigned print queue
is available. Thus, in this example, a print job from JUPITR that is
queued to SYS$PRINT can be queued to JUPITR_LPA0, SATURN_LPA0, or
7.9 Setting Up Execution Batch Queues
Generally, you set up execution batch queues on each OpenVMS Cluster
computer using the same procedures you use for a standalone computer.
For more detailed information about how to do this, see the
OpenVMS System Manager's Manual.
7.9.1 Before You Begin
Before you establish batch queues, you should decide which type of queue configuration best suits your cluster. As system manager, you are responsible for setting up batch queues to maintain efficient batch job processing on the cluster. For example, you should do the following:
Once you determine the strategy that best suits your needs, you can create a command procedure to set up your queues. Figure 7-4 shows a batch queue configuration for a cluster consisting of computers JUPITR, SATURN, and URANUS.

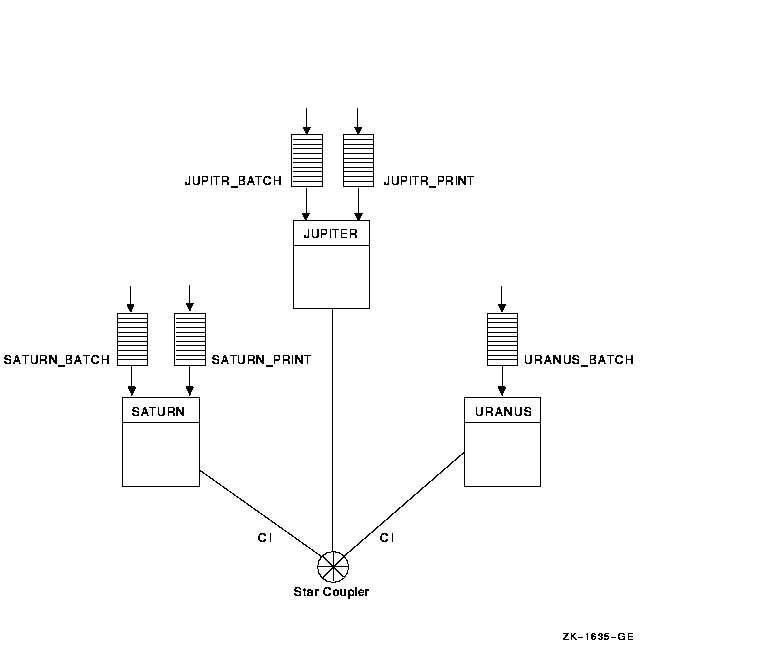

Figure 7-4 Sample Batch Queue Configuration
7.9.2 Batch Command Format
You create a batch queue with a unique name by specifying the DCL
command INITIALIZE/QUEUE/BATCH in the following format:
|/ON||Specifies the computer on which the batch queue runs.|
|/START||Starts the queue.|
|/NAME_OF_MANAGER||Specifies the name of the queue manager if you are running multiple queue managers.|
You can initialize and start an autostart batch queue by specifying the DCL command INITIALIZE/QUEUE/BATCH. Use the following command format:
When you use the /AUTOSTART_ON qualifier, you must initially activate the queue for autostart, either by specifying the /START qualifier with the INITIALIZE/QUEUE command or by entering a START/QUEUE command. However, the queue cannot begin processing jobs until the ENABLE AUTOSTART /QUEUES command is entered for a node on which the queue can run.
Rule: Generic queues cannot be autostart queues. Note
that you cannot specify both /ON and /AUTOSTART_ON.
The following commands make the local batch queue assignments for JUPITR, SATURN, and URANUS shown in Figure 7-4:
$ INITIALIZE/QUEUE/BATCH/ON=JUPITR::/START/NAME_OF_MANAGER=BATCH_QUEUE JUPITR_BATCH $ INITIALIZE/QUEUE/BATCH/ON=SATURN::/START/NAME_OF_MANAGER=BATCH_QUEUE SATURN_BATCH $ INITIALIZE/QUEUE/BATCH/ON=URANUS::/START/NAME_OF_MANAGER=BATCH_QUEUE URANUS_BATCH
Because batch jobs on each OpenVMS Cluster computer are queued to
SYS$BATCH by default, you should consider defining a logical name to
establish this queue as a clusterwide generic batch queue that
distributes batch job processing throughout the cluster (see
Example 7-2). Note, however, that you should do this only if you have
a common-environment cluster.
7.10 Setting Up Clusterwide Generic Batch Queues
In an OpenVMS Cluster system, you can distribute batch processing among computers to balance the use of processing resources. You can achieve this workload distribution by assigning local batch queues to one or more clusterwide generic batch queues. These generic batch queues control batch processing across the cluster by placing batch jobs in assigned batch queues that are available. You can create a clusterwide generic batch queue as shown in Example 7-2.
A clusterwide generic batch queue needs to be initialized and started
only once. The most efficient way to perform these operations is to
create a common command procedure that is executed by each OpenVMS
Cluster computer (see Example 7-2).
7.10.1 Sample Configuration
In Figure 7-5, batch queues from each OpenVMS Cluster computer are assigned to a clusterwide generic batch queue named SYS$BATCH. Users can submit a job to a specific queue (for example, JUPITR_BATCH or SATURN_BATCH), or, if they have no special preference, they can submit it by default to the clusterwide generic queue SYS$BATCH. The generic queue in turn places the job in an available assigned queue in the cluster.
If more than one assigned queue is available, the operating system selects the queue that minimizes the ratio (executing jobs/job limit) for all assigned queues.

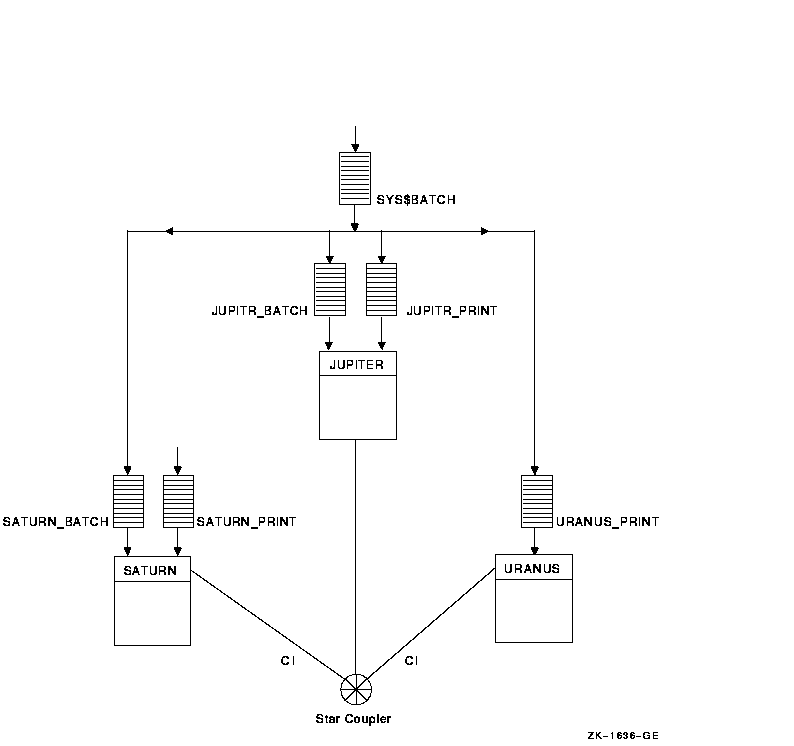

Figure 7-5 Clusterwide Generic Batch Queue Configuration
Normally, you use local batch execution queues during startup to run
batch jobs to start layered products. For this reason, these queues
must be started before the ENABLE AUTOSTART command is executed, as
shown in the command procedure in Example 7-1.
7.11.1 Startup Command Procedure
Start the local batch execution queue in each node's startup command procedure SYSTARTUP_VMS.COM. If you use a common startup command procedure, add commands similar to the following to your procedure:
$ SUBMIT/PRIORITY=255/NOIDENT/NOLOG/QUEUE=node_BATCH LAYERED_PRODUCT.COM $ START/QUEUE node_BATCH $ DEFINE/SYSTEM/EXECUTIVE SYS$BATCH node_BATCH
Submitting the startup command procedure LAYERED_PRODUCT.COM as a high-priority batch job before the queue starts ensures that the job is executed immediately, regardless of the job limit on the queue. If the queue is started before the command procedure was submitted, the queue might reach its job limit by scheduling user batch jobs, and the startup job would have to wait.
