Hierarchical Storage
Management for OpenVMS

Guide to Operations





This manual contains information and guidelines for operation of HSM and
Media, Device and management Services (MDMS).



Required Operating System

OpenVMS VAX Version 7.3

OpenVMS Alpha Version 7.3-2 or 8.2

OpenVMS I64 Version 8.2

Required Software

Storage Library System for OpenVMS V2.9B or higher, or Media, Device and Management
Services for OpenVMS Version 4.3



DECnet (Phase IV) or DECnet-Plus (Phase V)



TCP/IP Services for OpenVMS



Revision/Update Information:

This manual replaces version AA-PWQ3T-TE.



Software Version: HSM Version 4.3

















January 2005

© 2005 Hewlett-Packard Development Company, L.P.



The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.



Proprietary computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under vendor's standard commercial license.



Printed in the U.S.A.



Preface xv

1 Introduction to HSM

1.1 Storage Management in the OpenVMS Environment 1-1

1.1.1 Data Categories 1-1

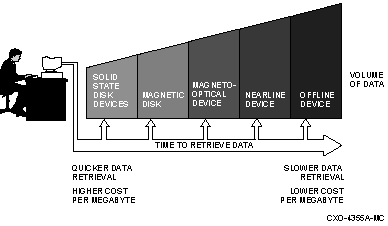

1.1.2 Device Capacity, Cost, and Performance 1-1

1.1.3 Storage Management Planning 1-2

1.2 Storage Management with HSM 1-3

1.2.1 File Headers and Location 1-3

1.2.2 Controlling File Movement 1-3

1.3 HSM Storage Management Concepts 1-4

1.3.1 Shelf 1-4

1.3.2 Archive Class 1-4

1.3.3 HSM Policies 1-4

1.4 The Shelving Process 1-4

1.4.1 Starting the Shelving Process 1-4

1.4.2 File Selection for Explicit Shelving 1-5

1.4.3 File Selection for Implicit Shelving 1-5

1.4.4 Modifying File Attributes of a Shelved File 1-6

1.5 The Unshelving Process 1-6

1.5.1 Starting the Unshelving Process 1-6

1.5.2 Process Default Unshelving Action 1-6

1.5.3 The Results of Unshelving a File 1-7

1.5.4 Handling Duplicate Requests to Unshelve a File 1-7

1.6 The Preshelving Process 1-7

1.7 The Unpreshelving Process 1-7

1.8 File Headers and Access Security 1-8

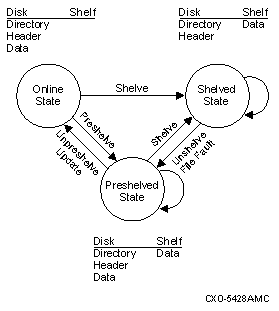

1.9 HSM File State Diagram 1-8

1.10 HSM Cache 1-8

1.10.1 HSM Operations with Cache 1-9

1.10.2 Cache in the Shelving and Preshelving Processes 1-9

1.10.3 Unshelving from Cache 1-9

1.10.4 Exceeding Cache Capacity 1-10

1.10.5 Flushing Cache 1-10

1.11 HSM Catalogs 1-10

1.12 HSM Archive Repacking 1-10

1.13 HSM Software Modes 1-11

1.13.1 HSM Basic Mode Functions 1-11

1.13.2 HSM Plus Mode Functions 1-11

1.14 Media Types for HSM Basic Mode 1-13

1.15 Device Support 1-15

1.16 Online Devices Not Supported for HSM Operations 1-15

1.17 HSM Support for Remote Operations 1-15

2 Understanding HSM Concepts

2.1 The HSM Environment 2-1

2.2 The HSM Facility 2-2

2.2.1 HSM Mode 2-2

2.2.2 HSM Operations 2-3

2.2.3 Shelf Servers 2-3

2.2.4 Event Logging 2-4

2.3 The Shelf 2-5

2.3.1 Using Multiple Shelf Copies 2-5

2.3.2 Defining Shelf Copies 2-6

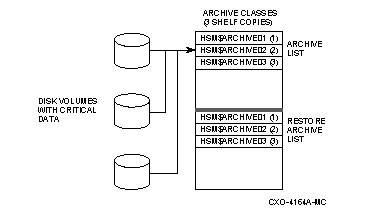

2.3.2.1 Archive Lists and Restore Archive Lists 2-6

2.3.2.2 Primary and Secondary Archive Classes 2-7

2.3.2.3 Multiple Shelf Copies 2-7

2.3.3 Shelving Operations 2-8

2.3.4 Shelf Catalog 2-8

2.3.5 Save Time 2-8

2.3.6 Number of Updates for Retention 2-8

2.4 HSM Basic Mode Archive Class 2-9

2.5 HSM Plus Mode Archive Class 2-10

2.6 Device 2-10

2.6.1 Sharing and Dedicating Devices 2-10

2.6.2 Device Operations 2-11

2.6.3 Devices and Archive Classes 2-12

2.6.4 Magazine Loaders for HSM Basic Mode 2-13

2.6.5 Compatible Media for HSM Basic Mode 2-14

2.6.6 Automated Loaders and HSM Plus Mode 2-15

2.7 Volume 2-15

2.7.1 Shelf 2-15

2.7.2 Shelving Operations 2-16

2.7.3 Volume Policy 2-16

2.7.4 High Water Mark 2-16

2.7.5 Files Excluded from Shelving 2-16

2.8 Cache Usage 2-17

2.8.1 Advantages and Disadvantages of Using a Cache 2-17

2.8.2 Cache Flushing 2-17

2.8.3 Cache Attributes 2-18

2.8.3.1 Timing of Shelf Copies 2-18

2.8.3.2 Cache Block Size 2-18

2.8.3.3 High Water Mark 2-18

2.8.3.4 Cache Flush Interval 2-18

2.8.3.5 Cache Flush Delay 2-18

2.8.3.6 Delete and Modify File Action 2-19

2.8.4 Optimizing Cache Usage 2-19

2.8.5 Using Magneto-Optical Devices 2-19

2.9 Policy 2-19

2.9.1 HSM Policy Options 2-20

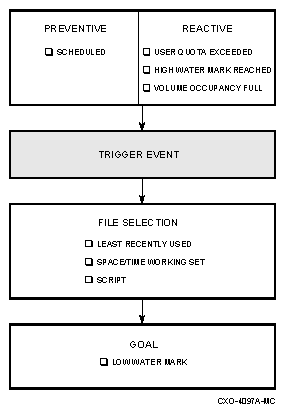

2.9.2 Trigger Events 2-20

2.9.2.1 Scheduled Trigger 2-21

2.9.2.2 User Disk Quota Exceeded Trigger 2-21

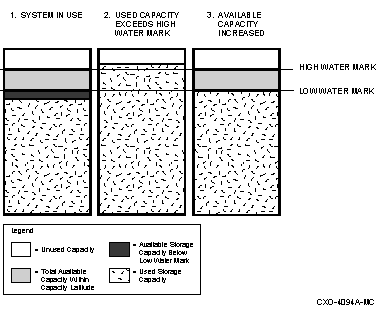

2.9.2.3 High Water Mark Trigger 2-22

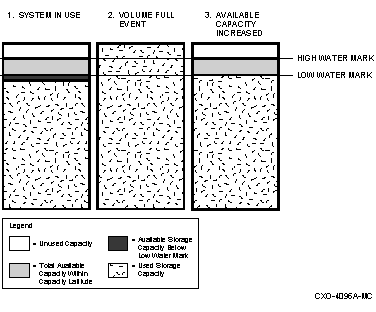

2.9.2.4 Volume Full Trigger 2-22

2.9.3 File Selection Criteria 2-22

2.9.4 Policy Goal 2-24

2.9.5 Make Space Requests and Policy 2-24

2.10 Schedule 2-25

2.10.1 Online Volumes 2-25

2.10.2 Execution Timing and Interval 2-25

2.10.3 Server Node 2-25

2.11 HSM System Files and Logical Names 2-26

2.11.1 HSM$MANAGER 2-26

2.11.2 HSM$LOG 2-27

2.11.3 HSM$REPACK 2-27

3 Customizing the HSM Environment

3.1 Configuring a Customized HSM Environment 3-1

3.1.1 Customizing the HSM Facility 3-1

3.1.2 Creating Shelf Definitions 3-1

3.1.3 Enabling and Disabling a Shelf Definition 3-2

3.1.4 Modifying Archive Classes 3-2

3.1.5 Creating Device Definitions 3-3

3.1.6 Modifying Device Definitions 3-3

3.1.7 Enabling and Disabling a Volume Definition 3-3

3.1.8 Working with Caches 3-3

3.1.9 Enabling and Disabling a Policy Definition 3-4

3.1.10 Scheduling Policy Executions 3-4

3.2 Implementing Shelving Policies 3-5

3.2.1 Determining the Disk Volumes 3-5

3.2.2 Creating Volume Definitions 3-5

3.2.3 Determining File Selection Criteria 3-6

3.2.4 Creating Policy Definitions 3-6

3.2.5 Using Expiration Dates 3-7

3.2.6 Creating Schedule Definitions 3-8

3.2.7 Enabling Preventive Policy 3-8

4 Using HSM

4.1 What the User Sees in an HSM Environment 4-1

4.1.1 Identifying Shelved Data using the DIRECTORY Command 4-1

4.1.1.1 DIRECTORY/FULL 4-2

4.1.1.2 DIRECTORY/FULL for Unpopulated Index Files 4-2

4.1.1.3 DIRECTORY/FULL for Populated Indexed Files 4-3

4.1.1.4 DIRECTORY/SHELVED_STATE 4-4

4.1.1.5 DIRECTORY/SIZE 4-4

4.1.2 Accessing Files 4-5

4.1.3 Decreasing Volume Full and Disk Quota Exceeded Errors 4-5

4.1.4 Viewing Messages 4-6

4.2 Controlling Shelving and Unshelving 4-6

4.2.1 Automatic Shelving Operations 4-6

4.2.2 User-Controlled Shelving Operations 4-6

4.2.3 Unshelving Files 4-8

4.3 Finding Lost Data 4-8

4.4 Working with Remote Files 4-8

4.5 Resolving Duplicate Operations on the Same File 4-8

4.5.1 Resolving Conflicting Operations on the Same File 4-9

4.6 Controlling Other HSM Functions 4-9

5 Managing the HSM Environment

5.1 Dismounting Disks 5-2

5.2 Copying Shelved Files 5-2

5.3 Renaming Disks 5-3

5.4 Restoring Files to a Different Disk 5-4

5.5 Protecting System Files from Shelving 5-4

5.5.1 Critical HSM Product Files 5-4

5.5.2 OpenVMS System Files and System Disks 5-5

5.5.3 Files Not Shelved 5-6

5.6 DFS, NFS and PATHWORKS Access Support 5-6

5.6.1 DFS Access 5-6

5.6.2 NFS Access 5-6

5.6.3 PATHWORKS 5-7

5.6.4 Logical Names for NFS and PATHWORKS Access 5-8

5.7 Ensuring Data Safety with HSM 5-8

5.7.1 Access Control Lists for Shelved Files 5-8

5.7.2 Handling Contiguous and Placed Files 5-9

5.8 Using Backup Strategies with HSM 5-9

5.8.1 Backing up Critical HSM Files 5-9

5.8.1.1 Defining a Backup Strategy 5-9

5.8.1.2 Using OpenVMS BACKUP to Save the Files 5-9

5.8.1.3 Maintaining a Manual Copy of the Files 5-10

5.8.2 Backing Up Shelved Data 5-10

5.8.2.1 Considerations for OpenVMS BACKUP and Shelving 5-10

5.8.2.2 Using Multiple HSM Archive Classes for Backup 5-10

5.8.2.3 Storing HSM Archive Classes Offsite 5-11

5.8.3 Backing Up Data Stored in an Online Cache 5-11

5.8.3.1 Flushing the Cache 5-11

5.9 Finding Lost User Data 5-11

5.10 Disaster Recovery 5-12

5.10.1 Recovering Data Shelved Through HSM 5-12

5.10.2 Recovering Critical HSM Files 5-12

5.10.3 Recovering Boot-Up Files 5-13

5.10.4 Reshelving an Archive Class 5-13

5.11 Maintaining Shelving Policies 5-13

5.11.1 The HSM Policy Model 5-14

5.11.1.1 Concepts of HSM Policy 5-14

5.11.1.2 Policy Governs the Shelving Process 5-15

5.11.1.3 The Balance to Achieve When Implementing Policy 5-16

5.11.2 HSM Policy Situations and Resolutions 5-16

5.11.2.1 Situation : Volume Occupancy Full Event 5-16

5.11.2.2 Situation : Shelving Goal Not Reached 5-17

5.11.2.3 Situation : Frequent Reactive Shelving Requests 5-18

5.11.2.4 Situation : Application and User Performance Impeded 5-19

5.11.3 Ranking Policy Execution 5-20

5.12 Managing HSM Catalogs 5-21

5.13 Repacking Archive Classes 5-23

5.13.1 Repack Performance 5-25

5.14 Replacing and Creating Archive Classes 5-25

5.15 Replacing A Lost or Damaged Shelf Volume 5-25

5.16 Catalog Analysis and Repair 5-26

5.17 Consolidated Backup with HSM 5-28

5.17.1 Setting up SLS 5-29

5.17.2 Preshelving Files 5-29

5.17.3 Nightly Backups 5-30

5.17.4 Restoring Volumes 5-31

5.17.5 Restoring Files 5-31

5.17.6 Repacking 5-32

5.17.7 Other Recommendations 5-32

5.18 Determining Cache Usage 5-32

5.19 Maintaining File Headers 5-32

5.19.1 Determining File Header Limit 5-32

5.19.2 Specifying a Volume's File Headers 5-33

5.19.3 Extending the Index File 5-33

5.19.4 Maintaining the Number of File Headers 5-33

5.20 Event Logging 5-33

5.20.1 Accessing the Logs 5-34

5.20.2 Shelf Handler Log Entries 5-34

5.21 Activity Logging 5-36

5.22 Converting from Basic Mode to Plus Mode 5-37

5.22.1 Shutting Down the Shelf Handler 5-38

5.22.2 Disabling the Shelving Facility 5-38

5.22.3 Entering Information for MDMS 5-38

5.22.4 Changing from Basic Mode to Plus Mode 5-38

5.22.5 Restarting the Shelf Handler 5-38

5.22.6 Using the Same Archive Classes 5-39

5.22.7 Enabling the Facility 5-39

5.22.8 Example Mode Conversion 5-39

6 Operator Activities in the HSM Environment

6.1 Enabling the Operator Interface 6-1

6.2 Loading and Unloading Single Tapes for HSM Basic Mode 6-1

6.2.1 Load Volume, No Reply Needed 6-2

6.2.2 Load Volume 6-2

6.2.3 Reinitialize Volume 6-2

6.2.4 Volume Initialization Confirmation 6-2

6.2.5 Unload Label Request 6-3

6.3 Responding to BACKUP Requests for HSM Basic Mode 6-3

6.4 Working with Magazine Loaders for HSM Basic Mode 6-3

6.4.1 Load Magazine 6-3

6.4.2 Illegal Magazine 6-3

6.4.3 Unload Magazine 6-3

6.5 Working with Automated Loaders for HSM Plus Mode 6-4

6.5.1 Providing the Correct Magazine 6-4

6.5.2 Providing the Correct Volume for a TL820 6-5

6.6 Other MDMS Messages 6-5

6.7 Drive Selection and Reservation Messages for Both Modes 6-6

6.7.1 Unavailable Drive 6-6

6.7.2 Reservation Stalled 6-6

6.7.3 Wrong Tape Label 6-7

6.8 Informational Operator Messages 6-7

7 Solving Problems with HSM

7.1 Introduction to Troubleshooting 7-1

7.2 Troubleshooting Tools 7-2

7.2.1 Startup Logs 7-2

7.2.2 After a problem occurs, the first things you should check are the event logs: 7-3

7.2.3 Activity Log 7-3

7.2.4 SMU LOCATE 7-3

7.2.5 UNSHELVE/OVERRIDE 7-4

7.2.6 SMU RANK 7-4

7.2.7 SMU SET and SHOW Commands 7-4

7.2.8 MDMS Tools for HSM Plus Mode 7-5

7.3 Installation Problems 7-5

7.4 HSM Startup Problems 7-6

7.4.1 SMU Does Not Run 7-6

7.4.2 The Shelf Handler Does Not Start Up 7-6

7.4.3 Policy Execution Process Does Not Start Up 7-8

7.4.4 HSM Does Not Shut Down 7-8

7.4.5 Shelving and SMU Commands Do Not Work 7-9

7.5 Mass Shelving 7-9

7.6 Shelving on System Disks 7-10

7.6.1 HSM Plus Mode (MDMS) Problems 7-11

7.7 HSM VMScluster Problems 7-12

7.8 Online Disk Problems 7-13

7.9 Cache Problems 7-14

7.10 Magneto-Optical Device Problems 7-15

7.11 Offline Device Problems 7-16

7.12 Magazine and Robotic Loader Problems 7-17

7.13 Shelving Problems 7-19

7.14 Unshelving Problems 7-20

7.15 Policy Problems 7-21

7.16 HSM System File Problems 7-22

7.17 HSM Limitations 7-23

7.17.1 OpenVMS Limit on File Headers 7-23

7.17.2 Attempting to Cancel Execution of a Shelved File 7-24

7.17.3 Automatic Unshelving of Files across a Network 7-24

7.17.4 Opening and Deleting RMS Indexed Files 7-24

8 What is MDMS?

8.1 MDMS Objects 8-1

8.2 MDMS Interfaces 8-2

9 Basic MDMS Operations

9.1 MDMS User Interfaces 9-1

9.2 DCL Interface 9-1

9.2.1 Syntax Overview 9-1

9.2.2 Object Lists 9-2

9.2.3 Qualifier List 9-3

9.2.4 Inherit 9-3

9.2.5 Symbols 9-3

9.2.6 Help and Reference 9-3

9.3 User Interface Restrictions 9-4

9.4 Graphical User Interface 9-4

9.4.1 Starting MDMSView 9-5

9.4.1.1 OpenVMS Systems 9-5

9.4.1.2 Windows Systems 9-5

9.4.2 Look and Feel 9-5

9.4.3 Logging In 9-6

9.4.4 Selecting A View 9-6

9.4.5 Creating Objects 9-8

9.4.6 Showing and Modifying Objects 9-10

9.4.7 Deleting Objects 9-11

9.4.8 Viewing Relationships Between Objects 9-11

9.4.9 Performing Operations on Objects 9-12

9.4.10 Showing Current Operations 9-13

9.4.11 Reporting on Volumes 9-14

9.4.12 Viewing MDMS Audit and Event Logging 9-16

9.4.13 Errors 9-17

9.4.14 Help 9-17

9.5 Access Rights for MDMS Operations 9-18

9.5.1 Description of MDMS Rights 9-18

9.5.1.1 Low Level Rights 9-18

9.5.1.2 High Level Rights 9-19

9.5.2 Granting MDMS Rights 9-19

9.6 Creating, Modifying, and Deleting Object Records 9-21

9.6.1 Creating Object Records 9-21

9.6.1.1 Naming Objects 9-21

9.6.1.2 Differences Between the CLI and GUI for Naming Object Records 9-22

9.6.2 Inheritance on Creation 9-22

9.6.3 Referring to Non-Existent Objects 9-22

9.6.4 Rights for Creating Objects 9-23

9.6.5 Modifying Object Records 9-23

9.6.6 Protected Attributes 9-23

9.6.7 Rights for Modifying Objects 9-23

9.6.8 Deleting Object Records 9-23

9.6.9 Reviewing Managed Objects for References to Deleted Objects 9-24

9.6.10 Reviewing DCL Command Procedures for References to Deleted Objects 9-24

9.6.11 Rights for Deleting Objects 9-27

10 Media Management

10.1 MDMS Domain Configuration 10-1

10.2 Domain 10-1

10.2.1 ABS Rights 10-2

10.2.2 Application Rights 10-2

10.2.3 Check Access 10-2

10.2.4 Deallocate State 10-2

10.2.5 Default Rights 10-2

10.2.6 Mail Users 10-2

10.2.7 Maximum Scratch Time 10-3

10.2.8 Media Type 10-3

10.2.9 Offsite Location 10-3

10.2.10 Onsite Location 10-3

10.2.11 OPCOM Classes 10-3

10.2.12 Operator Rights 10-3

10.2.13 Protection 10-3

10.2.14 Relaxed Access 10-4

10.2.15 Request ID 10-4

10.2.16 Scheduler Type 10-4

10.2.17 Scratch Time 10-4

10.2.18 SYSPRV 10-4

10.2.19 Transition Time 10-5

10.2.20 User Rights 10-5

10.3 Drives 10-5

10.3.1 Access 10-5

10.3.2 Automatic Reply 10-5

10.3.3 Device 10-5

10.3.4 Disabled 10-6

10.3.5 Drive Number 10-6

10.3.6 Groups 10-6

10.3.7 Jukebox 10-6

10.3.8 Media Types 10-6

10.3.9 Nodes 10-6

10.3.10 Read-Only Media Types 10-6

10.3.11 Shared 10-6

10.3.12 Stacker 10-7

10.3.13 State 10-7

10.3.14 Allocate Drive (DCL Only) 10-7

10.3.15 Deallocate Drive (DCL Only) 10-8

10.3.16 Load Drive 10-8

10.3.17 Unload Drive 10-8

10.4 Groups 10-9

10.4.1 Nodes 10-9

10.5 Jukeboxes 10-9

10.5.1 Access 10-9

10.5.2 ACS ID 10-9

10.5.3 Automatic Reply 10-9

10.5.4 Cap Size 10-10

10.5.5 Control 10-10

10.5.6 Disabled 10-10

10.5.7 Groups 10-10

10.5.8 Library ID 10-10

10.5.9 Location 10-10

10.5.10 LSM ID 10-10

10.5.11 Nodes 10-11

10.5.12 Robot 10-11

10.5.13 Slot Count 10-11

10.5.14 State 10-11

10.5.15 Threshold 10-11

10.5.16 Topology 10-12

10.5.17 Usage 10-12

10.5.18 Inventory Jukebox 10-12

10.6 Locations 10-13

10.6.1 Parent Location 10-14

10.6.2 Spaces 10-14

10.7 Magazines 10-14

10.7.1 Jukebox, Start Slot and Position 10-14

10.7.2 Onsite and Offsite Locations and Dates 10-15

10.7.3 Slot Count 10-15

10.7.4 Spaces 10-15

10.7.5 Move Magazine(s) 10-15

10.8 Media Types 10-16

10.8.1 Capacity 10-16

10.8.2 Compaction 10-16

10.8.3 Density 10-16

10.8.4 Length 10-16

10.9 Node 10-16

10.9.1 Database Server 10-17

10.9.2 Disabled 10-17

10.9.3 OPCOM Class 10-17

10.9.4 Transports and Full Names 10-17

10.10 Pools 10-17

10.10.1 Authorized Users 10-18

10.10.2 Default Users 10-18

10.10.3 Threshold 10-18

10.11 Volumes 10-18

10.11.1 Allocation Fields - Account, Username, UIC and Job 10-20

10.11.2 Allocation and Movement Dates 10-20

10.11.3 History Dates 10-21

10.11.4 State 10-21

10.11.5 Media Types 10-22

10.11.6 Pool 10-22

10.11.7 Previous and Next Volumes 10-22

10.11.8 Placement - Jukebox, Magazine, Locations, Drive 10-23

10.11.9 Formats - Brand, Format, Block Factor, Record Size 10-23

10.11.10 Protection 10-24

10.11.11 Counters 10-24

10.11.12 Allocate Volume 10-24

10.11.13 Allocate Volume(s) by Selection Criteria 10-25

10.11.14 Deallocate Volume 10-25

10.11.15 Bind Volume 10-26

10.11.16 Unbind Volume 10-26

10.11.17 Load Volume 10-27

10.11.18 Unload Volume 10-27

10.11.19 Move Volume(s) 10-27

10.11.20 Initialize Volume(s) 10-28

11 MDMS Configuration

11.1 The MDMS Management Domain 11-1

11.1.1 The MDMS Database 11-2

11.1.1.1 Database Performance 11-3

11.1.1.2 Database Safety 11-3

11.1.1.3 Moving the MDMS Database 11-5

11.1.2 The MDMS Process 11-6

11.1.2.1 Server Availability 11-6

11.1.2.2 The MDMS Account 11-6

11.1.3 The MDMS Start Up File 11-7

11.1.3.1 MDMS$DATABASE_SERVERS - Identifies Domain Database Servers 11-7

11.1.3.2 MDMS$LOGFILE_LOCATION 11-8

11.1.3.3 MDMS Shut Down and Start Up 11-8

11.1.4 Managing an MDMS Node 11-9

11.1.4.1 Defining a Node's Network Connection 11-9

11.1.4.2 Defining How the Node Functions in the Domain 11-9

11.1.4.3 Enabling Interprocess Communication 11-10

11.1.4.4 Describing the Node 11-10

11.1.4.5 Communicating with Operators 11-10

11.1.5 Managing Groups of MDMS Nodes 11-10

11.1.6 Managing the MDMS Domain 11-11

11.1.6.1 Domain Configuration Parameters 11-12

11.1.6.2 Domain Options for Controlling Rights to Use MDMS 11-12

11.1.6.3 Domain Default Volume Management Parameters 11-12

11.1.7 MDMS Domain Configuration Issues 11-13

11.1.7.1 Adding a Node to an Existing Configuration 11-13

11.1.7.2 Removing a node from an existing configuration 11-14

11.2 Configuring MDMS Drives, Jukeboxes and Locations 11-14

11.2.1 Configuring MDMS Drives 11-14

11.2.1.1 How to Describe an MDMS Drive 11-14

11.2.1.2 How to Control Access to an MDMS Drive 11-15

11.2.1.3 How to Configure an MDMS Drive for Operations 11-15

11.2.1.4 Determining Drive State 11-15

11.2.1.5 Adding and Removing Managed Drives 11-15

11.2.1.6 Configuring MDMS Jukeboxes 11-16

11.2.1.7 How to Describe an MDMS Jukebox 11-16

11.2.1.8 How to Control Access to an MDMS Jukebox 11-16

11.2.1.9 How to Configure an MDMS Jukebox for Operations. 11-16

11.2.1.10 Attribute for DCSC Jukeboxes 11-16

11.2.1.11 Attributes for MRD Jukeboxes 11-16

11.2.1.12 Determining Jukebox State 11-17

11.2.1.13 Magazines and Jukebox Topology 11-17

11.2.2 Summary of Drive and Jukebox Issues 11-18

11.2.2.1 Enabling MDMS to Automatically Respond to Drive and Jukebox Requests 11-18

11.2.2.2 Creating a Remote Drive and Jukebox Connection 11-19

11.2.2.3 How to Add a Drive to a Managed Jukebox 11-19

11.2.2.4 Temporarily Taking a Managed Device From Service 11-19

11.2.2.5 Changing the Names of Managed Devices 11-19

11.2.3 Locations for Volume Storage 11-20

11.3 Sample MDMS Configurations 11-21

12 MDMS Management Operations

12.1 Managing Volumes 12-1

12.1.1 Volume Life Cycle 12-1

12.1.2 Volume States by Manual and Automatic Operations 12-2

12.1.2.1 Creating Volume Object Records 12-3

12.1.2.2 Initializing a Volume 12-3

12.1.2.3 Allocating a Volume 12-3

12.1.2.4 Holding a Volume 12-4

12.1.2.5 Freeing a Volume 12-4

12.1.2.6 Making a Volume Unavailable 12-4

12.1.3 Matching Volumes with Drives 12-4

12.1.4 Magazines for Volumes 12-5

12.1.5 Symbols for Volume Attributes 12-5

12.2 Managing Operations 12-6

12.2.1 Setting Up Operator Communication 12-6

12.2.1.1 Set OPCOM Classes by Node 12-6

12.2.1.2 Identify Operator Terminals 12-6

12.2.1.3 Enable Terminals for Communication 12-6

12.2.2 Activities Requiring Operator Support 12-7

12.3 Serving Clients of Managed Media 12-8

12.3.1 Maintaining a Supply of Volumes 12-8

12.3.1.1 Preparing Managed Volumes 12-8

12.3.2 Servicing a Stand Alone Drive 12-9

12.3.3 Servicing Jukeboxes 12-9

12.3.3.1 Inventory Operations 12-10

12.3.4 Managing Volume Pools 12-11

12.3.4.1 Volume Pool Authorization 12-12

12.3.4.2 Adding Volumes to a Volume Pool 12-12

12.3.4.3 Removing Volumes from a Volume Pool 12-12

12.3.4.4 Changing User Access to a Volume Pool 12-12

12.3.4.5 Deleting Volume Pools 12-12

12.3.5 Taking Volumes Out of Service 12-13

12.3.5.1 Temporary Volume Removal 12-13

12.3.5.2 Permanent Volume Removal 12-13

12.4 Rotating Volumes from Site to Site 12-13

12.4.1 Required Preparations for Volume Rotation 12-13

12.4.2 Sequence of Volume Rotation Events 12-13

12.5 Scheduled Activities 12-15

12.5.1 Logical Controlling Scheduled Activities 12-15

12.5.2 Job Names of Scheduled Activities 12-15

12.5.3 Log Files for Scheduled Activities 12-16

12.5.4 Notify Users When Volumes are Deallocated 12-16

13 MDMS High Level Tasks

13.1 Creating Jukeboxes, Drives, and Volumes 13-1

13.2 Deleting Jukeboxes, Drives, and Volumes 13-4

13.3 Rotating Volumes Between Sites 13-5

13.4 Servicing Jukeboxes Used for Backup Operations 13-7

14 Remote Devices

14.1 The RDF Installation 14-1

14.2 Configuring RDF 14-1

14.3 Using RDF with MDMS 14-2

14.3.1 Starting Up and Shutting Down RDF Software 14-2

14.3.2 The RDSHOW Procedure 14-2

14.3.3 Command Overview 14-2

14.3.4 Showing Your Allocated Remote Devices 14-2

14.3.5 Showing Available Remote Devices on the Server Node 14-3

14.3.6 Showing All Remote Devices Allocated on the RDF Client Node 14-3

14.4 Monitoring and Tuning Network Performance 14-3

14.4.1 DECnet Phase IV 14-3

14.4.2 DECnet-Plus (Phase V) 14-4

14.4.3 Changing Network Parameters 14-4

14.4.4 Changing Network Parameters for DECnet (Phase IV) 14-5

14.4.5 Changing Network Parameters for DECnet-Plus(Phase V) 14-6

14.4.6 Resource Considerations 14-6

14.4.7 Controlling RDF's Effect on the Network 14-8

14.4.8 Surviving Network Failures 14-8

14.5 Controlling Access to RDF Resources 14-9

14.5.1 Allow Specific RDF Clients Access to All Remote Devices 14-9

14.5.2 Allow Specific RDF Clients Access to a Specific Remote Device 14-9

14.5.3 Deny Specific RDF Clients Access to All Remote Devices 14-10

14.5.4 Deny Specific RDF Clients Access to a Specific Remote Device 14-10

14.6 RDserver Inactivity Timer 14-10

14.7 RDF Error Messages 14-11

A HSM Error Messages

A.1 OpenVMS Messages A-1

A.2 Shelf Handler Messages A-1

A.3 Shelf Management Utility Messages A-16

B Sample Configuration of MDMS

B.1 Configuration Order B-1

B.1.1 Configuration Step 1 Example - Defining Locations B-2

B.1.2 Configuration Step 2 Example - Defining Media Type B-2

B.1.3 Configuration Step 3 Example - Defining Domain Attributes B-2

B.1.4 Configuration Step 4 Example - Defining MDMS Database Nodes B-4

B.1.5 Configuration Step 5 Example - Defining a Client Node B-5

B.1.6 Configuration Step 6 Example - Creating a Jukebox B-5

B.1.7 Configuration Step 7 Example - Defining a Drive B-6

B.1.8 Configuration Step 8 Example - Defining Pools B-7

B.1.9 Configuration Step 9 Example - Defining Volumes using the /VISION qualifier B-7

C MDMS Messages
D Converting SLS/MDMS V2.X to MDMS V4

D.1 Converting SLS/MDMS V2.X Symbols and Database D-1

D.1.1 Executing the Conversion Command Procedure D-1

D.1.2 Resolving Conflicts During the Conversion D-2

D.2 Things to Look for After the Conversion D-5

D.3 Using SLS/MDMS V2.x Clients With the MDMS V4 Database D-9

D.3.1 Limited Support for SLS/MDMS V2 during Rolling Upgrade D-9

D.3.2 Upgrading the Domain to MDMS V4 D-9

D.3.3 Reverting to SLS/MDMS V2 D-10

D.3.4 Restrictions D-11

D.4 Convert from MDMS Version 3 to a V2.X Volume Database D-11

Preface

Purpose of this Document

This document contains information about Hierarchical Storage Management for OpenVMS? (HSM) and Media, Device and Management Services (MDMS) software. Use this document to define, configure, operate, and maintain your HSM and MDMS environment. Installation information is found in a separate Installation and Configuration Guide listed in the related documents table. Command information for both HSM and MDMS is found in the HSM Command Reference Guide also listed in the related documents table.

Audience

The audience for this document includes people who apply HSM for OpenVMS? (HSM) to solve storage management problems in their organization. The users of this document should have some knowledge of the following:

Document Structure

This document is organized in the following manner and includes the following information:

Chapter 1 Introduction to HSM.

Chapter 2 Understanding HSM Concepts.

Chapter 3 Customizing the HSM Environment.

Chapter 4 Contains information on using HSM.

Chapter 5 Managing the HSM Environment.

Chapter 6 Operator Activities in the HSM Environment.

Chapter 7 Solving Problems with HSM.

Chapter 8 Provides an introduction to Media, Device and Management Services
(MDMS).

Chapter 9 Contains information on MDMS menu Operations.

Chapter 10 Contains information on Media Management.

Chapter 11 Contains information on MDMS Configuration.

Chapter 12 Contains information on MDMS Management Operations.

Chapter 13 Contains information on MDMS Tasks.

Chapter 14 Contains information on Remote Device Facility.

Appendix A Lists HSM-specific status messages and error messages.

Appendix B Gives a Sample Configuration of MDMS.

Appendix C Lists MDMS-specific status messages and error messages.

Appendix D Converting SLS/MDMS V2.x to MDMS V4

Related Documents

The following documents are related to this documentation set or are mentioned in this manual. The lower case x in the part number indicates a variable revision letter.

Document

Order No.

HSM for OpenVMS? Installation and Configuration Guide

AA-QUJ1x-TE

HSM for OpenVMS? Guide to Operations

AA-PWQ3x-TE

HSM for OpenVMS? Command Reference Guide

AA-R8EXx-TE

HSM for OpenVMS? Software Product Description

AE-PWNTx-TE

HSM Hard Copy Documentation Kit (Consists of the above HSM documents and a cover letter)

QA-0NXAA-GZ

OpenVMS? System Management Utilities Reference Manual: A-L

AA-PV5Px-TK

OpenVMS? DCL Dictionary: A-M

AA-PV5Kx-TK

OpenVMS? DCL Dictionary: N-Z

AA-PV5Lx-TK

OpenVMS ?License Management Utility Manual

AA-PVXUx-TK

OpenVMS? User's Manual

AA-PV5Jx-TK



Related Products

The following related products are mentioned in this documentation.

Product

Description

HSM

HSM refers to Hierarchical Storage Management for OpenVMS? software.

MDMS

MDMS refers to Media, Device and Management Services for OpenVMS? software.

SMF

SMF refers to Sequential Media File System for OpenVMS? software.

SLS

SLS refers to Storage Library System for OpenVMS? software.

Conventions

The following conventions are used in this document.

Convention

Description

{}

In format command descriptions, braces indicate required elements. You must include one of the elements.

[ ]

Brackets show optional elements in a command syntax. You can omit these elements if you wish to use the default response.

.

.

.

Horizontal ellipsis points indicate the omission of information from a sentence or paragraph that is not important to the topic being discussed.

. . .

Vertical ellipsis points indicate the omission of information from an example or command format. The information has been omitted because it is not important to the topic being discussed.

boldface

Boldface type in text indicates the first type instance of terms defined in the Glossary or in text.

italic

Italic type emphasizes important information, type indicates variables, indicates complete titles of manuals, and indicates parameters for system information.

Starting test . . .

This type font denotes system response, user input, and examples.

Ctrl/x

Hold down the key labeled Ctrl (Control) and the specified key simultaneously (such as Ctrl/Z).

PF1 x

The key sequence PF1 x indicates that you press and release the PF1 key, and then you press and release another key (indicated here by x).

n

A lowercase italic n indicates the generic use of a number. For example, 19nn indicates a four-digit number in which the last two digits are unknown.

x

A lowercase italic x indicates the generic use of a letter. For example, xxx indicates any combination of three alphabetic characters.

OpenVMS? Alpha

This term refers to the OpenVMS? Alpha operating system.

OpenVMS? VAX

This term refers to the OpenVMS? VAX operating system.

Determining and Reporting Problems

If you encounter a problem while using HSM, report it to HP through your usual support channels. Review the Software Product Description (SPD) and Warranty Addendum for an explanation of warranty. If you encounter a problem during the warranty period, report the problem as indicated previously or follow alternate instructions provided by HP for reporting SPD nonconformance problems.



1

Introduction to HSM

This chapter provides an introduction to the general concepts of storage management in the OpenVMS? environment and defines the role of HP's Hierarchical Storage Management (HSM) for OpenVMS? software. Henceforth in this book, the term HSM is used as a replacement for Hierarchical Storage Management.

1.1 Storage Management in the OpenVMS Environment

Storage management is the means by which you control the devices on which the frequently accessed (active) data on your system is kept. To be useful, active data must be available for use and remain unchanged (persistent) in the event of unexpected events, such as disasters.

1.1.1 Data Categories

Typically, data exists in one of three categories:

On most systems, 80 percent of the I/O requests access only 20 percent of stored data. The remaining 80 percent of your data occupies expensive media (magnetic disks), but is used infrequently.

1.1.2 Device Capacity, Cost, and Performance

There are many different devices on which your data can be stored, and the selection of which device best meets your storage needs depends on three factors:

The relationship among these three factors is illustrated in Figure 1-1. In general, high-performance devices have a lower capacity and higher cost than high-capacity devices. High-capacity devices trade performance for the ability to store large amounts of data.





Figure 1-1



1.1.3 Storage Management Planning

Your storage management plan should allow you to cost effectively place your data on those devices best suited to meet your cost and access requirements. This plan should include placing your active data on the most responsive devices in your system, placing your dormant data on less responsive devices, and placing your inactive data on the highest capacity devices. File activity and associated data storage are summarized in Table 1-1.

Table 1-1 File Activity and Data Storage

File Activity

Storage Type

HSM Storage Classification

Active

Data that is frequently accessed and needs the fastest response time

Online

Immediately available space that the system uses to store the active data. This is usually mounted magnetic disk space, but this data type could include other kinds of fast-access devices.

Primary

Online storage managed through the OpenVMS? file system. HSM moves these files to shelf storage when they have not been accessed for a predetermined time or when the storage device's remaining capacity exceeds a predefined threshold. These criteria are termed policy.

Dormant

Data that is accessed less frequently and for which response time is less important.

Nearline

Storage space that requires some intervention to be made available to the system, including access by robotic library devices. Access is fairly fast, but takes longer than from an online device.

Shelf

Any storage device, including magnetic disk, that holds dormant data files.

Data in shelf storage is termed shelved. When shelved files are accessed through the OpenVMS? file system, HSM moves he shelved files back to primary storage.

Inactive

Data that is not expected to be accessed frequently but must be kept for archival or legal purposes.

Offline

Access to this data requires human intervention for operations such as mounting tape media.

Because the operator response is the significant factor, the access time is unpredictable.



1.2 Storage Management with HSM

HSM software is an extension of the OpenVMS? file system that allows you to manage your dormant data efficiently. It moves your dormant data from primary storage (where your active data is usually kept) to shelf storage. This frees the space in primary storage for use, while the dormant data remains available on lower cost media. The movement of your dormant data to shelf storage is called shelving.

To meet your storage management requirements, HSM:

Data managed by HSM resides in one of the following states:

1.2.1 File Headers and Location

While a file is shelved, the file's header information is maintained in primary storage. When you display the header of a shelved file, the allocated file size is shown as zero blocks, indicating that the data contents are located in shelf storage.

The directory information and file headers for your shelved data are maintained in directories on your primary storage devices. The data itself is located in shelf storage. When access is requested for the shelved data, HSM automatically returns it to primary storage. Introduction to HSM

Information on your files always can be found in your active directories, even though the actual data resides in shelf storage.

1.2.2 Controlling File Movement

You can control shelving in the following ways:

To implement shelving control, you use HSM policies. For additional information about HSM policies, see See HSM Policies

1.3 HSM Storage Management Concepts

There are several key storage management concepts required to properly understand and use HSM. These concepts include:

These concepts are described in detail in Chapter 2.

1.3.1 Shelf

An HSM shelf is a logical software object that relates the data in a set of online disk volumes, on which shelving is enabled, to a set of archive classes that contain the shelved data for those volumes.

1.3.2 Archive Class

An archive class is a logical software object that represents a single copy of shelved data. Identical copies are written to one or more archive classes when a file is shelved. For each shelf, you can specify the number of archive classes (data copies) to have to ensure reliability of the data. Because shelved data is not backed up automatically, multiple shelf copies provide the only means of recovery if the primary copy of the shelf data is lost or destroyed. HP recommends you have at least two archive classes for each shelf.

1.3.3 HSM Policies

An HSM policy is a defined set of parameters that controls when shelving begins and ends.
HSM implements data management through HSM policies that specify responses to events. HSM policies contain HSM-specific commands to shelve or unshelve data in response to a scheduled or situational trigger event. Trigger events, used in conjunction with appropriately designed file selection criteria, work to provide enough online disk space to satisfy users' needs. For detailed information about HSM policies, see See File Selection Criteria .

1.4 The Shelving Process

The shelving process moves files from primary storage to shelf storage. The header information for files that have been shelved is still visible to users through the OpenVMS? directory command, even though the file's data contents are not stored online. You can modify these file headers without unshelving the files.

1.4.1 Starting the Shelving Process

Your control over the start of the shelving process is either explicit or implicit.

Explicit shelving is a process that starts in response to the DCL SHELVE command. You can issue the SHELVE command directly to the OpenVMS? operating system, or you can execute it in an OpenVMS? command procedure.

Implicit shelving is a process that occurs in response to one of the following triggers:

1.4.2 File Selection for Explicit Shelving

The DCL SHELVE command accepts file specifications, including wildcards, for files to process. Qualifiers to this command allow flexibility in selecting files for explicit shelving. Refer to HSM Command Reference Guide for complete information about using the SHELVE command.

1.4.3 File Selection for Implicit Shelving

File selection for implicit shelving is specified through HSM policy. Once you understand the file selection process, you can use Shelf Management Utility (SMU) commands to specify file selection criteria and achieve efficient use of primary storage.

Make Space Requests

When an application or user creates a file or extends the file, the operation may not complete because the disk volume is full or the user has exceeded the disk quota.

If shelving is enabled on the volume, this situation generates a make space request to HSM to free up enough disk space to satisfy the request. If responding to make space requests is enabled, HSM executes the defined policy for the volume and shelves enough files to free up the requested space. While shelving files, HSM sends an informational message to notify the user that the file access may take much longer than usual due to the shelving activity.

File Selection

Table 1-2 lists the stages of file selection for implicit shelving.

Table 1-2 Process for Selecting Files According to Policy

Stage

Event

1

HSM creates an ordered file selection list with the name and the number of allocated blocks for each file on the disk that meets the file selection criteria. This file selection list is based on the primary occupancy or quota policy defined for the online volume

2

The amount of space to be recovered is calculated based upon the volume's low water mark.

3

HSM then shelves eligible files on the file selection list until either the low water mark is reached or the list is exhausted and execution goes to step 4. Because a volume's usage is dynamic, the low water mark is checked after each successful shelve operation and is adjusted accordingly. If the low water mark is met, policy execution completes successfully and is terminated.

4

If the primary policy does not recover sufficient disk volume space, the volume is rescanned using the secondary policy to build a secondary policy candidate list, and execution returns to step 3.

5

If both primary and secondary policies have been executed and the policy goals still have not been achieved, policy execution terminates with an HSM$_ INCOMPLETE error

1.4.4 Modifying File Attributes of a Shelved File

After a file has been shelved, its header remains on the disk. You still see the file in directories, and you may view and modify the file's attributes without having to access the data in shelf storage. Any modifications you make to the shelved file's header will be in effect when the file is unshelved.

1.5 The Unshelving Process

The unshelving process moves files from shelf storage to primary storage. Once the file has been unshelved, you can access it normally.

1.5.1 Starting the Unshelving Process

Your control over the start of the unshelving process is either explicit or implicit.

Explicit unshelving is a process that starts in response to the DCL UNSHELVE command.
You can issue the UNSHELVE command directly to the OpenVMS? operating system, or you can execute it in an OpenVMS? command procedure. The UNSHELVE command accepts one or more file specifications, including wildcard file specifications.

Implicit unshelving is a process that HSM starts in response to a file fault. A file fault is a high-priority request that occurs when a shelved file is accessed for a read, write, extend, or truncate operation.

Table 1-3 shows the process for unshelving a file.

Table 1-3 Process for Unshelving a File

Stage

Event

1

The user specifically requests a file to be unshelved or attempts to access a shelved file through a read, write, extend, or truncate operation (which causes a file fault). Opening a file does not generate a file fault, except for RMS indexed files, or files accessed through NFS or PATHWORKS.

2

When a file fault occurs, HSM sends an informational message to notify the user that the file access may take longer than expected because the file must be unshelved.

3

HSM searches its catalog to find where the shelved data is located. The first file copy it accesses for unshelving is the one listed in the restore archive list for the shelf.

4

The file is restored to primary storage as an unattended operation if the shelf resides on a nearline storage device. If the shelf is offline, operator intervention may be required.

5

The user process that requested access to the file waits for the file to be unshelved. If the file cannot be unshelved for any reason, an error is returned to the requester.

1.5.2 Process Default Unshelving Action

For each user process, you can specify a default unshelving action that controls implicit unshelving initiated by DCL commands and applications. By default, access to a shelved file causes a file fault.

However, you can specify instead that an error be returned on such access by issuing a SET PROCESS/NOAUTO_UNSHELVE command. This is especially useful

for commands such as wildcard searches when you do not need to unshelve files to examine them for the matching string.

1.5.3 The Results of Unshelving a File

When a file is unshelved, its data contents are moved into the location defined by its current directory entry in the(online) file header. If you renamed the file header while the file was shelved, the file will be unshelved into its new location or its new name. After a file has been unshelved from nearline/offline media, the copy remains on the nearline/offline media. Once unshelved, the file can be shelved again. If the file has been modified, a new shelf copy is made and the old copy is invalidated. If a file has not been modified since it was shelved originally, the previously shelved file copy remains valid and a new copy is not made.

1.5.4 Handling Duplicate Requests to Unshelve a File

Subsequent requests to unshelve a given file while the file is undergoing the unshelving process are treated as duplicate requests. HSM signals that both requests have completed after the first request (the one that initiated the unshelving process) completes.

1.6 The Preshelving Process

The preshelving process is a variation of the shelving process. It is similar to the shelving process in that it copies the file's data to shelf storage. It differs from the shelving process in that it allows the file to remain online and accessible even though a shelf copy is made.

A request to preshelve a file that has already been shelved or preshelved succeeds immediately. After a file is preshelved, it can still be accessed normally. If the online file is modified, the shelf copy is invalidated. Any subsequent shelve or preshelve operation causes the file to be shelved again. If the preshelved file is not modified, a subsequent shelve operation simply truncates the file's data which removes the data from primary storage.

Benefits of Preshelving Files

Preshelving files allows the system to respond rapidly to make space requests. Because preshelved files already are copied to shelf storage, HSM only needs to truncate files to respond to make space requests.

1.7 The Unpreshelving Process

When a shelved file is unshelved, it goes into the preshelved state. That is, the file's HSM shelf data is still valid. If the file is later shelved without being modified, no additional data copies are made and the existing shelf data is used.

However, if the file is modified, its shelf data becomes obsolete. This process is called unpreshelving, and occurs automatically if an application writes to the file. It can also be explicitly requested using the UNPRESHELVE DCL command. When a file is unpreshelved, its HSM shelf data is marked invalid, and may be subject to deletion during repack according to the updates parameter set on the associated shelf. In addition, if the shelf data is in a cache with the /NOHOLD qualifier, the cache copy of the file (and its associated catalog entry) are immediately deleted.

If a file has been unpreshelved for any reason, a subsequent shelve or preshelve operation will cause a new copy of the data to be made. An unpreshelved file is effectively identical to a file that has never been shelved.

1.8 File Headers and Access Security

When a file is shelved, a copy of its header is kept with the data and the original header remains in primary storage (on the disk). The header that remains in primary storage is the valid file header.

HSM maintains file access security even when the contents of the file are not present on the online disk volume, because the online file header contains file owner, protection flags, and access control lists. If you change the file protection or ownership while a file is shelved, the user who shelved the file may not be allowed to unshelve it.

1.9 HSM File State Diagram

Figure 1-2 illustrates the various HSM states in which a file can reside, the locations of the file's directory, header, and data, and the operations that transition a file from one state to another.

Figure 1-2



1.10 HSM Cache

Cache is shelf storage comprised of one or more online or nearline storage devices. These devices can include magnetic and magneto-optical disks. You can use any number of devices for the cache. The cache temporarily stages shelved data between its primary online storage location and the nearline/offline media used for shelf storage. Cache is fully described in See Cache Usage .

Using a Cache Has Significant Advantages

Using a cache greatly improves shelving performance, because the time needed to complete the operation is only as long as it takes to copy a file to another disk. The cache then can be flushed to a nearline or offline device at a later time when the shelving operation will have less impact on system performance.

Using Magneto-Optical Devices as Cache

Magneto-optical (MO) devices make an ideal repository for shelved data because they cost less than magnetic disks but still provide excellent response time. HSM supports MO devices as cache devices, rather than nearline devices, because the OpenVMS? system sees them as system-mounted, Files-11 devices. This means you can define an MO device as temporary cache or as permanent (nonflushing) cache that functions as shelf storage.

1.10.1 HSM Operations with Cache

There are four HSM operations that involve the cache:

1.10.2 Cache in the Shelving and Preshelving Processes

Because cache is an alternate location for temporarily storing shelved files, the shelving and preshelving processes differ only slightly when cache is enabled.

The file selection process does not function differently when cache is used. Table 1-4 describes both the shelving and preshelving processes in which cache is used.

Table 1-4 Process for Shelving and Preshelving with Cache

Stage

Event

1

The HSM system creates a cache file on a cache device.

2

The file data is copied from the original file to the cache file. The cache file is closed.

3

Subsequent events are determined by the SMU SET CACHE command's /BACKUP qualifier as follows:



The /BACKUP qualifier is used for the cache

The file also is copied to the nearline/offline media used for shelf storage when the file is shelved.



The / NOBACKUP qualifier is used for the cache (default)

The file is not immediately copied to the nearline/offline media. The file is copied later, when the cache is flushed. media. The file is copied later

1.10.3 Unshelving from Cache

The time taken to unshelve a file from cache is almost the same as that for copying the file from one disk to another.

1.10.4 Exceeding Cache Capacity

Files that exceed the capacity of the cache are moved directly to the nearline/offline media. You can limit the amount of storage the cache can use on each online volume you designate as a cache, or you can use the entire volume for the cache.

1.10.5 Flushing Cache

Flushing the cache is the process used to reclaim cache space. Any of the following events can start the cache flushing process:

Depending on how you defined the cache, the following events occur when the cache is flushed:

WHEN...

THEN...

The /BACKUP qualifier is used for the cache

The files on the cache disk are deleted, because they have already been copied to shelf storage

The /NOBACKUP qualifier is used for the cache

The files on the cache disk are copied to the nearline/offline media used for shelf storage and are then deleted.

1.11 HSM Catalogs

HSM catalogs contain the information HSM needs to locate and unshelve all shelved files. There is one default catalog, used for maintaining global HSM information, and a number of shelf catalogs that are related to specific shelves and volumes. If an HSM catalog suffers an unrecoverable loss, the associated shelved data may be lost. For this reason, HSM catalogs are an essential part of the HSM environment.

For information on setting up shelf catalogs, see See Shelf Catalog . For information on protecting HSM catalogs from loss or corruption, see See Protecting System Files from Shelving .

1.12 HSM Archive Repacking

HSM provides the capability to repack shelf media on a per-archive class basis (optionally with selected volumes) by copying valid shelf data to new media in the same or different archive classes; deleted and obsolete files are not copied. The old media can then be reused. In addition, the catalog entries of deleted and obsolete files are deleted. The system administrator can specify a delay in deleting shelf data after an online delete, and also the number of updates a file undergoes before a shelf copy is considered obsolete. Refer to See Repacking Archive Classes for more detailed information.

1.13 HSM Software Modes

HSM software operates in one of two modes:

Except for the media, device and management configuration and support, both modes operate identically.

MDMS software must be installed on your system before HSM operates in Plus mode. MDMS software is available from various sources as an installable product. In addition, MDMS functionality installs as part of the Storage Library System for OpenVMS? Version software.

You choose a mode to operate when you install the HSM for OpenVMS? software. However, you can change modes after you make the initial decision. The following restrictions apply to changing modes after installation:

1.13.1 HSM Basic Mode Functions

HSM Basic mode provides the following functionality and features:

1.13.2 HSM Plus Mode Functions

HSM Plus mode provides the following functionality and features:

All other functions, including HSM policies and cache, are provided in both modes.

1.14 Media Types for HSM Basic Mode

HSM Basic mode automatically determines the media type based on the specific device(s) you define for use. Table 1-6 shows how media types map to devices for HSM Basic mode. Check the HSM Software Product Description (SPD 46.38.xx) for the latest list of supported devices.

Table 1-6 Media Type to Device Map

Device Type

Media Type

Magazine Loader

TA78

9-Track Magtape

No

TA79

9-Track Magtape

No

TA81

9-Track Magtape

No

TA85

CompacTape III

No

TA857

CompacTape III

Yes

TA86

CompacTape III

No

TA867

CompacTape III

Yes

TA90

3480 Cartridge

No

TA90E

3480 Cartridge

No

TA91

3480 Cartridge

No

TAD85

CompacTape III

No

TAPE9

9-Track Magtape

No

TE16

9-Track Magtape

No

TF70

CompacTape II No



TF85

CompacTape III

No

TF857

CompacTape III

Yes

TF86

CompacTape III

No

TF867

CompacTape III

Yes

TK50

CompacTape I

No

TK50S

CompacTape I

No

TK70

CompacTape II

No

TK70L

CompacTape II

No

TKZ60

3480 Cartridge

No

TLZ04

4mm DAT

No

TLZ06

4mm DAT

No

TLZ07

4mm DAT

No

TLZ6L

4mm DAT

Yes

TLZ7L

4mm DAT

Yes

TS11

9-Track Magtape

No

TSV05

9-TrackMagtape

No

TSZ05

9-TrackMagtape

No

TU45

9-TrackMagtape

No

TU70

9-TrackMagtape

No

TU72

9-TrackMagtape

No

TU77

9-TrackMagtape

No

TU78

9-TrackMagtape

No

TU80

9-TrackMagtape

No

TU81+

9-TrackMagtape

No

TZ30

CompacTape I

No

TZ30S

CompacTape I

No

TZ85

CompacTape III

No

TZ857

CompacTape III

Yes

TZ86

CompacTape III

No

TZ867

CompacTape III

Yes

TZ87

CompacTape III

No

TZ875

CompacTape III

Yes

TZ877

CompacTape III

Yes

TZ88

CompacTape IV

No

TZ885

CompacTape IV

Yes

TZ887

CompacTape IV

Yes

TZK10 6320

Cartridge

No

TZK116320

Cartridge

No

The media type defined for HSM Basic mode is the media type that HSM recognizes for the specified device. This is very different from the media type used for HSM Plus mode, which is the media type defined in the MDMS TAPESTART.COM file for the associated drives.

With these device types and media types, HSM Basic mode provides formal support and identification of the device and media types. In addition, HSM Basic mode checks that devices and media are compatible to support operations within an archive class. HSM Basic mode does not formally support other devices and media types, but they might work under the following circumstances:

Generally, a nonmagazine loader third-party tape drive with any media type may work as an `unknown' device and media type.

1.15 Device Support

HSM supports the nearline and offline devices listed in the HSM Software Product Description (SPD 46.38.xx). HP is continually testing new devices and adding them to the list. If you have a question about a particular device, contact HP customer support.

The STK 9360 Wolfcreek Silo is supported in Plus Mode when host access from VAX and Alpha machines is configured according to the manufacturer's directions.

1.16 Online Devices Not Supported for HSM Operations

HSM provides shelving support for most online disk devices within a cluster. However, HSM does not support the following types of online disk devices:

In addition, HSM does not support shelving and unshelving of local disks that are not connected to a shelf server. If you want to use shelving and unshelving with local disks, HP recommends you make the local disks accessible to the cluster using MSCP protocols.

1.17 HSM Support for Remote Operations

HSM provides limited support for remote operations. For HSM Version 3.2A, this support includes:

HSM does not support the following kinds of remote operations:

HSM Basic mode does not support the use of remote nearline or offline tape devices, unless they are configured to appear as local devices. HSM Plus mode supports remote devices (devices that are not directly connected to the cluster) through the Remote Device Facility (RDF) portion of MDMS. For HSM Plus mode to recognize a remote device, you must have defined the remote device correctly through MDMS and you must use the /REMOTE qualifier on the SMU SET DEVICE command. For more information, see the section on "Working with RDF-served Devices" in HSM Plus Mode in the Getting Started with HSM Chapter of the HSM Installation Guide.

2

Understanding HSM Concepts

Before running HSM in your production environment, you need to understand various definitions and concepts. For each concept, HSM provides a configuration option that you use to manage the HSM environment. This chapter presents an explanation of the HSM concepts and configuration options, structured around the following managed entities in the system:

This chapter also defines the relationships among the managed entities, and provides guidelines for their definition to create an optimal HSM environment. Once you understand the configuration options, you can proceed with the required configuration tasks, as described in the Getting Started with HSM Chapter of the HSM Installation Guide.

For additional information and guidelines for migrating to a more specialized environment that best meets your system requirements, see Chapter 3.

2.1 The HSM Environment

The HSM environment consists of the definitions you create and the relationships that exist among the definitions. The definitions described in the following sections are maintained in definition databases. The HSM environment is shown in See .

Figure 2-1



2.2 The HSM Facility

The HSM facility entity allows you to control HSM functions across the entire cluster. You can control the following functions at the facility level:

2.2.1 HSM Mode

You can specify whether HSM operates in Basic or Plus mode.

Once you change the facility to operate in Plus mode and preshelve or shelve a file (which means you have written to a catalog), you cannot go back to operating in Basic mode.

Considerations for Choosing HSM Operating Mode

When deciding whether to operate in Basic or Plus mode, consider the following:

  • If you are using other storage management products that use MDMS or SLS, use HSM Plus mode. You then have one interface for media and device management across the storage management products.
  • If you require support for large automated tape libraries, such as the TL820, use HSM Plus mode.
  • If you do not require additional device support and are not using other products that use MDMS functionality, use HSM Basic mode.
  • If you are using only magneto-optical devices and no tape devices, use Basic Mode.

2.2.2 HSM Operations

You can specify whether shelving or unshelving operations are enabled across the cluster as a whole. This includes operations initiated as a result of policy triggers, cache flush operations, and manually initiated HSM commands.

The shelving parameter controls shelving, preshelving and cache flush operations. The unshelving parameter controls unshelving and automatically-generated file faults.

Under normal circumstances, you should enable both shelving and unshelving across your cluster. This allows HSM to maintain desired disk usage through automatic policy operations and also allows users access to shelved data at all times.

Considerations for Disabling Shelving and Unshelving

You may need to disable HSM operations at certain times if they conflict with other activities (such as backups) and there are limited offline devices available. For example, if backups are performed nightly at midnight, you could set up a policy to disable shelving at that time.

When necessary, you can disable shelving and probably not cause problems with disk usage exceeding the defined goals. However, if you disable unshelving, your users and applications may experience errors accessing shelved files. You should disable unshelving only if you do not anticipate needing access to shelved data.

2.2.3 Shelf Servers

A shelf server is a single HSM node in a cluster that performs all operations to nearline and offline devices on behalf of all nodes in the cluster. It also coordinates clusterwide operations such as checkpointing archive classes and resetting event logs.

If the facility option Catalog_Server is enabled, all cache operations and catalog updates are also performed by the shelf server. By default, cache operations are performed by the requesting client node for performance reasons. Such operations are passed from other (client) nodes to the shelf server for processing. The shelf server consolidates requests from all nodes and optimizes operations to minimize tape loading and positioning, as well as to support dedicated device access.

Eligible Servers

Although many nodes can be authorized for shelf server operation, only one HSM node functions as the shelf server at any given time. This way, if the current shelf server node fails, operations are immediately transferred and recovered by another authorized shelf server node. You can specify up to 10 specific nodes to be authorized for shelf server operation. By default, all nodes in the cluster are authorized. The current shelf server node can be displayed using an SMU SHOW FACILITY command.

When deciding whether to authorize a node as a shelf server, consider the following:

  • In Basic mode, all specified nearline and offline devices must be accessible to all shelf server nodes. By contrast, they do not need to be accessible to client nodes.
  • The shelf server undertakes the bulk of shelving operations for the cluster, so more powerful CPUs are recommended.
  • To support transparent operations when a node fails, multiple shelf servers should be authorized.
  • Scheduled policy execution should be run on an authorized shelf server node for optimal performance (unless a cache is defined).

Using the default authorization of all nodes is acceptable if the above conditions are met and all your nodes have similar capabilities.

If you operate a cluster with a few large systems and many satellite workstations, restricting shelf server operations to the large systems provides much better performance for all cluster users. Defining specific shelf servers is highly recommended in this case.

Catalog Server

HSM gives you the option of directing all HSM operations and all catalog updates through the shelf server by enabling the Catalog_Server option. With this option, all cache operations and catalog updates are performed by the shelf server node in a similar manner to tape operations.

There are two main reasons you may want to enable this feature:

  • If you choose to protect your catalogs using RMS after-image Journaling, enabling the catalog server allows you to purchase an RMS Journaling license only for the eligible server nodes. Otherwise, it would be required on all nodes in the cluster.
  • If you are using magneto-optical cache devices as a permanent shelf, the catalog server option allows you to mount the JB: platters on only the eligible shelf server nodes. This greatly speeds system reboots.

The downside of enabling the catalog server option is that caching speed is somewhat reduced due to extra intracluster communications, and possible delays in shelf server response time.

2.2.4 Event Logging

HSM provides four event log files that enable you to monitor and tune the HSM environment, as well as to detect errors in HSM operation:

Event logging can be enabled and disabled within the following categories:

HP recommends that you enable all logging at all times to keep track of all activity. This is especially important when you have to report a problem.

2.3 The Shelf

A shelf is a named entity that relates a set of online disk volumes, on which shelving is enabled, to a set of archive classes that contains the shelved file data for those disk volumes. For each shelf, you can control the following:

You can define any number of shelves, but any specific online disk volume can be associated with only one shelf.

The Default Shelf (HSM$DEFAULT_SHELF)

HSM provides a default shelf, named HSM$DEFAULT_SHELF, to which all volumes are associated if no other associations are defined.

If your data reliability requirements are the same across all disk volumes, you can simply use the default shelf and specify the desired number of copies to use on that shelf. All volumes acquire the data reliability specified by the default shelf.

If your data reliability requirements differ from volume to volume, you can define multiple shelves, each of which can contain different numbers of copies for data reliability purposes. You can then relate each volume to the shelf that has the appropriate number of copies.

HP recommends that you specify at least two copies for each volume.

If you have a very large number of online disk volumes, HP recommends that you define multiple shelves, each with a separate catalog. This prevents any particular catalog from becoming so large that catalog access performance degrades. hp recommends that you associate between 10 and 50 online disk volumes with each shelf, depending on the amount of shelving you plan to do.

The shelf entity does not define the volumes associated with the shelf. Instead, you associate individual volume entities (see See Volume ) with the shelf. You can associate a particular volume with exactly one shelf. If you do not define volumes explicitly, all volumes implicitly use the default shelf.

2.3.1 Using Multiple Shelf Copies

This section explains why you need multiple shelf copies and how to define them.

One of the most important decisions that you need to make concerns the number of copies of shelved file data that you need for data safety purposes.

Shelved data is not normally backed up in the normal backup regimen because the OpenVMS BACKUP utility (and layered products like Storage Library System software that use BACKUP) work in the following way:

In other words, after a file is shelved, it is likely that its data will not be backed up again. A typical backup strategy recycles the backup tapes when a certain number of more recent copies have been made. This cycle may be anywhere from a few days to several years.

However, there eventually will come a time when all of the backup tapes contain only the headers of shelved files.

Unless the tapes are never recycled, the shelved file data on the backup media will eventually be lost. As such, the easy way to enhance reliability of shelved file data is to make duplicate copies of the data by using multiple shelf copies.

2.3.2 Defining Shelf Copies

Shelf copies are defined using a concept called an archive class.

An archive class is a named entity that represents a single copy of shelf data. Identical copies of the data are written to each archive class when a file is shelved.

For each shelf, you can specify the archive classes to be used for shelf copies for all volumes associated with the shelf.

The minimum recommended number of copies (archive classes) for each shelf is two.

Archive classes are represented by both an archive name and an archive identifier. Archive identifiers are used in Shelf Management Utility (SMU) commands for ease of use. HSM Basic mode supports 36 archive classes named HSM$ARCHIVE01 to HSM$ARCHIVE36, with associated archive identifiers of 1 to 36 respectively. HSM Plus mode supports up to 9999 archive classes, named HSM$ARCHIVE01 through HSM$ARCHIVE9999, with associated archive identifiers of 1 to 9999.

2.3.2.1 Archive Lists and Restore Archive Lists

For each shelf, you must specify two lists of archive identifiers:

  • The archive list, representing the desired number of shelf copies. Up to 10 archive identifiers can be specified in this list.
  • The restore archive list, representing an ordered list of archive classes from which restore attempts are made. Up to 36 archive identifiers can be specified in this list.

The archive and restore archive lists are defined using the SMU SET SHELF command with the /ARCHIVE and /RESTORE qualifiers. See HSM Command Reference Guide for a complete description of the shelf management utility and its commands.

Restore archive classes are used for unshelving files in the order specified in the restore archive list. The first attempt to restore a file's data is made from the first archive class specified in the restore list. If this fails, an attempt is made from the next archive class, and so on. Although only 10 archive classes are supported for shelf copies, up to 36 are supported for restore, because the restore list must contain a complete list of all archive classes that have ever been used for shelving on the shelf. This enables files to be restored not only from the current list of shelf archive classes, but also from all previously-defined shelf archive classes. In this way, you can add or change archive classes for a shelf by:

Changing the archive classes in the archive list, which affects subsequent shelving operations only

Adding new archive classes to the restore list, while keeping the existing definitions in place, so that files shelved under those definitions still can be restored Archive classes also are related to media types and devices, as discussed in See Device . When a shelf is first created, the archive classes specified in the archive list are copied to the restore list if the restore list is not specified. Thereafter, the two lists must be maintained separately.

2.3.2.2 Primary and Secondary Archive Classes

When defining your restore archive list, it is useful to think of the first archive class in the restore list as a primary archive class and all the others as secondary archive classes. For shelving operations, all of the archive classes in the archive list receive the same amount of operations, because HSM copies data to all archive classes at the time of shelving. However, for unshelving, this is different. In most cases, HSM only needs to read from the primary archive class to restore the data. These concepts are useful when deciding how to relate your archive classes to media types and devices as described in See Devices and Archive Classes .

2.3.2.3 Multiple Shelf Copies

You need to determine the appropriate number of shelf copies for your shelved file data, depending on the importance of the data being shelved.

HP recommends a minimum of at least two shelf copies of all data, because media can be lost or destroyed. If the data is especially critical, you can make additional copies, some of which might be taken offsite and stored in a vault. HSM provides a mechanism called checkpointing to synchronize your shelved data media and backup media so that they can be removed to an offline location together (see HSM Command Reference Guide).

See illustrates the relationship between volumes and archive classes. Each disk volume has an associated archive class and restore archive class, as shown in the archive and restore archive lists. In this example, as with most cases, the archive and restore lists are identical.

Figure 2-2



2.3.3 Shelving Operations

You can control the same operations for a shelf as you can for the facility, except that the operations defined for the shelf affect only the volumes associated with the shelf.

This gives you a finer level of shelving control, which might be useful if certain classes of volumes are not regularly accessed at certain times, and you want to disable shelving activity. However, as with the facility control, it is expected that shelving and unshelving operations usually are enabled.

2.3.4 Shelf Catalog

The shelf catalog contains information regarding the location of near-line and off-line data for all volumes associated with the shelf. HP recommends that you define a separate catalog for each shelf, but it is possible for several shelves to share a catalog, or for all shelves to use the default catalog.

Defining a separate catalog for each shelf has the following advantages:

As a guideline, HP recommends that each shelf be associated with between 10 and 50 volumes, and that each shelf has its own catalog. A shelf catalog needs to be protected with a similar level of protection as the default catalog, namely:

It is also recommended that the catalog for a shelf be placed on a disk volume other than one associated with the shelf itself. In very large environments, it might be appropriate to dedicate one or more shadowed disk sets for HSM catalogs, and to disable shelving on those disks. When defining a new catalog for a shelf, or a new shelf for a volume, HSM automatically splits all associated shelving data from the old catalog, and merges it into the new catalog. See See Managing HSM Catalogs for more information on this process.

2.3.5 Save Time

You can specify a delete save option for shelved files that have been deleted. This option allows the specification of a delta time which keeps a file's shelved data in the HSM subsystem for this period after the file is deleted. The actual purging of deleted files (after the specified delay) is performed by the REPACK function.

2.3.6 Number of Updates for Retention

This option allows the specification of a number of updates to a shelved file that will be kept in the HSM subsystem.

This option applies to files that have been updated in place, not new versions of files that have been created after an update. New versions are controlled by online disk maintenance outside the scope of HSM. The actual purging of obsolete shelf data is performed by the REPACK function.

2.4 HSM Basic Mode Archive Class

As previously discussed, HSM Basic mode supports 36 archive classes named HSM$ARCHIVE01 through HSM$ARCHIVE36, with archive identifiers of 1 to 36 respectively. You must configure archive classes by using the SMU SET ARCHIVE command to identify the archive class name. Once you have defined the archive class, you can then associate archive classes with shelves and devices using appropriate commands. From these associations, HSM Basic mode determines the appropriate media type for the archive class.

There is a separate set of tape volumes with specific labels associated with each archive class for HSM Basic mode. HSM allows limited maintenance on archive classes by allowing you to modify the shelving volume label attribute. The volume labels must be in the proper format for each archive class, as listed in Table 2-1.

Table 2-1 HSM Basic Mode Archive Class Identifier/Label Reference

Table 2-1 HSM Basic Mode Archive Class Identifier/Label Reference

Archive Id

Volume Label

Archive Id

Volume Label

Archive Id

Volume Label

1.

HS0xxx

13

HSCxxx

25

HSOxxx

  1. 2.

HS1xxx

14

HSDxxx

26

HSPxxx

  1. 3.

HS2xxx

15

HSExxx

27

HSQxxx

  1. 4.

HS3xxx

16

HSFxxx

28

HSRxxx

  1. 5.

HS4xxx

17

HSGxxx

29

HSSxxx

  1. 6.

HS5xxx

18

HSHxxx

30

HSTxxx

  1. 7.

HS6xxx

19

HSIxxx

31

HSUxxx

  1. 8.

HS7xxx

20

HSJxxx

32

HSVxxx

  1. 9.

HS8xxx

21

HSKxxx

33

HSWxxx

  1. 10.

HS9xxx

22

HSLxxx

34

HSXxxx

  1. 11.

HSAxxx

23

HSMxxx

35

HSYxxx

  1. 12.

HSBxxx

24

HSNxxx

36

HSZxxx

For each of the 36 archive classes, the first three characters of the volume label are fixed and represent the archive class. The last three characters of the volume label (shown in Table 2-1 as xxx) represent a sequence number in the range 001 to Z99, allowing up to 3600 tape volumes per archive class. At any one time, there is one shelving volume for each archive class. This volume represents the volume on which the next shelve (write) operation is to be performed.

In the case of an error, you can explicitly change the shelving volume label for the archive class. However, if you do so, the specified volume label must adhere to the convention shown in the table, otherwise HSM cannot use it.

Manually setting the shelving volume label is not recommended. By default, HSM uses the first shelving volume label for an archive class (for example HSA001), then increments the labels automatically (HSA002, HSA003, and so forth) as the volumes become full. If you want to remove the current shelving volume and go to the next one, use the CHECKPOINT command rather than resetting the label manually.

2.5 HSM Plus Mode Archive Class

As previously discussed, HSM Plus mode supports up to 9999 archive classes named HSM$ARCHIVE01 through HSM$ARCHIVE9999, with archive identifiers of 1 to 9999 respectively.

You must configure archive classes by using the SMU SET ARCHIVE command to identify the archive class, media type, and optionally density. When specifying media type and density, they must exactly match the corresponding media type and density defined in the MDMS TAPESTART.COM file.

Once you have defined the archive class, you can then associate archive classes with shelves and devices using appropriate commands.

Unlike HSM Basic mode, HSM Plus mode does not require special naming conventions for volumes, because MDMS chooses the volumes for HSM Plus mode to use.

2.6 Device

When setting up your HSM environment, you need to consider which nearline and offline devices you want to use. When setting up a device for HSM, you can control:

To use magneto-optical devices for shelf storage, you define these devices as caches, not as shelving devices. For more information, see See Using Magneto-Optical Devices .

Default Device (HSM$DEFAULT_DEVICE)

HSM provides a default device record that has the following attributes:

These defaults are applied if you specify a device for HSM without identifying these attributes. Once the device is defined, you can modify the attributes for that device. You also can modify the default device record attributes if you find that you are typically using a different set of attributes for your devices.

2.6.1 Sharing and Dedicating Devices

For HSM use, you can specify a nearline or offline device to be used for dedicated or shared usage.

When a device is dedicated, HSM does not release it to other applications and keeps the current volume mounted until the drive is needed for another HSM volume.

When a device is shared, HSM releases the device, and dismounts and unloads the associated media within one minute of inactivity on the device. The media is unloaded for security reasons.

When thinking about devices, you should consider the trade-offs involved in dedicating devices to HSM.

Advantages of Dedicating a Device

Dedicated devices have the following advantages:

  • The device is always available for HSM use and pending HSM operations should not be blocked by other potentially long-running applications.
  • Slow operations like tape loading and positioning are minimized, as is operator intervention.
  • Response time for shelving and unshelving operations is generally better.
Disadvantages of Dedicating a Device

Dedicated devices have the following disadvantages:

  • The device is not available for other purposes while the device is dedicated.
  • Additional nearline/offline devices may be needed for non-HSM operations.
Device Mixed Mode Operations

It is possible to operate in a mixed mode, whereby the device is sometimes shared and sometimes dedicated. For example, you can set up a scheduled policy with a script that toggles between the two modes at specified times. A useful application of this would be to dedicate devices to HSM during normal working hours and at policy execution time, but switch to shared devices during the backup cycle.

2.6.2 Device Operations

For each device, you can specify which operations are enabled. The choices are shelving and unshelving. By default, both operations are enabled when a device is specified.

When operating in Plus mode it is recommended that all devices are defined for both shelving and unshelving as MDMS, not HSM, actually chooses the optimal device. Restricting operations sometimes leads to conflicts between HSM and MDMS.

When you are using multiple devices in Basic mode, you can optimize operations by specifying that only shelving or only unshelving is enabled on the device. This will effectively guide those operations to the enabled device rather than allowing many load/unload operations as the requests come in. For example, if you are using two devices, you might specify that one is used for shelving and the other is used for unshelving. A special override allows unshelving on a shelving device if the currently mounted media contains the requested file, which is common if the file is unshelved shortly after it is shelved.

If you specify only a single device for HSM, it must support both operations for correct usage.

Media Type Compatibility

When setting up a device for HSM use, you define a media type by relating the device to one or more archive classes whose media type and density are compatible with the device.

This does not mean that shelving devices have to be identical for any archive class. For example, a TK50 device might be specified for shelving and a TK70 device be specified for unshelving. This is valid because a TK70 can read a TK50 written cartridge, but not vice versa.

However, if you do use compatible but not identical media types, you must control the operations on the devices so the tapes are always written in a compatible format. The media must be written in the format readable by both device types (in this case TK50), and all media must be in the same format for a specified archive class.

2.6.3 Devices and Archive Classes

Nearline and offline devices are associated with archive classes that relate to shelves. When specifying archive classes for shelf copies, you must consider the media type on which you want these copies to reside. Each archive class uses exactly one media type, so that all data written to a specific archive class uses compatible media. Be aware that multiple archive classes can use the same media type.

You establish the relationship between archive classes, devices, and media type by using the SMU SET DEVICE command and specifying an archive list. Remember that for HSM Plus mode, you also use the media type definitions in the MDMS TAPESTART.COM file to encapsulate the media type and drives relationship. Regardless of how archive classes and shelves relate, the relationship between archive classes and devices is not one-to-one. This means that:

See shows the archive class/media type/device relationship for three archive classes and the associated TA90 and TK50 tape devices. As shown in the figure, the two TA90 devices can each archive data belonging to their common archive classes, but the TK50 device can only operate with a single archive class.



Figure 2-3



Ideally, an HSM configuration uses identical media types for all archive classes, allowing the maximum sharing of devices, because each device could support all archive classes. However, this is not always possible or desirable. For example, you may want to define a primary archive class that uses a robot-controlled nearline device and some secondary archive classes that use human-operated 9-track magnetic tape devices.

Associating Devices with Archive Classes

When selecting the devices associated with an archive class, you should consider such aspects as:

  • Device speed
  • Automatic or human intervention for loading and unloading
  • Device cost

A robot-controlled nearline device is recommended for primary archive classes, because users will be able to access shelved files without human intervention, on a 24 - hour basis. The need for such devices is less on secondary archive classes, especially if an online cache is used (see See Cache Usage ).

2.6.4 Magazine Loaders for HSM Basic Mode

HSM Basic mode supports certain tape magazine loaders as nearline devices that can be associated with archive classes. A magazine is a stacker containing one or more tape volumes that can be loaded into a single drive. The following magazine loaders are fully supported with random-access loading and unloading of tape volumes:

HSM Basic mode supports multiple magazines, with multiple volumes per magazine. In addition, volumes for multiple archive classes may reside in a single magazine. However, there are a few restrictions that must be observed for HSM:

Magazine Initialization (Basic Mode only)

At initialization time, and when a new magazine is loaded, HSM performs an inventory on the magazine. Each volume in the magazine is loaded and mounted, and its label is noted. This information is stored in a device database, which has multiple magazine entries. This operation takes 20 to 30 minutes, during which time the drive cannot be used.

HP highly recommends that volumes are not shuffled around in a magazine or moved to different magazines after initial configuration, because this will cause HSM to perform another inventory on the magazine. If the shelf handler discovers an inventory error, it loads all volumes and retakes inventory on the magazine. A new magazine entry is entered into the database.
In addition, all existing magazine entries containing any of the volumes are then invalidated.

Under ideal circumstances, inventory on any magazine should have to be done only once, regardless of system crashes and other disruptions.

Once inventory is taken, the shelf handler uses random- access load and unload commands to load the appropriate volumes into the drive. The device database is updated on all load and unload operations, so that the state of the drive and magazine is known at all times, even after system disruptions.

If an inventory detects an illegal configuration with duplicate tape labels, the shelf handler prints an OPCOM message to the operator and will not use the magazine.

Robot Name (Basic Mode only)

When defining a device as a magazine loader, it is necessary to specify a robot name to be associated with the device. The robot name depends on the controller to which the tape device is connected, as follows:

  • A directly-connected SCSI device- such a device will have a name in the format alloc$MKxnn0:. The associated robot name is alloc$GKxnn1: or alloc$MKxnn1:. For example, for device $1$MKB100:, the associated robot name is $1$GKB101: or $1$MKB101:.
  • A directly-connected DSA device, such as a TF867-in this case, the robot name is identical to the device name, but must still be specified.
  • A device connected to an MSCP-controller, such as an HSC, HSJ or HSD - in this case, the robot name is the name of the controller's command disk. An example might be $1$DUA812:.

The robot name should include the allocation class if there is one.

Upgrading from HSM V1.x
If you are upgrading from HSM V1.x, please note that the robot name replaces the HSM$device_name logical defined for MSCP-controllers. The robot name must be specified for all Basic mode magazine loaders after installing this version before robotic operations will occur. This applies to devices connected to all types of controller.

2.6.5 Compatible Media for HSM Basic Mode

HSM Basic mode makes a first-level attempt to ensure that tape device configurations and loading are directed to compatible media. For this level, HSM ensures that the media type is physically capable of being loaded into the specified device, and that the media can support the operation. HSM also verifies that media contained in magazine loaders are not requested for nonloader drives and vice versa.

Table 2-2 lists the compatible media types HSM supports. HSM also supports unknown media types, but does not check them for compatibility. It is therefore possible to specify different types of tape devices with "Unknown" media type into an impractical configuration. If using such drives and media, you must ensure that the configuration is practical.

Table 2-2 Compatible Media Types

Devices That Write...

Can_Read...

Comments

9-Track Magtape

9-Track Magtape

No density checking is performed.

3480 Cartridge

3480 Cartridge

No compression checking is performed.

DigitalTape I

CompacTape I

TK50 Format.

DigitalTape II

CompacTape I, II

TK70 Format.

DigitalTape III

CompacTape I, II, III

TK8x

DigitalTape IV

CompacTape I, II, III, IV

Format-Number of tracks not checked.

4mmDAT

4mmDAT

Differences in length not checked.

Unknown

Any

No checking is performed.

2.6.6 Automated Loaders and HSM Plus Mode

HSM Plus mode supports automated loaders according to the MDMS functionality and requirements. In general, MDMS recognizes automated loaders and the volumes contained therein only by process of how you configure the information in TAPESTART.COM and through the STORAGE commands. For more information, see the Getting Started with HSM Chapter of the HSM Installation and Configuration Guide.

2.7 Volume

HSM allows you to customize HSM activity on a per-volume basis. By default, there is only one HSM volume entity, HSM$DEFAULT_VOLUME, which is used as the basis for HSM activity for all volumes in the cluster. You can add any number of specific volumes, each relating to a single online disk volume, as you want. Any disk volumes not associated with a specific volume entry are implicitly associated with the default volume.

Default Volume Attributes

The default volume is preconfigured with a default set of attributes. You can modify any or all of the attributes on the default volume, which are then applied to all volumes associated with the default volume. The attributes of the default volume also are used as a template for specific volume entities.

With the volume entity, you can specify the following attributes:

2.7.1 Shelf

The shelf attribute relates the disk volume definition to a single shelf definition. The shelf must be set up before associating a volume with it. For information on setting up the shelf, see See The Shelf By default, all volumes use the default shelf HSM$DEFAULT_ SHELF.

2.7.2 Shelving Operations

HSM provides volume definition options that allow you to control shelving operations on the online disk volume for which the volume definition applies. If no volume definition is found, HSM uses the HSM$DEFAULT_VOLUME definition.

The following operations can be enabled on a per-volume basis:

By default, implicit operations (high water mark, occupancy, and quota) are disabled and explicit operations (shelve and unshelve) are enabled on the volume.

2.7.3 Volume Policy

The volume policy parameters identify the policy definitions used to shelve files when a critical need for space on the disk is encountered. This policy implementation reacts to critical situations in which additional primary storage space is needed.

A reactive policy is implemented with a disk volume definition. Reactive policy determines how to react to high water mark, volume occupancy exceeded, and user disk quota exceeded events. In these instances, some event takes place that requires primary storage space be made available.

HSM takes action to make the space available only when the event takes place. A reactive policy execution can be disabled by specifying that no policy is desired for the specified event.

2.7.4 High Water Mark

You can specify a percentage of the volume's capacity that will be used as a trigger for running the occupancy policy on the volume. See See Policy for more details.

2.7.5 Files Excluded from Shelving

There are two types of files that you should give special attention to when considering their disposition in an HSM environment:

These files have special attributes when they are created that may not be possible to recreate when the files are shelved and later unshelved.

Contiguous Files

Files that are marked contiguous must occupy contiguous logical block numbers on the disk. When such a file is shelved, its storage is released. During unshelving operations, this type of file must be restored contiguously. If this is not possible because the available space on the disk is fragmented, the unshelve operation fails. To avoid this problem, you should specify that files marked contiguous are ineligible for shelving. By default, files marked contiguous are not shelvable.

Placed Files

Placed files are assigned specific logical block numbers on the disk volume when created. When such a file is shelved and later restored, it is virtually guaranteed that they cannot be restored to the originally assigned logical blocks. If the file must be assigned to the assigned logical blocks, it should not be shelved. One way of disabling such shelving is to disable shelving on all placed files on the volume. Another way is to mark the file as not shelvable using an OpenVMS command.

By default, HSM allows shelving on placed files. To prevent this behavior, you need to specifically disable shelving of placed files for the volume.

2.8 Cache Usage

The cache is storage comprised of one or more online disk storage devices or magneto-optical devices. You can use cache volumes for one of two purposes:

2.8.1 Advantages and Disadvantages of Using a Cache

By using a cache, you gain speed for shelving operations by dedicating additional online storage for the HSM system. With online cache, a shelving operation can complete in the time it takes for the files to be copied to another disk.
The archive/backup system is not needed immediately. However, you lose online storage capacity otherwise dedicated to applications and users. This is the trade-off to consider when using online cache. If your system includes some older, slower online drives, then online cache provides multilevel hierarchical storage management.

All cache devices must be system-mounted and accessible to all nodes in the cluster except when the Catalog Server facility option is enabled. In this case, the cache devices need only be system-mounted and accessible to all designated shelf server nodes.

2.8.2 Cache Flushing

Another major advantage to using online cache is that flush operations to
nearline/offline storage can be performed at regular intervals. These flush operations are optimized to reduce the amount of tape reloading and positioning compared to individual shelve operations directly to tape. This is especially true when multiple archive classes are specified, and the archive classes are sharing devices.

2.8.3 Cache Attributes

You can specify the following attributes for each online disk volume supporting the cache:

2.8.3.1 Timing of Shelf Copies

You can specify that data copies to the shelf archive classes be performed at one of two times:

  • When the file is shelved
  • When the cache is flushed

By default, the shelf copies are made when the cache is flushed, and this is the recommended mode of operation when using the cache as a staging area. With this configuration, operations to and from the cache are fast, taking about as much time as a normal disk copy.

Permanent Cache

If you are using the cache as a permanent shelf instead of a staging area (for example, using a magneto-optical device), there is no cache flushing, so any shelf copies need to be made at shelving time. When the shelf copies are made at flush time, the shelving process is not complete until all shelf copies of a file have been made to the shelf archive classes.

2.8.3.2 Cache Block Size

You can specify the maximum amount of space on the online volume to be used for HSM caching. HSM never exceeds this amount. If shelving a file would exceed this amount, it is diverted to another cache device that can hold the data, or the file is copied directly to the shelf archive classes.

To allow an unlimited amount of space on a disk to be used for caching, you can enter a block size of zero, which defaults to the device capacity. This is useful when using magneto-optical devices as a permanent shelf.

If you do not specify a block size, HSM uses a default value of 50,000 blocks.

2.8.3.3 High Water Mark

You can specify that a cache flush be triggered when a specified percentage of the cache block size is exceeded. In this way, you should never get into a situation where the block size is exceeded. By default, cache flushing begins when 80 percent of the block size is used.

2.8.3.4 Cache Flush Interval

In addition to high water mark cache flushing, you also can flush the cache at regular intervals. This allows you to restrict all nearline or offline shelving operations to occur at a specific time of day, ideally at times other than during the backup cycle. By default, the cache is flushed every 6 hours.

2.8.3.5 Cache Flush Delay

In conjunction with the flush interval, you can specify a delay to start the first cache flush. Thereafter, the delay is used in conjunction with the interval to flush at regularly timed intervals.

2.8.3.6 Delete and Modify File Action

You can specify how the cache reacts when an online file that is shelved to the cache is deleted, or if it is unshelved and modified. You can choose that the file remains in the cache when these events occur, or is deleted together with its associated catalog entries. The former action is safer in that the cache copy can be used to recover the file data if it is erroneously deleted or modified. However, it also means that extraneous copies of obsolete data are retained in the cache, which may eventually be flushed to tape. When migrated to tape, shelf options such as delete save time and number of updates can be used to purge any obsolete data during a repack operation.

2.8.4 Optimizing Cache Usage

The following guidelines on configuring the cache will provide optimal HSM performance for all users on the cluster:

By using a cache effectively, you are using HSM in the most efficient way and providing the best overall service to the system users.

2.8.5 Using Magneto-Optical Devices

Magneto-optical (MO) devices make an ideal repository for shelved file data, because their cost is significantly lower than magnetic disks but their response time is good. HSM supports magneto-optical as cache devices only; they cannot be defined like tape devices to support archive classes.

To configure a magneto-optical device, you should define a label and mount the volume as a normal Files-11 disk. The volume label should not be an HSM label in the HSxxxx format, but should be of the system administrator's choosing. If you are using a magneto-optical robot loader with multiple platters, each platter that you want HSM to use should:

You can define the magneto-optical devices as either a cache staging area, or as a permanent shelf for fast response time using the /BACKUP attribute of the SET CACHE command. For more information and an example, see the SMU SET CACHE command in HSM Command Reference Guide.

2.9 Policy

HSM policy is at the center of the shelving process. The policy options you define establish the conditions that start the shelving process and determine the amount of primary storage available when shelving operations end.

2.9.1 HSM Policy Options

HSM policies are implemented through the available file selection options. These options allow you to define how HSM will implement storage management on your system. The HSM policy file selection options which may be set are:

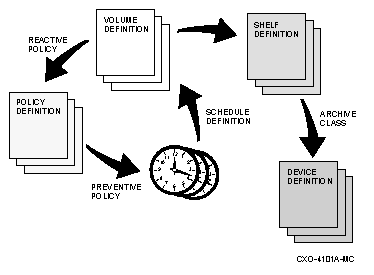

Figure 2-4 shows the general sequence of HSM policy operations. Once a reactive or preventative policy is established, system operations continue normally until a trigger event occurs. The trigger event activates HSM policy and files are shelved in accordance with the file selection criteria until the policy goal is reached.

2.9.2 Trigger Events

The trigger is an event that causes the shelving process to begin moving files to shelf storage. These events activate HSM policies that fall into two general categories, based on the kind of trigger used:

When you install HSM, you get a set of default policy definitions. You can obtain the most value from HSM by modifying the default preventive and reactive policies according to the exact types and usage of data in your installation and the specific archive storage devices that are installed.

Figure 2-4



2.9.2.1 Scheduled Trigger

A scheduled trigger is generated according to a schedule definition. You define a schedule that specifies a time interval on which HSM initiates the shelving process. This trigger, used with appropriate file selection criteria, makes sure enough online capacity is available to meet a steady demand for storage space.

2.9.2.2 User Disk Quota Exceeded Trigger

The user disk quota exceeded trigger is an event that occurs when a process requests additional online storage space that would force it to exceed the allowable permanent disk quota. The shelving process selects to shelve files owned by the owner of the file being created or extended. This trigger, used in conjunction with an appropriately designed file selection criteria, provides enough online disk space to satisfy the request. This trigger uses the quota policy defined for the volume. The shelving process initiated with the disk quota exceeded trigger shelves files owned by the owner of the file being created or extended. This trigger is independent of the owner of the process that extends the file; only the file ownership is significant.

For example, if user A creates a file, and user B extends the file beyond user A's disk file quota, user A's files will be shelved.

2.9.2.3 High Water Mark Trigger

The high water mark trigger is an event that occurs when the amount of online disk storage space used exceeds a defined percentage of capacity. The HSM system regularly polls all online disk devices and compares the used storage with a defined value. This trigger, used with appropriately designed file selection criteria, ensures enough online capacity is available to meet a steady demand of storage space. This trigger uses the occupancy policies defined for the volume.

2.9.2.4 Volume Full Trigger

The volume full trigger is an event that occurs when the file system encounters a request for more space than is currently available on the disk volume. This trigger, used in conjunction with an appropriately designed file selection criteria, provides enough online disk space to satisfy the request. This trigger uses the occupancy policies defined for the volume. The shelving policy implemented with the volume full trigger shelves any files on the disk volume that meet the defined file selection criteria.

2.9.3 File Selection Criteria

The file selection criteria determine the best files to be shelved in response to the need for shelving. You define the file selection criteria depending on your need to create and access data.

Examples of file selection criteria include:

Selecting Files Based on Time

The first consideration for defining file selection criteria involves selecting files that have been accessed or that have expired within a certain time frame. There are four file dates from which to choose:

  • Expiration (default)
  • Creation
  • Modification
  • Backup

OpenVMS does not support a last access date as such. However, you can set up policies using an effective last access date by:

  • Setting volume retention time on each volume
  • Using the expiration date as the selection criteria for HSM policies

Using the expiration date coupled with volume retention time is the recommended and default configuration for HSM policies. This ensures that files are shelved only if they have not been accessed for read or write operations within a certain time frame. Use of the other date fields, while supported, may result in some frequently-accessed files being shelved.

For more information, see See Using Expiration Dates.

Candidate file ordering is then achieved by using one of the following algorithms which use the specified date:

  • Least recently used (LRU)
  • Space time working set (STWS)
Least Recently Used

The least recently used policy selects files based on the selected date option and the last time the date changed. It creates a listing of files ranked from the greatest time since last accessed to the smallest time since last accessed.

Space Time Working Set

The space time working set policy selects files based on a combination of the file size and the LRU ranking. STWS is the product of the file size and the time since last access. Candidates are ordered from the greatest to the least ranking value returned for all files. Larger files tend to be ranked higher than smaller files.

Script

The script is a DCL command file containing SHELVE, PRESHELVE, or UNSHELVE commands. Other DCL commands also may be included.

Primary and Secondary Policy

Each HSM policy supports both a primary and a secondary policy definition. The primary policy definition is always executed. If the volume's lowwater mark is reached after the primary policy execution completes, the secondary policy definition is not executed. If the volume's lowwater mark is not reached after the primary policy execution completes, the secondary policy definition may be executed. This second execution occurs only when either one or both policy definitions is a user-defined script.

Refer to the SMU SET POLICY command description in HSM Command Reference Guide for a detailed description of primary and secondary policy.

File Exclusion Criteria

When using the predefined file selection algorithms STWS and LRU, you can specifically exclude files that may be selected based on a relative or absolute date. For example, you may want to always exclude files that have been accessed within the last 60 days. There are three fields from which you can choose to exclude files:

  • Elapsed time - Specified as a delta-time, this is a relative period of time that applies to the selected date, which exclude files from being shelved during the policy execution. For example, if you specify the expiration date with volume retention, and an elapsed time of 180 days, then files accessed within the last 180 days are excluded from shelving. This is the default value.
  • Before time - Specified as an absolute time, this restricts shelving of files to those accessed before a certain date. For example, if you specify modification date and a before time of 01-Jan-1999, then only files that had been modified before 01-Jan-1999 will be eligible for shelving.
  • Since time - Specified as an absolute time, this restricts shelving of files to those accessed after a certain date. For example, if you specify creation date and a since time of 30-Jun-1998, then only files that were created after 30-Jun-1998 are eligible for shelving.

Specifying a relative elapsed time is mutually exclusive of defining absolute before and/or since times. The time fields apply to only the predefined STWS and LRU algorithms. They do not apply to script files.

Script Files

A script file is a user-written command procedure that can be executed instead of the pre-defined algorithms supplied with HSM. When the script file is executed, parameter P1 contains the name of the volume on which the policy was triggered. This can be used to perform custom shelving operations on the specified volume. When a script is defined, the file selection criteria, file exclusion criteria and goal defined for the policy are not applied. The script file executes to completion exactly as written in all cases.

2.9.4 Policy Goal

The goal is the condition that causes the shelving process to stop. There are two ways to reach the shelving goal:

The low water mark is checked at the completion of, but not during, a script execution. The secondary policy is run if the primary policy did not reach the low water mark.

2.9.5 Make Space Requests and Policy

Make Space Requests

When an application or user creates or extends a file, the operation may not complete because the disk volume is full or the user has exceeded his disk quota. If shelving is enabled on the volume, this situation generates a make space request to HSM to free up enough disk space to satisfy the request. If responding to make space requests is enabled, HSM executes the defined policy for the volume and shelves enough files to free up the requested space. While shelving files, HSM sends an informational message to notify the user that the file access may take much longer than usual due to the shelving activity. After the requested disk space is made available, the create or extend operation continues normally. If for any reason the make space operation fails, the user's original request to create or extend a file fails with one of the following two error messages:

%SYSTEM-E-DEVICEFUL, device full - allocation failure

or

%SYSTEM-E-EXDISKQUOTA, exceeded disk quota

Because make space operations may take a significant amount of time, and because you may prefer certain applications to issue an immediate error rather than wait for the request to complete, you can disable make space requests on a per- policy, per-volume, or per-process basis.

Make Space Policy

Make space requests start a policy execution for the volume. The user process that requested the make space allocation is allowed to continue as soon as the amount of space allocation that was requested is satisfied. However, in anticipation of future make space requests, the policy continues executing until a defined low water mark is reached. Make space requests cannot free up space below the defined low water mark.

If the make space operation is triggered by a user disk quota exceeded condition, the files are selected based on the owner of the file being created or extended, rather than the user of the requesting process.

The cause of a make space request determines the scope of online disk storage that is involved with file selection as follows:

WHEN the make space request is initiated by...

THEN...

A high water mark reached or volume full event

All files on the disk volume are potential candidates for the file selection process.

A user disk quota exceeded event

Only files owned by the user whose disk quota was exceeded are potential candidates for the file selection process._

2.10 Schedule

To prevent storage problems, you set up scheduled execution for preventive policies at regular intervals. HSM provides the capability to schedule policy execution with the following attributes:

2.10.1 Online Volumes

When you schedule a policy execution, you specify the online volumes on which to apply the policy. When setting up a schedule, a separate entry is created for the policy execution for each volume. The volume selection should be based on the goal of maintaining volume capacity between the low water mark and the high water mark at all times. Thus, you need to schedule policies to execute more often on those volumes on which files are frequently created or modified and less often on those volumes on which files are infrequently created or modified.

2.10.2 Execution Timing and Interval

Policies can be scheduled to execute at a certain time of day, and at regular intervals. HP recommends you run nightly scheduled policy runs at an hour that does not conflict with high system activity or system backups. Ideally, the frequency of policy runs should coincide with the rate of new data creation on the specified volumes. The preventive policy should be run prior to the volume reaching its high water mark capacity, so that all shelving operations can be controlled to occur at certain times of day. This not only reduces overhead of reactive policy execution during the period of high system activity, but also minimizes the use of nearline/offline resources for HSM purposes.

2.10.3 Server Node

You can specify the node on which you want the policy to run. Although policies can run on any node that has access to the online volume, cache devices, and nearline/offline devices, it is more efficient if it runs on a shelf server node. If the shelf server node changes, you can use HSM's requeue feature to requeue any and all policy entries to run on an alternative shelf server node.

2.11 HSM System Files and Logical Names

HSM uses four logical names that point to devices and directories that hold important files for HSM operations. The logical names are needed because different levels of data reliability are required to ensure proper HSM operation, and for the security of user data. The four logical names are:

The first three logical names must be defined at installation, or later, as system wide logical names affecting all processes. Moreover, the definitions must be the same on all nodes in the cluster. The logical name HSM$REPACK is optional.

HSM$CATALOG The HSM$CATALOG logical name points to the location of the default HSM catalog. The catalog contains the information needed to locate a shelved file's data in the cache or the shelf. HSM supports multiple catalogs, which can be specified on a per-shelf basis.

Loss of any catalog is a critical problem and will probably result in losing the data for shelved files served by that catalog.

HSM catalogs are considered critical files and should be stored on devices and in a directory that has the maximum protection for loss. In particular:

The size of the catalog file depends on the number of files you intend to shelve on the system. Approximately 1.25 blocks are used for each copy of a file in the cache or the shelf. When a cache copy is flushed to the shelf, the cache catalog entry is deleted. However, copies to the nearline/offline shelf remain permanently in the catalog. For information on backing up the catalog, see See Managing HSM Catalogs .

2.11.1 HSM$MANAGER

The files stored in the location referenced by HSM$MANAGER are important in HSM operations, but can usually be recovered. These files include:

Loss of these files will result in a temporarily unusable HSM system, until SMU commands are entered to restore the environment. However, as long as the catalog is available, user data can be recovered. Although the critical level of files in HSM$MANAGER is not as high as HSM$CATALOG, the same protection mechanisms are recommended, if possible. At a minimum, a backup of the current SMU database should always be available. The size of the files in HSM$MANAGER is relatively fixed, but depends on the number of nodes in the cluster. You should allocate 5000 blocks plus 2049 blocks for each node in the cluster.

2.11.2 HSM$LOG

HSM uses the HSM$LOG location for storing event logs. These logs are written during HSM operation, but their content is designed for the use of the system administrator to monitor HSM activity. As such, their existence is not critical. The size of the event log files can grow rather large if not maintained. However, once the logs have been analyzed by the system administrator, they can be RESET and then deleted.

The directory specified by HSM$LOG should have no version limit for files. Failure to do this could result in HSM not starting up on some nodes.

2.11.3 HSM$REPACK

HSM uses the optional HSM$REPACK logical name to point to a staging area used while repacking archive classes. If the logical name is not defined, the repack function uses HSM$MANAGER instead. Repack needs a staging area in order to repack files into multi-file savesets. The staging area must be at least 100,000 blocks for repack to function. The staging area is cleaned up after a repack operation.

Repack can be a time consuming process if the catalogs are huge. Repack can be performed in 2 phases which is facilitated by the use of the following qualifiers:

If REPORT option is specified, Repack will only perform the analysis phase of a repack and not actual repacking. This feature would be extremely useful for a system manager to:

If used with the /SAVE option, the resultant candidates file will be saved and can be used in subsequent repack/s if the system manager wants the entire repack, as analyzed, to proceed.

Since repacks can take several hours/days to complete, it would be useful to allow the continuation of a repack that had been interrupted for any reason. The /RESTART qualifier would help do this along with /SAVE which would preserve the current candidates file. The repack can be started later from where it left off, without a further analysis or repacking files/volumes that had already been repacked.

3

Customizing the HSM Environment

This chapter provides a task-oriented description for changing the HSM environment to better suit your operating environment. It contains the following sections:

For a complete example of a custom configuration for HSM Basic mode or PLUS mode, see the Appendix in the HSM Installation Guide.

3.1 Configuring a Customized HSM Environment

This section describes the various definitions used to customize an HSM environment and the operations enabled and disabled by each command.

3.1.1 Customizing the HSM Facility

Commands submitted to the HSM facility control operations across the entire cluster.

Enabling and Disabling the Facility

The following options are for enabling or disabling the HSM facility using the SMU SET FACILITY command.

IF You Want to . . .

THEN Use . .

Enable all HSM operations on the cluster

SMU SET FACILITY /ENABLE=ALL

Enable shelving operations throughout the cluster

SMU SET FACILITY /ENABLE=SHELVE

Enable unshelving operations throughout the cluster

SMU SET FACILITY/ENABLE=UNSHELVE

Disable all HSM operations on the cluster

SMU SET FACILITY /DISABLE=ALL

Disable shelving operations throughout the cluster

SMU SET FACILITY /DISABLE=SHELVE

Disable unshelving operations throughout the cluster

SMU SET FACILITY /DISABLE=UNSHELVE

3.1.2 Creating Shelf Definitions

Create shelf definitions that include the archive classes for shelving and unshelving data.



Limitations

The following limitations apply to the number of archive classes, volume sets per archive class, and members per volume set:

For

Basic Mode Limit

Plus Mode Limit

Shelve archive classes

10

10

Restore archive classes

36

36

Total archive classes

36

9999

Tape volume sets

36

Unlimited

Tape volumes per set

99

Unlimited

Prevent Inadvertent Application

To prevent inadvertent application of a new shelf definition, disable all operations with the /DISABLE=ALL qualifier and value.

3.1.3 Enabling and Disabling a Shelf Definition

There are three options for enabling and disabling shelving operations that use a particular shelf. The following table lists the options that may be used with the SET SHELF /ENABLE or SET SHELF/DISABLE command.

IF You Want to Control . . .

THEN Use Option . . .

All HSM operations using the named shelf

ALL

Shelving operations using the named shelf

SHELVE

Unshelving operations using the named shelf

UNSHELVE

3.1.4 Modifying Archive Classes

HSM provides multiple archive classes for you to use. You cannot modify the archive class names. You can, however, determine the devices to which an archive class is written and reassign volumes to allow you to move archive class to offsite storage.

IF You Want to . . .

THEN Use . . .

Dismount the current tape volume for specific archive class and continue shelving operations with the next volume in the archive class sequence a

SMU CHECKPOINT archive_id

Assign a nearline or offline tape device or magazine loader to a specific archive class

SMU SET DEVICE/ARCHIVE_ID

In HSM Plus mode, you can modify the media type and density only if the archive class has not been used and no devices or shelves reference the archive class. You can add or remove volume pools as desired.

3.1.5 Creating Device Definitions

Create device definitions to identify the devices you will use for shelving operations. Also decide whether to dedicate the devices for the sole use by HSM or to share them with other applications.

3.1.6 Modifying Device Definitions

The device definitions let HSM know which devices to use for a given archive class and whether to dedicate or share the devices.

IF You Want to...

THEN Use...

Associate a device with a specific archive class

SMU SET DEVICE/ARCHIVE_ID

Dedicate a device to be used only by HSM

SMU SET DEVICE/DEDICATE

Allow other operations to share a device with HSM

SMU SET DEVICE/SHARED

Remove a device definition from the database

HSM SMU SET DEVICE/DELETE

Disable a device for HSM use

SMU SET DEVICE/DISABLE

Enable a device for HSM use

SMU SET DEVICE/ENABLE

3.1.7 Enabling and Disabling a Volume Definition

The volume definition allows you to enable and disable specific reactive policy operations or control operations on the entire volume.

IF You Want to Control ...

THEN Use Option/Qualifier...

All HSM operations on the named volume

SMU SET VOLUME/{ENABLE | DISABLE}=ALL

Shelving operations on the named volume

SMU SET VOLUME/{ENABLE |DISABLE}=SHELVE

Unshelving operations on the named volume

SMU SET VOLUME/{ENABLE | DISABLE}=UNSHELVE

Shelving operations initiated by the high water mark event

/SMU SET VOLUME/{ENABLE | DISABLE}=HIGHWATER_MARK

Shelving operations initiated by the volume full event

/SMU SET VOLUME/{ENABLE | DISABLE}=OCCUPANCY

Shelving operations initiated by the user disk quota exceeded event

/SMU SET VOLUME/{ENABLE | DISABLE}=QUOTA

3.1.8 Working with Caches

HSM allows you to defines temporary caches or permanent caches. If you want to use magneto-optical devices with HSM, you must define them as a cache

.

IF You Want to . . .

THEN Use . . .

Define an online disk cache

SMU SET CACHE

Tell the cache to flush its data to nearline or offline storage

SMU SET CACHE/AFTER

Control whether the data shelved through the cache is copied to nearline or offline storage when shelving occurs or when the cache is flushed (/NOBACKUP)(/BACKUP)

SMU SET CACHE/{BACKUP | NOBACKUP}

Control whether files shelved to the cache are deleted when the online file is deleted or modified

SMU SET CACHE/[NO]HOLD

Define a magneto-optical device as a permanent cache !/SMU SET CACHE/BLOCK=0/BACKUP /NOINTERVAL/HIGHWATER_MARK=100

3.1.9 Enabling and Disabling a Policy Definition

You can enable or disable specific policy definitions.

IF You Want to . . .

THEN Use . . .

Enable a policy definition

SMU SET POLICY/ENABLE

Disable a policy definition

SMU SET POLICY/DISABLE

Disabling a policy definition affects both primary and secondary policy as follows:

3.1.10 Scheduling Policy Executions

Once you have defined and enabled preventive policies, you may want to ensure they run only at particular times or according to some specific interval.

IF You Want to . . .

THEN Use . . .

Schedule a policy to run immediately

SMU SET SCHEDULE/AFTER

Schedule a policy to run after a specific time

SMU SET SCHEDULE/AFTER=time

Schedule a policy to run according to a regular time interval

SMU SET SCHEDULE/INTERVAL=delta

Schedule a policy to run on a specific shelf server name

SMU SET SCHEDULE/SERVER=node

3.2 Implementing Shelving Policies

After installing HSM, you can consider, then implement, your own policies. This section provides a series of tasks implementing both preventive and reactive policies. The guidelines expressed in this section include the commands, definitions, and values that apply to each aspect of creating and implementing policy.

See HSM Command Reference Guide for a complete description of the commands used in this section.

3.2.1 Determining the Disk Volumes

Determine the disk volumes on which you want to manage storage capacity. The following example commands are used to perform this task.

To . . .

Use This Command . . .

Determine names of online disk volumes and the amount of capacity used

$ SHOW DEVICE

Determine user disk quotas and shelving option in user processes

$ RUN SYS$SYSTEM:AUTHORIZE UAF>SHOW username

3.2.2 Creating Volume Definitions

Create volume definitions for the disk volumes. Use the SMU SET VOLUME command to create a volume definition and consider the capabilities offered by the volume definitions.

To . . .

Use the Qualifier . . .

Shelve contiguous files Enable all HSM operations and policies on the volume.

/CONTIGUOUS/ENABLE=ALL

Enable the volume for handling a specific trigger condition

/ENABLE=OCCUPANCY or /ENABLE=QUOTA or /ENABLE=HIGHWATER_MARK

Enable shelving or unshelving operations on the volume

/ENABLE=SHELVE or /ENABLE=UNSHELVE

Disable all HSM operations and policies on the volume.

/DISABLE=ALL

Disable the volume for handling a specific trigger condition.

/DISABLE=OCCUPANCY or /DISABLE=QUOTA or /DISABLE=HIGHWATER_MARK

Disable shelving or unshelving operations on the volume

/DISABLE=SHELVE or /DISABLE=UNSHELVE

Define a high water mark for the volume.

/HIGHWATER_MARK=percent

Specify the policy to be executed for volume full or high water mark events.

/OCCUPANCY=policy_name

Specify whether placed files can be shelved.

/PLACEMENT (default)

Specify the policy to be executed for user disk quota exceeded events

/QUOTA=policy_name

Identify the shelf on which to shelve this volumeís data. If you do not specify a shelf, HSM uses_HSM$DEFAULT_SHELF

/SHELF_NAME=shelf_name

Prevent Inadvertent Application

To prevent application of a new volume definition before you are ready to do so, disable all operations with the /DISABLE=ALL qualifier and value.

Contiguous Files

Files marked contiguous are not normally shelved. If they are, they must be unshelved contiguously. The operation fails if the files cannot be unshelved contiguously.

3.2.3 Determining File Selection Criteria

Determine how files should be selected for shelving on a regular basis. The following list gives you some planning considerations:

3.2.4 Creating Policy Definitions

Create policy definitions that specify the file selection criteria anticipated to be most useful. Use the SMU to create a policy definition considering the capabilities offered.

IF you want to . . .

THEN Use . . .

Choose a file event and time frame

/BACKUP, /CREATED, /EXPIRED, or/MODIFIED, and /BEFORE, /ELAPSED, or /SINCE

Implement file selection algorithms

LRU, STWS or /PRIMARY_POLICY and /SECONDARY_POLICY SCRIPT.

Confirm operations with the policy

/CONFIRM

Use a log file to monitor operations with the policy definition

/LOG

Specify preshelving instead of shelving operations. Note that preshelving is only useful for preventive policies because preshelving does not free disk space

PRESHELVE command

Prevent Inadvertent Application

To prevent inadvertent application of a new policy definition, disable all operations with the /DISABLE qualifier.

3.2.5 Using Expiration Dates

If you plan on using a files expiration date as an event for file selection, you must make sure the OpenVMS file system is processing them. Follow the procedure in See Procedure for Setting File Expiration Dates to establish file expiration dates for the files on the disk volumes.

Verifying Privileges

You must be allowed to enable the system privilege SYSPRV or have write access to the disk volume index file to perform this procedure.

Setting File Expiration Dates

To set file expiration dates, follow the procedure in See Procedure for Setting File Expiration Dates . For more information about the OpenVMS command SET VOLUME/RETENTION, see the OpenVMS DCL Dictionary.

Table 3-1 Procedure for Setting File Expiration Dates

Step

Action

1

Enable the system privilege for your process:$ SET PROCESS/PRIVILEGE=SYSPRV

2

Enable retention times for each disk volume on your system:$ SET VOLUME/RETENTION=(min,[max])
For min and max, specify the minimum and maximum period of time you want the files retained on the disk using delta time values. If you enter only one value, the system uses that value for the minimum retention period and calculates the maximum retention period as either twice the minimum or as the minimum plus 7 days, whichever is less.

Once you set volume retention on a volume, and define a policy using expiration date as a file selection criteria, the expiration dates on files on the volume must be initialized. HSM automatically initializes expiration dates on all files on the volume that do not already have an expiration date upon the first running of the policy on the volume. The expiration date is set to the current date and time, plus the maximum retention time as specified in the SET VOLUME/RETENTION command.

After the expiration date has been initialized, the OpenVMS file system automatically updates the expiration date upon read or write access to the file, at a frequency based on the minimum and maximum retention times.

Example of Setting Volume Retention

The following command sets the minimum retention period to 15 days and the maximum to 20 days:

$ SET VOLUME DUA0: /RETENTION=(15-0:0, 20-0:0)

The following command sets the minimum retention period to 3 days and calculates the maximum. Twice the minimum is 6 days; the minimum plus 7 days is 10. Thus, the value for the maximum is 6 days because that is the smaller value:

$ SET VOLUME DUA1: /RETENTION=(3)

If you are not already using expiration dates, the following settings for retention times are suggested:

$ SET VOLUME/RETENTION=(1-, 0-00:00:00.01)

3.2.6 Creating Schedule Definitions

Use the SMU SET SCHEDULE command to create the schedule definitions that apply the policy definitions to the volume definitions.

IF You Want To

THEN Use the Qualifier

Confirm operations with the schedule

/CONFIRM

Specify the time that the schedule should be first implemented and the interval thereafter at which the policy will be applied to the volume

/INTERVAL and /AFTER



3.2.7 Enabling Preventive Policy

Enable preventive policy on the system by enabling and disabling operations as follows:

Definition

Enable or Disable Qualifiers

Volume

/ENABLE=(SHELVING,UNSHELVING)/DISABLE=(HIGHWATER_MARK,OCCUPANCY,QUOTA)

Policy

/ENABLE

Shelf

/ENABLE=ALL



4

Using HSM

This chapter contains information about what a user, not the storage administrator or operator, sees in an HSM environment and explains HSM functions the user can control. It includes the following topics:

4.1 What the User Sees in an HSM Environment

If the storage administrator has defined policies that control file shelving and unshelving, you (as a typical user) may not be aware that HSM is on the system. Shelving and unshelving files may be almost transparent to you. Or, you may work in an environment where the storage administrator lets you do more of your own data management, in which case you will know HSM is installed. Whether or not you know HSM is on your system, there are some things you will see that let you know just what is going on. There are a few specific ways you will know that HSM is on the system:

4.1.1 Identifying Shelved Data using the DIRECTORY Command

As described in Chapter 1, HSM shelves file data but retains the file header information in online storage. You can use the DCL DIRECTORY command, with specific qualifiers, to determine if a file is shelved.

To find out which, if any, files have been shelved, use one of the following qualifiers on the DCL DIRECTORY command:

4.1.1.1 DIRECTORY/FULL

The DIRECTORY/FULL command lists all available information about a file as contained in the file header.

Example:

$ DIR/FULL
Directory SYS$SYSDEVICE:[COLORADO]
CONFIG_LOG.TXT;1 File ID: (3346,2,0)
Size: 56/0 Owner: [COLORADO]
Created: 07-Jan-2004 12:04:56.85
Revised: 07-Jan-2004 14:24:01.41 (7)
Expires: <None specified>
Backup: <No backup recorded>
Effective: <None specified>
Recording: <None specified>
File organization: Sequential
Shelved state: Shelved
File attributes: Allocation: 0, Extend: 0, Global buffer
count: 0
Version limit: 3
Record format: Variable length, maximum 137 bytes
Record attributes: Carriage return carriage control
RMS attributes: None
Journaling enabled: None
File protection: System:RWED, Owner:RWED, Group:RE, World:R
DECW$SM.LOG;2 File ID: (3270,13,0)
Size: 5/6 Owner: [COLORADO]
Created: 07-Jan-2004 08:16:14.08
Revised: 07-Jan-2004 14:24:01.47 (3)
Expires: <None specified>
Backup: <No backup recorded>
Effective: <None specified>
Recording: <None specified>
File organization: Sequential
Shelved state: Online
File attributes: Allocation: 6, Extend: 0, Global buffer
count: 0
Version limit: 3, Not shelvable
Record format: VFC, 2 byte header
Record attributes: Print file carriage control
RMS attributes: None
Journaling enabled: None
File protection: System:RWED, Owner:RWED, Group:RE, World:
Access Cntrl List: None

4.1.1.2 DIRECTORY/FULL for Unpopulated Index Files

If you shelve an empty (unpopulated) index file, the file size will look different after you shelve it if you do a DIRECTORY/FULL on the file. In Example 4-1 notice that the file size before shelving is 3/3 and after shelving, its 0/0. When you see this, do not be alarmed. No data has been lost. This is a normal representation of an unpopulated index file.

Shelve an empty (unpopulated) indexed file

$ CREATE/FDL=HSM$CATALOG.FDL EMPTY_INDEXED.DAT
$ DIRECTORY/FULL EMPTY_INDEXED.DAT
Directory DISK$USER1:[SHELVING_FILES]
Example 4-1 (Cont.) Shelve an empty (unpopulated) indexed file
EMPTY_INDEXED.DAT;1 File ID: (645,26,0)
Size: 3/3 Owner: [SYSTEM]

Created: 07-Jan-2004 14:18:13.79
Revised: 07-Jan-2004 14:18:13.93 (1)
Expires: <None specified>
Backup: <No backup recorded>
Effective: <None specified>
Recording: <None specified>
File organization: Indexed, Prolog: 3, Using 5 keys
Shelved state: Online
File attributes: Allocation: 3, Extend: 0, Maximum bucket size: 2
Global buffer count: 0, Version limit: 3
Contiguous best try
Record format: Variable length, maximum 484 bytes, longest 0 bytes
Record attributes: None
RMS attributes: None
Journaling enabled: None
File protection: System:R, Owner:RWED, Group:, World:
Access Cntrl List: None
Total of 1 file, 3/3 blocks.
$ SHELVE EMPTY_INDEXED.DAT
$ DIRECTORY/FULL EMPTY_INDEXED.DAT
Directory DISK$USER1:[SHELVING_FILES]
EMPTY_INDEXED.DAT;1 File ID: (645,26,0)
Size: 0/0 Owner: [SYSTEM]
Created: 07-Jan-2004 14:18:13.79
Revised: 07-Jan-2004 14:18:13.93 (5)
Expires: <None specified>
Backup: <No backup recorded>
Effective: <None specified>
Recording: <None specified>
File organization: Indexed, further information shelved
Shelved state: Shelved
File attributes: Allocation: 0, Extend: 0, Maximum bucket size: 2
Global buffer count: 0, Version limit: 3
Contiguous best try
Record format: Variable length, maximum 484 bytes, longest 0 bytes
Record attributes: None
RMS attributes: None
Journaling enabled: None
File protection: System:R, Owner:RWED, Group:, World:

Total of 1 file, 0/0 blocks.

4.1.1.3 DIRECTORY/FULL for Populated Indexed Files

When you shelve a populated index file, and do a DIRECTORY /FULL on it afterwards, the file size will look different afterwards. In Example 4-2 you will notice that the file size went from 84/84 to 84/0. This is normal. The displayed size of a populated indexed file appears normal in the directory listing.

Shelve a Populated indexed file

$ COPY HSM$CATALOG:HSM$CATALOG.SYS POPULATED_INDEXED.DAT
$ DIRECTORY/FULL POPULATED_INDEXED.DAT
Directory DISK$USER1:[SHELVING_FILES]
POPULATED_INDEXED.DAT;1 File ID: (691,51007,0)
Size: 84/84 Owner: [SYSTEM]
Created: 07-Jan-2004 14:30:47.15
Revised: 07-Jan-2004 14:30:47.31 (1)
Expires: <None specified>
Backup: <No backup recorded>
Effective: <None specified>
Recording: <None specified>
File organization: Indexed, Prolog: 3, Using 5 keys
Shelved state: Online
File attributes: Allocation: 84, Extend: 0, Maximum bucket size: 2
Global buffer count: 0, Version limit: 3
Record format: Variable length, maximum 484 bytes, longest 0 bytes
Record attributes: None
RMS attributes: None
Journaling enabled: None
File protection: System:RWED, Owner:RWED, Group:RE, World:
Access Cntrl List: None
Total of 1 file, 84/84 blocks.
$ SHELVE POPULATED_INDEXED.DAT;1
$ DIRECTORY/FULL POPULATED_INDEXED.DAT
Directory DISK$USER1:[SHELVING_FILES]
POPULATED_INDEXED.DAT;1 File ID: (691,51007,0)
Size: 84/0 Owner: [SYSTEM]
Created: 07-Jan-2004 14:30:47.15
Revised: 07-Jan-2004 14:30:47.31 (5)
Expires: <None specified>
Backup: <No backup recorded>
Effective: <None specified>
Recording: <None specified>
File organization: Indexed, further information shelved
Shelved state: Shelved
File attributes: Allocation: 0, Extend: 0, Maximum bucket size: 2
Global buffer count: 0, Version limit: 3

Record format: Variable length, maximum 484 bytes, longest 0 bytes
Record attributes: None
RMS attributes: None
Journaling enabled: None
File protection: System:RWED, Owner:RWED, Group:RE, World:
Total of 1 file, 84/0 blocks.

4.1.1.4 DIRECTORY/SHELVED_STATE

The DIRECTORY/SHELVED_STATE command lists the files and a keyword that tells you if the file is online or shelved.

Example:

$ DIR/SHELVED
Directory DISK$MYDISK:[IAMUSER]
A1.DAT;1 Shelved
AA.A;1 Shelved
BAD_LOGIN.COM;1 Shelved
BOINK.EXE;1 Shelved
BUILD.DIR;1 Online
CLUSTER_END_031694.COM;1
Shelved
CLUSTER_TEST_030194.COM;2
Shelved
CLUSTER_TEST_030394.COM;1
Shelved
CMA.DIR;1 Online
CODE.DIR;1 Online
COSI.DIR;1 Online
COSI_TEST.DIR;1 Online
...
Z6.DAT;1 Shelved
Z7.DAT;1 Shelved
Z8.DAT;1 Shelved
Z9.DAT;1 Shelved
Total of 153 files.

4.1.1.5 DIRECTORY/SIZE

The DIRECTORY/SIZE command lists the size of the files in the directory. The allocated file size for a shelved file is 0. If you use /SIZE=ALL, OpenVMS displays both the used and allocated blocks for the files (as shown in the example below). If you use /SIZE=ALLOC, OpenVMS displays only the allocated file size for the files.

Example:

$ DIR/SIZE=ALL
Directory DISK$MYDISK:[IAMUSER]
A1.DAT;1 1/0
AA.A;1 5/0
BAD_LOGIN.COM;1 6/0
BOINK.EXE;1 10/0
BUILD.DIR;1 4/24
CLUSTER_END_031694.COM;1 2/0
CLUSTER_TEST_030194.COM;2 1/0
CLUSTER_TEST_030394.COM;1 1/0
CMA.DIR;1 1/3
CODE.DIR;1 21/54
COSI.DIR;1 1/54
COSI_TEST.DIR;1 8/9
...
Z6.DAT;1 1/0
Z7.DAT;1 1/0
Z8.DAT;1 1/0
Z9.DAT;1 1/0
Total of 153 files, 42199/42339 blocks.

4.1.2 Accessing Files

You use the same DCL commands and application programs to access shelved files as you would online data files. If you are working on a system that is running HSM, you will notice some differences in file access time. When shelving is occurring, file access time may be temporarily lengthened while the shelving process completes.

When you access a currently shelved file through a read, write, extend, or truncate operation, it may take longer for that file to be accessed than you would expect. You may see a message indicating that unshelving is occurring.

Depending on the storage device being used to shelve and unshelve the data, you may experience a large or small increase in the access time. See Typical File Access Time by Storage Device shows how various storage devices relate to file access time in an HSM environment.

Table 4-1 Typical File Access Time by Storage Device

Storage Device

Typical Access Time

HSM cache

Approximately two times the normal access time for online storage

Magneto-optical jukebox

Within 30 seconds

Nearline robotic tape

Less than 5 minutesdevice

Offline device using human retrieval

May range from minutes to several days

These access times depend on the type of storage device used, rather than on the working time of HSM. In other words, if you already use various storage devices to access your data, using HSM will not significantly increase your access time.

4.1.3 Decreasing Volume Full and Disk Quota Exceeded Errors

Well-defined shelving policies will decrease the number of volume full and user disk quota exceeded conditions on your system. However, if the volume should become full or if you exceed your OpenVMS-defined disk quota, HSM may shelve files according to policies defined by the storage administrator.

4.1.4 Viewing Messages

When you access a currently shelved file through a read, write, extend, or truncate operation, you might see a message like this:

%HSM-I-UNSHLVPRG, unshelving file $1$DUA0:[MY_DIR]AARDVARKS.TXT

If you attempt to create or extend a file and there is not enough space available to do so, you might see this message:

%HSM-I-SHLVPRG, shelving files to free disk space

You see these messages only if you have enabled /BROADCAST on your terminal.

4.2 Controlling Shelving and Unshelving

From your perspective, shelving and unshelving files can be defined to occur automatically or manually. In the case of automatic shelving and unshelving, the storage administrator defines policies that control this behavior and you may not realize shelving and unshelving are occurring. In the case of manual shelving and unshelving, you issue specific commands to shelve and unshelve files.

4.2.1 Automatic Shelving Operations

If the storage administrator defines policies to shelve and unshelve files, you do not need to specifically request files be shelved and unshelved. In this case, the storage administrator decides when data ought to be shelved based on various criteria discussed in Chapter 2.

You may not notice when the files are shelved and may only notice when a file is unshelved if the file access time is significantly longer than expected. You can find out if you have shelved files using the qualifiers discussed above for the DIRECTORY command.

4.2.2 User-Controlled Shelving Operations

To specifically shelve a file (or files), use the DCL SHELVE command or the DCL PRESHELVE command.

Using the SHELVE command frees up disk space by shelving files you do not expect to need soon and by minimizing the possibility that files you do intend to use are not shelved automatically.

Using the PRESHELVE command copies the file to shelf storage. The data in the file remains in your work area. Preshelving files allows the system to respond more rapidly when it needs to free up disk space for use.

To shelve a file, you must have READ and WRITE access to that file.

Canceling an Explicit SHELVE or PRESHELVE Operation

To stop an explicit shelving operation, type Ctrl/Y. The operation will complete on the file that is currently being shelved. All files that were shelved before you entered the Ctrl/Y will remain shelved. To cancel any remaining pending operations, you must reenter the command using the /CANCEL qualifier, as shown in the following example:

$ SHELVE *.TXT Ctrl/Y
$ SHELVE/CANCEL *.TXT

File Selection for Explicit Shelving

HSM provides three methods to select files for explicit shelving:

  • Explicitly naming files
    You can use one or more file specifications, including wildcards.
  • File event and time span

You can include files based on a time span around one of four file dates. The file dates used include the following:
Creation date
Backup date
Modification date
Expiration date
Time values are specified with the /SINCE and /BEFORE qualifiers.

  • File size

In addition to specifying file names, file dates, and time spans, you have the option of further limiting the files selected for shelving. The additional criteria considers file size and is specified with the /SELEC qualifier. See File Selection lists three options for applying the /SELECT qualifier.

Table 4-2 File Selection

Files with Block Sizes . . .

Enter This Qualifier and Option . . .

Smaller than that specified

/SELECT=SIZE=MAXIMUM=n

Greater than or equal to that specified

/SELECT=SIZE=MINIMUM=n

Falling within the specified range

/SELECT=SIZE=(MINIMUM=n,MAXIMUM=m)

Shelving or Preshelving Specific File Versions

You have the option of specifying the number of file versions you shelve or preshelve with any manual operation. In most cases, you want to shelve the earlier versions of a file, leaving later versions of the file available for immediate access.

To specify the number of versions to keep in primary storage, use the /KEEP qualifier with the SHELVE or PRESHELVE command.

Time to Complete Shelving Operations

When you enter the PRESHELVE or SHELVE command, the amount of time taken to complete the operation depends on the following factors:

  • The amount of data

The number and size of the files to be preshelved or shelved will determine how long the operation takes. More and/or larger files require more time to process than fewer and/or smaller files.

  • Online cache

When you implement online cache, the operation requires approximately twice the amount of time taken to perform an OpenVMS COPY operation to copy the files to another disk.

  • Using the /NOWAIT qualifier

By using the /NOWAIT qualifier, HSM returns control of the user process in which the PRESHELVE or SHELVE command was entered. The operation is then carried out in the context of the HSM system process.

4.2.3 Unshelving Files

You can cause a shelved file to be returned to primary storage through one of the following methods:

When you access the data of a shelved file through a file fault, you will receive the following message as the file is being routinely unshelved:

$ EDIT AARDVARKS.TXT
%HSM-I-UNSHLVPRG, unshelving file $1$DUA0:[MY_DIR]AARDVARKS.TXT

Canceling an UNSHELVE Request

To cancel an implicit unshelving of a file, enter Ctrl/Y. This action immediately stops the operation and results in the file remaining at its status before you entered the command that caused the file to be unshelved.

To stop an explicit unshelving operation, enter Ctrl/Y. The operation will complete on the file that is currently being unshelved. All files that were unshelved before you entered the Ctrl/Y will remain unshelved. To cancel any remaining pending operations, you must reenter the command using the /CANCEL qualifier, as shown in the following example:

$ UNSHELVE *.TXT Ctrl/Y
$ UNSHELVE/CANCEL *.TXT

4.3 Finding Lost Data

If you have lost data you think was shelved, see your storage administrator. There are several procedures, explained in See Finding Lost User Data , that the storage administrator can use to find the lost data.

4.4 Working with Remote Files

You can perform all regular DCL command line operations on files residing in a system or VMScluster from a remote node in the same manner as you can for operations on a local node. However, you cannot use the HSM DCL commands (SHELVE, PRESHELVE, and UNSHELVE) on remote files.

Implicit shelving and unshelving operations are possible for remote systems. Unlike local operations, you do not receive the "Unshelving filename" or "Shelving Files To Free Disk Space" status messages for remote operations.

If you cancel an implicit operation on a file from a remote node (implicit operations only are allowed), the operation will continue at the HSM system, but the request will be canceled without returning the result of the operation to the remote node.

4.5 Resolving Duplicate Operations on the Same File

If two users simultaneously enter duplicate command on the same file, HSM performs the operation for both users as if each had entered the command alone. For example, if an UNSHELVE command is entered on the same file, HSM unshelves the file once and issues duplicate success messages.

4.5.1 Resolving Conflicting Operations on the Same File

If two users simultaneously enter conflicting commands on the same file, the action taken by HSM is dependent upon the nature of the conflicting commands. A summary of the actions taken by HSM is given in See How HSM Resolves Conflicting Requests



.

Table 4-3 How HSM Resolves Conflicting Requests

WHEN the first request is ...

AND the next request is ...

THEN this operation is canceled...

DELETE
DELETE
PRESHELVE

PRESHELVE
UNSHELVE
DELETE

PRESHELVE
UNSHELVE
PRESHELVE

PRESHELVE
PRESHELVE
SHELVE

SHELVE
UNSHELVE
DELETE

PRESHELVE
PRESHELVE
SHELVE

SHELVE
DELETE
SHELVE

PRESHELVE
SHELVE
UNSHELVE

PRESHELVE
SHELVE
SHELVE

UNSHELVE
UNSHELVE
UNSHELVE

DELETE
PRESHELVE
SHELVE

UNSHELVE
PRESHELVE
SHELVE



4.6 Controlling Other HSM Functions

In addition to explicitly shelving and unshelving files, you can perform the following file management tasks:

Check with your system manager to determine if the defaults have been changed for your installation.



5

Managing the HSM Environment

This chapter provides information on managing and maintaining your systems in an HSM environment. Storage administrators will find this information especially useful. This chapter is divided into two main parts:

1. Normal system management operations that require some changes due to the presence of HSM. It is important that these procedures be following to maintain correct system operation and data integrity in an HSM environment. Such operations include:
  • Dismounting disks
  • Copying shelved files
  • Renaming disks
  • Restoring files to another disk
  • 2. System management operations that are required to support HSM. These operations include:
  • Protecting system files from shelving
  • DFS, NFS, and PATHWORKS access support
  • Ensuring data safety with HSM
  • Using backup strategies with HSM
  • Recovering lost user data
  • Disaster recovery
  • Maintaining shelving policies
  • Managing HSM catalogs
  • Repacking archives and shelf volumes
  • Replacing and creating archive classes
  • Replacing a lost or damaged shelf volume
  • Catalog analysis and repair
  • Consolidated backup with HSM
  • Determining cache usage
  • Maintaining file headers
  • Event logging
  • Activity logging
  • Converting from Basic mode to Plus mode



5.1 Dismounting Disks

When HSM performs shelving operations on online disk volumes, it opens a file on each disk. This file can remain open for extended periods of time. If you need to dismount a disk that supports HSM operations, you may need to disable the HSM operations before the dismount can take place.

For normal online volumes that HSM has accessed, disable all HSM operations on the disk:

$ SMU SET VOLUME device_name /DISABLE=ALL

In addition, if the disk has been defined as an HSM cache device, delete the cache definition or disable the cache:

$ SMU SET CACHE device_name/DELETE

Because the cache disk contains files necessary to support HSM, the disk cannot be dismounted until all the cache files are flushed to the nearline/offline archive classes. Deleting the cache initiates a cache flush, which may take from minutes to hours to complete.

If you need to dismount the disk immediately for any reason (without initiating a cache flush), you should disable the cache instead using the following command:

$ SMU SET CACHE cache_name /DISABLE

Note that if you dismount a cache disk, users will not be able to access shelved file data that remains in the cache.

You should not dismount the disks referenced by the logical names HSM$CATALOG, HSM$MANAGER, or HSM$LOG, otherwise you will seriously disrupt HSM operations. If this is absolutely necessary, follow these procedures:

If you need to dismount a disk containing a shelf catalog, you should move the catalog to another disk using the SET SHELF command prior to dismounting the original disk. For example:

$ SMU SET SHELF shelf_name/CATALOG=new_location

Note that this operation may take tens of minutes to hours to complete. See Section 5.12 for more details on this operation.

5.2 Copying Shelved Files

Very often, it is necessary to move a directory tree of files from one location to another, most often to a new larger disk. If you use the normal OpenVMS facilities COPY or BACKUP to perform this operation, any shelved files in the source directory will be unshelved prior to copying to the destination. While this is safe, it is usually undesirable because it forces the unshelving of dormant data, which only becomes active due to the COPY or BACKUP being performed.

HSM provides a means to copy shelved files in the shelved state and update the HSM catalog to the new locations. This is achieved by using the SMU COPY command, which accepts a full file specification as input, and a disk/directory specification on output - files are not renamed.

If you are "moving" shelved files from one location to another on the same disk, the OpenVMS RENAME command is recommended. SMU COPY should be used to copy shelved files to another disk in the same HSM environment. If you are copying files to be taken to a different system (outside of the current HSM environment), then COPY or BACKUP should be used to unshelve the files prior to the copy.

The SMU COPY command implicitly uses the BACKUP utility which has different semantics to the OpenVMS COPY command, especially when using wildcard directory trees. Therefore, you should review the behavior of BACKUP wildcard operations when using this command. Specifically, the following are examples of correct operation:

$ SMU COPY DISK$USER1:[JONES...]*.*;* DISK$USER15:[JONES...]
$ SMU COPY DISK$PROD1:[ACCOUNTS...]*.*;* DISK$PRODARC:[ARCHIVE.ACCOUNTS...]
$ SMU COPY $1$DKA100:[000000...]*.*;* $15$DKA100:[*...]

The first example moves user JONES' directory tree from one disk to another, preserving all subdirectories from the input disk on the output disk.

The second example moves all files from DISK$PROD1:[ACCOUNTS...] and all subdirectories to a new disk and new subdirectory structure, preserving all subdirectories from DISK$PROD1:[ACCOUNTS] to DISK$PRODARC:[ARCHIVE.ACCOUNTS].

The third example moves all files from $1$DKA100: to $15$DKA100: preserving all subdirectories. Note, however, that the following syntax does not provide the expected results:

$ SMU COPY $1$DKA100:[000000...]*.*;* $15$DKA100:[000000...]

The above example flattens the (sub)directory structure in somewhat unpredictable ways, which is usually not desired. Please avoid this form of the command.

Note also that SMU COPY will not preserve more than seven levels of subdirectory, which is a restriction imposed by BACKUP.

Do not use HSM$BACKUP to copy shelved files from one disk to another. While this might appear to work, the HSM catalog is not updated and the output files may not be able to be unshelved. SMU COPY is the only supported mechanism to copy shelved files from one location to another.



5.3 Renaming Disks

It is often necessary to rename disks on the system, and this has an impact on the ability of HSM to process shelved files. There are two ways to rename disks from an HSM viewpoint:

If you perform the second type of rename you must:

Please note that failure to assign the same shelf for the old and new disks and/or failure to run SMU ANALYZE/REPAIR after the name change may result in the inability to unshelve files.

5.4 Restoring Files to a Different Disk

Very often after a disk failure, or other reason, it is desirable to restore files from a backup copy to a different disk than the one from which the backup was originally taken. If the backup copy contains shelved and preshelved files, such a restore will create a discrepancy between the online location of the files, and the location stored in the HSM catalogs.

As such, it is necessary to perform the same recovery operations as for renaming disks, namely:

See Section 5.3 for complete details.

5.5 Protecting System Files from Shelving

There are certain critical files that you must not delete or shelve if you are using HSM. These files include:

Considerations regarding the handling of these files are discussed in this section.

5.5.1 Critical HSM Product Files

The HSM product files listed in Table 5-1 must not be deleted or shelved. During installation, these files are protected from deletion and marked /NOSHELVABLE, but care must be taken to prevent inadvertent deletion or shelving.

HP strongly recommends that the disks on which these files reside be shadowed and backed up on a regular basis (both image and incremental).1



Table 5-1 Critical HSM Files

Files

Remarks

HSM$CATALOG:*.*;*

Required HSM default catalog file.

HSM$MANAGER:*.*;*

Required HSM database files.

[000000]HSM$UID.SYS

Contains the volume UID structure. Note that HSM$UID.SYS is not created until the first use of HSM after installation. There will be an HSM$UID.SYS file on each volume that has HSM operations enabled.

Any shelf catalog

Defined in the shelf structure

Shelf Catalogs

The HSM shelf catalogs contain the information needed to locate and unshelve all files that have been shelved. The catalog locations are defined in the SMU SHELF database. It is recommended that all catalog names begin with "HSM$" to preclude any possibility that they could be shelved. If a shelf catalog suffers an unrecoverable loss, access to the associated shelved file data can also be lost. For this reason, the shelf catalogs are an essential part of the HSM environment.

You must protect the shelf catalogs from loss or corruption by using one or more of the following procedures:

  • Backing up the catalogs on a regular basis; daily backups are recommended
  • Shadowing the disk(s) containing the catalogs
  • For additional protection, periodically copying the catalog files to different file names and locations
Recovering Critical Files

If any or all of the critical HSM product files are deleted, they should be restored from the latest backup sets as soon as possible. HSM should be shut down during the restore process.

Data shelved since the last backup may be lost.

5.5.2 OpenVMS System Files and System Disks

HP recommends that shelving be disabled on system disks. If shelving is allowed on system disks, critical files may be shelved when a policy is triggered. Serious performance degradation or a deadlock during boot operations may result when these files are accessed. You can disable shelving on system disks with the following command:

SMU> SET VOLUME/DISABLE=ALL SYS$SYSDEVICE:

If shelving is allowed on system disks, care should be taken to avoid shelving system-critical files by using SET FILE/NOSHELVABLE for each system file. The HSM installation process will perform this operation on OpenVMS system files but not on layered product files. Certain files on the system disk have the /NOSHELVABLE flag set by default. These flags should not be reset.

5.5.3 Files Not Shelved

HSM does not shelve or preshelve the following files:

5.6 DFS, NFS and PATHWORKS Access Support

HSM Version 3.0A supports access to shelved files from client systems where access is through DFS, NFS and PATHWORKS. At installation, HSM sets up such access by default. However, you may want to review this access and change it as needed, because it can potentially affect all accesses.

5.6.1 DFS Access

File faulting (and therefore file events) work as expected, with the exception of Ctrl/Y. Typing Ctrl/Y during a file fault has no effect. The client process waits until the file fault completes and the file fault is not canceled.

In addition, with DFS one can determine the shelved state of a file just as if the disk were local (i.e. DIRECTORY /SHELVED and DIRECTORY/SELECT both work correctly).

The SHELVE and UNSHELVE commands do not work on files on DFS-served devices. The commands do work on the cluster that has local access to the devices, however.

5.6.2 NFS Access

The normal default faulting mechanism (fault on data access), does not work for NFS-served files. The behavior is as if the file is a zero-block sequential file. Performing "cat", for example, (or similar commands) results in no output.

However, at installation time, HSM Version 3.0A enables such access by defining a logical name that causes file faults on an OPEN of a file by the NFS server process. By default, the following logical name is defined:

$ DEFINE/SYSTEM HSM$FAULT_ON_OPEN "NFS$SERVER"

This definition supports access to NFS-served files upon an OPEN of a file. If you do not want NFS access to shelved files, simply de-assign the logical name as follows:

$ DEASSIGN/SYSTEM HSM$FAULT_ON_OPEN

For a permanent change, this command should be placed in:

SYS$STARTUP:HSM$LOGICALS.COM

For NFS-served files, file events (device full and user quota exceeded) occur normally with the triggering process being the NFS$SERVER process. The quota exceeded event occurs normally because any files extended by the client are charged to the client's proxy not NFS$SERVER.

If the new logical is defined for the NFS$SERVER, the fault will occur on OPEN and will appear transparent to the client, with the possible exception of messages as follows:

% cat /usr/bubble/shelve_test.txt.2
NFS2 server bubble not responding still trying
NFS2 server bubble ok

The first message appears when the open doesn't complete immediately. The second message (ok) occurs when the open completes. The file contents, in the above example, are then displayed.

Typing Ctrl/C during the file fault returns the user to the shell. Since the NFS server does not issue an IO$_CANCEL against the faulting I/O, the file fault is not canceled and the file will be unshelved eventually.

It is not possible to determine whether a given file is shelved from the NFS client. Further, like DFS devices, the SHELVE and UNSHELVE commands are not available to NFS clients.

5.6.3 PATHWORKS

Normal attempts to access a shelved file from a PATHWORKS client initiate a file fault on the server node. If the file is unshelved quickly enough (e.g. from cache), the user sees only the delay in accessing the file. If the unshelve is not quick enough, an application-defined timeout may occur and a message window pops up indicating the served disk is not responding. The timeout value depends on the application. No retry is attempted. However, this behavior can be modified by changing HSM's behavior to a file open by returning a file access conflict error, upon which most PC applications retry (or allow the user to retry) the operation after a delay. After a few retries, the file fault will succeed and the file can be accessed normally. To enable PATHWORKS access to shelved files using the retry mechanism, HSM defines the following logical name on installation:

$ DEFINE/SYSTEM HSM$FAULT_AFTER_OPEN "PCFS_SERVER, PWRK$LMSRV"

This definition supports access to PATHWORKS files upon an OPEN of a file. If you do not want PATHWORKS to access shelved files via retries, simply de-assign the logical name as follows:

$ DEASSIGN/SYSTEM HSM$FAULT_AFTER_OPEN

For a permanent change, this command should be placed in:

SYS$STARTUP:HSM$LOGICALS.COM

The decision on which access method to use depends upon the typical response time to access shelved files in your environment.

If the logical name is defined, HSM imposes a 3-second delay in responding to the OPEN request for PATHWORKS accesses only. During this time, the file may be unshelved: otherwise, a "background" unshelve is initiated which will result in a successful open after a delay and retries.

At this point, the file fault on the server node is under way and cannot be canceled.

The affect of the access on the PC environment varies according to the PC operating system. For windows 3.1 and DOS, the computer waits until the file is unshelved. For Windows NT and Windows-95, only the windows application itself waits.

File events (device full and user quota exceeded) occur normally with the triggering process being the PATHWORKS server process. The quota exceeded event occurs normally because any files extended by the client are charged to the client's proxy not the PATHWORKS server.

It is not possible from a PATHWORKS client to determine whether a file is shelved. In addition, there is no way to shelve or unshelve files explicitly (via shelve or unshelve commands). There is also no way to cancel a file fault once it has been initiated.

Most PC applications are designed to handle "file sharing" conflicts. Thus, when HSM detects the PATHWORKS server has made an access request, it can initiate unshelving action, but return "file busy". The typical PC application will continue to retry the original open, or prompt the user to retry or cancel. Once the file is unshelved, the next OPEN succeeds without shelving interaction.

5.6.4 Logical Names for NFS and PATHWORKS Access

As just discussed, HSM supports two logical names that alter the behavior of opening a shelved file for NFS and PATHWORKS access support. These are:

The default behavior is to perform no file fault on Open; rather the file fault occurs upon a read or write to the file.

Each logical name can take a list of process names to alter the behavior of file faults on open. For example:

$ DEFINE/SYSTEM HSM$FAULT_ON_OPEN "NFS$SERVER, USER_SERVER, SMITH"

The HSM$FAULT_ON_OPEN can also be assigned to "HSM$ALL", which will cause a file fault on open for all processes. This option is not allowed for HSM$FAULT_AFTER_OPEN.

As these logicals are defined to allow NFS and PATHWORKS access, they are not recommended for use with other processes, since they will cause many more file faults than are actually needed in a normal OpenVMS environment. When used, the logicals must be system-wide, and should be defined identically on all nodes in the VMScluster environment.

These logical name assignments or lack thereof take effect immediately without the need to restart HSM.

5.7 Ensuring Data Safety with HSM

This section explains specific considerations about keeping shelved data safe.

5.7.1 Access Control Lists for Shelved Files

Access control lists (ACLs) for shelved files should not be deleted. In particular, the following commands should not be entered for shelved or preshelved files:

$ SET ACL /DELETE=ALL
$ SET FILE /ACL /DELETE=ALL

If the ACLs for shelved files are deleted, data is usually recovered automatically because a full catalog scan is performed. This causes a degradation of HSM performance. If the catalog scan fails, the data usually can be recovered manually using the SMU LOCATE command.

You may modify or delete ACE entries not used by HSM, for example, file protection ACEs.

5.7.2 Handling Contiguous and Placed Files

By default, HSM does not shelve files marked contiguous, files that must occupy sequential blocks of disk space. If these files are shelved, HSM will not unshelve them to noncontiguous disk space. If HSM cannot unshelve the file to contiguous space, it aborts the operation and displays an error message. When this happens, defragment the disk to restore contiguous space and retry the operation.

Placed files are files that are placed on specific blocks of disk space by an application. By default, HSM shelves these files, but does not necessarily unshelve placed files to their original location on the disk volume.

Usually, this change is not critical to the operation of an application. If a problem arises with a placed file after unshelving, the file should be set to NOSHELVABLE, or you can use the SMU SET VOLUME/NOPLACEMENT command to cause these files to not be shelved for a specified volume.

5.8 Using Backup Strategies with HSM

This section explains backup strategies you may want to use to protect data shelved through HSM. There are several areas of concern:

5.8.1 Backing up Critical HSM Files

As explained in Section 5.5.1, HSM requires certain files to operate. To facilitate HSM recovery in the event a disaster occurs, HP strongly recommends you backup these critical files using one of the methods described in this section. This is a preventive situation; if you do not use one of these methods to backup the critical files, you may not be able to easily recover shelved data after a disaster.

5.8.1.1 Defining a Backup Strategy

If you already have a backup strategy designed and implemented on your system for the volume on that the critical HSM project files reside, then these files will be backed up as part of that implementation.

If, however, you do not have an existing strategy defined, you will need to define one. You need to consider the following things:

  • What data needs to be saved
  • How often does that data need to be saved
  • Where does the data need to be stored when saved

5.8.1.2 Using OpenVMS BACKUP to Save the Files

The OpenVMS BACKUP utility provides two major methods of backing up your files: image backup (also called full backup) and incremental backup. The image backup saves all files on a disk into a save set. The incremental backup saves only those files that have been created or modified since the last image or incremental backup.

5.8.1.3 Maintaining a Manual Copy of the Files

If you do not want to use a general backup strategy or product to back up your critical HSM files or if you just want an additional way to ensure they are safe, you can always create manual copies of the files. Just use the OpenVMS COPY command to copy the files to another location, probably on another disk. If you do this, HP recommends you develop an automated procedure to do this on a regular basis.

5.8.2 Backing Up Shelved Data

Once data is shelved, there are several mechanisms you can use to ensure there is a backup copy of that data:

5.8.2.1 Considerations for OpenVMS BACKUP and Shelving

If you want to use OpenVMS BACKUP to maintain backup copies of your shelved data, there are some specific issues you need to consider.

Image Backups

HSM can reduce the amount of space needed on your image backups, and the time required to do them. When doing image backups under HSM, only the file headers of shelved files are backed up. The data itself remains shelved.

Incremental Backups

Files modified since the last backup are backed up as a part of the incremental process unless specifically excluded. If a modified file is shelved before the next incremental backup, it is unshelved for the incremental backup.

To avoid the delay caused by retrieving file contents needlessly during an incremental backup, you should do incremental backups at a shorter interval than specified by HSM policy. This causes the files to be backed up before being shelved, thereby avoiding the unshelving delay.

When planning your image backups, remember that only the file headers are backed up. If you have shelved a file that has been modified or created since the last incremental backup, its data is not backed up. This can be avoided by keeping the files online for at least one incremental backup.

When an otherwise unmodified file is shelved, it is not unshelved and backed up again during the next incremental backup because its revision date is not changed by the shelve operation. This precludes unnecessarily long incremental backup times when infrequently used files are shelved.

5.8.2.2 Using Multiple HSM Archive Classes for Backup

Safety of shelved data is ensured by establishing multiple archive classes per shelf. Through the multiple archive classes, duplicate copies of your data are automatically made when files are shelved. HP recommends that one or more of these copies be stored in the same place as your system backups, perhaps in a remote location and preferably in a vault.

5.8.2.3 Storing HSM Archive Classes Offsite

The SMU CHECKPOINT command allows you to dismount the current tape used for shelving that is associated with a specific archive class. In this way, copies can be removed from the system and separately stored for disaster recovery purposes. The next shelve operation for the archive class will be applied to the next tape volume for the archive class.

5.8.3 Backing Up Data Stored in an Online Cache

Because an online cache is part of online storage, it is backed up as part of your defined backup strategy. If, however, you use the online cache as a staging area to a shelf, there are some additional considerations for ensuring the information in the cache is backed up.

5.8.3.1 Flushing the Cache

When you "flush" the cache, data that was stored in the cache is copied to the specified nearline or offline device. Once the copy is complete, the data in the cache is deleted. As a result, you need to ensure that the data is backed up while in the cache or is flushed to multiple archive classes for shelf storage.

5.9 Finding Lost User Data

There are two particular areas in which HSM can be used to recover lost user data:

In each of these instances, if you have defined multiple archive classes for HSM, you should be able to retrieve the data automatically from one of the defined archive classes. In other instances, such as when the online file has been deleted, you may need to use SMU LOCATE to find the shelved file data.

Using SMU LOCATE

The SMU LOCATE command retrieves full information about a file's data locations from the shelving catalog. SMU LOCATE reads the HSM catalog(s) directly to find a shelved file's data locations.

You should note that SMU LOCATE does not work quite the same way as a typical OpenVMS utility when it comes to look-up and wildcard processing. The file-descriptor you supply as input (including any wildcards) applies to the file as stored in the HSM catalog at the time of shelving. Thus, for example:

When you retrieve information using SMU LOCATE, several instances or groups of stored locations may be displayed. These reflect the locations of the file when it was shelved at various stages of its life. You should carefully review the shelving time and revision time of the file to determine which, if any, is the appropriate copy to restore.

Recovering Data from a Lost Shelved File

Although HSM tries to restore data from all known locations automatically, even when some of the file's metadata is missing, there may be occasions when this fails. In these situations, you should use SMU LOCATE to locate the file's data, then attempt to restore the data through BACKUP (from tape) or COPY (from cache).

If the user is certain file data was shelved, but is unable to simply retrieve that data through either an implicit or explicit unshelving operation, use the following procedure to find and retrieve the missing data:

1. Use SMU LOCATE to search the shelving catalog for the location of the shelved data.
  1. 2. Try to unshelve the data, perhaps using UNSHELVE /OVERRIDE.
  2. 3. If this fails, use BACKUP to restore the data from nearline or offline media or use the COPY command to restore the data from an online cache.

5.10 Disaster Recovery

HSM provides tools that allow you to prevent loss of HSM data. This section describes various ways you can use these tools.

5.10.1 Recovering Data Shelved Through HSM

If you have a site disaster in which your onsite data is unavailable, you may be able to recover that data from BACKUP files and tapes dismounted using the SMU CHECKPOINT command.

Once onsite, the following sequence is recommended:

1. Using the OpenVMS BACKUP utility, restore your files from the most recent image backup.
  1. 2. Then, also using the OpenVMS BACKUP utility, restore any since that image backup.
  2. 3. For any additional data you shelved and moved offsite through SMU CHECKPOINT, use the media with your archive classes from the offsite storage location as your shelf media.
  3. 4. Finally, in case another disaster occurs, you should recreate the offsite archive class, or selected volumes, by using SMU REPACK and the /FROM_ARCHIVE qualifier. This allows you to either keep the formerly offsite volume onsite and take the new volumes offsite, or keep the new volumes onsite and remove the original offsite volumes back offsite. Alternatively, you could use the SHELVE/SELECT=NOONLINE command to reshelve files, although this is much slower.

5.10.2 Recovering Critical HSM Files

If you lose any of the following HSM data, you must recover it before HSM will function correctly:

Recovering Critical Files

If any or all of the critical HSM product files are deleted and you have backed up this information through a mechanism such as the OpenVMS BACKUP utility, you should restore them from the latest backup sets (including incremental backups) as soon as possible. Then, you should restart HSM.

You may lose data shelved since the last image (or incremental) backup.

Recovering the HSM Database

Although you could reinstall the HSM database from your installation kit, this procedure would lose all the current information in your HSM database. Because this is policy data, you can re-create it easily.

Recovering the HSM Catalogs

The HSM catalogs are essential to recovering shelved data. If you do not use BACKUP to create a backup of the catalogs, you could backup the catalogs by making copies of the catalog files and storing them in a safe location. Then, once you have restored any other pieces of the HSM system, you can copy the catalog files back over into the proper locations for HSM to use it. These locations are defined by the logical name HSM$CATALOG for the default catalog, and the locations specified in the SMU SHELF database for other shelf catalogs.

Recovering the HSM$UID File

If you do not have a backup copy of the HSM$UID file, HSM will create a new one with a different UID. If you then attempt to unshelve files, you may see an error message. To correct this problem, use UNSHELVE/OVERRIDE to override the UID conflict.

5.10.3 Recovering Boot-Up Files

If you inadvertently shelved your boot-up files, you can only recover them if you have an alternate system disk you can use to boot the system and then unshelve the files.

5.10.4 Reshelving an Archive Class

The most efficient way to recover an archive class is to use the SMU REPACK command, and specify a /FROM_ARCHIVE and one or more volumes with the /VOLUME qualifier. This command uses the /FROM_ARCHIVE to retrieve shelved data and copy it to the archive class containing the lost shelf media. See Section 5.15 for more details.

An alternative but much slower way to reclaim lost shelf media is to reshelve files. Use the following command:

$ SHELVE/SELECT=NOONLINE

This variation of the SHELVE command shelves only data whose status is SHELVED, not ONLINE. It transparently unshelves the data from its current archive class and reshelves the data to any new archive classes. Data in an archive class is reshelved also if the online ACL is deleted.

5.11 Maintaining Shelving Policies

This section explains how to evaluate your policy definitions with respect to the HSM policy model. Understanding this model will help you define the most effective policies for your environment.

5.11.1 The HSM Policy Model

This section presents a model-related concepts-that explains how shelving works. Understanding the model will help you define and manage an effective shelving policy.

By implementing HSM, you can maintain a reasonable amount of available online storage capacity, and reduce the cost of storing large amounts of data.

Your particular disk configurations and their usage dictate specific values to consider when you create the various definitions. The policies you implement with HSM determine how you meet your storage management needs.

5.11.1.1 Concepts of HSM Policy

To apply these concepts, first think of each of your online disk volumes in terms of its total online storage capacity. Then, consider how much space should always remain available.

The central element of policy is the latitude of available online storage capacity you maintain.

Figure 5-1 shows the HSM policy model. Table 5-2 provides definitions for each of the concepts shown in the figure.

Figure 5-1



.

Table 5-2 HSM Policy Model Concept Definitions

Concepts

Definitions

Maximum capacity

The total online storage capacity you are allowed to occupy on an online disk volume. This is a threshold for reactive shelving determined by the capacity of the online disk volume.

High water

A value you define to automatically trigger mark the shelving process. This is a threshold for reactive shelving that you determine.

Low water

The shelving goal expressed in terms of a mark percentage of disk capacity.

Capacity latitude

The capacity latitude is the range you create, monitor, and manage to make sure you are efficiently using your online storage resources. Adjusting the limits of this latitude determines the operating efficiency of your system.

5.11.1.2 Policy Governs the Shelving Process

The policies you implement by creating and modifying the various HSM definitions govern the shelving process. This example of reactive policy shows you how the HSM system reacts to a high water mark event, returning the available capacity to the low water mark.

Figure 5-2 shows the policy model in the stages of the shelving process. Table 5-3 lists the stages of the shelving process as they occur in response to reactive policy

Figure 5-2



.

Table 5-3 Process for Shelving to Reactive Policy

Stage

Event

1

The system is in use. Online storage capacity is within the limits that define the capacity latitude.

Implications:

When the amount of online storage capacity lies within the capacity latitude, it implies the following:

  • The files on the disk are frequently accessed, meeting the demands of their applications and users for immediate access.
  • Enough space is available to accommodate new files or extensions to files on the disk volume.
  • Enough space is available to accommodate unshelved files if they need to be accessed.
  • Average access latency is acceptable for the users and applications whose files are shelved from the disk volume

2

Used storage capacity exceeds the defined high water mark. This condition is caused by a user or application requiring more capacity than is allowed by definition on the online disk volume. Any of the following require more online storage:

  • Creating a new file
  • Extending an existing file
  • Unshelving a file

3

Available capacity increases in response to the event. HSM automatically moves those files meeting the selection criteria in the policy definition to shelf storage.

Implications:

Having completed the shelving process implies the following:

  • The likelihood that shelved files will be accessed soon is small because the use and access patterns were matched to the file selection criteria.
  • Adequate disk space has been made available to satisfy additional requests for storage for an acceptable of time.

5.11.1.3 The Balance to Achieve When Implementing Policy

An effective HSM policy balances these two conditions:

  • Maintaining an adequate amount of available online storage space
  • Achieving adequate overall system response time by shelving files that are least likely to be accessed

5.11.2 HSM Policy Situations and Resolutions

The model described in Section 5.11.1 has practical application. This section demonstrates how the model can be applied to help monitor the effectiveness of policy in various situations.

5.11.2.1 Situation : Volume Occupancy Full Event

One of the benefits of HSM is the ability to implement a preventive policy that helps avoid volume occupancy full events. Figure 5-3 shows the policy model as it applies during a volume occupancy full event.

Figure 5-3



Resolution

If volume occupancy full events occur while your preventive policy is in effect, you can do either or both of the following actions to avoid them:

  • Decrease the high water mark
  • Increase the frequency of scheduled policy

5.11.2.2 Situation : Shelving Goal Not Reached

The goal is an important part of policy as it is the result of the shelving process controlled through file selection criteria in the policy definition. Figure 5-4 shows the policy model when a shelving policy fails to reach its defined goal.

Figure 5-4



Resolution

If shelving operations fail to reclaim the defined capacity, you can do either or both of the following actions to make sure your shelving goal is reached:

  • Change the file selection criteria to include more files
  • Increase the low water mark value

5.11.2.3 Situation : Frequent Reactive Shelving Requests

Your reactive policy should be planned and implemented as a contingency. As such, shelving in response to reactive policy should occur infrequently. The policy model in Figure 5-5 shows the policy that creates frequent requests for reactive policy.

Figure 5-5



Resolution

If your system experiences frequent reactive shelving requests, you can take the following actions:

WHEN the Trigger Is . . .

THEN You Should . ..

High water mark reached

Increase the high water mark value, decrease the low water mark value or both.

User disk quota exceeded

Decrease the low water mark.

5.11.2.4 Situation : Application and User Performance Impeded

With HSM, you design and implement policy that allows you to maintain available online capacity and retain data on less expensive media. The trade-off with implementing HSM is that when shelved files are needed, applications and users trying to access them must wait until the files are restored. Figure 5-6 shows the policy model in a situation when available storage is maintained at the expense of application and user performance.

Figure 5-6



Resolution

If your applications or users experience delays in their work, or if productivity drops because files must frequently be unshelved to be accessed, you can do any or all of the following actions:

  • Implement online cache
  • Increase the high water mark value
  • Increase the low water mark value

5.11.3 Ranking Policy Execution

HSM provides the means to determine what a policy execution would do before the policy is run. This process is called ranking a policy on a volume, and is initiated by the SMU RANK command.

This feature helps you determine the effectiveness of your policies by letting you see exactly what files would be shelved if the policy were run. The files are listed in the order that they would be shelved. Ranking applies only to policies that use the automatic algorithms STWS and LRU. HSM cannot rank policies based on user script files.

HP recommends that you rank all your policies before putting them into a production environment.

The following example shows how to rank a policy:

$ SMU RANK DISK$USER1: HSM$DEFAULT_OCCUPANCY
Policy HSM$DEFAULT_OCCUPANCY is enabled for shelving
Policy History:
Created: 20-OCT-1999 10:36:36.45
Revised: 20-OCT-1999 11:26:21.09
Selection Criteria:
State: Enabled
Action: Shelving
File Event: Expiration date
Elapsed time: 180 00:00:00
Before time: <none>
Since time: <none>
Low Water Mark: 80 %
Primary Policy: Space Time Working Set(STWS)
Secondary Policy: Least Recently Used(LRU)
Verification:
Mail notification: <none>
Output file: <none>
Volume capacity: 2271640 blocks
Current utilization: 1818245 blocks
Volume lowwater mark: 1817312 blocks
Blocks to be reclaimed: 933
Executing primary policy definition
DISK$USER1:[SMITH]WATCH_BATCH.COM;5
date: 21-OCT-1999 size: 462
DISK$USER1:[SMITH]LOCAL_DB.COM;1
date: 20-OCT-1999 size: 279
DISK$USER1:[SMITH]PERSONAL.LGP;1
DISK$USER1:[SMITH]REMOTE.MEM;1
date: 20-OCT-1999 size: 57
Total of 4 files ranked which will recover 951 blocks
Volume lowwater mark can be reached

5.12 Managing HSM Catalogs

When you install HSM for the first time, all HSM shelving data is placed in the default catalog, located at:

HSM$CATALOG:HSM$CATALOG.SYS

As the amount of shelving information increases over time, HP recommends that you define multiple shelves, distribute your disk volumes amongst these shelves, and define a separate catalog for each shelf. HP recommends that a shelf be associated with between 10 and 50 volumes each, depending on the size of the volumes and the amount of shelving activity on those volumes.

After analyzing your storage subsystem and coming up with a distribution plan for volumes and shelves, the following commands can be used to implement this distribution, for example:

$!
$! Define new shelves with separate catalogs
$!
$ SMU SET SHELF PRODUCTION_SHELF1 -
_$ / CATALOG=DISK$SYSTEM2:[HSM.CATALOG]HSM$PRODUCTION_SHELF1_CAT.SYS
$ SMU SET SHELF PRODUCTION_SHELF2 -
_$ / CATALOG=DISK$SYSTEM2:[HSM.CATALOG]HSM$PRODUCTION_SHELF2_CAT.SYS
$!
$! Re-associate volumes to the new shelves
$!
$ SMU SET VOLUME DISK$USER1:/SHELF=PRODUCTION_SHELF1
$ SMU SET VOLUME DISK$USER2:/SHELF=PRODUCTION_SHELF1
$ . . . . . . .
$ . . . . . . .
$ SMU SET VOLUME DISK$USER20:/SHELF=PRODUCTION_SHELF2
$ SMU SET VOLUME DISK$USER21:/SHELF=PRODUCTION_SHELF2
$

It is recommended that the catalog file names are preceded by "HSM$" to eliminate any possibility that they might be shelved: shelving a catalog file is not supported and can lead to serious problems.

These are the only commands you need to enter to distribute your volumes among shelves, and to populate the catalogs.

When you enter these commands, HSM begins a process called split-merge, which moves shelving data from the old catalog to the new catalog for a volume. A split-merge operation can be initiated by either command.

Since potentially thousands of catalog entries are affected by a spit-merge, the process can take several minutes or even hours to complete. During this time, the associated volume and/or shelf is associated with two catalogs - the old and the new. These can be seen by issuing an SMU SHOW VOLUME or SMU SHOW SHELF during a split-merge, which have special displays as shown in the examples below:

$!
$! SMU displays when changing a shelf for a volume:
$!
$ SMU SHOW VOLUME _$15$DKA300:/FULL
Volume _$15$DKA300: on Shelf HSM$DEFAULT_SHELF, Shelving is enabled,
Unshelving is enabled, Highwater mark detection is disabled, Occupancy full detection is disabled, Disk quota exceeded detection is disabled

Created: 8-FEB-1998 15:57:54.32
Revised: 8-FEB-1998 15:58:28.44
Ineligible files: <contiguous>
Highwater mark: 90%
OCCUPANCY Policy: HSM$DEFAULT_OCCUPANCY
QUOTA Policy: HSM$DEFAULT_QUOTA
Split/Merge state: COPY
Alternate shelf: PRODUCTION_SHELF1
$!
$! SMU displays when changing a catalog for a shelf:
$!
$ SMU SHOW SHELF
Shelf TEST_SHELF1 is enabled for Shelving and Unshelving
Catalog File: DISK$USER1:[HSM.CATALOG]HSM$CAT1.SYS
Shelf History:
Created: 1-DEC-1998 11:44:46.26
Revised: 28-DEC-1998 15:22:00.91
Backup Verification: Off
Save Time: <none>
Updates Saved: All
Archive Classes:
Archive list: HSM$ARCHIVE01 id: 1
Restore list: HSM$ARCHIVE01 id: 1
Split/Merge state: COPY
Alternate Catalog: DISK$USER1:[HSM.CATALOG]HSM$CAT2.SYS

You may notice that the catalogs change positions during the split-merge between While a split-merge is in progress, certain HSM operations may proceed normally, some HSM operations are suspended, while certain others are rejected. Suspending an operation means that the operation is queued until the split-merge is completed, while rejection means that the command must be re-entered at a later time. The following table indicates the disposition of requests during a split-merge:



Table 5-4 HSM Request Disposition During a Split-Merge Operation

Operation

Disposition

(Pre)shelve to cache

Processed

(Pre)shelve to tape

Suspended

Unshelve from cache

Processed

Unshelve from tape

Processed

Unpreshelve

Processed

Cache flush to tape

Suspended

Compatible split- merge

Processed

Incompatible split- merge

Rejected

Repack archive class

Suspended

All other requests

Processed

HSM initiates split-merge operations in the background; the SMU command that initiated the split merge does not wait for the operation to complete. As such, it is possible to request an incompatible split-merge operation, for example:

$ SMU SET VOLUME DISK$USER1/SHELF=SHELF1
$ SMU SET VOLUME DISK$USER1/SHELF=SHELF2

In this example, the second command is rejected while the split-merge for the first command is processed.

If an error occurs during a background split-merge operation, the final completion state of the operation will either revert to the old definition, or the new definition, depending on the phase of split-merge that failed. There are essentially two phases of split-merge:

If an error occurs during the copy phase, the SMU database is reset to the old catalog/shelf. If an error occurs during the delete phase, the new catalog/shelf definition stays in effect.

You may wish to examine the database later with SMU to determine if the operation succeeded and the definitions are as you expect. Also, the shelf handler audit and error logs contain entries for all split-merge operations for further information.

5.13 Repacking Archive Classes

Shelf media used by HSM contain shelved file data from many sources, some of which remains valid for a long time, but some also becomes obsolete. Unlike BACKUP tapes, which can be recycled regularly, this is not the case with HSM media, since they contain the only copies of the shelved file data. Without some sort of custom analysis of HSM media, the media would have to be retained indefinitely. After a long time, where the majority of the data is obsolete, this would result in shelf media having a very low percentage of valid data, resulting in wastage.

HSM provides the SMU REPACK function to perform an analysis of valid and obsolete data on shelf media, and copy the valid data to other media, allowing the old media to be freed up. In addition, REPACK purges the catalog entries associated with the obsolete data.

Shelf file data can become obsolete in two ways:

HSM provides the system administrator a way to control the obsolescence of files for use in repacking. It may not be appropriate for a file to become obsolete as soon as it is deleted or updated, as it may need to be recovered in its old state at a later date. As such, two new options are provided in the SMU SHELF definition as follows:

Complete flexibility is applied to both options ranging from zero delete save time and no updates, to indefinite delay and number of updates, and anything in between. The options apply to all preshelved and shelved files on all volumes in the shelf.

Repacking is normally applied to all volumes in an archive class. However, the system administrator can restrict the volumes being repacked by specifying them in a /VOLUME qualifier. If any of the specified volumes are part of a volume set, all volumes in the volume set will be repacked.

Finally, it may or may not be worth repacking a particular volume or volume set depending on the percentage of valid data on the volume. For example, if a volume contains 90% valid data, the 10% bonus in space acquired by repacking the volume may not justify the effort of repacking, at least not yet. As such, the system administrator can apply a threshold percentage value of obsolete data that is used to determine whether to repack a particular volume or volume set. The default threshold value is 50%.

A threshold value should only be applied when repacking to the same archive class. When repacking to create a new archive class or replacing a shelved volume, all valid files should be repacked by specifying /NOTHRESHOLD.

Repacking requires two compatible tape devices in order to proceed. For this reason, HSM allows only ONE repack operation at a time. In addition, a REPACK request is suspended while a catalog split-merge operation is in progress; the two operations cannot safely proceed simultaneously.

The following example shows a normal repack operation:

$ SMU REPACK 1

This command repacks archive class 1 to new media also in archive class 1. The default threshold value of 50% is applied. When the operation is complete, the old media for archive class 1 are deallocated.

Repack requires a disk staging area of at least 100,000 blocks in order to produce optimal multi-file savesets on output. For example, files shelved with HSM V1.x into single-file savesets are consolidated into more efficient multi-file savesets on output. The staging area used is referenced by the system-wide logical name HSM$REPACK, which should be assigned to a suitably sized disk/directory combination. If this logical name is not defined, the logical HSM$MANAGER is used instead. The staging area is cleaned up after a repack operation.

5.13.1 Repack Performance

The repack operation, especially on tape volumes created under HSM V1.x, is likely to take several days to complete. While repacking is being performed, certain tape-oriented operations are suspended and queued to avoid conflicts. However, when HSM detects that a conflicting tape operation is pending, the repack operation is suspended temporarily, usually within 10 minutes, to allow the other operations to proceed. Therefore, despite the duration of the repack operation, other HSM operations will only suffer minor delays, and the long duration of repack should not be a concern.

5.14 Replacing and Creating Archive Classes

HSM provides a mechanism for replacing and/or creating new archive classes, and populating associated shelf media with valid data. You may wish to create a new archive class to provide additional data safety. More likely though, you may wish to create a new archive class to upgrade your tape hardware to new technology or move your shelved data to a new tape library.

Although HSM provides the reshelving function to accomplish this, this is slow and involves intermediate disk transfers. A much more efficient way is to use the REPACK function and specify a NEW_ARCHIVE qualifier. When performing a repack for this purpose, you must not specify any volumes in the volume list, and no threshold value. It is important that all valid files are copied to the new archive class. However, the purging of obsolete files is still performed when creating a new archive class using repack.

The following example creates a new archive class:

$ SMU REPACK 1/TO_ARCHIVE=3/NOTHRESHOLD

This command creates a new archive class 3, using all valid data from archive class 1. Archive class 3 may be of a different media type than archive class 1.

5.15 Replacing A Lost or Damaged Shelf Volume

If you lose or damage a shelf tape, you will not be able to recover the data on that tape, and are at risk for not providing the level of data safety that HSM provides. As soon as you discover that a shelf tape has been lost or damaged, you should take steps to replace it by using REPACK to copy the contents of the tape, from another archive class, to new media.

When discovering the lost or damaged tape, you should determine which archive class it belonged to. Then issue a REPACK command specifying an alternate archive class that is or was defined for the shelf. When performing this operation, you should specify the volume to be replaced but no thresholds for the copy. However, as with all repack operations, obsolete files are not copied.

The following example replaces a lost or damaged shelf volume:

$ SMU REPACK 1/VOLUME=ACG001/FROM_ARCHIVE=2/NOTHRESHOLD

This example replaces shelf volume ACG001 from archive class 1, using media from archive class 2. It may take several volumes from archive class 2 to replace the data in the volume. Also, the replacement volume will have a different label to ACG001, but its contents contain the valid replacement data for ACG001. If the archive class is not checkpointed after the operation, the replacement volume becomes the current shelving volume for the archive class, and will be filled up.

This function cannot be performed if only one archive class is specified for the shelf, which is not recommended for this very reason.

If you have a site disaster, and most or all of the media for an archive class are damaged, then you should create a new archive class as described in the previous section, rather than recover each volume individually.

5.16 Catalog Analysis and Repair

The ANALYZE/REPAIR utility is used to align the contents of the HSM catalog(s) with a disk that has been backed up and later restored, or has been renamed. It is also useful to run this utility if you suspect that any other discrepancies between the online disk state and the HSM catalog(s) may have occurred.

SMU ANALYZE will scan all files on a disk looking for shelved and preshelved files. When a file is found that is of interest, its HSM metadata (file header and ACE information) is compared against entries in the HSM catalog(s) and any discrepancies are reported. If the /REPAIR qualifier is used, the discrepancy can be repaired. If /CONFIRM is not used with /REPAIR, then the default repair action will be applied.

Example of the ANALYZE Command With No /REPAIR

$ SMU ANALYZE DKB500
%SMU-I-PROCESSING, processing input device DKB500
%SMU-I- scanning for shelved files on disk volume _$1$DKB500:
File (14,1,0) "$1$DKB500:[ANALYZE_TEST]STATUS.RPT;1"
Stored in catalog as:
FID (13,1,0) "BOGUS$DEVICE1:[ANALYZE_TEST]STATUS.RPT;1"
Invalid HSM metadata found for
File (15,1,0) "$1$DKB500:[ANALYZE_TEST]LOGIN.COM;1"
Stored in catalog as:
FID (12,1,0) "$1$DKB500:[ANALYZE_TEST]LOGIN.COM;1"
Invalid HSM metadata found for
File (16,1,0) "$1$DKB500:[ANALYZE_TEST]Q4_RESULTS.TXT;1"
No catalog entry found - file not repairable
Invalid HSM metadata found for
File (17,1,0) "$1$DKB500:[ANALYZE_TEST]ANALYSIS.DAT;1"
File (18,1,0) "$1$DKB500:[ANALYZE_TEST]RECIPE.MEM;1"
Revision date mismatch -
Current: 9-JUL-1999 16:45:39.37
Catalog: 10-JUL-1999 15:54:21.74
File (19,1,0) "$1$DKB500:[ANALYZE_TEST]MAIL.SAV;1"
Stored in catalog as:
FID (19,1,0) "BOGUS$DEVICE1:[ANALYZE_TEST]MAIL.SAV;1"
%SMU- completed scan for shelved files on disk volume _
%SMU-I-ERRORS, 6 error(s) detected, 0 error(s) repaired

Example of the ANALYZE Command with Default Confirmation

$ SMU ANALYZE/REPAIR DKB500
%SMU-I-PROCESSING, processing input device DKB500
%SMU-I-scanning for shelved files on disk volume _$1$DKB500:
File (14,1,0) "$1$DKB500:[ANALYZE_TEST]STATUS.RPT;1"
Stored in catalog as:
FID (13,1,0) "BOGUS$DEVICE1:[ANALYZE_TEST]STATUS.RPT;1"
File entry repaired - 1 repairs made.
Invalid HSM metadata found for
File (15,1,0) "$1$DKB500:[ANALYZE_TEST]LOGIN.COM;1"
Stored in catalog as:
FID (12,1,0) "$1$DKB500:[ANALYZE_TEST]LOGIN.COM;1"
File entry not repaired.
Invalid HSM metadata found for
File (16,1,0) "$1$DKB500:[ANALYZE_TEST]Q4_RESULTS.TXT;1"
No catalog entry found - file not repairable
Invalid HSM metadata found for
File (17,1,0) "$1$DKB500:[ANALYZE_TEST]ANALYSIS.DAT;1"
File entry repaired - 1 repairs made.
File (18,1,0) "$1$DKB500:[ANALYZE_TEST]RECIPE.MEM;1"
Revision date mismatch -
Current: 9-JUL-1999 16:45:39.37
Catalog: 10-JUL-1999 15:54:21.74
File entry repaired - 1 repairs made.
File (19,1,0) "$1$DKB500:[ANALYZE_TEST]MAIL.SAV;1"
Stored in catalog as:
FID (19,1,0) "BOGUS$DEVICE1:[ANALYZE_TEST]MAIL.SAV;1"
File entry repaired - 1 repairs made.
%SMU- completed scan for shelved files on disk volume _
%SMU-I-ERRORS, 6 error(s) detected, 4 error(s) repaired

Example of ANALYZE/REPAIR/CONFIRM

$ SMU ANALYZE/REPAIR/CONFIRM DKB500
%SMU-I-PROCESSING, processing input device DKB500
%SMU-I- scanning for shelved files on disk volume _$1$DKB500:
File (14,1,0) "$1$DKB500:[ANALYZE_TEST]STATUS.RPT;1" Stored in catalog as:
FID (13,1,0) "BOGUS$DEVICE1:[ANALYZE_TEST]STATUS.RPT;1"
** Repair catalog entry to reset volume, FID to _ (14,1,0)? [Y]: N
File entry not repaired.
Invalid HSM metadata found for
File (15,1,0) "$1$DKB500:[ANALYZE_TEST]LOGIN.COM;1"
Stored in catalog as:
FID (12,1,0) "$1$DKB500:[ANALYZE_TEST]LOGIN.COM;1"
** Repair catalog entry to reset FID to (15,1,0) ?
** WARNING: Repair may affect the wrong file - with caution [N]: Y
File entry repaired - 1 repairs made.
Invalid HSM metadata found for
File (16,1,0) "$1$DKB500:[ANALYZE_TEST]Q4_RESULTS.TXT;1"
No catalog entry found - file not repairable
Invalid HSM metadata found for
File (17,1,0) "$1$DKB500:[ANALYZE_TEST]ANALYSIS.DAT;1"
** Repair by adding HSM metadata for file (17,1,0) ? [Y]:
File entry repaired - 1 repairs made.
File (18,1,0) "$1$DKB500:[ANALYZE_TEST]RECIPE.MEM;1"
Revision date mismatch -
Current: 9-JUL-1999 18:29:09.96
Catalog: 10-JUL-1999 17:37:52.33
** Repair by deleting HSM metadata for file (18,1,0) ? [Y]: Y
File entry repaired - 1 repairs made.
File (19,1,0) "$1$DKB500:[ANALYZE_TEST]MAIL.SAV;1"
Stored in catalog as:
FID (19,1,0) "BOGUS$DEVICE1:[ANALYZE_TEST]MAIL.SAV;1"
** Repair catalog entry to reset volume to _ ? [Y]: Y
File entry repaired - 1 repairs made.
%SMU- completed scan for shelved files on disk volume _
%SMU-I-ERRORS, 6 error(s) detected, 4 error(s) repaired

Example of ANALYZE/REPAIR/CONFIRM/OUTPUT

$ SMU ANALYZE/REPAIR/CONFIRM/OUTPUT=ANALYZE.OUT DKB500
File (14,1,0) "$1$DKB500:[ANALYZE_TEST]STATUS.RPT;1"
Stored in catalog as:
FID (13,1,0) "BOGUS$DEVICE1:[ANALYZE_TEST]STATUS.RPT;1"
** Repair catalog entry to reset volume, FID to _ (14,1,0) ? [Y]: Y
File entry repaired - 1 repairs made.
Invalid HSM metadata found for File (15,1,0) "$1$DKB500:[ANALYZE_TEST]LOGIN.COM;1"
Stored in catalog as:
FID (12,1,0) "$1$DKB500:[ANALYZE_TEST]LOGIN.COM;1"
** Repair catalog entry to reset FID to (15,1,0) ?
** WARNING: Repair may affect the wrong file - with caution [N]: Y
File entry repaired - 1 repairs made.
Invalid HSM metadata found for
File (16,1,0) "$1$DKB500:[ANALYZE_TEST]Q4_RESULTS.TXT;1"
No catalog entry found - file not repairable
Invalid HSM metadata found for
File (17,1,0) "$1$DKB500:[ANALYZE_TEST]ANALYSIS.DAT;1"
** Repair by adding HSM metadata for file (17,1,0) ? [Y]:
File entry repaired - 1 repairs made.
File (18,1,0) "$1$DKB500:[ANALYZE_TEST]RECIPE.MEM;1"
Revision date mismatch - Current:9-JUL-1999 18:38:58.06
Catalog: 10-JUL-1999 17:47:40.42
** Repair by deleting HSM metadata for file (18,1,0) ? [Y]: Y
File entry repaired - 1 repairs made.
File (19,1,0) "$1$DKB500:[ANALYZE_TEST]MAIL.SAV;1"
Stored in catalog as:
FID (19,1,0) "BOGUS$DEVICE1:[ANALYZE_TEST]MAIL.SAV;1"
** Repair catalog entry to reset volume to _ ? [Y]: Y
File entry repaired - 1 repairs made.
$
$ TYPE ANALYZE.OUT
%SMU-I-PROCESSING, processing input device DKB500
%SMU-I- scanning for shelved files on disk volume _$1$DKB500:
File (14,1,0) "$1$DKB500:[ANALYZE_TEST]STATUS.RPT;1"
Stored in catalog as:
FID (13,1,0) "BOGUS$DEVICE1:[ANALYZE_TEST]STATUS.RPT;1"
File entry repaired - 1 repairs made.
Invalid HSM metadata found for File (15,1,0)
"$1$DKB500:[ANALYZE_TEST]LOGIN.COM;1"
Stored in catalog as:
FID (12,1,0) "$1$DKB500:[ANALYZE_TEST]LOGIN.COM;1"
File entry repaired - 1 repairs made.
Invalid HSM metadata found for
File (16,1,0) "$1$DKB500:[ANALYZE_TEST]Q4_RESULTS.TXT;1"
No catalog entry found - file not repairable
Invalid HSM metadata found for
File (17,1,0) "$1$DKB500:[ANALYZE_TEST]ANALYSIS.DAT;1"
File entry repaired - 1 repairs made.
File (18,1,0) "$1$DKB500:[ANALYZE_TEST]RECIPE.MEM;1"
Revision date mismatch - Current: 9-JUL-1999 18:38:58.06
Catalog: 10-JUL-1999 17:47:40.42
File entry repaired - 1 repairs made.
File (19,1,0) "$1$DKB500:[ANALYZE_TEST]MAIL.SAV;1"
Stored in catalog as:
FID (19,1,0) "BOGUS$DEVICE1:[ANALYZE_TEST]MAIL.SAV;1"
File entry repaired - 1 repairs made.
%SMU- completed scan for shelved files on disk volume -
%SMU-I-ERRORS, 6 error(s) detected, 5 error(s) repaired

5.17 Consolidated Backup with HSM

HSM offers a paradigm to consolidate HSM shelf data with that required for backup/restore purposes. This paradigm is called Consolidated Backup With HSM, and is designed for use with very large sites where the number of tapes is problematic, or sites who are reaching the limit of their backup window. This paradigm is also known as Backup via shelving.

We refer to this as a paradigm, rather than an HSM function, because no special HSM functions are required; the paradigm is implemented using normal HSM and BACKUP (or SLS) commands. The paradigm consists of the following elements, which are described in subsequent sections:

To implement this paradigm, HSM has provided a special version of BACKUP, called HSM$BACKUP, with this release. This version allows backing up only the headers of preshelved and shelved files, and in the shelved state. It is expected that this functionality will be incorporated into a future version of OpenVMS BACKUP.

5.17.1 Setting up SLS

If you are using SLS as your regular BACKUP product, you need to configure SLS to use the new HSM$BACKUP image for your regular backups. This feature is supported only with SLS V2.8 or later.

The steps you need to take are:

You set up SLS to use HSM$BACKUP by defining the following logical name:

$ DEFINE/TABLE=LNM$SLS$VALUES SLS$HSM_BACKUP 1

Depending on the type of backups or restores you are performing, you may want to include the new /[NO]SHELVED and /[NO]PRESHELVED qualifiers (as described in Section 5.17.3) in the following cases:

This paradigm is not yet supported for Archive/Backup System (ABS).

5.17.2 Preshelving Files

The key to this paradigm is preshelving most files on the system. From HSM V2.0, preshelved files have a unique state, and are flagged as preshelved in the file header. Since the data of a preshelved file remains online, the file can be modified at any time. If a preshelved file is modified, extended, or truncated, a new HSM function changes the file from preshelved to unshelved. Also, in V2.0 and later, the eligibility for preshelving files is the same as shelved file, and the following types of files cannot be preshelved:

However, all other files (except those on system disks) can and should be preshelved to utilize this paradigm. This can be done in two ways:

$!
$! This sets up a preshelve policy to regularly execute on all
$! affected volumes on a regular basis:
$!
$ SMU SET POLICY policy_name /PRESHELVE /NOELAPSED /LOWWATER_MARK=0
$ SMU SET SCHEDULE volume_list policy_name/AFTER=time
$!
$! This manually preshelves all files on a volume; this command may
$! be placed in an HSM policy script file.
$! $ PRESHELVE volume:[000000...]*.*;*

HSM will not preshelve files that are already preshelved or shelved, so these commands affect only files that have been created or modified since the last preshelve operation. Since HSM does not preshelve open files, you can perform the preshelving during the day.

When starting this paradigm up for the first time, however, thousands of files per volume will be preshelved, so it is recommended that only one volume at a time is processed during this startup phase.

5.17.3 Nightly Backups

While using this paradigm, it is still necessary to perform regularly (for example, nightly) backups using your regular backup regimen. This is required to restore a disk's index file and directory structure following a disk failure.
For this paradigm to work, you must use "HSM$BACKUP" as provided with the HSM kit as your backup engine. This backup engine can be supported by SLS. The paradigm substantially reduces the backup window because only the 512-byte header for each preshelved file is backed up: the data is stored in the HSM subsystem.

The recommended paradigm for regular backups is:

Two new qualifiers are provided to HSM$BACKUP to implement this paradigm:

The following examples contain the recommended options for performing image and incremental backups using this paradigm:

$!
$! Image BACKUP
$!
$ HSM$BACKUP/IMAGE/IGNORE=INTERLOCK/RECORD/LOG/NOPRESHELVED -
_$ volume: device:saveset/SAVESET
$!
$! Incremental BACKUP
$!
$ HSM$BACKUP/RECORD/SINCE=BACKUP/NOPRESHELVED/NOSHELVED/LOG/ IGNORE=INTERLOCK
_$ volume: device:saveset/SAVESET
$!

Each of these commands backs up only the headers of shelved and preshelved files, and they are copied to the backup saveset in the shelved state. The online state remains unchanged.

5.17.4 Restoring Volumes

If there becomes a need to restore a disk volume because it has become damaged, the normal restoration process is follows, namely:

After applying the image and incremental backups, you have restored all the metadata and directory structure for the volume, and also have restored most of the files to the shelved state (that is, all files that were preshelved and shelved during the backup are restored to the shelved state). You can use either HSM$BACKUP or normal OpenVMS Backup for the restore process.

Before making the volume available to users, it is necessary to repair the HSM catalog, since the file identifiers (FIDs) of shelved and preshelved files may have changed. You can repair them with the following command, which will take several minutes to run:

$ SMU ANALYZE/REPAIR volume:

Note that this operation completes successfully if you restore the files to the same volume (device name) or to a different device.

Once this command completes, the disk volume is ready for use. Note, however, that most files are still shelved. If you wish to avoid file faults on first file access on recently-accessed files,

you may want to initiate an unshelve procedure such as the following:

$ UNSHELVE volume:[000000...]*.*;*/SINCE=10-OCT-1999/EXPIRED

This command unshelves all files that have been accessed since 10-OCT-1999 (assuming you have enabled volume retention as recommended). The use of this command is optional.

5.17.5 Restoring Files

You restore individual files by locating the volume that has the latest (or desired) copy of the file and restoring the file in the usual way. If, however, the file is restored in the shelved state, you should run the SMU ANALYZE/REPAIR command to reset its file identifier in the catalog.

5.17.6 Repacking

Since you are using HSM as the repository of virtually all files on your system, the number of HSM media is liable to become very large. In order to keep this under control, it is recommended that you repack your archive classes regularly. Once every three-six months is recommended in such an environment. See section 7.14 for information on repacking archive classes.

5.17.7 Other Recommendations

You should not use consolidated backup with HSM on system disks. Preshelving files on system disks (and having them restored in the shelved state) will likely result in an inability to reboot your system. This is highly unrecommended.

Also, you should define multiple shelves and multiple catalogs for this environment. The catalogs should be stored on shadowed disks with preshelving disabled. You should not preshelve any HSM-internal files, otherwise unshelving may not be possible after a restore.

5.18 Determining Cache Usage

If you wish to see how many files and blocks are being used for a cache device, you can enter a DIRECTORY command for the cache directory. For each cache device defined using SMU, the cache directory is located at device:[HSM_CACHE]. To determine usage, enter a command as shown in the following example:

$ DIRECTORY/GRAND/SIZE=ALL $1$DKA100:[HSM_CACHE]
Grand total of 1 directory, 221 files, 9021/9021 blocks.

5.19 Maintaining File Headers

Because HSM keeps file headers in online storage while moving the file data to shelf storage, you need to consider your system limits for the number of file headers that can be on a given volume. If you exceed the allowable number of file headers on a given volume, users may see INDEXFILEFULL and HEADERFULL errors when creating files. To prevent this problem, you need to understand how OpenVMS limits the number of file headers on your disk and how you can control this information.

5.19.1 Determining File Header Limit

OpenVMS limits the number of file headers you can have on a volume by calculating a value

for MAXIMUM_FILES, using the following equation:

MAXIMUM_FILES = maxblock / (cluster_factor + 1)

Where maxblock is the value for "total blocks" from SHOW DEVICE/FULL and cluster_factor must be between:

Min value: maxblock / (255 * 4096) (or 1 whichever is greater)
Max value: maxblock / 100

Many systems use the default value for cluster_factor, which is 3 for disks whose capacity is greater than or equal to 50,000 blocks. Occasionally, you may have a problem with very large disks when the default value of three does not work and you need to calculate the minimum value using the equation. For additional information, see the INITIALIZE command in the OpenVMS DCL Dictionary.

By default, MAXIMUM_FILES is (maxblock / ((cluster_factor + 1) * 2)), which is half of the actual maximum.

5.19.2 Specifying a Volume's File Headers

To initialize a volume with the greatest number of file headers possible, use the following DCL command:

$ INITIALIZE {device} {label}/CLUSTER = (maxblock/(255*4096)) -
/MAXIMUM_FILES = (maxblock/(cluster + 1)) -
/HEADERS = (maxblock/(cluster + 1))

If you initialize a volume with the largest number of file headers, the index file will be very large, and none of that space can be used for anything but file headers. This is not necessary nor desirable, because you end up using approximately 25 percent of your disk space for file metadata. In reality, you probably want to set aside about 1 percent of your disk space for file metadata.

Note in the INITIALIZE command that /MAXIMUM_FILES reserves space for the index file while /HEADERS allocates space for the index file. Using the /HEADERs qualifier is the only way to guarantee you can create that many files. Once initialized, you cannot ever have more files on the disk than the value given with the MAXIMUM_FILES qualifier.

5.19.3 Extending the Index File

If you do not initialize your volumes using the /HEADERS qualifier, the file system will extend INDEXF.SYS for you as it needs file headers. The file system will not allow INDEXF.SYS to become multiheadered, which means you can have a maximum of approximately 77 extents in the header before you will get an error saying the index file is full.

You can tell how close you are to the index file limit using DUMP/HEADER/BLOCK=COUNT=0 [000000]INDEXF.SYS. The display contains a field called "Map area words in use." This field has a maximum of 155 for INDEXF.SYS. If the number of mapping words in use is around 120 to 130, you should schedule an image backup/restore cycle for the volume.

5.19.4 Maintaining the Number of File Headers

To prevent your system from reaching its file header limit, make sure you delete file headers as appropriate. What this means is, when you no longer need a file, do not leave it shelved with the file header on disk. Use another strategy to archive the file, just in case you need it someday. Then, delete the file from the disk.

5.20 Event Logging

HSM provides a comprehensive set of event logging capabilities that you can use to analyze shelving activity on your cluster and tune your system to provide an optimal computational environment.

Two types of logging are supported:

Event logging is supported by both the shelf handler process and the policy execution process. You can use the shelf handler log to obtain a complete summary of all shelving operations initiated on the cluster. You can use the policy log to obtain information relating to all policies run on the system.

Logging may be enabled or disabled at your discretion with one or more of the following selections: AUDIT, ERROR, and EXCEPTION.

5.20.1 Accessing the Logs

The event logs are human-readable and can be displayed with the TYPE command while HSM is in operation. Access to the logs require SYSPRV, READALL, or BYPASS privileges. Table 5-5 lists their locations.

Table 5-5 HSM Event Logging

Description

Location

Shelf Handler Audit Log

HSM$LOG:HSM$SHP_AUDIT.LOG

Shelf Handler Error Log

HSM$LOG:HSM$SHP_ERROR.LOG

Policy Audit Log

HSM$LOG:HSM$PEP_AUDIT.LOG

Policy Error Log

HSM$LOG:HSM$PEP_ERROR.LOG

You can read the event logs at any time during HSM operation, using a TYPE command, a SEARCH command, or other OpenVMS read_only tools. You also can obtain a dynamic output of events by issuing the following command on any of the event log files:

$ TYPE/TAIL/INTERVAL=1/CONTINUOUS HSM$LOG:log_file_name.LOG

The logs grow with use, and are not re-created on HSM startup. If you wish to reinitialize the logs, you can do so with the SMU SET FACILITY/RESET command, which opens a new version of each log file. The old files can then be purged, renamed and shelved, or otherwise disposed of to make space available.

Internally generated HSM requests are generally not reported in the audit log, as these are not visible to either the user or the system manager. However, they may be reported in the error log if they fail. Such internal requests include:

If you wish to see the "invisible" requests logged in the audit log, as well as shelf server logging of requests, you can enable the following logical name:

$ DEFINE/SYSTEM HSM$SHP_REMOTE_AUDIT 1

Please note that this will more than double the size of the audit log, and is only recommended when troubleshooting problems.

5.20.2 Shelf Handler Log Entries

The shelf handler error log reports only requests that have not succeeded because of an unexpected error. It does not report all errors: for example, if an error occurs because of a user syntax error, or because of a valid but illogical HSM configuration, these are generally not reported in the error log.

If you see an entry in the error log, this means that it is worth investigating for more information. It does not necessarily mean that there is a problem with the HSM system, the hardware, or the media that contains the shelved file data. For more information on solving problems, see Chapter 7.

Each entry in the shelf handler log is tagged with a request number, which is incremented in the audit log. If a serious error occurs on a request, the request number in the audit log can be reconciled with the request number in the error log to obtain more information about the error.

The following are examples of audit and error log entries:

Example of a Shelf Handler Audit Log Entry

Shelf handler V3.0A (BL22), Oct 20 1999 started at 22-
17:23:25.32 Shelf handler client enabled on node SYS001
29 20-OCT-1999 19:53:05.58, 22-SEP- 19:53:06.62: Status: Error
Application request from node SYS001, process 604003B9, user SMITH
Shelve file $1$DKA100:[SMITH]TESTJLM.DAT;1
30 20-OCT-1999 20:03:04.66, 22-SEP-
20:03:13.08: Status: Success
System request from node SYS002, process 40201C31, user SMITH
File fault (unshelve) file DISK$MYNODE:[SMITH]TESTJLM.DAT;1
31 20-OCT-1999 20:03:13.66, 20-OCT-
20:03:13.98: Status: Success
System request from node SYS002, process 40201C31, user SMITH
Unpreshelve file DISK$MYNODE:[SMITH]TESTJLM.DAT;1

Example of a Policy Audit Log Entry

6648 20-OCT-1999 18:33:03.31, 20-OCT- 18:33:04.16 status: Success
Reset PEp logs request from node MYNODE, PID 20200687, user BAILEY
6649 20-OCT-1999 18:36:40.36, 22-SEP-
17:23:04.16 status: Success
Scheduled request from node MYNODE, PID 20200687, user SYSTEM
Reactive execution on volume _$1$DKA100:
Using policy definition HSM$DEFAULT_OCCUPANCY
Volume capacity is 5841360 blocks
Current utilization is 5286012 blocks
Lowwater mark is 90% or 5257224 blocks used
Primary policy definition Space Time Working Set(STWS) was executed.
Secondary policy definition Least Recently Used(LRU) was not executed.
A total of 1454 requests for 28867 blocks were successfully sent
To reach the lowwater mark 0 blocks must be reclaimed.
6650 20-OCT-1999 19:25:04.10, 22-SEP- 18:36:47.42 status: Success
Exceeded quota request from node MYNODE, PID 20200687, user SYSTEM
Reactive execution on volume _$1$DKA200:
Using policy definition HSM$DEFAULT_QUOTA
Quota capacity is 194865 blocks
Current utilization is 203416 blocks
Lowwater mark for UIC [107,34] is 80% or 155892 blocks used
Primary policy definition Space Time Working Set(STWS) was executed.
Secondary policy definition Least Recently Used(LRU) was not executed.
A total of 2051 requests for 48042 blocks were successfully sent
To reach the lowwater mark 0 blocks must be reclaimed.

Example of a Shelf Handler Error Log Entry

***************************************************************************
** 29 ** REQUEST ERROR REPORT
Error detected on request number 29 on node SYS001
Entry logged at 20-OCT-1999 19:53:06.86
** Request Information:
Identifier: 1
Process: 604003B9
Username: SMITH
Timestamp: 20-OCT-1999 19:53:05.58
Client Node: SYS001
Source: Application
Type: Shelve file
Flags: Nowait Notify
State: Original Validated
Status: Error
** Request Parameters:
File: $1$DKA100:[SMITH]TESTJLM.DAT;1
** Error Information:
%HSM-E- shelf access information unavailable for $1$DKA100:[SMITH]TESTJLM.DAT;1
%SYSTEM-E-SHELFERROR, access to shelved file failed
** Request Disposition:
Non-fatal shelf handler error
Fatal request error
Operation was completed
** Exception Information:
Exception Module Line
SHP_NO_OFFLINE_INFO SHP_3851
Exception Module Line
SHP_INVALID_OFFLINE_INFOSHP_4015

5.21 Activity Logging

The event logs contain information that is logged at the end of each request, together with its final status. However, there is often a need to examine activity in progress for the following reasons:

To this end, HSM provides an SMU SHOW REQUESTS command that indicates the number of requests currently being processed. In addition, detailed information about requests can be dumped to an activity log on a SHOW REQUESTS/FULL command. The activity log is named:

HSM$LOG:HSM$SHP_ACTIVITY.LOG

A new version of the file is created for each SHOW REQUESTS /FULL command. The format of the activity log is similar to the shelf handler audit log, except that additional flags are displayed indicating the current state of the request.

In contrast to the event logs, which have clusterwide scope, the activity log is a node-specific log that reflects only the operations in progress on the requesting node. To accurately see activity on the entire cluster, you need to perform the SMU SHOW REQUESTS/FULL on every node in the cluster.

The following is an example of the activity log display:

** HSM Activity Log for Node MYNODE at 20-OCT-1999 16:37:06.67 **
1 20-OCT-1999 16:35:58.68, - Request in progess - Status: Null status
System request from node MYNODE, process 20200B24, user BAILEY
FileID Original Validated
Free space of 100 blocks for user BAILEY on volume _$1$DKA100:
2 20-OCT-1999 16:35:15.46, - Request in progess - Status: Null status
System request from node MYNODE, process 20200B24, user BAILEY
FileID Original Validated
Free space of 171 blocks for user BAILEY on volume _$1$DKA100:
3 20-OCT-1999 16:34:42.02, - Request in progess - Status: Null status
Shelf request from node MYNODE, process 20200B26, user HSM$SERVER
Original Validated
Flush cache file _$1$DKA0:[HSM_CACHE]TEST2.DAT$7702292510;1 to shelf stor
age
4 20-OCT-1999 16:34:42.01, - Request in progess - Status: Null status
Shelf request from node MYNODE, process 20200B26, user HSM$SERVER
Original Validated
Flush cache file _$1$DKA0:[HSM_CACHE]TEST1.DAT$7702292519;3 to shelf stor
age

In the activity log, requests are logged in reverse order of being received. Also, all active requests are logged, including internal requests that do not appear in the audit log.

Canceling Requests

If upon monitoring the activity log, or otherwise, you wish to cancel certain requests, there are several means to accomplish this. This is useful if a policy has started that is about to shelve files that you do not want to be shelved. Use the following table to determine how to cancel classes of requests:

Table 5-6 Canceling Requests

To Cancel...

Issue the Following Command...

All requests

SMU SET FACILITY/DISABLE=ALL

All shelve requests

SMU SET FACILITY/DISABLE=SHELVE

All unshelve requests

SMU SET FACILITY/DISABLE=UNSHELVE

All requests on a shelf

SMU SET SHELF name/DISABLE=ALL

Shelve requests on a shelf

SMU SET SHELF name/DISABLE=SHELVE

Unshelve requests on a shelf

SMU SET SHELF name/DISABLE=UNSHELVE

All requests on a volume

SMU SET VOLUME name/DISABLE=ALL

Shelve requests on a volume

SMU SET VOLUME name/DISABLE=SHELVE

Unshelve requests on a volume

SMU SET VOLUME name/DISABLE=UNSHELVE

Cache flushing

SMU_SET_FACILITY/DISABLE=SHELVE

Any request that is in operation may or may not complete. However, all pending requests are terminated with an "OPERATION DISABLED" message.

Once a managed entity is disabled, it must be reenabled for operations on that entity to resume.

5.22 Converting from Basic Mode to Plus Mode

Although you specify whether to install HSM Basic mode or HSM Plus mode during the installation process, you can convert to HSM Plus mode after the installation if you choose. To convert to HSM Plus mode, you need to do the following:

Once you have shelved files in HSM Plus mode, you cannot go back to HSM Basic mode.

The remainder of this section explains how to perform the conversion tasks in detail and provides recommendations that should make the transition easier.

5.22.1 Shutting Down the Shelf Handler

To shut down the shelf handler, you use the SMU SHUTDOWN command. This commands shuts down and disables HSM in an orderly manner. To use this command, you must have SYSPRV, TMPMBX, and WORLD privileges. If you do not shut down the shelf handler before you convert to Plus mode, the database could become corrupted and files may become ineligible for unshelving. Also, note that the mode change does not have effect until you restart HSM.

5.22.2 Disabling the Shelving Facility

To disable the facility across the cluster, you use the SMU SET FACILITY command. You also use this same command, but with different qualifiers, to reenable the facility after the upgrade is completed. Disabling the facility prevents people from attempting to shelve or unshelve files while the conversion is in progress.

$ SMU SET FACILITY /DISABLE=ALL

5.22.3 Entering Information for MDMS

To enable HSM Plus mode to access the appropriate information, you need to make MDMS aware of (tape) volumes that already have been used. For new shelving, you can use volumes already in the MDMS database.

For volumes that have already been used for HSM Basic mode, you need to allocate those volumes for unshelving purposes to HSM, bearing in mind the specific volume names used for HSM Basic mode. Because you need to use these volumes as "read-only" volumes, you may want to create a special volume pool for all the old HSM Basic mode volumes.

For more information on preparing HSM to work with MDMS, see the Getting Started with HSM Chapter of the HSM Installation and Configuration Guide.

5.22.4 Changing from Basic Mode to Plus Mode

To change from HSM Basic mode to HSM Plus mode without reinstalling the HSM software, you need to change information about the facility and restart the shelf handler. Because HSM Version 3.0A converts existing HSM information upon installation, you do not need to do any additional conversion for HSM Plus mode to operate.

To change from HSM Basic mode to HSM Plus mode, use the following command:

$ SMU SET FACILITY /MODE=PLUS

5.22.5 Restarting the Shelf Handler

Once you have made all the HSM Basic mode volumes known to MDMS and have reset the facility to HSM Plus mode, you are ready to restart HSM. To restart HSM, use the SMU STARTUP command.

5.22.6 Using the Same Archive Classes

If you intend to use the same archive classes for HSM Plus mode as you used for HSM Basic mode, you need to be very careful about the information that has been stored in those archive classes so far. To protect this information and enable HSM to use the same archive classes, you need to checkpoint the existing archive classes before you enable the facility for shelving in Plus mode.

The SMU CHECKPOINT command allows HSM to use the next volume in sequence for shelving operations within the archive class, but stops writing to the existing volumes for that archive class.

5.22.7 Enabling the Facility

The last thing you need to do for HSM Plus to start running is to enable the facility for shelving and unshelving operations, because you disabled it earlier. To do this, use the following command:

$ SMU SET FACILITY /ENABLE=ALL

5.22.8 Example Mode Conversion

The following is an example of a Basic mode configuration successfully converted to Plus mode. The Basic mode configuration consists of:

For the initial conversion to Plus mode, we will retain the same devices and archive classes for operation. Additional archive classes and devices can be added later in the usual way.

The following example shows the commands to issue to convert the above Basic mode configuration to Plus mode:

$!
$! Convert HSM to Plus Mode (does not affect current operations)
$!
$ SMU SET FACILITY/MODE=PLUS
$! Disable HSM shelving operations
$!
$ SMU SET FACILITY/DISABLE=ALL
$!
$! Shut Down HSM, and bring back up in Plus mode
$!
$ SMU SHUTDOWN
$!
$! Redefine the archive classes -
$! TK85K is a standard MDMS/SLS media type for "CompacTape III"
$! Pool TK85K_POOL is a pool for new volumes to be allocated in Plus mode
$!
$ SMU SET ARCHIVE 1,2 /MEDIA_TYPE=TK85K/ADD_POOL=TK85K_POOL
$!
$! If needed, define the HSM device in TAPESTART.COM, and restart
$! MDMS/SLS. If the device is a magazine loader, additional configuration
$! is necessary (see section 5.5.2 in the Guide to Operations).
$!
$! MTYPE_1 := TK85K
$! DENS_1 :=
$! DRIVES_1 := $1$MKA100:
$!
$ @SYS$STARTUP:SLS$STARTUP.COM
$!
$! Define the Basic mode volumes in the MDMS/SLS Database, using a
$! specific pool called HSM_BASIC. This helps prevent these volumes being
$! allocated by another application.
$!
$ STORAGE ADD VOLUME HS0001/MEDIA_TYPE=TK85K/POOL=HSM_BASIC
$ STORAGE ADD VOLUME HS0002/MEDIA_TYPE=TK85K/POOL=HSM_BASIC
$ STORAGE ADD VOLUME HS0003/MEDIA_TYPE=TK85K/POOL=HSM_BASIC
$ STORAGE ADD VOLUME HS0004/MEDIA_TYPE=TK85K/POOL=HSM_BASIC
$ STORAGE ADD VOLUME HS1001/MEDIA_TYPE=TK85K/POOL=HSM_BASIC
$ STORAGE ADD VOLUME HS1002/MEDIA_TYPE=TK85K/POOL=HSM_BASIC
$ STORAGE ADD VOLUME HS1003/MEDIA_TYPE=TK85K/POOL=HSM_BASIC
$ STORAGE ADD VOLUME HS1004/MEDIA_TYPE=TK85K/POOL=HSM_BASIC
$!
$! Allocate the Basic mode volumes for HSM use.
$!
$ STORAGE ALLOCATE TK85K/VOLUME=HS0001/USER=HSM$SERVER
$ STORAGE ALLOCATE TK85K/VOLUME=HS0002/USER=HSM$SERVER
$ STORAGE ALLOCATE TK85K/VOLUME=HS0003/USER=HSM$SERVER
$ STORAGE ALLOCATE TK85K/VOLUME=HS0004/USER=HSM$SERVER
$ STORAGE ALLOCATE TK85K/VOLUME=HS1001/USER=HSM$SERVER
$ STORAGE ALLOCATE TK85K/VOLUME=HS1002/USER=HSM$SERVER
$ STORAGE ALLOCATE TK85K/VOLUME=HS1003/USER=HSM$SERVER
$ STORAGE ALLOCATE TK85K/VOLUME=HS1004/USER=HSM$SERVER
$!
$! Create a volume set for each archive class - all but the first
$! volume in an archive class MUST BE APPENDED to the first volume
$! in the archive class. Also, the given user name must be correct.
$!
$! NOTE THE ORDER OF COMMANDS - THIS IS SIGNIFICANT TO GET THE
$! CORRECT PROGRESSION OF VOLUMES IN THE ORDER:
$! HSx001, HSx002, HSx003, HSx004
$!
$ STORAGE APPEND HS0001/VOLUME=HS0004/USER=HSM$SERVER
$ STORAGE APPEND HS0001/VOLUME=HS0003/USER=HSM$SERVER
$ STORAGE APPEND HS0001/VOLUME=HS0002/USER=HSM$SERVER
$ STORAGE APPEND HS1001/VOLUME=HS1004/USER=HSM$SERVER
$ STORAGE APPEND HS1001/VOLUME=HS1003/USER=HSM$SERVER
$ STORAGE APPEND HS1001/VOLUME=HS1002/USER=HSM$SERVER
$!
$! Define new volumes for the archive classes to use in Plus mode
$! (at least two per archive class).
$!
$ STORAGE ADD VOLUME DEC001/MEDIA_TYPE=TK85K/POOL=TK85K_POOL
$ STORAGE ADD VOLUME DEC002/MEDIA_TYPE=TK85K/POOL=TK85K_POOL
$ STORAGE ADD VOLUME DEC003/MEDIA_TYPE=TK85K/POOL=TK85K_POOL
$ STORAGE ADD VOLUME DEC004/MEDIA_TYPE=TK85K/POOL=TK85K_POOL
$!
$! Checkpoint the archive class to use new Plus mode volumes
$!
$ SMU CHECKPOINT 1,2
$!
$! Shut down HSM again
$!
$ SMU SHUTDOWN
$!
$! Restart HSM
$!
$ SMU STARTUP
$!
$! Enable HSM shelving operations
$!
$ SMU SET FACILITY/ENABLE=ALL
$!

At this point you can begin shelving files to the new volumes in Plus mode, as well as unshelve files from the previous volumes written in Basic mode.



6

Operator Activities in the HSM
Environment

This chapter provides information on operator activities in the HSM environment. It covers the following:

6.1 Enabling the Operator Interface

In most environments, HSM performs operations to nearline and offline storage devices. In many cases, manual loading and unloading of tape volumes and tape magazines are required. This section describes the messages that HSM issues to the OpenVMS OPCOM interface, and what the operator's possible options are.

When running HSM, the OPCOM operator interface must be enabled to allow the operator to perform such loading and unloading. To enable the operator interface, enter the following command:

$ REPLY/ENABLE=(CENTRAL, TAPES)
%%%%%%%%%%% OPCOM 07-Jan-2004 14:25:46.05 %%%%%%%%%%%
Operator _SYS001$RTA2: has been enabled, username SYSTEM

%%%%%%%%%%% OPCOM 07-Jan-2004 14:25:46.06 %%%%%%%%%%%
Operator status for operator _SYS001$RTA2:
CENTRAL, TAPES

6.2 Loading and Unloading Single Tapes for HSM Basic Mode

When an HSM operation is directed at a nonmagazine loader tape drive, the operator is responsible for loading and unloading tapes on the drive. The following messages apply to nonmagazine loader tape drives.

6.2.1 Load Volume, No Reply Needed

%%%%%%%%%%% OPCOM 21-OCT-13:52:47.09 %%%%%%%%%%%
Message from user HSM$SERVER on MYNODE
Please mount volume HSZ001 in device _ (no reply needed)

This request, issued by HSM, requests that you load a specific volume label into the specified drive.

Do not issue a REPLY to this message.

6.2.2 Load Volume

%%%%%%%%%%% OPCOM 21-OCT- 13:52:48.04 %%%%%%%%%%%
Request 2324, from user HSM$SERVER on MYNODE
Please mount volume HSZ001 in device _ (OTHERNODE)

This request, issued by the OpenVMS mount command, requests that you load a specific volume label into the specified drive. Do one of the following:

If you load a volume into the drive, you can optionally reply with a confirmation:

$ REPLY/TO=2324

If you do not reply after loading a volume, the mount completes and HSM proceeds anyway.

6.2.3 Reinitialize Volume

%%%%%%%%%%% OPCOM 07-Jan-2004 14:25:46.05 %%%%%%%%%%%
Request 2324, from user HSM$SERVER on MYNODE
Allow HSM to reinitialize volume TEST to HS0001 in drive $1$MUA0:
NOTE: Previous contents of volume will be lost

This message is displayed if you loaded a volume with a different label than the one requested. Issue one of the following replies:

This reply is required. HSM will not proceed until the request is answered with one of the possible replies.

6.2.4 Volume Initialization Confirmation

%%%%%%%%%%% OPCOM 30-MAY- 14:25:46.05 %%%%%%%%%%%
Message from user HSM$SERVER on MYNODE
Volume in drive $1$MUA0: has been re-initialized to HS0001
Please place label HS0001 on volume when unloaded

This message is a confirmation that HSM has reinitialized a volume label. It serves as a reminder to place a physical volume label with the name listed in the message when the volume is unloaded.

Do not issue a REPLY to this message.



6.2.5 Unload Label Request

%%%%%%%%%%% OPCOM 30-MAY- 14:25:46.05 %%%%%%%%%%%
Message from user HSM$SERVER on MYNODE
Please place label HS0001 on volume unloaded from drive $1$MUA0:

This message is displayed when a tape volume, initialized by HSM, is unloaded from a drive. This is a final reminder to place the requested physical label on the tape volume, so that the volume can be located later. Do not issue a REPLY to this message.

6.3 Responding to BACKUP Requests for HSM Basic Mode

In addition to HSM-generated OPCOM requests, OpenVMS BACKUP also issues OPCOM messages when handling continuation volumes for HSM Basic mode. Please refer to the OpenVMS Utilities Manual: A - Z for information relating to BACKUP requests.

6.4 Working with Magazine Loaders for HSM Basic Mode

HSM issues OPCOM messages to load and unload magazines into a magazine loader. The following requests are issued:

6.4.1 Load Magazine

%%%%%%%%%%% OPCOM 30-MAY- 14:25:46.05 %%%%%%%%%%%
Request 3, from user HSM$SERVER on MYNODE
Please load magazine containing volume HS0001 into drive $1$MUA0:

This message requests that you load a specific magazine (stacker) into a magazine loader tape drive. The magazine itself is not identified, but the specific volume is identified. You should locate the magazine containing the specific volume, which should be labeled, and load that entire magazine into the magazine loader.

You should then enter one of the following:

6.4.2 Illegal Magazine

%%%%%%%%%%% OPCOM 30-MAY- 14:25:46.05 %%%%%%%%%%%
Message from user HSM$SERVER on MYNODE
The magazine loaded in drive $1$MUA0: has an invalid HSM configuration.
Please reconfigure magazine before reloading
See HSM Guide to Operations - Magazine Loaders

The magazine contains duplicate HSM volumes. Each HSM volume must have a unique label in the format HSyxxx, where y is the archive class minus 1, and xxx is a string in the format 001 - Z99. Please review the labels in the magazine, and initialize as appropriate. It is recommended that the labels in the magazine are ordered by archive class in ascending order. For example, HS0001, HS0002, HS1001, HS1002 etc.
Do not issue a REPLY to this message.

6.4.3 Unload Magazine

%%%%%%%%%%% OPCOM 30-MAY- 14:25:46.05 %%%%%%%%%%%
Message from user HSM$SERVER on MYNODE
Please unload magazine from drive $1$MUA0:

This message requests that you unload the current magazine from the specified drive, and store it in its usual place.
Do not enter a REPLY to this message

6.5 Working with Automated Loaders for HSM Plus Mode

If HSM needs to use a volume or a volume contained in a magazine that is not currently imported into the loader, there is a series of OPCOM requests and actions that need to occur for HSM to continue without failing.

6.5.1 Providing the Correct Magazine

The following series of operator actions and replies occur when HSM needs to use a volume contained in a magazine that is not imported into a loader.

1. HSM issues an OPCOM request asking for the volume to be loaded into the jukebox.

$
%%%%%%%%%%% OPCOM 07-Jan-2004 15:28:59.72 %%%%%%%%%%%
Request 65514, from user HSM$SERVER on SLOPER
Please import volume AEL008 or its associated magazine into jukebox containing drive _SLOPER$MKA500:

  1. 2. The operator then tells MDMS to export the magazine currently in the loader.

$ STORAGE EXPORT MAGAZINE MAG002

  1. 3. MDMS then issues a message requesting that the magazine currently imported be removed from the jukebox and performs the logical export.

%%%%%%%%%%% OPCOM 07-Jan-2004 15:30:15.76 %%%%%%%%%%%
Message from user SLS on SLOPER
Remove Magazine MAG002 from Tape Jukebox JUKEBOX1
%SLS-S-MAGVOLEXP, magazine volume AEL001 exported from tape jukebox
%SLS-S-MAGVOLEXP, magazine volume AEL002 exported from tape jukebox
%SLS-S-MAGVOLEXP, magazine volume AEL003 exported from tape jukebox
%SLS-S-MAGVOLEXP, magazine volume AEL004 exported from tape jukebox
%SLS-S-MAGVOLEXP, magazine volume AEL005 exported from tape jukebox
%SLS-S-MAGVOLEXP, magazine volume AEL006 exported from tape jukebox
%SLS-S-MAGVOLEXP, magazine volume AEL007 exported from tape jukebox

  1. 4. The operator then physically removes the magazine from the jukebox.
  2. 5. The operator then tells MDMS to import the magazine that contains the necessary volume.

$ STORAGE IMPORT MAGAZINE MAG001 JUKEBOX1
%%%%%%%%%%% OPCOM 07-Jan-2004 15:30:51.38 %%%%%%%%%%%
Request 65515, from user SLS on SLOPER
Place Magazine MAG001 into Tape Jukebox JUKEBOX1; REPLY when DONE

  1. 6. The operator physically places the magazine into the jukebox.
  2. 7. Once the magazine is physically in the jukebox, the operator needs to reply to the OPCOM request to place the magazine in the jukebox. The operator's reply must come from another process besides the one that submitted the STORAGE IMPORT MAGAZINE command.

$ REPLY/TO=65515
15:31:08.27, request 65515 was completed by operator _SLOPER$FTA6:

  1. 8. MDMS then logically imports the volumes into the jukebox.

%SLS-S-MAGVOLIMP, magazine volume AEL008 imported into tape jukebox
%SLS-S-MAGVOLIMP, magazine volume AEL009 imported into tape jukebox
%SLS-S-MAGVOLIMP, magazine volume AEL010 imported into tape jukebox
%SLS-S-MAGVOLIMP, magazine volume AEL011 imported into tape jukebox
%SLS-S-MAGVOLIMP, magazine volume AEL012 imported into tape jukebox
%SLS-S-MAGVOLIMP, magazine volume AEL013 imported into tape jukebox
%SLS-S-MAGVOLIMP, magazine volume AEL014 imported into tape jukebox

  1. 9. At this point, the necessary volume is in the jukebox. The operator must then reply to the original OPCOM message requesting that the volume be placed into the jukebox.

$ REPLY/TO=65514 15:31:17.45, request 65514 was completed by operator _SLOPER$FTA6:

6.5.2 Providing the Correct Volume for a TL820

The following series of operator actions and replies occur when HSM needs to use a volume that is not imported into a TL820 or similar device.

1. HSM issues an OPCOM request asking for the volume to be loaded into the jukebox.

$
%%%%%%%%%%% OPCOM 07-Jan-2004 15:28:59.72 %%%%%%%%%%%
Request 65514, from user HSM$SERVER on SLOPER
Please import volume AWX001 or its associated magazine into jukebox containing
drive _SLOPER$MKA500:

  1. 2. The operator then issues the STORAGE IMPORT command. When the green light on the TL820 import goes on and an OPCOM message is issued requesting the load, the volume can be inserted into the import. The command must be issued first since MDMS controls access to the port door. The volume is physically inserted when MDMS asks for it.

$ STORAGE IMPORT CARTRIDGE AWX001 JUKEBOX1

  1. 3. MDMS then logically imports the volume into the jukebox.

%SLS-S-VOLIMP, volume AWX001 imported into tape jukebox

  1. 4. At this point, the necessary volume is in the jukebox. The operator must then reply to the OPCOM message requesting that the volume be placed into the jukebox.

$ REPLY/TO=65514 15:31:17.45, request 65514 was completed by operator _SLOPER$FTA6:

6.6 Other MDMS Messages

OPCOM messages are provided in Plus mode when an attempt to select a drive for HSM operations fails. An example of the messages follows:

%%%%%%%%%%% OPCOM 07-Jan-2004 12:01:23 %%%%%%%%%%%
Message from user HSM$SERVER on SYS001
MDMS/SLS error selecting a drive for volume DEC100, retrying
%%%%%%%%%%% OPCOM 07-Jan-2004 12:01:24 %%%%%%%%%%%
Message from user HSM$SERVER on SYS001bad density specified for given media type

Two messages are written as a pair: the first message is a constant message from HSM identifying the problem volume. The second message is the MDMS/SLS error code received from the call. Please note HSM does not consider a select failure as fatal, and retries the operation indefinitely. Please examine the OPCOM messages and correct the MDMS/SLS problem: refer to the Media, Device and Management Services Guide to Operations for help in determining the problem. You can also use the command $ HELP STORAGE MESSAGE command for more information on specific MDMS/SLS messages for SLS /MDMS Versions prior to V2.6.

After the correction, HSM will proceed to process the requests normally. The OPCOM messages are repeated every 10 minutes if the select error continues to occur.

Another MDMS OPCOM message is printed if MDMS selects a drive for a tape volume, but cannot load the volume because it is already loaded in another drive.

%%%%%%%%%%% OPCOM 07-Jan-2004 12:01:23 %%%%%%%%%%%
Message from user HSM$SERVER on SYS001
Volume APW032 cannot be loaded into selected drive $1$MKA100:
Volume is loaded in another drive
Check volume location and drive availability, REPLY when corrected

This message should not normally happen, but if it does you should check the following:

In addition to the specific information given here about working with automated loaders, MDMS may display other messages that you need to respond to or deal with on versions prior to V2.6. For information about MDMS messages, see the MDMS online help.

$ HELP STORAGE messages

6.7 Drive Selection and Reservation Messages for Both Modes

The following OPCOM messages may be displayed when an error occurs trying to select and reserve a drive for HSM operations.



6.7.1 Unavailable Drive

%%%%%%%%%%% OPCOM 07-Jan-2004 12:01:23 %%%%%%%%%%%
Message from user HSM$SERVER on SYS001
Drive "name" has been marked unavailable and disabled -Please re-enable or disable using SMU SET DEVICE name /ENABLE or /DISABLE

HSM has detected multiple errors while trying to use the drive, has assumed the drive to be bad, and has disabled operations on the drive. This message is repeated every 10 minutes until the operator enters one of the following commands:

6.7.2 Reservation Stalled

%%%%%%%%%%% OPCOM 07-Jan-2004 12:01:23 %%%%%%%%%%%
Message from user HSM$SERVER on SYS001
Drive reservation for tape volume "name" stalled, retrying -
Optionally check drive availability and configuration

This message is an indication that a request for a tape drive is outstanding, and there are not enough drives available to handle the request. This could be because all defined drives are busy, or that a defined drive is disabled or otherwise cannot accept the request. Normally, no action is needed on this message, and the request is processed when a drive frees up. However, if this message persists for a long time, the operator should examine the HSM configuration and the drives to see if there is a problem.

6.7.3 Wrong Tape Label

%%%%%%%%%%% OPCOM 30-MAY 12:01:23 %%%%%%%%%%%
Message from user HSM$SERVER on SYS001
Tape volume label on drive "name" detected
Expected volume "right_name" but read "wrong_name"
Please check volume and configuration

This message is displayed when HSM mounts the wrong tape for an operation. An accompanying message will be issued for non-robot tape devices to request a load of the correct volume to the specified drive.

6.8 Informational Operator Messages

The following OPCOM messages are printed out to log significant events in HSM operations. They are also logged in the shelf handler audit log.

HSM Startup Message

%%%%%%%%%%% OPCOM 6-JUN- 13:55:18.52 %%%%%%%%%%%
Message from user HSM$SERVER on SYS001
HSM shelving facility started on node SYS001

This message is printed out when HSM is started on a node via an SMU STARTUP command.

Do not issue a REPLY to this message.

HSM Shelf Server Message

%%%%%%%%%%% OPCOM 6-JUN- 13:55:18.39 %%%%%%%%%%%
Message from user HSM$SERVER on SYS001
HSM shelf server enabled on node SYS001

This message is printed out when an HSM shelf server becomes enabled on a certain node. This means that all tape operations are handled by this node from this point on. This message is printed out at startup of the server node or when a node takes over as the shelf server after a failure.

Do not issue a REPLY to this message.

HSM Shutdown Message

%%%%%%%%%%% OPCOM 6-JUN- 13:55:18.52 %%%%%%%%%%%
Message from user HSM$SERVER on SYS001
HSM shelving facility shutdown on node SYS001

This message indicates that HSM has been shut down with an SMU SHUTDOWN command.

Do not issue a REPLY to this message.

HSM Termination Message

%%%%%%%%%%% OPCOM 6-JUN- 13:55:18.52 %%%%%%%%%%%
Message from user HSM$SERVER on SYS001
HSM shelving facility terminated on node SYS001

This message indicates that HSM has terminated for some reason. It immediately follows any shutdown message. If it appears without a shutdown message, then an error occurred. Refer to the shelf handler error log to determine the cause of the error.

Do not issue a REPLY to this message.



7

Solving Problems with HSM

This chapter explains how to identify and correct potential HSM problems.

7.1 Introduction to Troubleshooting

This chapter describes many of the common problems that can arise as a result of using HSM and lists appropriate solutions. The chapter is structured into the following sections:

The sections describing problems are in the following format:

Problem
A description of symptoms and possible problems within the category.

Solution
The solution is usually a specific solution to fix the specific problem assuming that it is a problem. For example, the solution to the problem of not being able to shelve contiguous files is:

SMU SET VOLUME /CONTIGUOUS.

However, before issuing this command, you should evaluate the advantages and disadvantages of shelving contiguous files.

Reference
A pointer to the section of the document that you should read for more details on the proposed solution.

HP recommends reading this chapter even if you have not experienced any problems. It can alert you to potential problems to avoid when setting up and using HSM.

7.2 Troubleshooting Tools

HSM provides several tools and utilities to help troubleshoot problems and resolve them as they occur. This section summarizes each tool and its purpose in troubleshooting.

7.2.1 Startup Logs

Two components of HSM have startup logs, which record the startup procedure and any failures for the shelf handler process and the policy execution process:

If you have problems starting up HSM (using SMU STARTUP), examine these logs for more information. All messages to SYS$OUTPUT from the startup process and its subprocesses are written to this log. A new log file version is created for each startup event, and spans all nodes in the VMScluster system. You need to read the log to determine the node to which the log file refers.

Event Logs

7.2.2 After a problem occurs, the first things you should check are the event logs:

These logs report requests and errors, and have clusterwide scope. You should examine shelf handler logs first, as these cover all activities performed by HSM. All user- visible requests are reported in the shelf handler audit log, on both success and error.

If a problem occurs during the execution of a policy, whether scheduled preventative policy or reactive policy, you can obtain more details on the error and associated policy execution in the policy execution audit log. The policy audit log gives quite detailed information about the progress of the policy execution and is logged for all policy runs. The policy error log gives additional information if the policy failed because of an unexpected error. An error log entry is not written if a policy simply fails to reach its goal-this information is written in the audit log.

Please note that entries are placed in the event logs at the completion of a request. Requests in progress are not reported in the event logs, but rather in the activity log (see See Activity Log ).

7.2.3 Activity Log

In contrast to the event logs, the activity log allows you to examine requests that are in progress. This is useful if you suspect that an operation is hung, or there are requests that have been generated that you wish to cancel (such as an unintended mass shelving). An activity log can be obtained using the SMU SHOW REQUESTS/FULL command, which dumps all in-progress requests to the file HSM$LOG:HSM$SHP_ ACTIVITY.LOG. Note that the activity log is node-specific.

The activity log is similar to the shelf handler audit log in format, except that the status and "completion time" are necessarily different. In addition, flags showing the input options and progress of the request also are displayed.

7.2.4 SMU LOCATE

If you are experiencing a problem in unshelving a shelved file's data, you can use the SMU LOCATE command to retrieve full information about the file's data locations. Although HSM tries to restore data from all known locations automatically, even when some of its metadata is missing, there may be occasions when this is not possible. In these situations, you should use the SMU LOCATE command to locate the file's data. Once you have found the data, you can restore it manually using BACKUP (from tape) or COPY (from cache) commands. SMU LOCATE reads the HSM catalog directly to find a shelved file's data locations.

You should note that the SMU LOCATE command does not work quite the same way as a typical OpenVMS commands when processing look-up and wildcard operations. The file name you supply as input (including any wildcards) applies to the file as stored in the HSM catalog at the time of shelving. Thus, for example:

When you retrieve information using the SMU LOCATE command, several instances or groups of stored locations may be displayed. These reflect the locations of the file when it was shelved at various stages of its life. You should carefully review the shelving time and revision time of the file to determine which, if any, is the appropriate copy to restore.

7.2.5 UNSHELVE/OVERRIDE

When a shelved file is accessed causing a file fault, or when a request to unshelve a file is made, HSM performs consistency checking to validate that the shelved file data actually belongs to the file being requested. There are many such tests, including verification of the file identifier, device, and revision dates to ensure that the data being retrieved for the file is correct.

If any of the consistency checks fail, the file is not unshelved and the user-requested operations fail with an error message. As the system manager, you may be able to force unshelving of the file if some of these tests fail by using the UNSHELVE/OVERRIDE command, which requires BYPASS privilege. This tool enables you to retrieve important file data in the event that an unusual situation has occurred.

HP recommends that you examine the circumstances of the original consistency failure before using the UNSHELVE /OVERRIDE option. For example, use the SMU LOCATE command to verify the file revision dates. It is very likely that the data that you would restore is not exactly current, and additional recovery may be needed. Under no circumstances should UNSHELVE/OVERRIDE be used during normal operations (in policy scripts for example). The consistency failure indicates that HSM has detected a real problem that needs to be examined.

7.2.6 SMU RANK

The SMU RANK command provides the capability of previewing an actual policy execution against a volume, before any files are actually shelved. This lists the names of all files that would be shelved if a policy were to be executed on a volume.

To avoid a mass shelving problem, HP recommends that you make extensive use of this command before enabling any automatic policy executions on a volume (see Section 7.5).

This command also can be used to tune your policies so that they select the correct files for shelving based on usage in your environment and that the quantity of files that they select is manageable.

7.2.7 SMU SET and SHOW Commands

Many operational problems are caused by invalid or illogical configurations as set up using SMU commands. You can use the SMU SET and SHOW commands to determine if your configuration is valid and to make the configuration valid. The following are examples of common configuration problems that can easily be corrected using the SMU SET and SHOW commands:

See Chapter 3 for a tutorial in configuring HSM and the appendix in the Installation Guide for an example on how to set up a moderately complex configuration.

7.2.8 MDMS Tools for HSM Plus Mode

To verify the MDMS configuration and evaluate MDMS problems that affect HSM, use the following MDMS commands:

For more information on these commands, see the Media, Device and Management Services for OpenVMS Guide to Operations.



7.3 Installation Problems

A number of problems can appear during the installation process. VMSINSTAL displays failure messages as they occur. If the installation fails, you see the following message:

%VMSINSTAL-E-INSFAIL, The installation of HSM V2.1 has failed.

Depending on the problem, you may see additional messages that identify the problem. Then, you can take appropriate action to correct the problem.

Sometimes, the problem does not show up until later in the installation process.

If the IVP fails, you see this message:

The HSM V2.1 Installation Verification Procedure failed.

%VMSINSTAL-E-IVPFAIL, The IVP for HSM V2.1 has failed.

Errors can occur during the installation if any of the following conditions exist:

For descriptions of the error messages generated by these conditions, see the OpenVMS documentation on system messages, recovery procedures, and VMS software installation. If you are notified that any of these conditions exist, you should take the appropriate action as described in the message. For information on installation requirements, see Chapter 1 of the HSM Installation Guide.

7.4 HSM Startup Problems

This section describes problems that can occur while starting up HSM.

7.4.1 SMU Does Not Run

If you cannot run the Shelf Management Utility (SMU), examine Table 7-1 for more information.

In the reference column of a this table, IG refers to the HSM Installation Guide. When IG is not mentioned, assume that the reference is to this HSM Guide to Operations Manual.



Table 7-1 SMU Does Not_Run

Problem

Solution

Reference

HSM license not installed

Install the HSM License

IG Section 1.1.3

DECthreads images not installed

Install DECthreads images

IG Section 1.1.4

HSM logical names not defined

Define HSM$CATALOG, HSM$MANAGER, and HSM$LOG

Section 2.11

Installation not complete

Complete installation

IG Section 1.3

Insufficient privilege

Check privileges in current account

IG Section 1.2.1

7.4.2 The Shelf Handler Does Not Start Up

If the shelf handler process (HSM$SHELF_HANDLER) does not start up, examine Table 7-2 and the following files for more information:

In the reference column of a this table, IG refers to the HSM Installation Guide. When IG is not mentioned, assume that the reference is to this HSM Guide to Operations Manual

.

Table 7-2 The Shelf Handler Does Not Start Up

Problem

Solution

Reference

HSM license not installed

Install the HSM License

IG Section 1.1.3

Catalog not created

Create a catalog

IG Section 1.4.2

SMU databases not created

Create databases; run SMU or HSM$STARTUP.COM



HSDRIVER not loaded

On VAX systems: SYSGEN CONNECT/NOADAPTER On Alpha systems:SYSMAN IO_CONNECT HSA0: /NOADAPTER on Alpha/I64 systems

IG Section 1.4.1

HSM logical names not defined

Define HSM$CATALOG, HSM$MANAGER, and HSM$LOG

Section 2.11

HSM logical names not systemwide

Use DEFINE/SYSTEM

Section 2.11

HSM logical names not same clusterwide

Use SYSMAN to define

Section 2.11

HSM logical names not correct

Check and redefine HSM$CATALOG, HSM$MANAGER, and HSM$LOG

Section 2.11

Version limits on HSM$LOG directory

Remove version limits from HSM$LOG directory

Section 2.11

Shelf handler already started

Nothing



Insufficient quotas

Increase quotas

IG Section1.2.4

Insufficient privilege

Check and change HSM$SERVER account V

IG Section 1.2.1

Insufficient disk space on HSM$MANAGER HSM$CATALOG, HSM$LOG

Delete some files or redirect to another disk



Request log corrupted

DeleteHSM$SHP_REQUEST*.SYS;* and restart



SMU database corrupted

Delete HSM$LOG:HSM$*.SMU, recreate databases and restart; run SMU or HSM$STARTUP.COM



Catalog corrupted

Recover catalog from BACKUP copy and restart

Section 5.10.2

Installation not complete

Complete installation

IG Section 1.3

Shelf handler running in Basic mode after converting to Plus mode Verify all conversion steps performed especially SM

SMU SET FACILITY /MODE=PLUS

Section 5.22

7.4.3 Policy Execution Process Does Not Start Up

If the shelf handler successfully starts up, but the policy execution process does not, examine Table 7-3 and the following files for more information:

In the reference column of a this table, IG refers to the HSM Installation Guide. When IG is not mentioned, assume that the reference is to this HSM Guide to Operations Manual.

Table 7-3 Policy Execution Process Does Not Start Up

Problem

Solution

Reference

Version limits on HSM$LOG directory

Remove version limits from HSM$LOG directory



Policy execution process already started

Nothing



Insufficient quotas

Increase quotas

IG Section 1.2.4

Insufficient privilege

Check and change HSM$SERVER account privileges

IG Section 1.2.1

Insufficient disk space on HSM$MANAGER, HSM$LOG

Delete some files or redirect to another disk



SMU database corrupted

Delete HSM$LOG:HSM$*.SMU, recreate databases and restart; run SMUor HSM$STARTUP.COM



Installation not complete

Complete installation

IG Section 1.3

7.4.4 HSM Does Not Shut Down

If you have entered a SHUTDOWN command, but HSM does not shut down, and you have waited at least 30 seconds, examine Table 7-4 for more information.

Table 7-4 HSM Does Not Shut Down

Problem

Solution

Reference

HSM requests are in progress

SMU SHUTDOWN/NOW



BACKUP operation is in progress

Wait 5 minutes- HSM does not exit if a BACKUP SAVE operation is in progress unless a 5 minute timeout expires: look for HSM$SERVER_xx processes in SHOW SYSTEM to verify



HSM is hung

Use SYSMAN DO SMU SHUTDOWN/FORCE on all nodes



7.4.5 Shelving and SMU Commands Do Not Work

The following symptoms mean that parts of the HSM system are not running:

If the shelving driver is not loaded, issue the following command on OpenVMS VAX? systems:

$ MCR SYSGEN CONNECT HSA0:/NOADAPTER

If the shelving driver is not loaded, issue the following command on OpenVMS Alpha and OpenVMS I64 systems:

$ MCR SYSMAN IO_CONNECT HSA0:/NOADAPTER

To recover any other component, issue the following command:

$ SMU STARTUP

7.5 Mass Shelving

Unintended mass shelving can occur when you enable OCCUPANCY, HIGHWATER_MARK, and QUOTA operations on specific volumes, or the default volume, without careful preparation. HP recommends that you stage automatic shelving, one volume at a time, and in manageable quantities on those volumes by gradually lowering the volume's low water mark from its current occupancy level to the desired level.

You should not attempt to shelve more than 1000 files at a time, otherwise HSM's performance will degrade. Use the SMU RANK command to determine the quantity (and names) of files that would be shelved, before enabling the policy.

If you have accidentally initiated a mass shelving operation on a volume, use Table 7-5 to recover.

In the reference column of a this table, IG refers to the HSM Installation Guide. When IG is not mentioned, assume that the reference is to this HSM Guide to Operations Manual.

Table 7-5 Accidentally Starting Mass Shelving

Problem

Solution

Reference

Cannot determine what would be shelved

Use SMU RANK

HSM Command Reference Guide

Do not know what's being shelved

Use SMU SHOW REQUESTS/FULL

HSM Command Reference Guide

Want to stop shelving on volume

Use SMU SET VOLUME /DISABLE=SHELVE



Want to stop all shelving

Use SET FACILITY /DISABLE=SHELVE



Want to recover all shelved_files

Use UNSHELVE device:[000000...]*.*;*



Additional options exist to cancel shelving operations at other granularities. See Table 5-6.

Note that once a shelving policy has begun, it is too late to simply disable the policy on the volume: SHELVING must be disabled. However, it is a good idea to disable OCCUPANCY, HIGHWATER_MARK, and EXCEEDED QUOTA on the volume, in case a trigger initiates another mass shelving on the volume.

7.6 Shelving on System Disks

HP strongly recommends that you do not enable shelving or any automatic shelving policies on system disks.

Although the installation procedure marks OpenVMS system files as unshelvable, this could be enabled (intentionally or unintentionally) later. The installation procedure does not protect layered product files from shelving. You should define system disks separately from the HSM$DEFAULT volume and disable all HSM operations, as in the following example:

$ SMU SET VOLUME SYS$SYSDEVICE:/DISABLE=ALL

Note that if there is more than one system disk in a VMScluster system, the command should be issued on each node that has its own system disk. This especially applies to mixed VAX and Alpha VMScluster systems.

If OpenVMS system or key layered product files are shelved, the consequences are that it may no longer be possible to boot any system in the VMScluster environment. Specifically, if a file involved in the system startup stream is shelved, then accessed before HSM is started, the boot procedure will fail. Recovery may require a complete reinstallation of OpenVMS and affected layered products. It is much better to simply disable shelving on the system disks rather than to have to worry about all these consequences.

The procedures in Table 7-6 should be adopted to prevent or recover from this condition.

Table 7-6 Shelving on System Disks

Problem

Solution

Reference

Prevent shelving on system disks

SMU SET VOLUME system_disk: /DISABLE=ALL



Prevent OpenVMS system files from being shelved

SET FILE disk:[directory_tree...]*.*;*/NOSHELVABLE



Recover if system cannot boot

Reinstall OpenVMS and affected layered products



7.6.1 HSM Plus Mode (MDMS) Problems

There are a number of problems that HSM Plus mode may have that are not HSM problems, but are instead problems with MDMS. Many of these problems are related to MDMS configuration issues. For more information, see the Plus Mode Offline Environment Chapter of the HSM Installation and Configuration Guide and the Media, Device and Management Services for OpenVMS Guide to Operations.

In the reference column of a this table, IG refers to the HSM Installation Guide. When IG is not mentioned, assume that the reference is to this HSM Guide to Operations Manual unless otherwise specified.

Table 7-7 MDMS Problems

Problem

Solution

Reference

No volumes are defined in the MDMS volume database for the volume pool HSM is using

Use the following HSM command to add new volumes to the volume pool $ STORAGE ADD VOLUME 6 vol_name /POOL=pool_name or use the following command to add existing volumes to the volume pool: $ STORAGE SET VOLUME vol_name /POOL=pool_name

Installation & Configuration: Guide, Chapter

HSM is not authorized to access the volume pool.

Use the MDMS Administrator menu to authorize access to the volume pool

HSM Installation & Configuration Guide, Chapter 6

The media type specified for the archive class in HSM does not match any valid media type defined in TAPESTART.COM.

Look at TAPESTART.COM to find a valid media type defintion. Use HSM $ SMU SET ARCHIVE /MEDIA_TYPE=media_ type to associate the appropriate media type with the archive class.

Installation & Configuration Guide, Chapter 6

MDMS is not running.

$Use the following command to start up MDMS: @SYS$STARTUP:SLS$STARTUP

MDMS Guide to Operations

HSM asks you to load volumes that are contained in a robotically controlled device

Check value for QUICKLOAD in TAPESTART.COM; - QUICKLOAD should be set to 1 to indicate the operator does not need to respond to requests to load volumes. Be sure all jukeboxes are defined correctly.

MDMS Guide to Operations

7.7 HSM VMScluster Problems

HSM is designed to run in a VMScluster environment. It must run on all nodes in the cluster so that files can be accessed from any node. The following requirements define how HSM must be run in a cluster environment for correct operation:

If you are still having VMScluster problems, examine Table 7-8 for more information.

In the reference column of this table, IG refers to the HSM Installation Guide. When IG is not mentioned, assume that the reference is to this HSM Guide to Operations Manual.

Table 7-8 HSM VMScluster Problems

Problem

Solution

Reference

No control over shelf server node

SMU SET FACILITY /SERVER=node,

HSM Command Reference Guide

Shelf server node is unavailable

Specify alternate /multiple shelf server nodes

HSM Command Reference Guide

No failover after shelf server failure Verify that multiple nodes are defined as designated servers

HSM Command Reference Guide



Cannot use cache disk on a node

System mount cache disk on the node



Cannot use private cache disk on a visible node

All cache disks must be VMScluster



Cannot access tape drive from a server node

All drives must be visible to all shelf server nodes



Cannot locate a shelved file in catalog

Define HSM$CATALOG with same definition on all nodes

IG Section 1.5

SMU database definitions different on nodes

Define HSM$MANAGER with same definitions on all nodes

IG Section 1.5

Do not know which node is server

Search shelf handler audit log for last server startup



No node comes up as server

Startup HSM on one or more defined server nodes



7.8 Online Disk Problems

You can enable HSM operations on any or all of your online disks in the cluster as long as those disks are served and accessible to all nodes in the VMScluster system. HSM operations on purely local disks are not supported for HSM Version 2.2.



The online disks must be mounted and accessible to all nodes in the cluster. Any suitably privileged user can perform HSM operations on system-mounted disks. Access to group-mounted disks are subject to the same restrictions for HSM as normal operations. Process-mounted disks are ineligible for HSM operations.

HSM keeps a file open on all disks enabled for HSM operations: this file must be closed if the disk needs to be dismounted for any reason. To do this, enter the following commands:

Table 7-9 shows problems that can occur with online disks.

In the reference column of this table, IG refers to the HSM Installation Guide. When IG is not mentioned, assume that the reference is to this HSM Guide to Operations Manual.

Table 7-9 Online Disk Problems

Problem

Solution

Reference

HSM operation is disabled on volume

SMU SET VOLUME/ENABLE=operation

HSM Command Reference Guide

Volume does not exist in SMU database

Use attributes of HSM$DEFAULT_VOLUME

HSM Command Reference Guide

Unintended mass shelving started on volume

S MU SET VOLUME /DISABLE=SHELVE

Section 7.5

Cannot unshelve to local volume Use SMU LOCATE and retrieve the data manually

HSM Command Reference Guide



Volume cannot be dismounted, open file

SMU SET VOLUME/DISABLE=ALL

HSM Command Reference Guide

Cache volume cannot be dismounted, open file

SMU SET CACHE /DISABLE

HSM Command Reference Guide

Device full on unshelve

Purge/delete/shelve some files, or run HSM policy, and retry.



Exceeded quota on unshelve

Purge/delete/shelve some files of the same owner as the shelved file, or run HSM policy, and retry.



Run out of file headers

There is an OpenVMS limit on the number of file headers available on a system. For more information, see Section 7.18.1.



No HSM operations run, volume is mounted read-only

Mount volume read/write for any operation, even unshelving. Disable the volume for all HSM operations if it is mounted read-only.



HSM operations hang, write-protect button pushed on disk

Reset write protect button. If you must write-protect the disk, the proper operations are: disable all HSM operations on volume, then mount the volume read-only.



7.9 Cache Problems

The following problems are related to using an online cache. Unless you use the /BACKUP qualifier on the cache to create nearline/offline shelf copies at shelving time, your file data exists as a single copy on one of the defined cache devices until the cache is flushed. To ensure that this single copy provides the same level of protection as your online data, HP recommends the following:

Table 7-10 shows problems that can occur with cache operations.

In the reference column of this table, IG refers to the HSM Installation Guide. When IG is not mentioned, assume that the reference is to this HSM Guide to Operations Manual.

Table 7-10 Cache Problems

Problem

Solution

Reference

Cache is not used on all nodes

Ensure cache device is visible and system-mounted on all nodes



Cache disk is never used

Cache disks are filled to high water mark before switching to another cache



Cache is not used: files go to tape

Cache disabled- enable the cache

HSM Command Reference Guide

Cache is not used: files go to tape

Cache is full-define additional cache disks or increase block size

HSM Command Reference Guide

Cache is not used: files go to tape

File is too large to fit in the cache- increase block size if needed

HSM Command Reference Guide

Cache gets device full Cache disk is full- define additional cache disks

HSM Command Reference Guide



Cache is as slow as tape operation

Normal behavior with /BACKUP qualifier

HSM Command Reference Guide

Cache flush does not occur when cache high water mark is reached

Define a high water mark of less than 100%

HSM Command Reference Guide

Cache flush does not occur on schedule

See Offline Device Problems

Section 7.12

7.10 Magneto-Optical Device Problems

You can use magneto-optical devices in HSM by defining them as cache devices. As with other cache devices, each device must be accessible and system-mounted on all nodes in the VMScluster system. You can use magneto-optical devices in one of two ways:

Each platter (or side of platter) that you wish to use as a cache must be defined with an SMU SET CACHE command, and system-mounted on all nodes in the VMScluster system. Use the logical device name of the mounted MO volume (JBxxx:) in the SET CACHE commands, not the name of the MO drives.

Table 7-11 shows problems that can occur with magneto-optical devices. See also cache problems in Section 7.10.

In the reference column of this table, IG refers to the HSM Installation Guide. When IG is not mentioned, assume that the reference is to this HSM Guide to Operations Manual.

Table 7-11 MO Device Problems

Problem

Solution

Reference

MO devices do not work

Install and run OSMS V3.3 software



Other problems

See Cache Problems

Section 7.10

7.11 Offline Device Problems

You can configure any number of nearline/offline devices for HSM use.

In Basic mode, nearline and offline devices must be accessible by all nodes in the VMScluster system designated as shelf servers, or all nodes in the VMScluster system if no servers are specified.

In Plus mode, you can use nearline and offline devices that are:

Remote devices cannot be dedicated for HSM use.

Non-remote devices can be shared or dedicated for HSM use. If you set up a device for dedicated use, HSM will keep a tape mounted in the device at all times in anticipation of the next operation. With shared usage, HSM dismounts and unloads the device within one minute of the last operation.

Except when you are using nearline devices exclusively, tape operations are requested using OPCOM messages. You should enable OPCOM classes CENTRAL and TAPES at all times to respond to such messages.

Table 7-12 shows problems that can occur with offline devices.

In the reference column of a this table, IG refers to the HSM Installation Guide. When IG is not mentioned, assume that the reference is to this HSM Guide to Operations Manual.

Table 7-12 Offline Device Problems

Problem

Solution

Reference

Tape operations hang-device allocated to another user

Wait until other user dismounts tape, HSM will then proceed



Tape operations hang-no OPCOM messages

Enable OPCOM classes CENTRAL and TAPES



Tape operations hang-media offline or volume not software enabled

Put media online with online button; if this does not work, there may be a subsystem access error to the drive -see Release Notes

Release Notes

Device not selected on node (HSM Basic mode)

Ensure device is accessible from all server nodes, or specify server nodes and shutdown and restart HSM



Device not released to other applications, device in use

SMU SET DEVICE /DISABLE

HSM Command Reference Guide

Device not released to other applications, device not in use

SMU SET DEVICE/SHARE=operation

HSM Command Reference Guide

Tape operations are slow for online user

Use a cache



Magazine loader problems

See Section 7.13



7.12 Magazine and Robotic Loader Problems

HSM supports various types of Digital magazine loaders and robotically-controlled large tape jukeboxes for use as nearline shelf storage. Specific support varies depending on whether you are running HSM in Basic mode or Plus mode. You define these devices with SMU SET DEVICE commands as you would for any offline device and additional MDMS commands for HSM Plus mode. Table 7-13 shows problems that can occur with magazine or robotic loaders.

In the reference column of a this table, IG refers to the HSM Installation Guide. When IG is not mentioned, assume that the reference is to this HSM Guide to Operations Manual.



Table 7-13 Loader Problems

Problem

Solution

Reference

Tape requests hang

Ensure robot name is defined and connected to the appropriate driver

IG Section 1.4.4

Tape inventories are taken too often(Basic mode)

Do not switch volumes in magazines, the wrong magazine, or switch volumes between magazines



Robot tape device not handled as robot in Basic Mode

Check that robot name is defined (Basic Mode in SMU device only)Robot Name definition.



Robot tape device not handled as robot name in Plus Mode

Check that robot is defined correctly in MDMS TAPESTART.COM

HSM Installation & Configuration Guide, Chapter 6

SCSI robot device cannot be used when connected to SCSI bus

Connect robot name to GKDRIVER

IG Section 1.4.4

Loading does not work on DLT loaders

Ensure key position is in locked or system command position (key or square symbol)



Load fault on magazine loader

Reset the loader, insert magazine with no volume in drive,HSM will continue



HSM loses status, takes inventory of drive/magazine because of manual loading

Do not manually change magazines or load other volumes until HSM has completed operations and dismounted the volume in the drive (issue $SHOW DEVICE)



HSM does not unload volume after operations on shared device (Basic mode)

HSM dismounts the volume, but the unloading must be done manually or under control of another application



Cannot use loader because HSM is using it

SMU SET DEVICE /DISABLE

HSM Command Reference Guide

Other problems

See Section 7.12





7.13 Shelving Problems

Table 7-14 describes generic shelving problems. These problems may additional to specific cache or device problems. Many of these problems also apply to preshelving.

Table 7-14 Shelving Problems

Problem

Solution

Reference

Cannot shelve, capacity license exceeded

Delete obsolete files or increase license capacity



Shelving operation disabled on facility

SMU SET FACILITY /ENABLE=SHELVE

HSM Command Reference Guide

Shelving operation disabled on shelf

SMU SET SHELF /ENABLE=SHELVE

HSM Command Reference Guide

Shelving operation disabled on volume

SMU SET VOLUME/ENABLE=SHELVE

HSM Command Reference Guide

Cannot shelve file, insufficient privilege

Must have read and write access, GRPPRV or BYPASS privileges



Cannot shelve file, ineligible file

SET FILE /SHELVABLE Certain types of file are always ineligible however

Section 5.5

Can shelve file, but want to disable

SET FILE/NOSHELVABLE



Cannot shelve contiguous file

SMU SET VOLUME /CONTIGUOUS

HSM Command Reference Guide

Can shelve contiguous file, but want to disable

SMU SET VOLUME/NOCONTIGUOUS

HSM Command Reference Guide

Cannot shelve placed file

SMU SET VOLUME/PLACEMENT

HSM Command Reference Guide

Can shelve placed file, but want to disable

SMU SET VOLUME /NOPLACEMENT

HSM Command Reference Guide

Cannot shelve very large file

Files larger than 45% of disk capacity can never be shelved



Cannot shelve file, volume ineligible

SMU SET VOLUME /ENABLE=SHELVE

HSM Command Reference Guide

Can shelve files on volume, but want to disable

SMU SET VOLUME/DISABLE=SHELVE

HSM Command Reference Guide

Cannot shelve files, no archive classes for shelf

SMU SET SHELF /ARCHIVE=n /RESTORE=n. If shelving to cache only, be sure that cache devices are defined and enabled.

HSM Command Reference Guide

Cannot shelve files, no devices defined for archive

SMU SET DEVICE /ARCHIVE=n

HSM Command Reference Guide

Ctrl/Y does not cancel shelve operation

SHELVE/CANCEL

HSM Command Reference Guide

Cache problems during shelving

See Section 7.10



Offline device problems during shelving

See Section 7.12



Magazine loader problems during shelving

See Section 7.13



7.14 Unshelving Problems

Table 7-15 describes generic unshelving problems that are in addition to specific cache or device problems. Unshelving problems also apply to file faults.



Table 7-15 Unshelving Problems

Problem

Solution

Reference

Unshelving operation disabled on facility

SMU SET FACILITY /ENABLE=UNSHELVE

HSM Command Reference Guide

Unshelving operation disabled on shelf

SMU SET SHELF /ENABLE=UNSHELVE

HSM CommandReference Guide



Unshelving operation disabled on volume

SMU SET VOLUME /ENABLE=UNSHELVE

HSM Command Reference Guide

Cannot unshelve file, insufficient privilege

Must have read access, or GRPPRV, READALL or BYPASS privilege



Cannot unshelve file, inconsistent state

UNSHELVE/OVERRIDE, but use with caution

Section 7.2.5

Cannot unshelve file, access information lost

SMU LOCATE and manually recover

HSM Command Reference Guide

Cannot unshelve file, catalog or catalog entry missing

See Section 7.17



Ctrl/Y does not cancel unshelve operation

UNSHELVE/CANCEL

HSM Command Reference Guide

Device full on unshelve

Purge/delete/shelve some files, or run HSM policy, and retry



Exceeded quota on unshelve

Purge/delete/shelve some files of the same owner as the shelved file, or run HSM policy, and retry



Cache problems during unshelving

See Section 7.10



Offline device problems during unshelving

See Section 7.12



Magazine loader problems during unshelving

See Section 7.13



7.15 Policy Problems

HSM policies are designed to automatically shelve files based on triggers initiated by online disk events, high water marks, or scheduled operation. All problems with policies should first be examined by reading the following files:

In addition, details on specific policy runs can be found in the output file specified with SMU SET POLICY/OUTPUT.

Because policy runs usually involve shelving operations, please see also Section 7.14 if the shelving operations of the policy fail, rather than the policy itself.

Table 7-16 shows problems that can occur with policy execution.



Table 7-16 Policy Problems

Problem

Solution

Reference

No policies will run, policy process not started

SMU STARTUP

HSM Command Reference Guide

Preventative policy defined, but never runs

SMU SET SCHEDULE

HSM Command Reference Guide

Policies shelve recently accessed files

SMU SET POLICY /ELAPSED

HSM Command Reference Guide

Reactive policy runs on system disk

SMU SET VOLUME /DISABLE=(OCC,HIGH,QUOTA)

HSM Command Reference Guide

Policy runs on wrong node

SET POLICY /SERVER=node

HSM Command Reference Guide

Selection based on read access does not work

SET VOLUME/RETENTION



Policy does not reach low water mark

Selection criteria too narrow, broaden criteria



Files are shelved, unshelved too often

Policy criteria not optimal, redefine criteria



Nightly backups too long, unshelving occurs

Policy shelves files that have been modified during backup interval, redefine policy



Unintended mass shelving on volume

See Section 7.5



Users exceed disk capacity or quota even when HS M policies turned on

Decrease low water and/or high water mark



Too many small files shelved

Use STWS algorithm or script



Reactive policy does not shelve enough files

Decrease low water mark



High water mark polling of 10 minutes is not frequent enough

Decrease high water mark



Need to change HSM configuration before policy runs

Define additional policy to run a script to change configuration, and schedule before policy runs



Policy does not shelve any files using expiration date

$ SET VOLUME HSM /RETENTION=(1-,0- 00:00:00.01)

Installation & Configuration Guide, Chapter 6

7.16 HSM System File Problems

HSM uses several files for its own purposes, and these files need to be carefully maintained. These files include:

It is imperative that the logical names associated with these files are defined on all nodes with the same definitions, so that HSM uses the same files on all nodes. It is also vital that the files contained within HSM$CATALOG and HSM$MANAGER are given the highest safety protection available, including:

Specifically, the HSM catalog must be given the highest priority. An unrecoverable loss of the catalog will usually mean that you have lost access to all shelved file data, unless you have kept logs of locations of the data by regular SMU LOCATE commands, and stored them away.

Other restrictions include:

Refer to Section 5.10 for more details about how to recover HSM system files.

7.17 HSM Limitations

At the current time, there are a few limitations to HSM operations of which you should be aware. These limitations are not necessarily the fault of HSM, but are instead reliant upon OpenVMS behaviors:

7.17.1 OpenVMS Limit on File Headers

OpenVMS limits the number of file headers available for an online disk volume based on how the disk is initialized. As a result, as you shelve data and do not clean up your online disk, you could eventually exceed the number of file headers available.

To prevent this problem, make sure you delete file headers as appropriate. What this means is, when you no longer need a file, do not leave it shelved with the file header on disk. Use another strategy to archive the file, just in case you need it someday. Then, delete the file from the disk.

If you experience either IDXFILEFULL or HEADERFULL errors while trying to create files, you have exceeded the file header limit defined on your system. If you installed HSM on an existing system and have not specifically initialized your volumes for HSM use, you may not have planned for the additional number of files in INDEXF.SYS (the index file that contains the file headers for both online and shelved files). Also, you may not have preallocated space for the file headers using the /HEADERS qualifier on the disk initialization.

IDXFILEFULL Error

If your users get IDXFILEFULL errors while trying to create files on the volume it means they are attempting to create more files than that specified on the MAXIMUM_ FILES qualifier when the volume was initialized. There are two possible solutions to this:

  • Delete unwanted files from the disk
  • Perform an image backup of the disk, reinitialize the disk with a larger MAXIMUM_FILES value, then do an image restore operation specifying the /NOINITIALIZE qualifier on the BACKUP command line.
HEADERFULL Error

If your users get a HEADERFULL error on INDEXF.SYS when creating files, it means the INDEXF.SYS file has reached its fragmentation limit. That is, adding one more file extent to INDEXF.SYS causes the "Map area words in use" field of INDEXF.SYS's header to exceed 155. To solve this problem:

  1. 5. Perform an image backup of the disk.
  2. 6. Reinitialize the disk.
  3. 7. Perform an image restore of the disk.

The second step (reinitialize the disk) is not necessary unless you want to increase the MAXIMUM_FILES value of the disk or preallocate a larger INDEXF.SYS file (via /HEADERS). If you do reinitialize the disk, remember to use the /NOINITIALIZE qualifier on the backup command when restoring the disk.

7.17.2 Attempting to Cancel Execution of a Shelved File

When you attempt to execute (via a RUN command, for example) a shelved executable file, this causes a file fault. If you then try to cancel that execution, it does not. This occurs because OpenVMS does not actually allow you to cancel a DCL command using a Ctrl/Y. Normally, when you submit a DCL command that operates on data located online and type a Ctrl/Y to cancel it, the execution completes and then is canceled quickly enough that you do not notice.

7.17.3 Automatic Unshelving of Files across a Network

If you attempt to access a shelved file across a network but have set your process to /NOAUTO_UNSHELVE, the file is unshelved.

7.17.4 Opening and Deleting RMS Indexed Files

If you perform an RMS open of a shelved, indexed file, a file fault occurs, because some of the RMS metadata resides in the data section of the file. A file fault also occurs if you perform a DELETE/LOG of a shelved, indexed file; use DELETE/LOG with caution. DELETE/NOLOG works as expected.

8

What is MDMS?

This chapter starts by describing the Media, Device and Management Services software (MDMS)' management concept and its implementation. Following that is a description of the product's internal interfaces.

User interfaces are described in the following chapter.

Media, Device and Management Services V4.3 (MDMS), can be used to manage locations of tape volumes in your IT environment. MDMS identifies all tape volumes by their volume label or ID. Volumes can be located in different places like tape drives or onsite locations. Requests can be made to MDMS for moving volumes between locations. If automated volume movement is possible - like in a jukebox (tape loader, tape library) - MDMS moves volume/s without human intervention. MDMS sends out operator messages if human intervention is required.

MDMS allows scheduled moves of volumes between onsite and offsite locations (e.g. vaults).

Multiple nodes in a network can be setup as an MDMS domain. Note that:

MDMS is a client/server application. At a given time only one node in an MDMS domain will be serving user requests and accessing the database. This is the database server. All other MDMS servers (which are not the database server) are clients to the database server. All user requests will be delegated through the local MDMS server to the database server of the domain.

In case of failure of the designated database server, MDMS' automatic failover procedures ensure that any of the other nodes in the domain, that has the MDMS server running, can take over the role of the database server.

8.1 MDMS Objects

MDMS manages all information in its database as objects. See MDMS Object Records and What they Manage lists and describes the MDMS objects.

Table 8-1 MDMS Object Records and What they Manage

This Object Record...

Meets the Need to...

Domain

Manage domain-wide operating parameters. MDMS creates this object record automatically.

Node

Describe a node in the MDMS domain. It defines the node's network names.You cannot operate MDMS without Node object records.

Group

Group node object records. Groups are a convenient shortcut to specify a list of nodes.

Location

Describe a location in your environment. A location can be the name of a building, a room or a facility.

Request

Handle all MDMS operations initiated by a user or an application.

Drive

Describe an OpenVMS drive to MDMS.

Jukebox

Describe a tape loader or tape library to MDMS.

Magazine

Describe a tape magazine to MDMS. The use of magazine objects, is optional even if magazines are used in reality.

Media Type

Describe the different media types represented by volumes.

Pool

Describe a group of volumes. Pools control which user has access to volumes in a group.

Volume

Describe an individual magnetic tape medium.

MDMS tries to reflect the true states of objects in the database. MDMS requests by users may cause a change in the state of objects. For some objects MDMS can only assume the state, for example: that a volume has been moved offsite. Wherever possible, MDMS tries to verify the state of the object. For example if MDMS finds a volume that should have been in a jukebox slot, in a drive, it updates the database with the current placement of the volume.

8.2 MDMS Interfaces

MDMS provides an internal callable interface to ABS and HSM software. This interfacing is transparent to the ABS or HSM user. However some MDMS objects can be selected from ABS and HSM.

MDMS communicates with the OpenVMS OPCOM facility when volumes need to be moved, loaded, unloaded, and for other situations where operator actions are required. Most MDMS commands allow control over whether or not an OPCOM message will be generated and whether or not an operator reply is necessary.



MDMS controls jukeboxes by calling specific callable interfaces. For SCSI controlled jukeboxes MDMS uses the MRD/MRU callable interface. For StorageTek jukeboxes MDMS uses DCSC. You still have access to these jukeboxes using the individual control software but doing so will make objects in the MDMS database out-of-date.



9

Basic MDMS Operations

This chapter describes basic MDMS operations and functions that apply to many MDMS actions.

9.1 MDMS User Interfaces

MDMS includes two interfaces: a command line interface (CLI) and a graphic user interface (GUI). This section describes how these interfaces allow you to interact with MDMS.

9.2 DCL Interface

MDMS provides a DCL command line interface in addition to MDMSView. Some people prefer a command line interface, and it can also be used for automated command procedures. With this release, the entire command line interface is supported within MDMS, which maintains the database for media management.

9.2.1 Syntax Overview

The MDMS DCL interface uses a consistent syntax for virtually all commands in the format:

$ MDMS VERB OBJECT_KEYWORD OBJECT_NAME /QUALIFIERS

The verb is an simple action word, and may be one of the following:

The object keyword is the object class name that the verb is to operate on. In MDMS, the object keyword cannot be omitted. MDMS supports the following object keywords:

Following the object keyword, you should enter an object name. This must be the name of an already-existing object unless the verb is "Create", in which case the object must not already exist.

The qualifiers for all commands are non-positional and may appear anywhere in the command line.

There are two exceptions to the general command syntax, as follows:

MDMS MOVE VOLUME TLZ234 TLZ_JUKE/SLOT=4

$ MDMS REPORT VOLUME VOLUME,STATE=ALLOCATED,SCRATCH_DATE,PLACEMENT,PLACNAME

9.2.2 Object Lists

With this release of MDMS, all of the following commands accept a list of objects, so that you can operate on multiple objects in a single command:

If you specify an attribute in a CREATE or SET command and use an object list, then that attribute value is applied to all objects in the list.

9.2.3 Qualifier List

Certain qualifiers accept a list of attributes, and the list can be applied in one of three ways using an appropriate qualifier:

Consider the following examples:

MDMS CREATE GROUP COLORADO/NODES=(DENVER, SPRINGS, PUEBLO)

The group Colorado contains nodes Denver, Springs and Pueblo

MDMS SET GROUP COLORADO/NODE=ASPEN

The group Colorado now contains nodes Denver, Springs, Pueblo and Aspen. With no list qualifier specified, /ADD is applied by default.

MDMS SET GROUP COLORADO/NODE=ASPEN/REPLACE

The group Colorado now contains only node Aspen.

9.2.4 Inherit

All MDMS objects now accept the /INHERIT qualifier on Create. This allows you to create new objects and inherit most attributes of an existing object. This provides an easy way to "clone" objects, then apply the any differences in individual commands. It saves the effort of typing in all the attributes once a prototype has been established. In general, only non-protected fields of objects can be inherited.

In addition, the object list capability allows you to clone multiple objects in a single command. For example:

MDMS CREATE DRIVE DRIVE_2, DRIVE_3, DRIVE_4/INHERIT=DRIVE_1

This command creates three drives and applies all non-protected attributes of DRIVE_1 to the three new drives.

9.2.5 Symbols

MDMS now supports symbols on all objects, which command procedures can read and process. To use symbols, enter a Show command for a single object (symbols are not supported for object lists). The symbols are generally in the format "MDMS_INQ_qualifier", where "qualifier" is almost always the associated qualifier name for the attribute. The list of symbols for each show command is documented for that command, and is also available in DCL help.

When you issue a Show/Symbols, the show output is not displayed by default. If you wish to see the output as well, use Show/Symbols/Output.

9.2.6 Help and Reference

MDMS supports the normal DCL help mechanisms, as follows:

$ MDMS HELP [VERB] [KEYWORD] [/QUALIFIER]

$ HELP MDMS [VERB] [KEYWORD] [/QUALIFIER]

In addition, you can request help on any error message, for example:

MDMS HELP MESSAGE NOSUCHOBJECT

You can request help on any MDMS logical name, for example:

MDMS HELP LOGICAL MDMS%$LOGFILTER

Finally, you can locate the mapping of the old (pre-version 4.0B) ABS commands to the MDMS equivalent, for example:

MDMS HELP MAPPING CREATE ARCHIVE

The MDMS Reference Guide fully documents all DCL commands and qualifiers.

9.3 User Interface Restrictions

MDMSView and the MDMS DCL supports operations on Archive Backup System (ABS) objects only if an ABS or SLS license is loaded on the system. The ABS objects are:

MDMS supports operations on the other media management objects if the system only has a Hierarchical Storage Management (HSM) license installed, or with an ABS or SLS license.

In addition, if the ABS license is the restricted OMT license, the following operations are not supported:

9.4 Graphical User Interface

MDMS provides a graphical user interface called MDMSView, which provides several views that you can use to manage your MDMS domain. MDMSview provides support for both media management and (if you have an ABS license) the Archive Backup System. MDMSView is designed to be the preferred interface to ABS and MDMS, with the goal of supporting most, if not all, of the regular management tasks. MDMSView supersedes all previous graphical interfaces for both ABS and MDMS.

MDMSview provides several views into the management of MDMS objects and requests, including ABS objects managed by MDMS. In V4.3, a limited number of views have been implemented, but many more are planned for future releases. MDMSView currently supports the following views:

Each view is provided in a tab from the main screen, and you can be working in several views at the same time, although only one is visible at a time. When switching from one view tab to another, the contents of the tab you are leaving are retained, and you can return to it at any time.

9.4.1 Starting MDMSView

9.4.1.1 OpenVMS Systems

MDMSView is installed at installation time on OpenVMS systems. Please refer to the Installation Guide for instructions on how to install MDMSView and Java on OpenVMS systems.

Once the installation is complete, the following commands are required to activate the GUI:

$ @SYS$STARTUP:JAVA$SETUP.COM

$ SET DISPLAY/CREATE/NODE= nodename /TRANSPORT=TCPIP

$ MDMS/INTERFACE=GUI

where nodename is the TCP/IP node name of the system on which the MDMSView display is to appear. Although the GUI itself must run on:
* I64 V8.2 using Java 1.4.2 or higher
* Alpha System V7.3-2 and V8.2 using Java 1.2 or higher.


The MDMSView display can be redirected to any OpenVMS system, including VAX systems.

9.4.1.2 Windows Systems

A SETUP.EXE package is also installed on OpenVMS systems for use on Microsoft Windows (R) PCs. This file may then be transported to any Microsoft Windows PC and executed. The SETUP.EXE will install MDMSView at a default location of C:\MDMSView, although alternative locations are possible. Once the PC installation is complete, you can execute MDMSView by clicking on the mdmsview.bat file in that directory.

9.4.2 Look and Feel

Once MDMSView is started, it will come up with the default look and feel for the system. For OpenVMS systems, this is the Java/Metal look and feel. For Windows systems, this is the Windows look and feel. You can adjust the look and feel to your taste by using the View menu as follows:

Changing the look and feel requires a new login, so it's a good idea to change this before logging in. The value is saved in the MDMSView initialization file, and is used on all subsequent invocations from this location.

9.4.3 Logging In

Once MDMSView is started and the look and feel is set, you need to log into an OpenVMS system, even if you are running on an OpenVMS system already. You can log into any OpenVMS node in the MDMS domain, as long as it supports TCP/IP communication. Logging in requires three fields, as follows:

If there is a login failure for any reason, the node name and user name are retained for subsequent retries, but the password must always be re-entered.

After a successful login, the login screen disappears and the MDMSView splash screen is displayed.

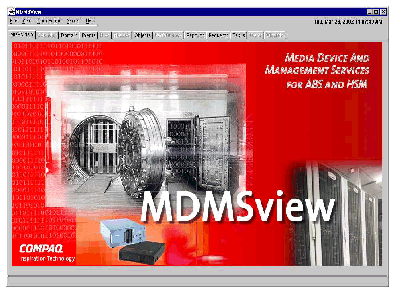

Figure 9-1 MDMSView Main Screen



9.4.4 Selecting A View

The next step is to select a view depending on what you want to do. Here are some tasks that you might wish to perform, and the associated view(s) that support them:

The domain view and object view produce attribute and operation screens that work on one object at a time. The task view produces screens that can operate on multiple objects, but restrict the display of attributes to those that are common across the objects. The request view is a specialized view that allows you to show current requests (as a whole or in detail), and allows you to delete requests as needed. The report view is a specialized view that generates customized volume reports.

All view displays are divided into two parts:

While resizing the MDMSview screens is not supported, you can choose to view only the left or right screens by using the arrows at the top of the division between the left and right screens. Clicking on the left arrow eliminates the left screen, and clicking on the right arrow eliminates the right screen. To restore the dual screens, click on the opposite arrow.

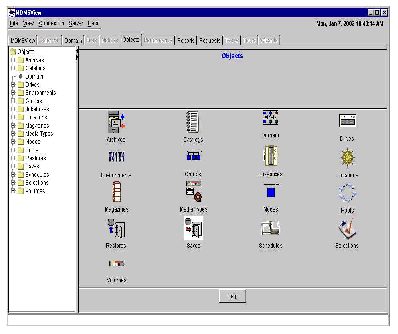

Figure 9-2 MDMS Object View Screen



9.4.5 Creating Objects

If you wish to create a new object, you can choose the Domain, Object or Task Views to accomplish this. The Domain and Object Views create objects one at a time, while the Task View can create multiple objects.

To create an object, use one of the following methods:

Once a create screen appears, (except for catalogs) you are prompted for two pieces of information:

The domain and object views allow creation of only one object at a time, whereas the task view allows a comma-separated list of new objects (and also ranges in the case of volumes). Depending on the view, enter the name or names of the new objects you wish to create.

The inherit object allows you to copy most of the attributes from the inherit object to the object being created. If you wish to specify an inherit object, use the combo box to select the existing inherit object. This must be the same type of object, except in the case of restores, in which case you can inherit from either a restore or a save object.

After clicking create, the new object attribute and operations screens appear, which you can then modify to your liking. In the task view, this screen modifies all the newly created objects.

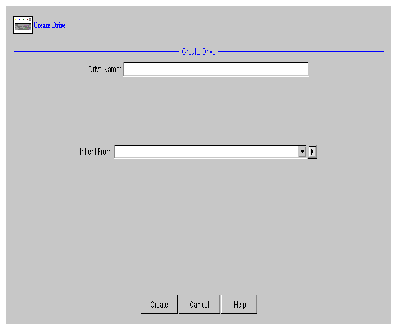

Figure 9-3 Drive Create Screen



9.4.6 Showing and Modifying Objects

For objects that already exist, you can use the Domain View, Object View or Task View to show and optionally modify objects, or to perform operations on them.

To view an object, use one of the following methods:

When an object is selected, its attributes and operations are displayed in a two-dimensional tab screen as follows:

If you select the Show screen and wish to modify attributes, use the tool tip text for help on any field. Select appropriate values (from all the show tabs as needed), then click on Set. This sends the currently displayed values from all tabs to the MDMS server. If you just wish to view the object's attributes without modification, click on Cancel after viewing the attributes. This returns you to the object class screen.

MDMSView supports switching from one object to another during displaying of values. For objects that appear in combo boxes or lists, you can view related objects without losing the context of the current object. Each combo box or list attribute supports two methods of viewing, selecting and creating objects:

From the menu, there are the following options:

If you select Show or Create, you will go to an appropriate screen. When you then complete your operation on that object, you will come back to the original object.

9.4.7 Deleting Objects

You can delete objects from the Domain, Object and Task Views. To delete an object, perform one of the following:

A request to delete an object will always bring up a Delete dialog box for confirmation of the delete. You can confirm "OK" or "Cancel" from here.

9.4.8 Viewing Relationships Between Objects

The Domain view provides a way to view the hierarchical structure of the MDMS domain. The left side of the screen provides an object-class-object... hierarchy of objects belonging to other objects, or objects contained in other objects. The left side of the screen displays most of the object classes which contain other objects (the exceptions: selections, schedules and volumes, which have no sub-objects). You can begin the hierarchical navigation at any level, and all sub-levels can be displayed.

For example, starting at jukebox, you can view all objects that reside in a jukebox: Drives, Magazines and Volumes. If you then click on Drives, you will see all drives in this jukebox. If you then select a drive and click on it, you can see the volume in the drive.

If your domain is sufficiently complex, you might want to expand the left side of the screen by using the right arrow between the left and right screen. You can then view the entire hierarchy of the domain.

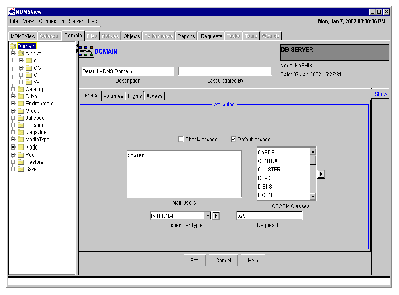

Figure 9-4 Domain View Showing Expanded Relationships



9.4.9 Performing Operations on Objects

If you wish to perform an operation on an object (for example, to load a volume into a drive), you should first display the object's attributes and operations screens. Then select the desired operation tab, on the right side of the screen. For example, to load a volume, show the volume then click on the Load tab.

The load tab is called an operations tab, and they all follows the same basic concepts. You enter options concerning the operation (for example, operator assistance), then press the appropriate operation button on the bottom left of the screen. This button is always labelled with the appropriate operation (for example, Load).

MDMS has the capability of performing long-running operations synchronously or asynchronously. However, in MDMSView, long-running operations are always submitted asynchronously and control is returned to the user. Asynchronous operations show a dialog box that states that the operation has been queued for processing, but has not yet completed. If you perform an operation that does not result in the dialog box, then you can safely assume it has been completed synchronously.

If you receive a "queued" dialog box, it does not necessarily mean that the operation was fully validated. If you want to check on the status of the operation, use the Request View to monitor the request's progress.

Figure 9-5 Load Volume Screen with Queued Dialog Box





9.4.10 Showing Current Operations

The Request View provides a monitoring capability for all current MDMS operations. You can display all current requests by clicking on Show Requests - this results in a table of requests being displayed. This includes all current requests, and some recently-completed requests.

You can also expand the requests on the left side of the screen and click on a specific request for detailed information about the request. Or you can right-click on the request number on the left screen and select Show.

If you feel that a request is not working correctly, or for any reason you wish to delete the request, you can click on delete from the detailed request screen, or select a request number on the left screen, right-click and select delete from the popup menu.

As with other deletes, a dialog box will appear to confirm the delete of the request.

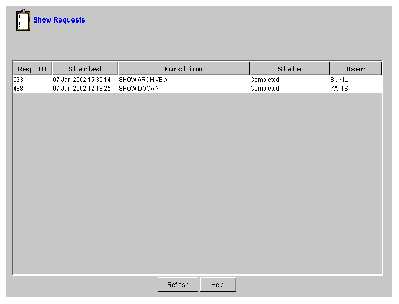

Figure 9-6 Show Requests Screen



9.4.11 Reporting on Volumes

The Report View provides the capability of generating custom reports on volumes. With this view, you can choose attributes that can be displayed and/or used as selection criteria for volumes.

To select an attribute for display, simply click on the attribute and then press the right arrow button to move it to the display screen. The attributes are displayed in the report in the order selected. If you change your mind or wish to re-order the attributes, select an attribute on the display screen and press the left arrow button to deselect it.

If you wish to use an attribute as a selection criterion, click on the attribute, then click on "Use for Selection". This will enable a field below (either a text field or combo box) to allow you to enter a selection.

You may display any number of fields and use any number of selection criteria to customize the report. When your selections are ready, you can generate the report by clicking on "Generate". You can see the resultant report in the "Report Results" tab.

If you wish to save this report, enter a report title in the text field at the bottom of the screen and click on save. The report is saved to the following locations:

For example, a report file name is: Report_2001_12_17_8_35_17.txt

Once the results screen is displayed, you can sort the report using any field by clicking on the field's header. You can reverse-sort the same field by clicking on the field header again.

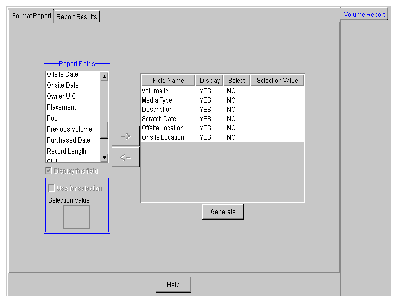

Figure 9-7 Report View Selection Criteria Example

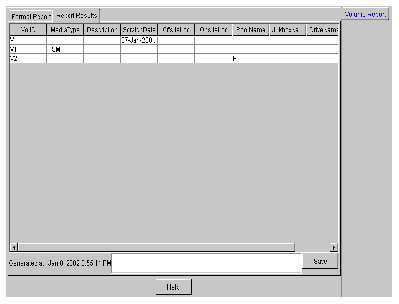

Figure 9-8 Report View Results Screen



9.4.12 Viewing MDMS Audit and Event Logging

To examine past operations in MDMS, you can use the event view to view the MDMS audit and event logfile. There are five pre-configured options and a fully flexible custom option to allow you to select what you wish to see from the MDMS logfile. The five pre-configured options all apply to the MDMS Database Server logfile and show all operations (auditing and events) for the following amounts of time before the current time:

If you wish to see the logfile using other selection criteria, you can use the "Custom" setting. Byclicking on "Custom", a selection screen appears that allows you to select the entries to be displayed as follows:

- Low and high request IDs (for DB server only)

After entering the selection criteria, you click on the Show button to display. Depending on the size of the log file, this operation may take several seconds to complete. You may want to regularly reset your log files to avoid long response times. The code has been written to scan previous versions of log files if the date and or request selections are not in the latest log file.

The Refresh button at the bottom of the screen refreshes whatever selection is currently on thescreen. The Cancel button allows you to enter a new selection.

9.4.13 Errors

MDMSView can report two types of errors:

9.4.14 Help

MDMSView provides three types of help:

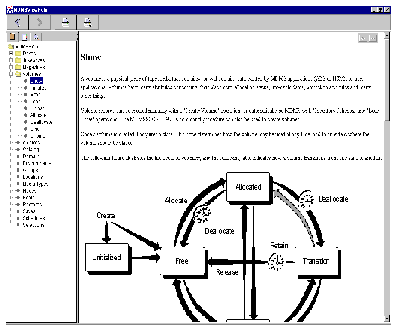

Figure 9-9 Context-Sensitive Help Screen from Show Volume Screen



9.5 Access Rights for MDMS Operations

This section describes access rights for MDMS operations. MDMS works with the OpenVMS User Authorization File (UAF), so you need to understand the Authorize Utility and OpenVMS security before changing the default MDMS rights assignments.

MDMS rights control access to operations, not to object records in the database.

Knowing the security implementation will allow you to set up MDMS operation as openly or securely as required.

9.5.1 Description of MDMS Rights

MDMS controls user action with process rights granted to the user or application through low and high level rights.

9.5.1.1 Low Level Rights

The low level rights are named to indicate an action and the object the action targets. For instance, the MDMS_MOVE_OWN right allows the user to conduct a move operation on a volume allocated to that user. The MDMS_LOAD_ALL right allows the user to load any managed volume.

For detailed descriptions of the MDMS low level rights, refer to the ABS or HSM Command Reference Guide.

9.5.1.2 High Level Rights

MDMS associates high level rights with the kind of user that would typically need them. Refer to the ABS or HSM Command Reference Guide for a detailed list of the low level rights associated with each high level right. The remainder of this section describes the high level rights.

MDMS User

The default MDMS_USER right is for any user who wants to use MDMS to manage their own tape volumes. A user with the MDMS_USER right can manage only their own volumes. The default MDMS_USER right does not allow for creating or deleting MDMS object records, or changing the current MDMS configuration.

Use this right for users who perform non-system operations with ABS or HSM.

MDMS Application

The default MDMS_APPLICATION right is for the ABS and HSM applications. As MDMS clients using managed volumes and drives, these applications require specific rights.

The ABS or HSM processes include the MDMS_APPLICATION rights identifier which assumes the low level rights associated with it. Do not modify the low level rights values for the Domain application rights attribute. Changing the values to this attribute can cause your application to fail.

MDMS Operator

The default MDMS_OPERATOR right supports data center operators. The associated low level rights allow operators to service MDMS requests for managing volumes, loading and unloading drives.

The Default Right

The low level rights associated with the MDMS_DEFAULT right apply to any OpenVMS user who does not have any specific MDMS right granted in their user authorization (SYSUAF.DAT) file. Use the default right when all users can be trusted with an equivalent level of MDMS rights.

9.5.2 Granting MDMS Rights

The high level rights are defined by domain object record attributes with lists of low level rights. The high level rights are convenient names for sets of low level rights.

For MDMS users, grant high and/or low level rights as needed with the Authorize Utility. You can take either of these approaches to granting MDMS rights.

You can ensure that all appropriate low level rights necessary for a class of user are assigned to the corresponding high level right, then grant the high level rights to users.

You can grant any combination of high level and low level rights to any user.

Use the procedure outlined in See Reviewing and Setting MDMS Rights to review and set rights that enable or disable access to MDMS operations. CLI command examples appear in this process description but can use the GUI to accomplish this procedure as well.

Table 9-1 Reviewing and Setting MDMS Rights

Step...

Action...

1.

Show the domain object record values for each high level right.

  • For all system users, examine the default rights attribute.
  • For MDMS operators, examine the operator rights attribute.
  • For MDMS users, examine the user rights attribute.

Review the low level rights associated with each high level right. If you have questions about actions view the list of low level rights and the actions they enable.



Example

$MDMS SHOW DOMAIN /FULL

  1. 2.

If the low level rights associated with the high level right are not adequate for a class of user, then add appropriate rights.

If the low level rights associated with the high level right enable inappropriate options for a class of user, then remove the inappropriate rights.

Example:

$MDMS SET DOMAIN /OPERATOR_RIGHTS=MDMS_SET_PROTECTED/ADD

or

$MDMS SET DOMAIN /USER_RIGHTS=MDMS_ASSIST/REMOVE

  1. 3.

If you do not want all system users to have implicit access to MDMS operations, then negate the domain object record default rights attribute.

$MDMS SET DOMAIN /NODEFAULT_RIGHTS

By default, a user with the OpenVMS SYSPRV privilege is granted all MDMS rights. If you wish to disable this feature, disable the SYSPRV privilege in the domain record:.

$MDMS SET DOMAIN /NOSYSPRV



  1. 4.

If you want any user with ABS privileges to have access to appropriate MDMS rights to support just ABS operations, set the domain object record ABS rights attribute.

$MDMS SET DOMAIN /ABS_RIGHTS

For all system user accounts that need access to MDMS, grant the appropriate rights.

If a user needs only the rights associated with a class of user, grant that user the high level right associated with that class only.

UAF> GRANT/IDENTIFIER MDMS_USER DEVUSER



  1. 5.

If a user needs a combination of rights, then grant that user the high and/or low level rights needed to enable the user to do their job with MDMS. You must issue a separate command for each right granted.

UAF> GRANT/IDENTIFIER MDMS_OPERATOR DCOPER

%UAF-I-GRANTMSG, identifier MDMS_OPERATOR granted to DCOPER

UAF> GRANT/IDENTIFIER MDMS_LOAD_SCRATCH DCOPER

%UAF-I-GRANTMSG, identifier MDMS_LOAD_SCRATCH granted to DCOPER

If you do not want a particular user to acquire the default rights, then disable the user's ability to operate MDMS with the default rights.

UAF> GRANT/IDENTIFIER MDMS_NO_DEFAULT APPUSER

9.6 Creating, Modifying, and Deleting Object Records

This section describes the basic concepts that relate to creating, modifying, and deleting object records.

9.6.1 Creating Object Records

Both the CLI and GUI provide the ability to create object records. MDMS imposes rules on the names you give object records. When creating object records, define as many attribute values as you can, or inherit attributes from object records that describe similar objects.

9.6.1.1 Naming Objects

When you create an object record, you give it a name that will be used as long as it exists in the MDMS database. MDMS also accesses the object record when it is an attribute of another object record; for instance a media type object record named as a volume attribute.

MDMS object names may include any digit (0 through 9), any upper case letter (A through Z), and any lower case letter (a through z). Additionally, you can include $ (dollar sign) and _ (underscore).

9.6.1.2 Differences Between the CLI and GUI for Naming Object Records

The MDMS CLI accepts all these characters. However, lower case letters are automatically converted to upper case, unless the string containing them is surrounded by the "(double quote) characters. The CLI also allows you to embed spaces in object names if the object name is surrounded by the " characters.

The MDMS GUI accepts all the allowable characters, but will not allow you to create objects that use lower case names, or embed spaces. The GUI will display names that include spaces and lower case characters if they were created with the CLI.

HP recommends that you create all object records with names that include no lower case letters or spaces. If you create an object name with lower case letters, and refer to it as an attribute value which includes upper case letters, MDMS may fail an operation.

Naming Examples

The following examples illustrate the concepts for creating object names with the CLI.

These commands show the default CLI behavior for naming objects:

$!Volume created with upper case locked
$MDMS CREATE VOLUME CPQ231 /INHERIT=CPQ000 !Standard upper case DCL
$MDMS SHOW VOLUME CPQ231
$!
$!Volume created with lower case letters
$MDMS CREATE VOLUME cpq232 /INHERIT=CPQ000 !Standard lower case DCL
$MDMS SHOW VOLUME CPQ232
$!
$!Volume created with quote-delimited lower case, forcing lower case naming
$MDMS CREATE VOLUME ìcpq233î /INHERIT=CPQ000 !Forced lower case DCL
$!
$!This command fails because the default behavior translates to upper case
$MDMS SHOW VOLUME CPQ233
$!
$!Use quote-delimited lower case to examine the object record
$MDMS SHOW VOLUME ìcpq233î

9.6.2 Inheritance on Creation

This feature allows you to copy the attributes of any specified object record when creating or changing another object record. For instance, if you create drive object records for four drives in a new jukebox, you fill out all the attributes for the first drive object record. Then, use the inherit option to copy the attribute values from the first drive object record when creating the subsequent three drive object records.

If you use the inherit feature, you do not have to accept all the attribute values of the selected object record. You can override any particular attribute value by including the attribute assignment in the command or GUI operation. For CLI users, use the attribute's qualifier with the MDMS CREATE command. For GUI users, set the attribute values you want.

Not all attributes can be inherited. Some object record attributes are protected and contain values that apply only to the specific object the record represents. Check the command reference information to identify object record attributes that can be inherited.

9.6.3 Referring to Non-Existent Objects

MDMS allows you to specify object record names as attribute values before you create the records. For example, the drive object record has a media types attribute. You can enter media type object record names into that attribute when you create the drive object before you create the media type object records.

9.6.4 Rights for Creating Objects

The low level rights that enable a user to create objects are MDMS_CREATE_ALL (create any MDMS object record) and MDMS_CREATE_POOL (create volumes in a pool authorized to the user).

9.6.5 Modifying Object Records

Whenever your configuration changes you will modify object records in the MDMS database. When you identify an object that needs to be changed you must specify the object record as it is named. If you know an object record exists, but it does not display in response to an operation to change it, you could be entering the name incorrectly. Section See Naming Objects describes the conventions for naming object records.

9.6.6 Protected Attributes

Do not change protected attributes if you do not understand the implications of making the particular changes. If you change a protected attribute, you could cause an operation to fail or prevent the recovery of data recorded on managed volumes.

MDMS uses some attributes to store information it needs to manage certain objects. The GUI default behavior prevents you from inadvertently changing these attributes. By pressing the Enable Protected button on the GUI, you can change these attributes. The CLI makes no distinction in how it presents protected attributes when you modify object records. Ultimately, the ability to change protected attributes is allowed by the MDMS_SET_PROTECTED right and implicitly through the MDMS_SET_RIGHTS right.

The command reference guide identifies protected attributes

9.6.7 Rights for Modifying Objects

The low level rights that allow you to modify an object by changing its attribute values are shown below:.

Table 9-2 Low Level Rights

This right

Enables you to modify

MDMS_SET_ALL

Any MDMS database object record.

MDMS_SET_PROTECTED

Protected attributes used internally by MDMS.

MDMS_SET_OWN

Attributes of volumes allocated to the user.

MDMS_SET_POOL

Attributes of volumes in pools authorized to the user.

MDMS_SET_RIGHTS

The MDMS domain high level rights definition

9.6.8 Deleting Object Records

When managed objects, such as drives or volumes, become obsolete or fail, you may want to remove them from management. When you remove these objects, you must also delete the object records that describe them to MDMS.

When you remove object records, there are two reviews you must make to ensure the database accurately reflects the management domain: review the remaining object records and change any attributes that reference the deleted object records, review any DCL command procedures and change any command qualifiers that reference deleted object records.

9.6.9 Reviewing Managed Objects for References to Deleted Objects

When you delete an object record, review object records in the database for references to those objects. See Reviewing Managed Objects for References to Deleted Objects shows which object records to check when you delete a given object record. Use this table also to check command procedures that include the MDMS SET command for the remaining objects.

Change references to deleted object records from the MDMS database. If you leave a reference to a deleted object record in the MDMS database, an operation with MDMS could fail.

Table 9-3 Reviewing Managed Objects for References to Deleted Objects

When you delete...

Review these object records...

Group

Drive



Jukebox

Pool (Authorized, Default Users)



Jukebox

Drive

Jukebox



Magazine (MDMS sets the attribute)



Volume (MDMS sets the attribute)



Location

Domain (Offsite, Onsite Location)

Location



Magazine (Offsite, Onsite Location)



Node



Volume (Offsite, Onsite Location)



Media Type

Domain

Drive



Volume



Node

Drive

Group



Jukebox



Pool (Authorized, Default Users)



Pool

Volume

9.6.10 Reviewing DCL Command Procedures for References to Deleted Objects

When you delete an object record, review any DCL command procedures for commands that reference those objects. Other than the MDMS CREATE, SET, SHOW, and DELETE commands for a given object record, See Reviewing DCL Commands for References to Deleted Objects shows which commands to check. These commands could have references to the deleted object record.

Change references to deleted object records from DCL commands. If you leave a reference to a deleted object record in a DCL command, an operation with MDMS could fail.

Table 9-4 Reviewing DCL Commands for References to Deleted Objects

When you delete...

Review these DCL commands...

Drive

MDMS ALLOCATE DRIVE



MDMS DEALLOCATE DRIVE



MDMS LOAD DRIVE



MDMS LOAD VOLUME



MDMS UNLOAD DRIVE

Group

MDMS ALLOCATE DRIVE



MDMS CREATE DRIVE



MDMS CREATE JUKEBOX



MDMS SET DRIVE



MDMS SET JUKEBOX

Jukebox

MDMS ALLOCATE DRIVE



MDMS ALLOCATE VOLUME



MDMS CREATE MAGAZINE



MDMS CREATE VOLUME



MDMS INITIALIZE VOLUME



MDMS INVENTORY JUKEBOX



MDMS SET MAGAZINE



MDMS SET VOLUME



MDMS REPORT VOLUME

Location

MDMS ALLOCATE DRIVE



MDMS ALLOCATE VOLUME



MDMS CREATE LOCATION (Location attribute)



MDMS CREATE JUKEBOX



MDMS CREATE MAGAZINE (Onsite, Offsite Location)



MDMS CREATE NODE



MDMS CREATE VOLUME (Onsite, Offsite Location)



MDMS MOVE VOLUME



MDMS REPORT VOLUME (Onsite, Offsite Location Fields)



MDMS SET DOMAIN (Onsite, Offsite Location)



MDMS SET JUKEBOX



MDMS SET LOCATION (Location attribute)



MDMS SET MAGAZINE (Onsite, Offsite Location)



MDMS SET NODE



MDMS SET VOLUME (Onsite, Offsite Location)

Media Type

MDMS ALLOCATE DRIVE



MDMS ALLOCATE VOLUME



MDMS CREATE DRIVE



MDMS CREATE VOLUME



MDMS INITITALIZE VOLUME



MDMS INVENTORY JUKEBOX



MDMS LOAD DRIVE



MDMS REPORT VOLUME



MDMS SET DOMAIN



MDMS SET VOLUME

Node

MDMS ALLOCATE DRIVE



MDMS CREATE DRIVE



MDMS CREATE GROUP



MDMS CREATE JUKEBOX



MDMS CREATE POOL (Authorized, Default Users)



MDMS SET DRIVE



MDMS SET GROUP



MDMS SET JUKEBOX



MDMS SET POOL (Authorized, Default Users)

Pool

MDMS ALLOCATE VOLUME



MDMS LOAD DRIVE



MDMS REPORT VOLUME



MDMS SET VOLUME

Volume

MDMS ALLOCATE DRIVE



MDMS ALLOCATE VOLUME/LIKE_VOLUME

Volume Set

MDMS BIND VOLUME/TO_SET



9.6.11 Rights for Deleting Objects

The low level rights that enable a user to delete objects are MDMS_DELETE_ALL (delete any MDMS object record) and MDMS_DELETE_POOL (delete volumes in a pool authorized to the user).

10

Media Management

This chapter expands on the MDMS object summary given in Chapter 2, and describes all the MDMS objects in detail, including the object attributes and operations that can be performed on the objects.

Before going into details on each object, however, the use of the MDMS$CONFIGURE.COM procedure is recommended to configure your MDMS domain and the objects in it. In many cases this should take care of your entire initial configuration.

10.1 MDMS Domain Configuration

If you are configuring your MDMS domain (including all objects in the domain) for the first time, HP recommends that you use the MDMS$CONFIGURE.COM command procedure. This procedure prompts you for most MDMS objects, including domain, drives, jukeboxes, media types, locations and volumes, and establishes relationships between the objects. The goal is to allow complete configuration of simple to moderately complex sites without having to read the manual.

The configuration procedure offers extensive help, and contains much of the information contained in this chapter. Help is offered in a tutorial form if you answer "No" to "Have you used this procedure before". In addition, for each question asked, you can enter "?" to have help on that question displayed. Furthermore, if you type "??" to a question, not only will the help be displayed, but in most cases a list of possible options is also displayed.

This procedure is also useful when adding additional resources to an existing MDMS configuration. To invoke this procedure, enter:

@MDMS$SYSTEM:MDMS$CONFIGURE.COM

and just follow the questions and help.

A complete example of running the procedure is shown in Appendix A.

10.2 Domain

The MDMS domain encompasses all objects that are served by a single MDMS database, and all users that utilize those objects. A domain can range from a single OpenVMS cluster and its backup requirements, to multi-site configurations that may share resources over a wide area network or through Fibre Channel connections. An OpenVMS system running MDMS is considered a node within the MDMS domain, and MDMS server processes within a domain can communicate with one another.

The MDMS domain object is created at initial installation, and cannot be deleted. Its main focus is to maintain domain-wide attributes and defaults, and these attributes are described in the following sections.

10.2.1 ABS Rights

The domain attribute ABS_RIGHTS controls whether a user having certain pre-V4.0B ABS rights can map these to MDMS rights for security purposes (see Chapter 5, Security , for more information about rights). Setting the attribute allows the mapping, and setting the attribute to false disallows the mapping.

10.2.2 Application Rights

The right MDMS_APPLICATION_RIGHTS is a high-level right that maps to a set of low level rights suitable for MDMS applications (for example, ABS and HSM). Normally these rights should not be changed, or at least not reduced from the default settings otherwise ABS and HSM may not function correctly. You may add rights to application rights if you have your own MDMS applications or command procedures. The ABS and MDMS$SERVER accounts should have MDMS_APPLICATION_RIGHTS granted in the User Authorization File.

10.2.3 Check Access

The check access attribute determines if access controls are checked in the domain. MDMS uses two forms of security: Rights and Access Control. Rights checking is a task-oriented form of security and is always performed. However, access control is an object-oriented form of security and can be optionally enabled or disabled with this attribute. Setting Check Access enables access control checking. Clearing Check Access disables access control checking even if there are objects with access control entries.

10.2.4 Deallocate State

When a volume is deallocated after its data has expired, it may go into one of two states. The transition state is an interim state that the volume goes into after deallocation, but it is not eligible to be used again until a period of time called the transition time expires. This is a safety feature that allows you to examine whether the data has legitimately expired, and if not to retain the volume (put back to the allocated state). If you do not wish this feature, you can disable the transition state and allow volume to return directly to the free state, where it is eligible for immediate allocation and initialization for new data. The domain deallocate state is applied to all volumes that are automatically deallocated by MDMS. When manually deallocating volumes, you can override the domain deallocate state with a state on the deallocate operation itself.

10.2.5 Default Rights

The MDMS default rights attribute maps a set of MDMS low-level rights to all users in the domain. This allows you to give all users a limited set of rights to access MDMS objects and perform operations, without having to expressly modify their accounts. Be aware that default rights are applied to all users on all nodes in the domain, so granting such rights should be carefully reviewed. By default, MDMS maps no rights to the default rights.

10.2.6 Mail Users

When MDMS deallocates volumes based on their scratch date (an operation that is performed once per day), it sends a mail message indicating which volumes were deallocated to the set of users defined in the mail users attributes. You should enter a list of users in the format node::username. Every user in the list will receive the deallocate volume mail messages.

10.2.7 Maximum Scratch Time

The maximum scratch time is the maximum scratch time that can be applied to any volume when it is allocated. The scratch time is the period of time that you wish the volume to stay allocated because its data is still valid. The maximum scratch time imposes a maximum limit and overrides the volume's scratch time if it exceeds the maximum. For HSM, the maximum scratch time should be set to zero (unlimited), as HSM volumes' data remains valid until it is repacked. For ABS uses, this value should be set to the longest period of time you wish to retain any volume.

10.2.8 Media Type

The domain media type attribute is the media type that is applied to new volumes and drives by default when they are created. In a simple configuration, you may only have a single media type, so specifying it in the domain allows you to not have to specify it when creating individual drives and volumes. It may also be applied as a default to ABS archives. You may always override the domain default media type with a specific media type when you create or modify drives and volumes.

10.2.9 Offsite Location

The domain offsite location attribute is applied by default to the offsite location field of new volumes when they are created. The offsite location is an MDMS location that is used for secure storage of the volumes in case of a disaster. You can always override the domain default offsite location when you create or modify volumes.



10.2.10 Onsite Location

The domain onsite location attribute is applied by default to the onsite location field of new volumes when they are created. The onsite location is an MDMS location that is used for storage of the volumes when they are onsite, or quickly accessible to jukeboxes and drives. You can always override the domain default onsite location when you create or modify volumes.



10.2.11 OPCOM Classes

The domain OPCOM classes attribute contains the default OPCOM classes that are applied to new node objects by default when they are created. OPCOM classes are classes of users whose terminals are enabled to receive certain OPCOM classes. You can override the domain default OPCOM classes with specific classes on a per-node basis when you create or modify a node.

10.2.12 Operator Rights

The right MDMS_OPERATOR_RIGHTS is a high-level right that maps to a set of low level rights suitable for operators managing the domain. The default set of operator rights allow for normal operator activities such as loading and unloading volumes into drives, showing any object or operations, and moving volumes offsite and onsite. However, you can add or remove low level rights to/from the operator rights as you wish.

10.2.13 Protection

The domain protection attributes defines the default protection applied to new volumes when they are created. This protection is used by MDMS when it initializes volumes, and writes the protection on the magnetic tape volume itself. You can always override the domain default protection by specifying the protection specifically when creating or modifying a volume.

10.2.14 Relaxed Access

The relaxed access attribute controls the security when a user or application tries to access an object without any access control entries, and access control checking is enabled. If relaxed access is set, such access is granted. If relaxed access is clear, such access is denied. The relaxed access attribute is ignored if the check access attribute is clear.

10.2.15 Request ID

MDMS uses sequentially increasing request identifiers for each request received by the MDMS database server, and this attribute displays the ID of the next request. If this ID is becoming very large, you can reset it to zero or one (or indeed any value) if you wish. The request ID automatically resets to one when it reaches one million.

10.2.16 Scheduler Type

MDMS performs scheduling operations on behalf of itself and ABS. For ABS scheduling, you can choose a scheduler type that best meets your needs, as follows:

MDMS-initiated scheduled operations such as MDMS$MOVE_VOLUMES always use the internal MDMS scheduler.

10.2.17 Scratch Time

The domain default scratch time is the default scratch time applied to new volumes when they are created. Scratch time indicates how long a volume is to remain allocated (that is, how long its data is valid and needs to be kept). You can override the domain volume scratch time when you create, modify or allocate individual volumes. For HSM volumes, the scratch time should be set to zero (unlimited), since HSM data remains valid until a volume is repacked.

10.2.18 SYSPRV

MDMS uses user account rights as one mechanism for security within the domain. MDMS allows you to control whether the OpenVMS privilege SYSPRV can map to the ultimate MDMS right MDMS_ALL_RIGHTS. If you set the SYSPRV attribute, users with SYSPRV are assigned MDMS_ALL_RIGHTS, which means they can perform any operation subject to access control checks. Clearing SYSPRV gives users with SYSPRV no special rights.

If you wish to use the SYSPRV attribute from the MDMSView GUI, the user's authorization file must have SYSPRV defined as a privilege and a default privilege. Having SETPRV is not sufficient as there is no way to set the SYSPRV privilege from the GUI.

10.2.19 Transition Time

The domain default transition time is applied to volumes by default when they are deallocated into the transition state. The transition time determines how long the volumes remain in the transition state before moving to the free state. This attribute is used alongside the deallocation state attribute, which determines the default state that volumes are deallocated into. You can override the domain default transition time when you create, modify, or deallocate a volume.

10.2.20 User Rights

The right MDMS_USER_RIGHTS is a high-level right that maps to a set of low level rights suitable for non-privileged users that perform ABS or HSM operations. The default set of user rights allow for user activities such as creating and manipulating their own volumes and loading and unloading those volumes into drives, showing their volumes. However, you can add or remove low level rights to/from the user rights as you wish.

10.3 Drives

A drive is a physical resource that can read and write data to tape volumes. Drives can be standalone requiring operator intervention for loading and unloading, in a stacker configuration that allows limited automatic sequential loading of volumes, or in a jukebox which provides full random-access automatic loading. Drives are named in MDMS using a unique name across the domain; it may or may not be the same as the OpenVMS device name, as these may not be unique across the domain.

The following sections describe the attributes of a drive.

10.3.1 Access

The access attribute controls whether the drive may be used from local access, remote access or both. Local access includes direct SCSI access, access via a controller such as the HSJ70, access via TMSCP, or access via Fibre Channel, and does not require use of the Remote Device Facility (RDF). Remote access is via a DECnet network requiring RDF. You can set the access to one of the following:

10.3.2 Automatic Reply

Automatic reply is the capability of polling hardware to determine if an operator-assist action has completed. For example, if MDMS requests that an operator load a volume into a drive, MDMS can poll the drive to see if the volume was loaded, and if so complete the OPCOM request without an operator reply. Set automatic reply to enable this feature, and clear to require an operator response. Please note that some operations cannot be polled and always require an operator reply. The OPCOM message itself clearly indicates if a reply is needed or automatic replies are enabled.

10.3.3 Device

The device attribute is the OpenVMS device name for the drive. In many cases you can set up the drive name to be the OpenVMS device name, and this is the default when you create a drive. However, the drive name must be unique within the domain, and since the domain can consist of multiple clusters there may be duplicate device names across the domain. In this case you must use different drive names from the OpenVMS device names. Also, you can specify simple or descriptive drive names which are used for most commands, and hide the OpenVMS device in the device name attribute.

10.3.4 Disabled

By default, drives are enabled, meaning that they can be used by MDMS and its applications. However, you may wish to disable a drive from use because it may need repair or be used for some other application. Set the disabled flag to disabled the drive, and clear the flag to enable the drive.

10.3.5 Drive Number

If the drive is in a robotically-controlled jukebox, and the jukebox is controlled by MRD, you must set the drive number to the relative drive number in the jukebox used by MRD. Drives in jukeboxes are numbered from 0 to n, according to the SCSI addresses of the drives. Refer to the jukebox documentation on how to specify the relative drive number.

10.3.6 Groups

The groups attribute contains a list of groups containing nodes that have direct access to the drive. Direct access includes direct-SCSI access, access via a controller such as an HSJ70, access via TMSCP, and access via Fibre Channel. You can specify as many groups as you wish, in addition to nodes that may not be in a group.

10.3.7 Jukebox

If the drive is in a jukebox, you must specify which jukebox using the jukebox attribute. Enter a valid jukebox name from an MDMS-defined jukebox. If there is no jukebox, MDMS treats the drive as a standalone drive or as a stacker.

10.3.8 Media Types

A drive must support one or more media types in order for volumes to be used on the drive. In the media type attribute, specify one or more MDMS-defined media types that this drive can both read and write. If you wish, you can restrict the media types to a subset that you wish this drive to handle, and not all the media types it could physically handle. In this way, you can restrict the drive's usage somewhat.

10.3.9 Nodes

The nodes attribute contains a list of nodes that have direct access to the drive. Direct access includes direct-SCSI access, access via a controller such as an HSJ70, access via TMSCP, and access via Fibre Channel. You can specify as many nodes as you wish, in addition to groups of nodes in the groups attribute.

10.3.10 Read-Only Media Types

In addition to media types that a drive can read and write, a drive may support one or more additional media types that it can only read. In the read-only media type attribute, specify one or more MDMS-defined media types that this drive can only read. This allows this drive to be used when the application operation is read-only (for example, HSM unshelves or ABS restores). Do not duplicate a media type in both the media type list and read-only media type list.

10.3.11 Shared

You can designate whether a drive is to be used by MDMS applications and users only, or by non-MDMS users. If the drive is not shared, the MDMS server process allocates the drive on all clusters to prevent non-MDMS users and applications from allocating it. However, when an MDMS user attempts to allocate the drive, MDMS will deallocate it and allow the allocation. Set the shared attribute if you wish to share the drive with non-MDMS users, and clear if you wish to restrict usage to MDMS users. ABS users who do their own user backups are considered MDMS users, as are all system backups and HSM shelving/unshelving users.

10.3.12 Stacker

Certain types of drive can be configured as a stacker, which allows a limited automatic sequential loading capability of a set of volumes. Such drives may physically reside in a loader or have specialized hardware that allows stacker capabilities. If you wish the drive to support the stacker loading capability, set this attribute and make sure the jukebox attribute does not contain a jukebox name. If you wish the drive to operate as a jukebox or standalone drive, clear this attribute.

10.3.13 State

The drive state field determines the load state of the drive. The drive can be in one of four states:

This is a protected field that is normally handled by MDMS. Only modify this field if you know that there are no outstanding requests and the new state reflects the actual state of the drive.

10.3.14 Allocate Drive (DCL Only)

You allocate a drive so that you can it for reading and writing data to a volume. If you allocate a drive, your process ID and node is stored in the MDMS database, and the drive is allocated in OpenVMS for your process. Because the MDMSView GUI does not operate in a process context, it is not possible to allocate drives from the GUI.

You can either allocate a drive by name, or you can specify selection criteria to be used for MDMS to select an available drive for you and allocate it. The allocation selection criteria include:

You can also specify the following options when allocating a drive:

10.3.15 Deallocate Drive (DCL Only)

If you allocated a drive using the DCL "Allocate Drive" command, you should deallocate the drive when you are finished using it, otherwise the drive will remain allocated until your process exits.

Simply issue a deallocate drive and specify the drive name or the logical name obtained from the define option in "Allocate Drive".

10.3.16 Load Drive

MDMS supports two ways to load volumes into drives:

This section discusses the load drive option. The load volume option is discussed under volumes.

The "Load Drive" operation requests either that a scratch volume (in the free state) be loaded into the drive, or the next volume in the stacker is loaded into the drive. In either case, the volume ID of the volume is not known until the load completes, and MDMS reads the magnetic tape label to determine the volume.

The loaded volumes may or may not already be defined in the MDMS database. You can choose to create volume records by setting the "Create" flag, and optionally providing attributes to apply to the volume as follows:

When issuing the load drive request, you can specify whether the load is for read/write (almost always the case) or read-only, and whether operator assistance is required.

You can also specify an alternative message for the operator. This is included in the OPCOM message instead of the normal MDMS operator message. Use of an alternative message is not recommended.

When initiating a load from the DCL, you can choose a synchronous operation (default) or an asynchronous operation using the /NOWAIT qualifier. From MDMSView, a load is always asynchronous, so that you can continue performing other tasks.

10.3.17 Unload Drive

Unlike the load drive operation, the unload drive can be applied to any type of drive at any time. What it does is simply unload the current volume in the drive, and so you can use this when you don't know which volume is in the drive. Alternatively, you can use the unload volume operation if you know the volume ID in the drive.

The only option for unload drive is to request operator assistance if needed.

When initiating an unload from the DCL, you can choose a synchronous operation (default) or an asynchronous operation using the /NOWAIT qualifier. From MDMSView, an unload is always asynchronous, so that you can continue performing other tasks.

10.4 Groups

The group object is a logical object that is simply a list of nodes that have something in common. Groups can be used to represent an OpenVMS cluster, a collection of nodes that have access to a device, or for any other purpose. A node may appear in any number of groups. Groups can be specified instead of, or in addition to nodes in drive, jukebox, save and restore objects, and can be used interchangeably with nodes in pool authorization and access control definitions.

Groups contain only one attribute.

10.4.1 Nodes

The list of nodes that comprise the group. Nodes must be OpenVMS nodes that are defined in the MDMS database. You should not use groups for non-OpenVMS nodes (for example, ABS UNIX or Windows clients).

10.5 Jukeboxes

In MDMS, a jukebox is a generic term applied to any robot-controlled device that supports automatic loading of volumes into drives. Jukeboxes include small, single-drive loaders, large multi-drive libraries and very large silos containing thousand of volumes. In general MDMS does not make distinctions among the types of jukeboxes, except for the software subsystem used to control them. MDMS supports both the Media Robot Device (MRD) subsystem for SCSI-controlled robots, and the Digital Cartridge Server Component (DCSC) subsystem for certain silos.

The next sections describe the jukebox attributes.

10.5.1 Access

The access attribute controls whether the jukebox may be used from local access, remote access or both. Local access includes direct SCSI access, access via a controller such as the HSJ70, or access via Fibre Channel, and does not require use of the Remote Device Facility (RDF). Remote access is via a DECnet network requiring RDF. You can set the access to one of the following:

10.5.2 ACS ID

For DCSC-controlled jukeboxes, the ACS identifier specifies the Automated Cartridge System Identifier. Each MDMS jukebox maps to one Library Storage Module (LSM), and requires the specification of the Library, ACS and LSM identifiers.

10.5.3 Automatic Reply

Automatic reply is a capability of polling hardware to determine if an operator-assist action has completed. For example, if MDMS requests that an operator move a volume into a port, MDMS can poll the port to see if the volume is there, and if so complete the OPCOM request without an operator reply. Set automatic reply to enable this feature, and clear to require an operator response. Please note that some operations cannot be polled and always require an operator reply. The OPCOM message itself clearly indicates if a reply is needed or automatic replies are enabled.

10.5.4 Cap Size

For DCSC-controlled jukeboxes equipped with Cartridge Access Points (CAPs), this attribute specifies the number of cells for each CAP. The first number is the size for CAP 0, the second for CAP 1, and so on. If a size is not specified, a default value of 40 is used. Specifying a cap size optimizes the movement of volumes to and from the jukebox by filling the CAP to capacity for each move operation.

10.5.5 Control

The control attribute determines the software subsystem that performs robotic actions in the jukebox. The control may be one of the following:

10.5.6 Disabled

By default, jukeboxes are enabled, meaning that they can be used by MDMS and its applications. However, you may wish to disable a jukebox from use because it may need repair or be used for some other application. Set the disabled flag to disabled the jukebox, and clear the flag to enable the jukebox.

10.5.7 Groups

The groups attribute contains a list of groups containing nodes that have direct access to the jukebox. Direct access includes direct-SCSI access, access via a controller such as an HSJ70, and access via Fibre Channel. TMSCP access is not supported for jukeboxes. You can specify as many groups as you wish, in addition to nodes that may not be in a group.

10.5.8 Library ID

For DCSC-controlled jukeboxes, the Library identifier specifies the library that this jukebox is in. Each MDMS jukebox maps to one Library Storage Module (LSM), and requires the specification of the Library, ACS and LSM identifiers.

10.5.9 Location

The location attribute specifies the physical location of the jukebox. Location can be used as a selection criterion for selecting volumes and drives. Specify an MDMS-defined location for the jukebox. This location may be the same as, or different from, the onsite location that volumes are stored in when not in a jukebox. If different, moves from the jukebox to the onsite location and vice versa will be done in two phases: jukebox to jukebox location, then jukebox location to onsite location, and vice versa.

10.5.10 LSM ID

For DCSC-controlled jukeboxes, the Library Storage Module (LSM) identifier specifies the LSM that comprises this jukebox. Each MDMS jukebox maps to one Library Storage Module (LSM), and requires the specification of the Library, ACS and LSM identifiers.

10.5.11 Nodes

The nodes attribute contains a list of nodes that have direct access to the jukebox. Direct access includes direct-SCSI access, access via a controller such as an HSJ70, and access via Fibre Channel. TMSCP access to jukeboxes is not supported. You can specify as many nodes as you wish, in addition to groups of nodes in the groups attribute.

10.5.12 Robot

For MRD-controlled jukeboxes, the robot name is the OpenVMS device name of the robot device. Robot names normally fall into one of several formats:

If the jukebox is controlled by direct connect SCSI (first option), the device must be first loaded on the system with one of the following DCL commands:

Alpha/I64 - $ MCR SYSMAN IO CONNECT GKxxx/NOADAPTER/DRIVER=SYS$GKDRIVER.EXE

VAX - $ MCR SYSGEN CONNECT GKxxx/NOADAPTER/DRIVER=GKDRIVER

and the device name must begin with GK.

10.5.13 Slot Count

For MRD jukeboxes, the slot count is simply the number of slots (which can contain volumes) in the jukebox. Volumes reside in numbered slots when they are not in a drive. Slots are numbered from 0 to (slot count - 1). Filling in this field is optional: MDMS calculates the slot count by polling the jukebox firmware.

10.5.14 State

The state attribute is a protected field that describes the current state of the jukebox. A jukebox can be in one of three states:

This field is normally maintained by MDMS, so you should not modify it unless a problem has occurred that needs manual cleanup (for example, the robot is stuck in the in-use state when it is clear that it is not in-use).

10.5.15 Threshold

MDMS provides the capability of monitoring the number of free volumes in a jukebox. A free volume is one that is available for allocation and writing new data. Many users would like to maintain a minimum number of free volumes in a jukebox to handle tape writing needs for some period of time. You can specify a threshold value of free volumes, below which an OPCOM message is issued that asks an operator move some more free volumes into the jukebox. In addition, the color status of the jukebox in MDMSView changes to yellow if the number of free volumes falls below the threshold, and to red if there are no free volumes in the jukebox. If you wish to disable threshold OPCOM messages and color status, set the threshold value to 0.

10.5.16 Topology

The topology attribute specifies the physical configuration of a certain type of jukebox when it is being used with magazines. Topology is only useful when all of the following conditions are true:

You specify the topology of the jukebox so that you can move magazines into and out of the jukebox by specifying a position rather than a start slot.

For each tower in the jukebox, you specify the number of faces in the tower, the number of levels in each face, and the number of slots in each level. For TL820-class jukeboxes, the typical values for each tower are 8 faces, 2 or 3 levels per face and 11 slots per level. The associated magazine contains 11 slots and fits into a position specified by tower, face and level. Other jukeboxes may vary.

10.5.17 Usage

The usage attribute determines whether this jukebox is set up to use magazines, and has two values:

You should only set usage to magazine if you plan to use MDMS magazine objects and move all the volumes in the magazines together. An alternative is to move individual volumes separately, even if they reside in a physical magazine; in this case set usage to nomagazine.

10.5.18 Inventory Jukebox

MDMS provides the capability to inventory jukeboxes, and "discover" volumes in them and optionally create volumes in the MDMS database to match what was discovered. With this feature, you can simply place new volumes in the jukebox and let MDMS create the associated volume records with attributes that you can specify.

There are two types of inventory:

You can inventory whole jukeboxes, or specify a volume range or slot range, as follows:

While inventorying jukeboxes, MDMS can find volumes that are defined and in the jukebox, that are not defined but are in the jukebox, and that are defined but missing from the jukebox. MDMS provides several options to handle undefined and missing volumes.

If you set the "Create" flag during an inventory, MDMS will create a volume record for each undefined volume it finds in the jukebox. You can specify in advance certain attributes to be applied to this volume record:

If you do not set the "Create" flag, then MDMS will not create new volume records for undefined volumes it finds.

Conversely, you can also define what to do if a volume that should be in the jukebox (according to the database) is found not to be in the jukebox. There are three options that you can apply using the "Missing" attribute:

When initiating an inventory from the DCL, you can choose a synchronous operation (default) or an asynchronous operation using the /NOWAIT qualifier. From MDMSView, an inventory is always asynchronous, so that you can continue performing other tasks.

10.6 Locations

A location is an MDMS object that describes the physical location other objects. Nodes, jukeboxes, magazines, volumes and archives can all have locations associated with them. Locations are used for volume and drive allocation selection criteria, and for placing volumes and magazines in known labelled locations.

Locations can be hierarchical, and locations in hierarchy that have a common source are considered compatible locations. For example, locations SHELF1 and SHELF2 are compatible if they have a common parent location such as ROOM2. Compatible locations are used when allocating drives and volumes using selection criteria, so you should only define hierarchies to the extent that you wish compatible locations. Locations that extend beyond a room or floor are generally not considered compatible, so you should not normally build location hierarchies beyond that level.

Locations can also contain "spaces", that are normally labelled areas in a location that volumes and magazines can be placed in an onsite location. If a volume or magazine contains a space definition, this is output in OPCOM messages so that operator can easily locate a volume or magazine when needed.

Locations contain two attributes, as defined in the following sections.

10.6.1 Parent Location

The parent location is an MDMS location object which is the next level up on the location hierarchy. For example, a location SHELF1 might have a parent location ROOM2, indicating that SHELF1 is in ROOM2. You should define a parent location only if you wish all locations belonging to the parent (including the parent itself) to be compatible when selecting volumes and drives. For example, in a hierarchy of SHELF1 and SHELF2 in ROOM2, volumes in any of the three locations would match a request to allocate a volume from ROOM2. Do not use the location hierarchy for other purposes.

10.6.2 Spaces

Locations can contain spaces, that are used in OPCOM messages when volumes and magazines are being moved from one place to another. Enter a range of spaces in an alphanumeric range separated by a dash. Examples of space ranges are 1-10, A-Z, AAA001-AAA099, 10A-10Z.

10.7 Magazines

A magazine is an MDMS object that contains a set of volumes that are planned to be moved together as a group. It can also relate to physical magazines that some jukeboxes (most notably small loaders) require to move volumes into and out of the jukebox. Magazines can be moved into and out of MRD-controlled jukeboxes with all their volumes at once.

However, just because a jukebox requires a physical magazine does not necessarily mean that you must use MDMS magazines. The physical magazine jukebox can be handled without magazines, and volumes are moved individually as far as MDMS is concerned. The choice should depend on whether you wish the volumes to move independently (don't use magazines) or as a group together (use magazines).

Magazines are not supported for DCSC-controlled jukeboxes. Magazines have the following attributes.

10.7.1 Jukebox, Start Slot and Position

The jukebox name contains the name of the jukebox if the magazine is in a jukebox. When in a jukebox, a magazine can optionally have a start slot or position, as follows:

All three fields are protected and normally managed by MDMS when a "Move Magazine" operation occurs. Only manipulate these fields if an error occurs and you need to recover the database to a consistent state.

10.7.2 Onsite and Offsite Locations and Dates

When not in a jukebox, a magazine may be either in an onsite or offsite location. An onsite location is one where the magazine can be quickly accessed and moved into a jukebox, which is also onsite. An offsite location is meant to be a secure location in the case of disaster recovery, and generally does not have local access to a jukebox. However, nothing in MDMS precludes the possibility of offsite locations having their own jukeboxes.

Each magazine should have an onsite and offsite location defined, so that operators know where the magazine is physically located. They use these locations, the jukebox name and the placement to determine where a jukebox is at a certain time. Both onsite and offsite locations should be MDMS-defined location objects.

Together with the offsite and onsite locations, you can associate an offsite and onsite date. These dates represent the date the magazine is due to be moved offsite or onsite respectively. Typically, magazines are moved offsite while their volumes' data is still valid and needs to be protected in a secure location. When the volumes' data expires, the magazine should be scheduled to be brought onsite, so that the newly-freed volumes can be used for other purposes.

If an offsite and/or onsite date is specified, MDMS initiates the movement of the magazines at some point on the scheduled date automatically. This is performed by the "Move Magazine" scheduled operation, which by default runs at 1:00 am each day. Operators will see OPCOM messages to move the magazines to either the onsite or offsite location.

If you do not wish to have MDMS move magazines automatically, either remove the onsite and offsite dates from the magazine, or disable the scheduled "Move Magazine" activity by assigning a zero time to its schedule object "MDMS$MOVE_MAGAZINES".

10.7.3 Slot Count

The slot count specifies how many slots are in the magazine. Unlike jukeboxes, this value is required to make magazines work properly.

10.7.4 Spaces

While in an onsite location, the magazine can occupy a space, which is a labelled part of a location that uniquely identifies where the magazine is. A space can be designed to handle a single volume, but since magazines hold multiple volumes, multiple spaces can also be assigned. Enter either a space or a range of spaces for the magazine.

10.7.5 Move Magazine(s)

The supported way to move magazines from one place to another is to use the "Move Magazine" operation. You can move magazines on demand by issuing this operation, or you can let MDMS automatically move magazines according to pre-defined onsite or offsite dates (this is called a "scheduled" move). You can also force an early scheduled move if you want it to occur before the time that MDMS would initiate the move. Moving magazines into jukeboxes must always be performed manually.

When intiating a "Move Magazine", you can choose a destination for the magazine if the move is not a scheduled move. The destination can be one of three types of places:

If you wish to force a scheduled move, you can select "Scheduled". In most cases, the destination is predefined, so you don't need to specify it. However, you can specify an alternative destination for the scheduled move if you wish by specifying a destination as outlined above.

Finally, you can specify if you need operator assistance. This is recommended with "Move Magazine" as magazines cannot be moved without human intervention. Only if you plan to do the physical move yourself or you manually let someone know would you disable operator assistance.

10.8 Media Types

MDMS uses media type objects to hold information about the type of media that volumes and drives can support. MDMS uses media type as a major selection criterion for allocating volumes and drives, and volumes can only be loaded into drives with compatible media types.

Media types contain four attributes, as defined in the following sections.

10.8.1 Capacity

The capacity attribute indicates the capacity of the media in MB. This field is not used by ABS or HSM, but is used by the obsolete product "Sequential Media Filesystem" (SMF).

10.8.2 Compaction

This important field indicates whether you wish the tape to be written with firmware compaction. Enabling compaction usually doubles the capacity of the tape, so this is a desirable option which is set by default. Clear the attribute if you do not wish compaction.

10.8.3 Density

This field indicates the density of the tape that you desire. Many types of tape media (especially DLT tapes) support multiple densities, and certain types of drive can either read and write a certain density, or just read some densities. As such, you can define many media types with different densities that can be assigned to volumes and drives.

MDMS uses the density field when initializing volumes, so the density must be a valid OpenVMS density for the version of the operating system being used. Issue a "HELP INITIALIZE /DENSITY" command to determine the valid densities on the platform.

10.8.4 Length

The length field is used for information purposes only. If your media comes in various lengths, you can differentiate between types by using the length field. Specify an integer value that has meaning to your operators.

10.9 Node

An MDMS node is an OpenVMS system that is running MDMS. All nodes running MDMS must have a node object defined in the database for MDMS to work properly. The node name must be the DECnet Phase IV name of the system, if DECnet Phase IV is running or a Phase IV alias is used. Otherwise it can be any name.

Nodes contain attributes as outlined in the following sections.

10.9.1 Database Server

MDMS operates as a group of co-operating processes running on multiple nodes in multiple clusters in an MDMS domain. One of these MDMS processes is known as the "Database Server", and it actually controls all MDMS operations in the domain. Although only one node is the database server at any one time, you should enable multiple nodes to be possible database servers in case the actual database server node fails. In this way, failover is supported.

A database server must have direct access to the database files located in MDMS$DATABASE_LOCATION. Direct access, access via MSCP, and access via Fibre Channel are all considered local access. Access via a network protocol or DFS are not considered local access. It is recommended that you enable at least 3 nodes as potential database servers to ensure failover capabilities.

10.9.2 Disabled

Set to disable the node as an MDMS node. Clear to enable the node as an MDMS node.

10.9.3 OPCOM Class

You can specify the OPCOM classes to be used by MDMS for operator messages on this node. By default, the domain default OPCOM classes are used, but you can override this on a node-by-node basis. Specify one or more of the standard OpenVMS OPCOM classes - messages are directed to all login sessions with these OPCOM classes enabled.

10.9.4 Transports and Full Names

You can define which network transports are defined for this node. There are four choices:

If you identify TCP/IP as a supported transport, you must define the TCP/IP fullname in the TCP/IP fullname field. These fullnames are normally in the format "node.loc.org.ext". For example, SLOPER.CXO.CPQCORP.COM

If you identify DECnet as a transport, you need to specify a DECnet full name only if you are using DECnet-Plus (Phase V). In this case, enter the full name, which is normally in a format such as LOCAL:.node. If you are running DECnet Phase IV, do not specify a DECnet full name. The node's node name is used.

10.10 Pools

A pool is a logical MDMS object that associates a set of volumes with a set of users that are authorized to use those volumes. Every volume can be assigned one pool, for which we say that the volume is in the pool. The pool is then assigned a set of users that are authorized to use the volumes in the pool. If a volume does not have a pool specified, then it is said to belong to the "scratch pool" for which no authorization is required.

Pools have three attributes that are discussed in the following sections.

10.10.1 Authorized Users

You can specify a list of authorized users for the pool, as a comma-separated list of users. Each user should be specified as node::username or group::username, where both the node/group and username portions can contain wildcard characters (*%). To authorize everyone, you can specify *::*. To authorize everyone on a node you can specify nodename::*. Everyone in the authorized user list is allowed to allocate volumes in the pool. Other users require MDMS_ALL_RIGHTS or MDMS_ALLOCATE_ALL rights.

10.10.2 Default Users

Default users are authorized like the authorized users, but in addition are assigned this pool as their default pool. In this case, if they attempt to allocate a volume and don't specify a pool, they will allocate a volume from this pool. A particular user need only appear in one list: they do not need to be listed in both lists to be an authorized user to their default pool.

10.10.3 Threshold

Pools are useful for dividing volumes between groups or organizations, but they are only useful is there are free volumes in the pool. MDMS provides the capability of monitoring the number of free volumes in a pool. A free volume is one that is available for allocation and writing new data. Many users would like to maintain a minimum number of free volumes in a pool to handle tape writing needs for some period of time. You can specify a threshold value of free volumes, below which an OPCOM message is issued that asks an operator add some more free volumes to the pool. In addition, the color status of the pool in MDMSView changes to yellow if the number of free volumes falls below the threshold, and to red if there are no free volumes in the pool. If you wish to disable threshold OPCOM messages and color status, set the threshold value to 0.

10.11 Volumes

A volume is a physical piece of tape media that contains (or will contain) data written by MDMS applications (ABS or HSM), or user applications. Volumes have many attributes concerning their placement, allocation status, life-cycle dates, protection attributes and many other things.

Volume records can be created manually with a "Create Volume" operation, or automatically be MDMS with "Inventory Jukebox" and "Load Drive" operations. The MDMS$CONFIGURE command procedure can also be used to create volumes.

Once a volume is created it acquires a state. This state determines how the volume may be used at any time, and to an extent where the volume should be placed.

The following figure illustrates the life cycle of volumes, and the following table indicates how a volume transitions from one state to another.

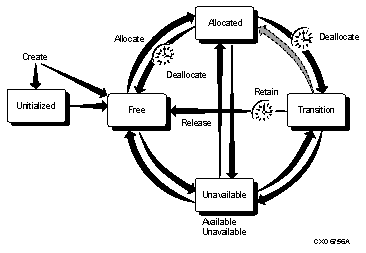

Figure 10-1 Volume State



Each row describes an operation with current and new volume states, commands and GUI actions that cause volumes to change states, and if applicable, the volume attributes that MDMS uses to cause volumes to change states. Descriptions following the table explain important aspects of each operation.

Table 10-1 MDMS Volume State Transitions

Current State

Transition to New State

New State

Blank

MDMS CREATE VOLUME

Volume Create

UNINTIALIZED

Blank

MDMS CREATE VOLUME/PREINIT

FREE

UNINITIALIZED

MDMS INITIALIZE VOLUME

Volume Initialize

FREE

FREE

MDMS INITIALIZE VOLUME

Volume Initialize

FREE

FREE

MDMS ALLOCATE VOLUME

Volume Allocate

ALLOCATED

ALLOCATED

MDMS DEALLOCATE VOLUME
Volume Deallocate
or automatically on
the volume scratch date

TRANSITION

ALLOCATED

MDMS DEALLOCATE VOLUME
Volume Deallocate
or automatically on
the volume scratch date

FREE

TRANSITION

MDMS SET VOLUME /RELEASE
Volume Release
or automatically on
the volume transition time

FREE

Any State

MDMS SET VOLUME /UNAVAILABLE
Volume Unavailable

UNINITIALIZED

UNINITIALIZED

MDMS SET VOLUME /AVAILABLE
Volume Available

Previous State

UNINITIALIZED

MDMS DELETE VOLUME
Volume Delete

BLANK

FREE

MDMS DELETE VOLUME
Volume Delete

BLANK

The following sections describes all the volume attributes in detail, followed by operations that you can perform on volumes.

10.11.1 Allocation Fields - Account, Username, UIC and Job

The account, username and UIC fields are filled in automatically when a volume is allocated, and reflect the calling user or specified user during the allocate. The username is a valid OpenVMS username on the client system performing the allocate, and the account and UIC is from the user's entry in the system Authorization (UAF) file.

These fields are normally maintained by MDMS and are protected fields. You should not modify these fields unless the volume is deallocated. MDMS maintains the Account, Username and UIC in the volume even after the volume is deallocated, so that you can "retain" the volume back to the allocated state in case of accidental deallocation.

The job name field is not used by ABS, HSM or MDMS.

10.11.2 Allocation and Movement Dates

There are several dates that maintain or control allocation and movement dates for volumes. These are as follows:

If an offsite and/or onsite date is specified, MDMS initiates the movement of the volumes at some point on the scheduled date automatically. This is performed by the "Move Volumes" scheduled operation, which by default runs at 1:00 am each day. Operators will see OPCOM messages to move the volumes to either the onsite or offsite location.

If you do not wish to have MDMS move volumes automatically, either remove the onsite and offsite dates from the volume, or disable the scheduled "Move Volumes" activity by assigning a zero time to its schedule object "MDMS$MOVE_VOLUMES".

10.11.3 History Dates

The history dates are maintained by MDMS, but are for information purposes only. MDMS does not use these dates to perform any operations. The following history dates are maintained:

10.11.4 State

The state field indicates where in a volume's life cycle the volume exists. The state field itself is protected, and you should not normally adjust it unless an error occurs. However, you can "Update State" using certain keywords, which checks for validity and results in a consistent database state.

A volume can be in one of the following states, which are shown in normal life-cycle order:

A picture showing the normal state transitions is provided at the top of the volumes section.

While changing the state directly is not recommended, there are several options for changing state that are supported:

10.11.5 Media Types

A volume's media types define the type of media for the volume, and what potential compaction or density options the volume can support. As such, before a volume is initialized, it can potentially support many media types. However, once a volume is initialized, MDMS uses the density and compaction attributes from a media type to physically write the tape. As such, a volume should only support one media type at and after the first initialization.

If the volume is in the Uninitialized state, select one or more MDMS-defined media types for the volume. If the volume is in any other state, select a single media type. If no media type is specified, the domain default media type is used.

10.11.6 Pool

A pool contains a collection of volumes that can be used by a set of authorized users. To insert a volume into a pool, simply specify a pool name in the volume's pool field. If not defined, the volume is placed in the "scratch pool", and it can be allocated by any user. If the volume is in the free state, the number of free volumes in the pool is incremented.

10.11.7 Previous and Next Volumes

These read-only fields indicate if a volume is in a volume set, and what the previous and next volumes are in the set, relative to this volume. A volume set is created when a tape write operation reaches end-of-tape and a new tape is required to complete the operation. ABS and HSM bind the next volume to the current volume, and create a volume set.

These fields are manipulated by "Bind Volume" and "Unbind Volume" operations, both manually and under control of MDMS applications.

10.11.8 Placement - Jukebox, Magazine, Locations, Drive

The placement fields of a volume indicate where the volume resides, and where it should reside when moved to an onsite or offsite locations. The placement attributes include the following:

Placement is a protected field managed by MDMS. You should not change placement unless error recovery is needed.

10.11.9 Formats - Brand, Format, Block Factor, Record Size

The format fields are not used by ABS, HSM or MDMS, but can be used to document certain characteristics of the volume and its data format. The fields are as follows:

10.11.10 Protection

The protection field provides System, Owner, Group and World access protection for the volume. This protection is written to the volume when it is initialized, and provides protection from unauthorized use and re-initialization. The standard protection is:

SYSTEM(R, W) OWNER (R, W) GROUP (R) WORLD (None)

If protection is not set for the volume, the domain default protection is used.

10.11.11 Counters

MDMS provides three counters for volumes, as follows:

10.11.12 Allocate Volume

You allocate volumes so that you can use them for writing new data. Allocating a volume places it into the Allocated state, and assigns the calling user (or specified user), UIC, and account in the allocation fields. This effectively reserves the volume to the user. The volume remains allocated to the user and unavailable for other use until the scratch date is reached, or unless the volume is manually deallocated.

When allocating a volume, you may specify the user for which you are allocating the volume (for example, ABS). If you do not specify a user, then you as the calling user are placed in the allocation fields.

Also, during allocation, you can change the following fields in the MDMS database to reflect the format to be used on the tape:

10.11.13 Allocate Volume(s) by Selection Criteria

Instead of allocating a volume by name, you can specify selection criteria to be used for MDMS to select a free volume for you and allocate it. You can also allocate a volume set by specifying a count of volumes to allocate. The allocation selection criteria include:

If you specify a volume count of more than one, then that many volumes will be allocated and placed in a volume set. If you also use the "Bind Volume" selection option, the new volume set is bound to the specified volume set.

You can also specify that you wish to change certain attributes of the volume as follows:

10.11.14 Deallocate Volume

MDMS normally deallocates volumes when their scratch date expires. However, you can deallocate volumes manually in order to free them up earlier than planned. You can deallocate your own volumes, or with the appropriate rights deallocate volumes allocated to other users.

If the volume is in a volume set, the volume is also unbound from the volume set.

The following options are available when you deallocate a volume:

10.11.15 Bind Volume

Binding volumes is the way to create volume sets, by binding one volume (or volume set) to another volume (or volume set). Normally, MDMS applications such as ABS and HSM perform automatic binding when they reach end-of-tape. However, it is sometimes necessary to perform manual binding. For example, if a volume set has been accidentally deallocated but is still needed, you may need to manually bind the set together (although the retain feature does this quite well).

There are only two options when binding a volume set:

When you bind a new volume to a volume or volume set, the new volume acquires the following attributes of the volume set:

The next and previous volumes are also updated appropriately.

10.11.16 Unbind Volume

Unbinding a volume removes the volume from the volume set without deallocating it. When unbinding a volume you can choose whether to unbind the entire volume set, or break the volume set at the point of the unbind. You can also unbind on behalf of the allocated user.

There are only two options for unbind:

10.11.17 Load Volume

MDMS supports two ways to load volumes into drives:

This section discusses the load volume option. The load drive option is discussed under drives.

When loading a specific volume, you normally need to specify the drive in which to load the volume, unless a drive has been specifically allocated for a volume (via DCL only). Select a drive with a compatible media type for the volume.

If you are loading a volume into a jukebox drive, and the volume is not in the jukebox, you can specify is an automatic "Move Volume" request to move the volume into the jukebox is desired. If you do not specify this option, and the volume is not in the jukebox, the operation will fail.

Another option is to request MDMS to check the volume label. This is normally a good idea as there can be mismatches between the volume's magnetic label and its bar code label. If the labels do not match, the load fails. If you do not set the label check flag, the load may succeed but the label may be wrong. Use this option with caution.

When issuing the load volume request, you can specify whether the load is for read/write or read-only, and whether operator assistance is required.

You can also specify an alternative message for the operator. This is included in the OPCOM message instead of the normal MDMS operator message. Use of an alternative message is not recommended.

10.11.18 Unload Volume

You can unload a specific volume from a drive by issuing the "Unload Volume" operation. Unlike the "Unload Drive" operation which unloads any volume from the drive, the "Unload Volume" function checks the label on the volume on the drive before unloading it. If the label can be read and does not match the specified volume, the unload fails.

There is only one option for unload volume - operator assistance. This is recommended unless you are personally monitoring the unload operation.

10.11.19 Move Volume(s)

The supported way to move volumes from one place to another is to use the "Move Volume" operation. You can move volumes on demand by issuing this operation, or you can let MDMS automatically move volumes according to pre-defined onsite or offsite dates (this is called a "scheduled" move). You can also force an early scheduled move if you want it to occur before the time that MDMS would initiate the move. Moving volumes into jukeboxes or magazines must always be performed manually.

When intiating a "Move Volume", you can choose a destination for the volume if the move is not a scheduled move. The destination can be one of four types of places:

If you wish to force a scheduled move, you can select "Scheduled". In most cases, the destination is predefined, so you don't need to specify it. However, you can specify an alternative destination for the scheduled move if you wish by specifying a destination as outlined above.

Finally, you can specify if you need operator assistance. This is recommended with "Move Volume" because human intervention is necessary to move volumes. Only if you plan to do the physical move yourself or you manually let someone know would you disable operator assistance.

10.11.20 Initialize Volume(s)

MDMS supports initialization of volumes to make them available for use. Initializing a volume consists of writing an ANSI label on the volume, and applying compaction and density attributes and the volume protection field in the label. The volume is then free to be written. If the volume was in the Uninitialized state, it will now change to the Free state. All volumes need to be initialized at least once before ABS and HSM can allocate and use them.

Volumes that are already written need to be initialized again if you wish to use the whole volume for writing again. Both ABS and MDMS initialize volumes on every allocation.

When initializing volumes, you can specify four options:

11

MDMS Configuration

The Installation Guide provides information about establishing the MDMS domain configuration. The information in this chapter goes beyond the initial configuration of MDMS, explaining concepts in more detail than the product installation and configuration guide. This chapter also includes procedures related to changing an existing MDMS configuration.

The major sections in this chapter focus on the MDMS domain and its components, and the devices that MDMS manages.

A sample configuration for MDMS is shown in See .

11.1 The MDMS Management Domain

To manage drives and volumes, you must first configure the scope of the MDMS management domain. This includes placing the database in the best location to assure availability, installing and configuring the MDMS process on nodes that serve ABS V3 or HSM V3 and defining node and domain object record attributes. The MDMS Domain is defined by:

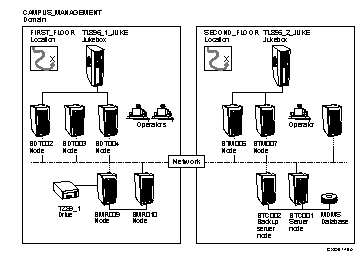

Figure 11-1 The MDMS Domain



Understanding MDMS configuration concepts is necessary to configure a reliable and available service

11.1.1 The MDMS Database

The MDMS database is a collection of OpenVMS RMS files that store the records describing the objects you manage. lists the files that make up the MDMS database.

Table 11-1 MDMS Database Files and Their Contents



Database File

Object Records

MDMS$DOMAIN_DB.DAT

The only Domain object record

MDMS$DRIVE_DB.DAT

All Drive object records

MDMS$GROUP_DB.DAT

All Group object records

MDMS$JUKEBOX_DB.DAT

All Jukebox object records

MDMS$LOCATION_DB.DAT

All Location object records

MDMS$MAGAZINE_DB.DAT

All Magazine object records

MDMS$MEDIA_DB.DAT

All Media Type object records

MDMS$NODE_DB.DAT

All Node object records

MDMS$POOL_DB.DAT

All Pool object records

MDMS$VOLUME_DB.DAT

All Volume object records

11.1.1.1 Database Performance

If you are familiar with the structure of OpenVMS RMS files, you can tune and maintain them over the life of the database. You can find File Definition Language (FDL) files in the MDMS$ROOT:[SYSTEM] directory for each of the database files. Refer to the OpenVMS Record Management System documentation for more information on tuning RMS files and using the supplied FDL files.

11.1.1.2 Database Safety

MDMS keeps track of all objects by recording their current state in the database. In the event of a catastrophic system failure, you would start recovery operations by rebuilding the system, and then by restoring the important data files in your enterprise. Before restoring those data files, you would have to first restore the MDMS database files.

Another scenario would be the failure of the storage system on which the MDMS files reside. In the event of a complete disk or system failure, you would have to restore the contents of the disk device containing the MDMS database.

The procedures in this section describe ways to create backup copies of the MDMS database. These procedures use MDMS$SYSTEM:MDMS$COPY_DB_FILES.COM command procedure. This command procedure copies database files with the CONVERT/SHARE command. The procedure in See How to Back Up the MDMS Database Files describes how to copy MDMS database files only. The procedure in See Processing MDMS Database Files for an Image Backup describes how to process the MDMS database files when they are copied as part of an image backup on the disk device.

To Make Backup Copies of the MDMS Database

The procedure outlined in describes how you can make backup copies of just the MDMS database files using the OpenVMS Backup Utility. This procedure does not account for other files on the device.

Table 11-2 How to Back Up the MDMS Database Files

Step...

Action...
1.

Prepare for making back up copies by finding a disk with enough available space to temporarily hold a copy of each file in the MDMS database.

  1. 2.

Determine a time of relative inactivity by MDMS clients, ABS or HSM.

For ABS, this could be a few hours after the completion of system backups.

For HSM, this is more difficult to determine because a shelving policy could be activated at any time.

If necessary, shut down ABS and/or HSM to make sure there are no requests of MDMS.

  1. 3.

If you cannot shut down HSM or ABS, when running MDMS$COPY_DB_FILES.COM, it is possible an update to the database file can occur after it has been opened. This can create a possibility that the copy of the database file will be out of synchronization with other database files.

At the determined time, copy the MDMS database files with the supplied command procedure MDMS$COPY_DB_FILES.COM.

$ @MDMS$ROOT:[TOOLS]MDMS$COPY_DB_FILES

After the MDMS$COPY_DB_FILES command procedure ends, copies of the database files reside on the same disk as the original files.

  1. 4.

Use the OpenVMS Backup Utility to create a back up copy of the database files. You must have at least one tape device configured to be shared with applications other than MDMS. The following shows an example BACKUP command:

$BACKUP MDMS$DATABASE_LOCATION:*.DAT_COPY tape_device_name

  1. 5.

After the OpenVMS Backup Utility operation completes, delete the file copies from the database directory.

  1. 6.

Store the copies of the MDMS database in a safe location.



To Process the MDMS Database for an Image Backup of the Device

The procedure in shows how to process the MDMS database files for an image backup. The image backup could be part of a periodic full backup and subsequent incremental. This procedure also describes how to use the files in case you restore them.









Table 11-3 Processing MDMS Database Files for an Image Backup



Step...

Action...

1.

Create a preprocessing command procedure to execute before the image backup on the disk. The command procedure must first purge old database file copies from the directory, then creates a new set of copies.

$PURGE MDMS$DATABASE_LOCATION:*.DAT_COPY
$@MDMS$SYSTEM:MDMS$COPY_DB_FILES

  1. 2.

Plan the backup operation on the disk containing the MDMS database files, to make sure that the preprocessing command procedure executes before the actual backup procedure.

  1. 3.

Run the backup operation. Each time you create a backup copy of the disk, you will get a consistent copy of the MDMS database files.

  1. 4.

When you need to restore the data to the device, you need to use the consistent files. Rename the .DAT_COPY files to become the .DAT files, then purge the .DAT files from the directory.

$RENAME MDMS$DATABASE:*.DAT_COPY MDMS$DATABASE:*.DAT
$PURGE MDMS$DATABASE



11.1.1.3 Moving the MDMS Database

In the event the disk device on which you keep the MDMS database runs out of space, you have the option of moving the MDMS database, or moving other files off the device. The procedure described in this section explains the actions you would have to perform to move the MDMS database. Use this procedure first as a gauge to decide whether moving the MDMS database would be easier or more difficult than moving the other files. Secondarily, use this procedure to relocate the MDMS database to another disk device.

See How to Move the MDMS Database describes how to move the MDMS database to a new device location.



Table 11-4 How to Move the MDMS Database

Step...

Action...
1.

Shut down any applications using MDMS: ABS or HSM. Refer to the respective application documentation for specific commands.

  1. 2.
  1. Shut down the MDMS process on all nodes in the domain.
  1. 3.

Using the OpenVMS Backup Utility, create a copy of the database files. Use the CRC and VERIFY options to help ensure your copy is valid.

  1. 4.

Using the OpenVMS Backup Utility, restore the copy of the database files into the new location. Use CRC and VERIFY options to ensure the restored copy is valid.

  1. 5.

In every MDMS start up file SYS$MANAGER:MDMS$SYSTARTUP.COM, define the MDMS$DATABASE_FILES logical to point to the new location.

  1. 6.
  1. Start up MDMS on a node enabled as a database server.
  1. 7.

From the node, make sure you can access the database by entering an MDMS SHOW command to examine a record from each database file.

If you get an error, first check to make sure that the logical assignment for the MDMS$DATABASE_FILES is correct.

If the logical assignment is correct, then you will have to determine why the files are not accessible.

  1. 8.
  1. Start up the remaining MDMS nodes.
  1. 9.

Keep the previous database files on-line, until you know the new database files are accessible.

  1. 10.

After you are certain the new database files are accessible, delete the original files.



11.1.2 The MDMS Process

This section describes the MDMS software process, including server availability, interprocess communication, and start up and shut down operations.

11.1.2.1 Server Availability

Each node in an MDMS domain has one MDMS server process running. Within an MDMS domain only one server will be serving the database to other MDMS servers. This node is designated as the MDMS Database Server, while the others become MDMS clients. Of the servers listed as database servers, the first one to start up tries to open the database. If that node can successfully open the database, it is established as the database server. Other MDMS servers will then forward user requests to the node that has just become the database server.

Subsequently, if the database server fails because of a hardware failure or a software induced shut down, the clients compete among themselves to become the database server. Whichever client is the first to successfully open the database, becomes the new database server. The other clients will then forward user requests to the new database server. User requests issued on the node which is the database server, will be processed on that node immediately.

11.1.2.2 The MDMS Account

During installation you create the MDMS user account as shown in See MDMS User Account . This account is used by MDMS for every operation it performs.

MDMS User Account

Username: MDMS$SERVER Owner: SYSTEM MANAGER
Account: SYSTEM UIC: [1,4] ([SYSTEM])
CLI: DCL Tables:
Default: SYS$SYSROOT:[SYSMGR]
LGICMD: SYS$LOGIN:LOGIN
Flags: DisForce_Pwd_Change DisPwdHis
Primary days: Mon Tue Wed Thu Fri Sat Sun
Secondary days:
No access restrictions
Expiration: (none) Pwdminimum: 14 Login Fails: 0
Pwdlifetime: 30 00:00 Pwdchange: 07-Jan-2004 12:19
Maxjobs: 0 Fillm: 500 Bytlm: 100000
Maxacctjobs: 0 Shrfillm: 0 Pbytlm: 0
Maxdetach: 0 BIOlm: 10000 JTquota: 4096
Prclm: 10 DIOlm: 300 WSdef: 5000
Prio: 4 ASTlm: 300 WSquo: 10000
Queprio: 0 TQElm: 300 WSextent: 30000
CPU: (none) Enqlm: 2500 Pgflquo: 300000
Authorized Privileges:
DIAGNOSE NETMBX PHY_IO READALL SHARE SYSNAM SYSPRV TMPMBX WORLD
Default Privileges:
DIAGNOSE NETMBX PHY_IO READALL SHARE SYSNAM SYSPRV TMPMBX WORLD

11.1.3 The MDMS Start Up File

MDMS creates the SYS$STARTUP:MDMS$SYSTARTUP.COM command procedure on the initial installation. This file includes logical assignments that MDMS uses when the node starts up. The installation process also offers the opportunity to make initial assignments to the logicals.

If you install MDMS once for shared access in an OpenVMS Cluster environment, this file is shared by all members. If you install MDMS on individual nodes within an OpenVMS Cluster environment, this file is installed on each node.

In addition to creating node object records and setting domain and node attributes, you must define logicals in the MDMS start up file. These are all critical tasks to configure the MDMS domain.

See MDMS$SYSTARTUP.COM Logical Assignments provides brief descriptions of most of the logical assignments in MDMS$SYSTARTUP.COM. More detailed descriptions follow as indicated.

Table 11-5 MDMS$SYSTARTUP.COM Logical Assignments

Logical Name

Assignment

MDMS$DATABASE_SERVERS

List of all nodes that can run as the MDMS database server. See See MDMS$DATABASE_SERVERS - Identifies Domain Database Servers for more information.

MDMS$ROOT

Device and directory of MDMS files.

MDMS$LOGFILE_LOCATION

Device and directory of the MDMS log file. See See MDMS$LOGFILE_LOCATION for more information.

MDMS$DATABASE_LOCATION

Device and directory of the MDMS database files. All installations in any one domain must define this as a common location. See The MDMS Database identifies the MDMS database files and describes how they should be managed.

MDMS$TCPIP_SENDPORTS

Range of ports for the node to use for out going connections. The default range is for privileged ports; 1 through 1023.

MDMS$SUPPORT_PRE_V3

Support for SLS/MDMS Version 2.9x clients. The default value is FALSE. If you need to support some systems running SLS/MDMS Version 2.9x, then set this value to TRUE.



11.1.3.1 MDMS$DATABASE_SERVERS - Identifies Domain Database Servers

Of all the nodes in the MDMS domain, you select those which can act as a database server. Only one node at a time can be the database server. Other nodes operating at the same time communicate with the node acting as the database server. In the event the server node fails, another node operating in the domain can become the database server if it is listed in the MDMS$DATABASE_SERVERS logical.

For instance, in an OpenVMS Cluster environment, you can identify all nodes as a potential server node. If the domain includes an OpenVMS Cluster environment and some number of nodes remote from it, you could identify a remote node as a database server if the MDMS database is on a disk served by the Distributed File System software (DECdfs). However, if you do not want remote nodes to function as a database server, do not enter their names in the list for this assignment.

The names you use must be the full network name specification for the transports used. shows example node names for each of the possible transport options. If a node uses both DECnet and TCP/IP, full network names for both should be defined in the node object

When you specify the use of both DECnet and TCP/IP network transports in the configuration, you should include node names for each transport as appropriate. Specifying only one node name for a specific transport is allowable. However, when that node attempts to locate a database server on start up, only the transport for which the name applies will be used, thereby limiting reliability.

Table 11-6 Network Node Names for MDMS$DATABASE_NODES

Network Transport

Node Name Examples

DECnet

NODE_A,NODE_B

DECnet Plus

SITE:.NODE_A.SITE,SITE:.NODE_B.SITE

TCP/IP

node_a.site.inc.com,node_b.site.inc.com



11.1.3.2 MDMS$LOGFILE_LOCATION

Defines the location of the Log Files. For each server running, MDMS uses a log file in this location. The log file name includes the name of the cluster node it logs.
For example, the log file name for a node with a cluster node name NODE_A would be:

MDMS$LOGFILE_LOCATION:MDMS$LOGFILE_NODE_A.LOG

11.1.3.3 MDMS Shut Down and Start Up

How to Shut Down MDMS

To shut down MDMS on the current node enter this command:

$@SYS$STARTUP:MDMS$SHUTDOWN.COM

How to Restart MDMS

To restart MDMS (shut down and immediate restart), enter the shut down command and the parameter RESTART:

$@SYS$STARTUP:MDMS$SHUTDOWN RESTART

How to Start Up MDMS

To start up MDMS on the current node enter this command:

$@SYS$STARTUP:MDMS$STARTUP.COM

11.1.4 Managing an MDMS Node

The MDMS node object record characterizes the function of a node in the MDMS domain and describes how the node communicates with other nodes in the domain.

11.1.4.1 Defining a Node's Network Connection

To participate in an MDMS domain, a node object has to be entered into the MDMS database. This node object has 4 attributes to describe its connections in a network:

1. If the node is part of a DECnet (Phase IV) network, then the name of the node object must match exactly with the node's DECnet node name (i.e. SYS$NODE). Otherwise the name of the node object may be any character string up to 31 characters.
  1. 2. If the node is part of a DECnet-Plus (Phase V) network, the DECnet-Plus full name must be supplied as an attribute to the node object, using the /DECNET_PLUS_FULLNAME Qualifier or GUI equivalent.
  2. 3. If the node is part of an Internet or Intranet using TCP/IP, the TCP/IP full name must be supplied as an attribute to the node object, using the /TCPIP_FULLNAME Qualifier or GUI equivalent.
  3. 4. Depending on which network or networks are available or should be used, the node's transport attribute has to be set to either DECNET, TCPIP or both.

When an MDMS server starts up it only has its network node name/s to identify itself in the MDMS database. Therefore if a node has a network node name but it is not defined in the
node object records of the database, this node will be rejected as not being fully enabled. For example, a node has a TCP/IP name and TCP/IP is running but the node object record shows the TCP/IP full name as blank.

There is one situation where an MDMS server is allowed to function even if it does not have a node object record defined or the node object record does not list all network names. This is in the case of the node being an MDMS database server. Without this exception, no node entries can be created in the database. As long as a database server is not fully enabled in the database it will not start any network listeners.

11.1.4.2 Defining How the Node Functions in the Domain

This section describes how to designate an MDMS node as a database server, enable and disable the node.

Designating Potential Database Servers

When you install MDMS, you must decide which nodes will participate as potential database servers. To be a database server, the node must be able to access the database disk device.
Typically, in an OpenVMS Cluster environment, all nodes would have access to the database disk device, and would therefore be identified as potential database servers.

Set the database server attribute for each node identified as a potential database server. For nodes in the domain that are not going to act as a database server, negate the database server attribute.

Disabling and Enabling MDMS Nodes

There are several reasons for disabling an MDMS node.

  • Preventing the node you are disabling from becoming the database server.
  • Preventing applications and users on the node from issuing or processing MDMS requests.

Disable the node from the command line or the GUI and restart MDMS.

When you are ready to return the node to service, enable the node.

11.1.4.3 Enabling Interprocess Communication

Nodes in the MDMS domain have two network transport options: one for DECnet, the other for TCP/IP. When you configure a node into the MDMS domain, you can specify either or both these transport options by assigning them to the transport attribute. If you specify both, MDMS will attempt interprocessor communications on the first transport value listed. MDMS will then try the second transport value if communication fails on the first.

If you are using the DECnet Plus network transport, define the full DECnet Plus node name in the decnet fullname attribute. If you are using an earlier version of DECnet, leave the
DECnet-Plus fullname attribute blank.

If you are using the TCP/IP network transport, enter the node's full TCP/IP name in the
TCPIP fullname attribute. You can also specify the receive ports used by MDMS to listen for incoming requests. By default, MDMS uses the port range of 2501 through 2510. If you want to specify a different port or range of ports, append that specification to the TCPIP fullname. For example:

node_a.site.inc.com:2511-2521

11.1.4.4 Describing the Node

Describe the function, purpose of the node with the description attribute. Use the location attribute to identify the MDMS location where the node resides.

11.1.4.5 Communicating with Operators

List the OPCOM classes of operators with terminals connected to this node who will receive OPCOM messages. Operators who enable those classes will receive OPCOM messages pertaining to devices connected to the node.

For more information about operator communication, see See Managing Operations.

11.1.5 Managing Groups of MDMS Nodes

MDMS provides the group object record to define a group of nodes that share common drives or jukeboxes. Typically, the group object record represents all nodes in an OpenVMS Cluster environment, when drives in the environment are accessible from all nodes.

Figure 11-2 Groups in the MDMS Domain





Some configurations involve sharing a device between nodes of different OpenVMS Cluster environments. You could create a group that includes all nodes that have access to the device.

When you create a group to identify shared access to a drive or jukebox assign the group name as an attribute of the drive or jukebox. When you set the group attribute of the drive or jukebox object record, MDMS clears the node attribute.

The following command examples create a functionally equivalent drive object records.

$!These commands create a drive connected to a Group object
$MDMS CREATE GROUP CLUSTER_A /NODES=(NODE_1,NODE_2,NODE_3)
$MDMS CREATE DRIVE NODE$MUA501/GROUPS=CLUSTER_A
$!
$!This command creates a drive connected to NODE_1, NODE_2, and NODE_3
$MDMS CREATE DRIVE NODE$MUA501/NODES=(NODE_1,NODE_2,NODE_3)

See Groups in the MDMS Domain is a model of organizing clusters of nodes in groups and how devices are shared between groups.

11.1.6 Managing the MDMS Domain

The domain object record describes global attributes for the domain and includes the description attribute where you can enter an open text description of the MDMS domain. Additional domain object attributes define configuration parameters, access rights options, and default volume management parameters. See See The MDMS Domain .

11.1.6.1 Domain Configuration Parameters

Operator Communications for the Domain

Include all operator classes to which OPCOM messages should go as a comma separated list value of the OPCOM classes attribute. MDMS uses the domain OPCOM classes when nodes do not have their classes defined.

For more information about operator communication, see See Managing Operations.

Resetting the Request Identifier Sequence

If you want to change the request identifier for the next request, use the request id attribute.

11.1.6.2 Domain Options for Controlling Rights to Use MDMS

This section briefly describes the attributes of the domain object record that implement rights controls for MDMS users. Refer to Appendix on MDMS Rights and Privileges for the description of the MDMS rights implementation.

ABS Users

If you use MDMS to support ABS, you can set the ABS rights attribute to allow any user with any ABS right to perform certain actions with MDMS. This feature provides a short cut to managing rights by enabling ABS users and managers access to just the features they need. Negating this attribute means users with any ABS rights have no additional MDMS rights.

MDMS Client Applications

MDMS defines default low level rights for the application rights attribute according to what ABS and HSM minimally require to use MDMS.

The ABS or HSM processes include the MDMS_APPLICATION_RIGHTS identifier which assumes the low level rights associated with it. Do not modify the low level rights for the domain application rights attribute. Changing the values to this attribute can cause your application to fail.

Default Rights for Various System Users

If you want to grant all users certain MDMS rights without having to modify their UAF records, you can assign those low level rights to the default rights attribute. Any user without specific MDMS rights in their UAF file will have the rights assigned to the default rights identifier.

Use the operator rights attribute to identify all low level rights granted to any operator who has been granted the MDMS_OPERATOR right in their UAF.

Use the SYSPRV attribute to allow any process with SYSPRV enabled the rights to perform any and all operations with MDMS.

Use the user rights attribute to identify all low level rights granted to any user who has been granted the MDMS_USER right in their UAF.

11.1.6.3 Domain Default Volume Management Parameters

The MDMS domain includes attributes used as the foundation for volume management. Some of these attributes provide defaults for volume management and movement activities, others define particular behavior for all volume management operations. The values you assign to these attributes will, in part, dictate how your volume service will function. lists brief descriptions of these attributes.

Table 11-7 Default Volume Management Parameters

Attribute

Meaning

Offsite Location

MDMS uses this location for the volume and magazine offsite location unless another location is specified.

Onsite Location

MDMS uses this location for the volume and magazine onsite location unless another location is specified.

Maximum Scratch Time

This is the maximum amount of time that can be set as the scratch time on any volume in the domain.

Mail Users

A list of e-mail address for users or accounts to be notified when volumes are deallocated. Any email address on this list must be in syntax that the OpenVMS Mail Utility can process.

Deallocate State

Specifies whether a volume is immediately freed upon reaching the deallocation date, or if the volume is put into a transition state for temporary protection before being set free.

Transition Time

The amount of time a volume stays in the transition state.

Scratch Time

MDMS uses the time span specified here to set the default scratch date when MDMS allocates a volume.

Protection

The default protection for volumes allocated to ABS and MDMS. The format is the standard OpenVMS file protection specification format.



11.1.7 MDMS Domain Configuration Issues

This section addresses issues that involve installing additional MDMS nodes into an existing domain, or removing nodes from an operational MDMS domain.

11.1.7.1 Adding a Node to an Existing Configuration

Once you configure the MDMS domain, you might have the opportunity to add a node to the existing configuration. See Adding a Node to an Existing Configuration describes the procedure for adding a node to an existing MDMS domain.

Table 11-8 Adding a Node to an Existing Configuration

Step...

Action...
1.

Create a node object record with either the CLI or GUI.
Set the transport and network name attributes in accordance with available network options. For more information, see Section 11.1.4.3.

  1. 2.

Decide if the node will be a database server or will only function as an MDMS client.

  • If the node is to be a database server, set the database server attribute (default)
  • If the node is not to be a database server, negate the database server attribute.
  1. 3.
  1. Set the remaining node object attributes, then complete the creation of the node.
  1. 4.

If the node will not share an existing startup file and database server image, then install the MDMS software with the VMSINSTAL utility.

  1. 5.

If the new node is a database server, then add the node by its network transport names to the MDMS$DATABASE_SERVERS list in all start up files in the MDMS domain.



11.1.7.2 Removing a node from an existing configuration

When you remove a node from the MDMS domain, there are several additional activities you must perform after deleting the node object record.

  • If the node was a database server, remove its node names from all MDMS start up files in the MDMS$DATABASE_SERVERS logical assignment.
  • Remove any references to the node that might exist in remaining MDMS object records.
  • Remove any references to the node that might exist in DCL command procedures.

11.2 Configuring MDMS Drives, Jukeboxes and Locations

MDMS manages the use of drives for the benefit of its clients, ABS and HSM. You must configure MDMS to recognize the drives and the locations that contain them. You must also configure MDMS to recognize any jukebox that contains managed drives.

You will create drive, location, and possibly jukebox object records in the MDMS database. The attribute values you give them will determine how MDMS manages them. The meanings of some object record attributes are straightforward. This section describes others because they are more important for configuring operations.

11.2.1 Configuring MDMS Drives

Before you begin configuring drives for operations, you need to determine the following aspects of drive management:

11.2.1.1 How to Describe an MDMS Drive

You must give each drive a name that is unique within the MDMS domain. The drive object record can be named with the OpenVMS device name, if desired, just as long as the name is not duplicated elsewhere.

Use the description attribute to store a free text description of anything useful to your management of the drive. MDMS stores this information, but takes no action with it.

The device attribute must contain the OpenVMS allocation class and device name for the drive. If the drive is accessed from nodes other than the one from which the command was entered, you must specify nodes or groups in the /NODE or /GROUP attributes in the drive record. Do not specify nodes or groups in the drive name or the device attribute.

If the drive resides in a jukebox, you must specify the name of the jukebox with the jukebox attribute. Identify the position of the drive in the jukebox by setting the drive number attribute. Drives start at position 0.

Additionally, the jukebox that contains the drives must also be managed by MDMS.

11.2.1.2 How to Control Access to an MDMS Drive

MDMS allows you to dedicate a drive solely to MDMS operations, or share the drive with other users and applications. Specify your preference with the shared attribute.

You need to decide which systems in your data center are going to access the drives you manage.

Use the groups attribute if you created group object records to represent nodes in an OpenVMS Cluster environment or nodes that share a common device.

Use the nodes attribute if you have no reason to refer to any collection of nodes as a single entity, and you plan to manage nodes, and the objects that refer to them, individually.

The last decision is whether the drive serves locally connected systems, or remote systems using the RDF software. The access attribute allows you to specify local, remote (RDF) or both.

11.2.1.3 How to Configure an MDMS Drive for Operations

Specify the kinds of volumes that can be used in the drive by listing the associated media type name in the media types attribute. You can force the drive to not write volumes of particular media types. Identify those media types in the read only attribute.

If the drive has a mechanism for holding multiple volumes, and can feed the volumes sequentially to the drive, but does not allow for random access or you choose not to use the random access feature, then you can designate the drive as a stacker by setting the stacker attribute.

Set the disabled attribute when you have to exclude the managed drive from operations by MDMS. If the drive is the only one of its kind (for example if it accepts volumes of a particular media type that no other drives accept), make sure you have another drive that can take load requests. Return the drive to operation by setting the enabled attribute.

11.2.1.4 Determining Drive State

Changing the value of the state attribute could cause MDMS or the applications using it to fail.

The drive object record state attribute shows the state of managed MDMS drives. MDMS sets one of four values for this attribute: Empty, Full, Loading, or Unloading.

11.2.1.5 Adding and Removing Managed Drives

The procedure described in describes how to add a drive to the MDMS domain.

The procedure described in describes how to remove a drive from the MDMS domain.

11.2.1.6 Configuring MDMS Jukeboxes

MDMS manages Media Robot Driver (MRD) controlled jukeboxes and DCSC controlled jukeboxes. MRD is a software that controls SCSI-2 compliant medium changers. DCSC is software that controls large jukeboxes manufactured by StorageTek, Inc. This section first describes the MDMS attributes used for describing all jukeboxes by function. Subsequent descriptions explain attributes that characterize MRD jukeboxes and DCSC jukeboxes respectively.

11.2.1.7 How to Describe an MDMS Jukebox

Assign unique names to jukeboxes you manage in the MDMS domain. When you create the jukebox object record, supply a name that describes the jukebox.

Set the control attribute to MRD if the jukebox operates under MRD control. Otherwise, set the control to DCSC.

Use the description attribute to store a free text description of the drive. You can describe its role in the data center operation or other useful information. MDMS stores this information for you, but takes no actions with it.

11.2.1.8 How to Control Access to an MDMS Jukebox

You can dedicate a jukebox solely to MDMS operations, or you can allow other applications and users access to the jukebox device. Specify your preference with the shared attribute.

You need to decide which systems in the data center are going to access the jukebox.

Use the groups attribute if you created group object records to represent nodes in an OpenVMS Cluster environment or nodes that share a common device.

Use the nodes attribute if you have no reason to refer to any collection of nodes as a single entity, and you plan to manage nodes, and the objects that refer to them, individually.

11.2.1.9 How to Configure an MDMS Jukebox for Operations.

Disable the jukebox to exclude it from operations. Make sure that applications using MDMS will either use other managed jukeboxes, or make no request of a jukebox you disable. Enable the jukebox after you complete any configuration changes. Drives within a disabled jukebox cannot be allocated.

11.2.1.10 Attribute for DCSC Jukeboxes

Set the library attribute to the library identifier of the particular silo the jukebox objects represents. MDMS supplies 1 as the default value. You will have to set this value according the number silos in the configuration and the sequence in which they are configured.

11.2.1.11 Attributes for MRD Jukeboxes

Specify the number of slots for the jukebox. Alternatively, if the jukebox supports magazines, specify the topology for the jukebox (see See Magazines and Jukebox Topology ).

The robot attribute must contain the OpenVMS device name of the jukebox medium changer (also known as the robotic device).

If the jukebox is accessed from nodes other than the one from which the command was entered, you must specify nodes or groups in the /NODE or /GROUP attributes in the jukebox record. Do not specify nodes or groups in the jukebox name or the robot attribute.

11.2.1.12 Determining Jukebox State

Changing the value of the state attribute could cause MDMS or the applications using it to fail.

The jukebox object record state attribute shows the state of managed MDMS jukeboxes. MDMS sets one of three values for this attribute: Available, In use, and Unavailable.

11.2.1.13 Magazines and Jukebox Topology

If you decide that your operations benefit from the management of magazines (groups of volumes moved through your operation with a single name) must set the jukebox object record to enable it. Set the usage attribute to magazine and define the jukebox topology with the topology attribute. See See Magazines for a sample overview of how the 11 and 7 slot bin packs can be used as a magazine.

Setting the usage attribute to nomagazine means that you will move volumes into and out of the jukebox independently (using separate commands for each volume, regardless if they are placed into a physical magazine or not).

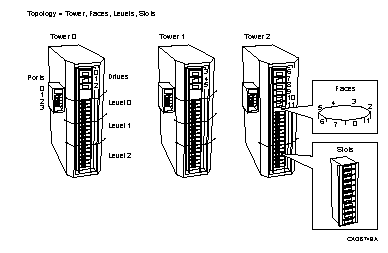

Figure 11-3 Jukebox Topology



The following paragraphs explain jukebox topology.

Towers, Faces, Levels, and Slots

Some jukeboxes have their slot range subdivided into towers, faces, and levels. See See Jukebox Topology for an overview of how the configuration of Towers, Faces, Levels and Slots constitute Topology. Note that the topology in See Jukebox Topology comprises 3 towers. In the list of topology characteristics, you should identify every tower in the configuration. For each tower in the configuration, you must inturn identify:

  • the tower by number (starting at zero)
  • the number of faces in the tower (starting at one)
  • the number of levels per face (starting at one)
  • the number of slots per magazine (starting at one)

Restrictions for Using Magazines

You must manually open the jukebox when moving magazines into and out of the jukebox. Once in the jukebox, volumes can only be loaded and unloaded relative to the slot in the magazine it occupies.

TL896 Example

While using multiple TL896 jukebox towers you can treat the 11 slot bin packs as magazines. The following command configures the topology of the TL896 jukebox as shown in See Magazines for use with magazines:

$ MDMS CREATE JUKEBOX JUKE_1/ -
$_ /TOPOLOGY=(TOWERS=(0,1,2), FACES=(8,8,8), -
$_ LEVELS=(3,3,2), SLOTS=(11,11,11))

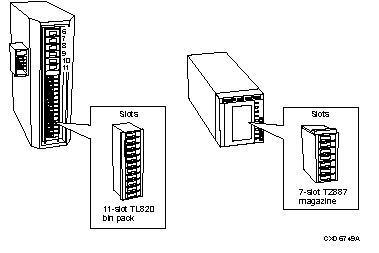

Figure 11-4 Magazines



11.2.2 Summary of Drive and Jukebox Issues

This section describes some of the management issues that involve both drives and jukeboxes.

11.2.2.1 Enabling MDMS to Automatically Respond to Drive and Jukebox Requests

Drive and jukebox object records both use the automatic load reply attribute to provide an additional level of automation.

When you set the automatic reply attribute to the affirmative, MDMS will poll the drive or jukebox for successful completion of an operator-assisted operation for those operations where polling is possible. For example, MDMS can poll a drive, determine that a volume is in the drive, and cancel the associated OPCOM request to acknowledge a load. Under these circumstances, an operator need not reply to the OPCOM message after completing the load.

To use this feature, set the automatic reply attribute to the affirmative. When this attribute is set to the negative, which is the default, an operator must acknowledge each OPCOM request for the drive or jukebox before the request is completed.

11.2.2.2 Creating a Remote Drive and Jukebox Connection

If you need to make backup copies to a drive in a remote location, using the network, then you must install the Remote Device Facility software (RDF). The RDF software must then be configured to work with MDMS.

See See Actions for Configuring Remote Drives for a description of the actions you need to take to configure RDF software.

Table 11-9 Actions for Configuring Remote Drives

Stage

Action
1.

Install the appropriate RDF component on the node.

  • Install the RDF Server software on all nodes that are connected to the tape drives used for remote operations.
  • Install the RDF Client software on all nodes that initiate remote operations to those tape drives.
  1. 2.

For each tape drive served with RDF Server software, make sure there is a drive object record in the MDMS that describes it.

Take note of each node connected to the drive, even if the drive object record includes a group definition instead of a node.

  1. 3.

On each node connected to the tape drive, edit the file TTI_RDEV:CONFIG_node.DAT so that all tape drives are represented. The syntax for representing tape drives is given in the file.



11.2.2.3 How to Add a Drive to a Managed Jukebox

When you add another drive to a managed jukebox, just specify the name of the jukebox in which the drive resides, in the drive object record.

11.2.2.4 Temporarily Taking a Managed Device From Service

You can temporarily remove a drive or jukebox from service. MDMS allows you to disable and enable drive and jukebox devices. This feature supports maintenance or other operations where you want to maintain MDMS support for ABS or HSM, and temporarily remove a drive or jukebox from service.

If you remove a jukebox from service, you cannot access any of its volumes. Make sure you empty the jukebox, or make sure your operations will continue, without the use of the volumes in any jukebox you disable.

11.2.2.5 Changing the Names of Managed Devices

During the course of management, you might encounter a requirement to change the device names of drives or jukeboxes under MDMS management, to avoid confusion in naming. When you have to change the device names, follow the procedure in See Changing the Names of Managed Devices .

Table 11-10 Changing the Names of Managed Devices



Step...

Action...
1.

Either find a time when ABS or HSM is not using the drive or jukebox device or disable the device with MDMS.

  1. 2.

Change the device names at the operating system. Verify the devices respond using operating system commands or MRU commands for a jukebox device.

  1. 3.

Change the MDMS drive device name, and/or the jukebox robot name as needed to reflect the new system device names.

  1. 4.

If your drive and/or jukebox object records are named according to the operating system device name, then you should create new object records.
If you want to create new object records, use the inherit feature and specify the previous object record. For GUI operation.

  1. 5.

If you created new object records, then delete the old object records, and check and modify any references to the old object records. For more information.

  1. 6.

Enable the new drive and/or jukebox with MDMS.



11.2.3 Locations for Volume Storage

MDMS allows you to identify locations in which you store volumes. Create a location object record for each place the operations staff uses to store volumes. These locations are referenced during move operations, load to, or unload from stand-alone drives.

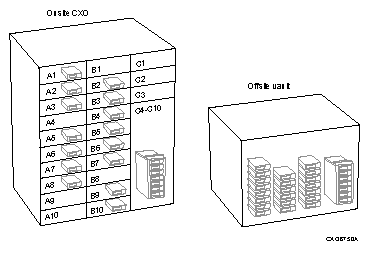

Figure 11-5 Volume Locations



If you need to divide your location space into smaller, named locations, define locations hierachically. The location attribute of the location object record allows you to name a higher level location. For example, you can create location object records to describe separate rooms in a data center by first creating a location object record for the data center. After that, create object records for each room, specifying the data center name as the value of the location attribute for the room locations.

When allocating volumes or drives by location, the volumes and drives do not have to be in the exact location specified; rather they should be in a compatible location. A location is considered compatible with another if both have a common root higher in the location hierarchy. For example, in See Named Locations , locations Room_304 and Floor_2 are considered compatible, as they both have location Building_1 as a common root.

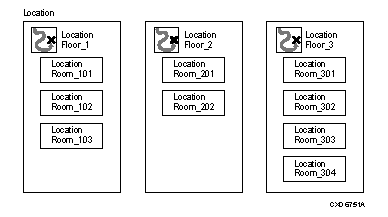

Figure 11-6 Named Locations



Your operations staff must be informed about the names of these locations as they will appear in OPCOM messages. Use the description attribute of the location object record to describe the location it represents as accurately as possible. Your operations staff can refer to the information in the event they become confused about a location mentioned in an OPCOM message.

You can divide a location into separate spaces to identify locations of specific volumes. Use the spaces attribute to specify the range of spaces in which volumes can be stored. If you do not need that level of detail in the placement of volumes at the location, negate the attribute.

11.3 Sample MDMS Configurations

The Appendix - Sample Configuration of MDMS, contains a set of sample MDMS V4 configurations. These samples will help you make necessary checks for completeness.

12

MDMS Management Operations

12.1 Managing Volumes

MDMS manages volume availability with the concept of a life cycle. The primary purpose of the life cycle is to ensure that volumes are only written when appropriate, and by authorized users. By setting a variety of attributes across multiple objects, you control how long a volume, once written, remains safe. You also set the time and interval for a volume to stay at an offsite location for safe keeping, then return for re-use once the interval passes.

This section describes the volume life cycle, relating object attributes, commands and life cycle states. This section also describes how to match volumes with drives by creating media type object records.

12.1.1 Volume Life Cycle

The volume life cycle determines when volumes can be written, and controls how long they remain safe from being overwritten. See MDMS Volume State Transitions describes operations on volumes within the life cycle.

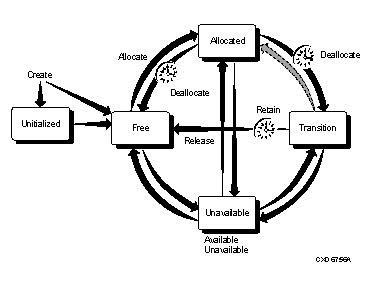

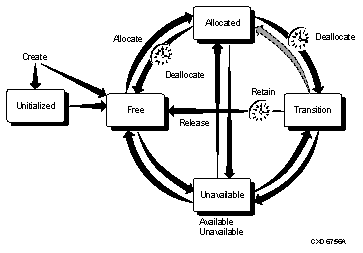

Figure 12-1 Volume States

Each row describes an operation with current and new volume states, commands and GUI actions that cause volumes to change states, and if applicable, the volume attributes that MDMS uses to cause volumes to change states. Descriptions following the table explain important aspects of each operation.

Table 12-1 MDMS Volume State Transitions

Current State

Transition to New State

New State

Blank

MDMS CREATE VOLUME

Volume Create

UNINTIALIZED

Blank

MDMS CREATE VOLUME/PREINIT

FREE

UNINITIALIZED

MDMS INITIALIZE VOLUME

Volume Initialize

FREE

FREE

MDMS INITIALIZE VOLUME

Volume Initialize

FREE

FREE

MDMS ALLOCATE VOLUME

Volume Allocate

ALLOCATED

ALLOCATED

MDMS DEALLOCATE VOLUME
Volume Deallocate
or automatically on
the volume scratch date

TRANSITION

ALLOCATED

MDMS DEALLOCATE VOLUME
Volume Deallocate
or automatically on
the volume scratch date

FREE

TRANSITION

MDMS SET VOLUME /RELEASE
Volume Release
or automatically on
the volume transition time

FREE

Any State

MDMS SET VOLUME /UNAVAILABLE
Volume Unavailable

UNINITIALIZED

UNINITIALIZED

MDMS SET VOLUME /AVAILABLE
Volume Available

Previous State

UNINITIALIZED

MDMS DELETE VOLUME
Volume Delete

BLANK

FREE

MDMS DELETE VOLUME
Volume Delete

BLANK

12.1.2 Volume States by Manual and Automatic Operations

This section describes the transitions between volume states. These processes enable you to secure volumes from unauthorized use by MDMS client applications, or make them available to meet continuing needs. Additionally, in some circumstances, you might have to manually force a volume transition to meet an operational need.

Understanding how these volume transitions occur automatically under MDMS control, or take place manually will help you manage your volumes effectively.

12.1.2.1 Creating Volume Object Records

You have more than one option for creating volume object records. You can create them explicitly with the MDMS CREATE VOLUME command: individually, or for a range of volume identifiers.

You can create the volumes implicitly as the result of an inventory operation on a jukebox. If an inventory operation finds a volume that is not currently managed, a possible response (as you determine) is to create a volume object record to represent it.

You can also create volume object records for large numbers of volumes by opening the jukebox, loading the volumes into the jukebox slots, then running an inventory operation.

Finally, it is possible to perform scratch loads on standalone or stacker drives using the MDMS LOAD DRIVE /CREATE command. If the volume that is loaded is does not exist in the database, MDMS will create it.

You must create volumes explicitly through the MDMS CREATE VOLUME command, or implicitly through the inventory or load operations.

12.1.2.2 Initializing a Volume

MDMS expects the internally initialized volume label on the physical medium will match the printed label. Always initialize volumes so the recorded volume labels match the printed labels. If the recorded volume label on the tape does not match the printed label on the cartridge, MDMS operations will fail.

Use the MDMS initialize feature to make sure that MDMS recognizes volumes as initialized. Unless you acquire preinitialized volumes, you must explicitly initialize them MDMS before you can use them. If your operations require, you can initialize volumes that have just been released from allocation.

When you initialize a volume or create a volume object record for a preinitialized volume, MDMS records the date in the initialized date attribute of the volume object record.

12.1.2.3 Allocating a Volume

Typically, applications request the allocation of volumes. Only in rare circumstances will you have to allocate a volume to a user other than ABS or HSM. However, if you use command procedures for customized operations that require the use of managed media, you should be familiar with the options for volume allocation. Refer to the ABS or HSM Command Reference Guide for more information on the MDMS ALLOCATE command.

Once an application allocates a volume, MDMS allows read and write access to that volume only by that application. MDMS sets volume object record attributes to control transitions between volume states. Those attributes include:

  • the allocated date attribute contains the date and time MDMS allocates the volume.
  • the scratch date attribute contains the date and time MDMS will deallocate the volume.

The application requesting the volume can direct MDMS to set additional attributes for controlling how long it keeps the volume and how it releases it. These attributes include:

  • the scratch date attributes indicates the date when MDMS automatically sets the volume to a non-allocated state. A volume reaching the scratch date may be either free for use, or may be placed in a transition state.
  • the transition time attribute contains the time interval a volume remains in the transition state. The transition state allows you to buffer, or stage, the release of volumes between their allocation (for keeping data safe) and their subsequent re-use (overwriting data). To release volumes directly to a free state, negate the attribute.

12.1.2.4 Holding a Volume

MDMS allows no other user or application to load or unload a volume with the state attribute value set to ALLOCATED, unless the user has MDMS_LOAD_ALL rights. This volume state allows you to protect your data. Set the amount of time a volume remains allocated according to your data retention requirements.

During this time, you can choose to move the volume to an offsite location.

12.1.2.5 Freeing a Volume

When a volume's scratch date passes, MDMS automatically frees the volume from allocation.

If the application or user negates the volume object record scratch date attribute, the volume remains allocated permanently.

Use this feature when you need to retain the data on the volume indefinitely.

After the data retention time has passed, you have the option of making the volume immediately available, or you can elect to hold the volume in a TRANSITION state. To force a volume through the TRANSITION state, negate the volume object record transition time attribute.

You can release a volume from transition with the DCL command MDMS SET VOLUME /RELEASE. Conversely, you can re-allocate a volume from either the FREE or TRANSITION states with the DCL command MDMS SET VOLUME /RETAIN.

Once MDMS sets a volume's state to FREE, it can be allocated for use by an application once again.

12.1.2.6 Making a Volume Unavailable

You can make a volume unavailable if you need to prevent ongoing processing of the volume by MDMS. MDMS retains the state from which you set the UNAVAILABLE state. When you decide to return the volume for processing, the volume state attribute returns to its previous value.

The ability to make a volume unavailable is a manual feature of MDMS.

12.1.3 Matching Volumes with Drives

MDMS matches volumes with drives capable of loading them by providing the logical media type object. The media type object record includes attributes whose values describe the attributes of a type of volume.

The domain object record names the default media types that any volume object record will take if none is specified.

Create a media type object record to describe each type of volume. Drive object records include an attribute list of media types the drive can load, read, and write.

Volume object records for uninitialized volumes include a list of candidate media types. Volume object records for initialized volumes include a single attribute value that names a media type. To allocate a drive for a volume, the volume's media type must be listed in the drive object record's media type field, or its read-only media-type field for read-only operations.

12.1.4 Magazines for Volumes

Use magazines when your operations allow you to move and manage groups of volumes for single users. Create a magazine object record, then move volumes into the magazine (or similar carrier) with MDMS. All the volumes can now be moved between locations and jukeboxes by moving the magazine to which they belong.

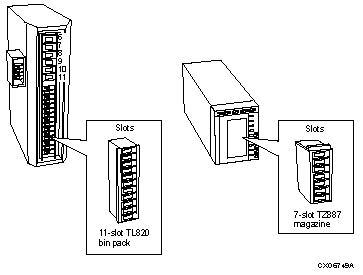

Figure 12-2 Magazines

The jukeboxes must support the use of magazines; that is, they must use carriers that can hold multiple volumes at once. If you choose to manage the physical movement of volumes with magazines, then you may set the usage attribute to MAGAZINE for jukebox object records of jukeboxes that use them. You may also define the topology attribute for any jukebox used for magazine based operations.

If your jukebox does not have ports, and requires you to use physical magazines, you do not have to use the MDMS magazine object record. The jukebox can still access volumes by slot number. Single volume operations can still be conducted by using the move operation on individual volumes, or on a range of volumes.

12.1.5 Symbols for Volume Attributes

MDMS provides a feature that allows you to define a series of OpenVMS DCL symbols that describe the attributes of a given volume. By using the /SYMBOLS qualifier with the MDMS SHOW VOLUME command, you can define symbols for all the volume object record attribute values. Use this feature interactively, or in DCL command procedures, when you need to gather information about volumes for subsequent processing.

Refer to the ABS or HSM Command Reference Guide description of the MDMS SHOW VOLUME command.

12.2 Managing Operations

MDMS manages volumes and devices as autonomously as possible. However, it is sometimes necessary - and perhaps required - that your operations staff be involved with moving volumes or loading volumes in drives. When MDMS cannot conduct an automatic operation, it sends a message through the OpenVMS OPCOM system to an operator terminal to request assistance.

Understanding this information will help you set up effective and efficient operations with MDMS.

12.2.1 Setting Up Operator Communication

This section describes how to set up operator communication between MDMS and the OpenVMS OPCOM facility. Follow the steps in See Setting Up Operator Communication to set up operator communication.

Table 12-2 Setting Up Operator Communication

Step...

Action...

1.

Check or set OPCOM classes for each MDMS node.

  1. 2.

Identify the operator terminals nearest to MDMS locations, drives, and jukeboxes.

  1. 3.

Enable the operator terminals to receive communication through the OPCOM classes set.

12.2.1.1 Set OPCOM Classes by Node

Set the domain object record OPCOM attribute with the default OPCOM classes for any node in the MDMS management domain.

Each MDMS node has a corresponding node object record. An attribute of the node object record is a list of OPCOM classes through which operator communication takes place. Choose one or more OPCOM classes for operator communication to support operations with this node.

12.2.1.2 Identify Operator Terminals

Identify the operator terminals closest to MDMS locations, drives and jukeboxes. In that way, you can direct the operational communication between the nodes and terminals whose operators can respond to it.

12.2.1.3 Enable Terminals for Communication

Make sure that the terminals are configured to receive OPCOM messages from those classes. Use the OpenVMS REPLY/ENABLE command to set the OPCOM class that corresponds to those set for the node or domain.

$REPLY/ENABLE=(opcom_class,[...])

Where opcom_class specifications are those chosen for MDMS communication.

12.2.2 Activities Requiring Operator Support

Several commands include an assist feature where you can either require or forego operator involvement. Other MDMS features allow you to communicate with particular OPCOM classes, making sure that specific operators get messages. You can configure jukebox drives for automatic loading, and stand alone drives for operator supported loading. See See Operator Management Features for a list of operator communication features and your options for using them.

Table 12-3 Operator Management Features

Use These Features...

To Manage These Operations...

Domain and node object records, OPCOM classes attribute

Use this attribute of the node and domain object records to identify the operator terminals to receive OPCOM messages.

The domain OPCOM classes apply if none are specified for any node.

Drive and jukebox object records, automatic reply attribute

Use this attribute to control whether operator acknowledgments are required for certain drive and jukebox operations. The default (negated) value requires operator acknowledgment for all operations.

Setting the attribute to the affirmative will result in MDMS polling the devices for most operations, and completing the request without specific operator acknowledgment.

The operator should observe the OPCOM message and look for one of two phrases:

  • "and reply when completed" - this means that the OPCOM message must be acknowledged before the request will continue
  • "(auto-reply enabled)" - this means that the OPCOM message will be automatically cancelled and the request will continue after the requested action has been performed

Assist or noassist options and the reply option for these commands or actions:

  • Allocate drive
  • Initialize volume
  • Load drive
  • Load volume
  • Move magazine
  • Move volume
  • Unload drive
  • Unload volume

For all listed commands, you can either request or forego operator assistance. When you use the assist option, MDMS will communicate with the operators specified by the OPCOM classes set in the domain object record. Using the noassist option directs MDMS not to send operator messages.
You must be granted the MDMS_ASSIST right to use the assist option.
The reply option allows you to capture the operator reply to the command. This feature facilitates the use of DCL command procedures to manage interaction with operators.

The message option for these commands:

  • Load drive
  • Load volume

For load operations, use the message option to pass additional information to the operator identified to respond to the load request.

12.3 Serving Clients of Managed Media

Once configured, MDMS serves ABS and HSM with uninterrupted access to devices and volumes for writing data. Once allocated, MDMS catalogs volumes to keep them safe, and makes them available when needed to restore data.

To service ABS and HSM, you must supply volumes for MDMS to make available, enable MDMS to manage the allocation of devices and volumes, and meet client needs for volume retention and rotation.

12.3.1 Maintaining a Supply of Volumes

To create and maintain a supply of volumes, you must regularly add volumes to MDMS management, and set volume object record attributes to allow MDMS to meet ABS and HSM needs.

12.3.1.1 Preparing Managed Volumes

To prepare volumes for use by MDMS, you must create volume object records for them and initialize them if needed. MDMS provides different mechanisms for creating volume object records: the create, load, and inventory operations. When you create volume object records, you should consider these factors:

  • The situational demands under which you create the volume object records.
  • The application needs of the volumes for which you create object records.
  • Those additional aspects of the volume for which you will have little, if any, need to change later on.

The following sections provide more detailed information.

Meeting Situational Demands

If you create volume object records with the use of a vision equipped jukebox, you must command MDMS to use the jukebox vision system and identify the slots in which the new volumes reside. These two operational parameters must be supplied to either the create or inventory operation.

For command driven operations, these two commands are functionally equivalent.

$MDMS INVENTORY JUKEBOX jukebox_name /VISION/SLOTS=slot_range /CREATE
$MDMS CREATE VOLUME /JUKEBOX=jukebox_name /VISION/SLOTS=slot_range

If you create volume object records with the use of a jukebox that does not have a vision system, you must supply the range of volume names as they are labelled and as they occupy the slot range.

If you create volume object records for volumes that reside in a location other than the default location (as defined in the domain object record), you must identify the placement of the volumes and the location in the onsite or offsite attribute. Additionally, you must specify the volume name or range of volume names.

If you create volume object records for volumes that reside in the default onsite location, you need not specify the placement or onsite location. However, you must specify the volume name or range of volume names.

Meeting Application Needs

If you acquire preinitialized volumes for MDMS management, and you want to bypass the MDMS initialization feature, you must specify a single media type attribute value for the volume.

Select the format to meet the needs of your MDMS client application. For HSM, use the BACKUP format. For ABS, use BACKUP or RMUBACKUP.

Use a record length that best satisfies your performance requirements. Set the volume protection using standard OpenVMS file protection syntax. Assign the volume to a pool you might use to manage the consumption of volumes between multiple users.

Static Volume Attributes

Static volume attributes rarely, if ever, need to be changed. MDMS provides them to store information that you can use to better manage your volumes.

The description attribute stores up to 255 characters for you to describe the volume, its use, history, or any other information you need.

The brand attribute identifies the volume manufacturer.

Use the record length attribute to store the length or records written to the volume, when that information is needed.

12.3.2 Servicing a Stand Alone Drive

If you use a stand alone drive, enable MDMS operator communication on a terminal near the operator who services the drive. MDMS signals the operator to load and unload the drive as needed.

You must have a ready supply of volumes to satisfy load requests. If your application requires specific volumes, they must be available, and the operator must load the specific volumes requested.

To enable an operator to service a stand alone drive during MDMS operation, perform the actions listed in See Configuring MDMS to Service a Stand Alone Drive .

Table 12-4 Configuring MDMS to Service a Stand Alone Drive

Stage...

Action...

1.

Enable operator communication between nodes and terminals.

  1. 2.

Stock the location where the drive resides with free volumes.

  1. 3.

For all subsequent MDMS actions involving the drive, use the assist feature.

12.3.3 Servicing Jukeboxes

MDMS incorporates many features that take advantage of the mechanical features of automated tape libraries and other medium changers. Use these features to support lights-out operation, and effectively manage the use of volumes.

Jukeboxes that use built-in vision systems to scan volume labels provide the greatest advantage. If the jukebox does not have a vision system, MDMS has to get volume names by other means. For some operations, the operator provides volume names individually or by range. For other operations, MDMS mounts the volume and reads the recorded label.

12.3.3.1 Inventory Operations

The inventory operation registers the contents of a jukebox correctly in the MDMS database. You can use this operation to update the contents of a jukebox whenever you know, or have reason to suspect the contents of a jukebox have changed without MDMS involvement.

Changing the contents of a jukebox without using MDMS move or inventory features, and not updating the MDMS database, will cause subsequent operations to fail.
Always use the MDMS INVENTORY operation to make sure the MDMS database accurately reflects the contents of the jukebox whenever you know, or have reason to suspect the contents of a jukebox has changed.

Inventory for Update

When you need to update the database in response to unknown changes in the contents of the jukebox, use the inventory operation against the entire jukebox. If you know the range of slots subject to change, then constrain the inventory operation to just those slots.

If you inventory a jukebox that does not have a vision system, MDMS loads and mounts each volume, to read the volume's recorded label.

Running an inventory on a large number of slots without a vision system can take from tens of minutes to several hours.

When you inventory a subset of slots in the jukebox, use the option to ignore missing volumes.

If you need to manually adjust the MDMS database to reflect the contents of jukebox, use the nophysical option for the MDMS move operation. This allows you to perform a logical move for to update the MDMS database.

Inventory to Create Volume Object Records

If you manage a jukebox, you can use the inventory operation to add volumes to MDMS management. The inventory operation includes the create, preinitialized, media types, and inherit qualifiers to support such operations.

Take the steps in See How to Create Volume Object Records with INVENTORY to use a vision jukebox to create volume object records.

Table 12-5 How to Create Volume Object Records with INVENTORY

Step...

Action...

1.

If you plan to open the jukebox for this operation, disable the jukebox and all drives inside it.

  1. 2.

Empty as many slots as necessary to accommodate the volumes.

If you cannot open the jukebox, use the MDMS MOVE command to keep the MDMS database synchronized with the actual location of volumes removed.

If you open the jukebox and manually remove managed volumes, place the volumes in the location specified by the volumes' onsite location.

  1. 3.

Place labelled volumes in the open jukebox slots.

If you cannot open the jukebox to expose the slots, use the Media Robot Utility software or front panel controls to move volumes to the slots.

  1. 4.

Perform the MDMS inventory operation.

Use the create option to signal MDMS to create volume object records.

If volumes are initialized specify the preinitialized option and a single media type name for the media types attribute, otherwise, just specify all possible media types to which the volume could relate.

Use the inherit option to identify a volume object record from which to inherit other volume attribute values.

Use the slots option to specify the range of slots occupied by the volumes to be managed.

If the jukebox does not have a vision system, use the volume range and novision options.

12.3.4 Managing Volume Pools

To assist with accounting for volume use by data center clients, MDMS provides features that allow you to divide the volumes you manage by creating volume pools and assigning volumes to them.

Figure 12-3 Pools and Volumes



Use MDMS to specify volume pools. Set the volume pool options in ABS or HSM to specify that volumes be allocated from those pools for users as needed. See Pools and Volumes identifies the pools respective to a designated group of users. Note that `No Pool' is for use by all users.

12.3.4.1 Volume Pool Authorization

The pool object record includes two attributes to assign pools to users: authorized users, and default users.

Set the authorized users list to include all users, by node or group name, who are allowed to allocate volumes from the pool.

Set the default users list to include all users, by node or group name, for whom the pool will be the default pool. Unless another pool is specified during allocation, volumes will be allocated from the default pool for users in the default users list.

Because volume pools are characterized in part by node or group names, anytime you add or remove nodes or groups, you must review and adjust the volume pool attributes as necessary.

12.3.4.2 Adding Volumes to a Volume Pool

After you create a volume pool object record, you can associate managed volumes with it. Select the range of volumes you want to associate with the pool and set the pool attribute of the volumes to the name of the pool.

This can be done during creation or at any time the volume is under MDMS management.

12.3.4.3 Removing Volumes from a Volume Pool

There are three ways to remove volumes from a volume pool.

  • You can delete the volume object records.
  • You can set the pool attribute of selected volume object records to a different volume pool name.
  • You can negate the pool attribute of selected volume object records.

12.3.4.4 Changing User Access to a Volume Pool

To change access to volume pools, modify the membership of the authorized users list attribute.

If you are using the command line to change user access to volume pools, use the /ADD and /REMOVE command qualifiers to modify the current list contents. Use the /NOAUTHORIZED_USERS qualifier to erase the entire user list for the volume pool.

If you are using the GUI to change user access to volume pools, just edit the contents of the authorized users field.

You can also authorize users with the /DEFAULT_USERS attribute, which means that the users are authorized, and that this pool is the pool for which allocation requests for volumes are applied if no pool is specified in the allocation request. You should ensure that any particular user has a default users entry in only one pool.

12.3.4.5 Deleting Volume Pools

You can delete volume pools. However, deleting a volume pool may require some additional clean up to maintain the MDMS database integrity. Some volume records could still have a pool attribute that names the pool to be deleted, and some DCL command procedures could still reference the pool.

If volume records naming the pool exist after deleting the pool object record, find them and change the value of the pool attribute.

The MDMS CREATE VOLUME and MDMS LOAD DRIVE commands in DCL command procedures can specify the deleted pool. Change references to the delete pool object record, if they exist, to prevent the command procedures from failing.

12.3.5 Taking Volumes Out of Service

You might want to remove volumes from management for a variety of reasons:

12.3.5.1 Temporary Volume Removal

To temporarily remove a volume from management, set the volume state attribute to UNAVAILABLE. Any volume object record with the state set to UNAVAILABLE remains under MDMS management, but is not processed though the life cycle. These volumes will not be set to the TRANSITION or FREE state. However, these volumes can be moved and their location maintained.

12.3.5.2 Permanent Volume Removal

Before you remove a volume from the MDMS database, MAKE SURE the volume is not storing information for ABS or HSM. If you remove a volume from MDMS management that is referenced from ABS or HSM, you will not be able to restore the data stored on it.

To permanently remove a volume from management, delete the volume object record describing it.

12.4 Rotating Volumes from Site to Site

Volume rotation involves moving volumes to an off-site location for safekeeping with a schedule that meets your needs for data retention and retrieval. After a period of time, you can retrieve volumes for re-use, if you need them. You can rotate volumes individually, or you can rotate groups of volumes that belong to magazines.

12.4.1 Required Preparations for Volume Rotation

The first thing you have to do for a volume rotation plan is create location object records for the on-site and off-site locations. Make sure these location object records include a suitable description of the actual locations. You can optionally specify hierarchical locations and/or a range of spaces, if you want to manage volumes by actual space locations.

You can define as many different locations as your management plan requires.

Once you have object records that describe the locations, choose those that will be the domain defaults (defined as attributes of the domain object record). The default locations will be used when you create volumes or magazines and do not specify onsite and/or offsite location names. You can define only one onsite location and one offsite location as the domain default at any one time.

12.4.2 Sequence of Volume Rotation Events

Manage the volume rotation schedule with the values of the offsite and onsite attributes of the volumes or magazines you manage. You set these values. In addition to setting these attribute values, you must check the schedule periodically to select and move the volumes or magazines.

See Sequence of Volume Rotation Events shows the sequence of volume rotation events and identifies the commands and GUI actions you issue.

Table 12-6 Sequence of Volume Rotation Events

Stage...

Action...

1.

Set the volume object record onsite and offsite attributes.

  • Typically, once ABS has allocated a volume you will remove it until it is about to reach the scratch date. Set the onsite location and date based on when it will be freed.

    Set the offsite location and date based on when it will be ready to be moved offsite. However, make sure that the volume is not part of an ABS continuation set and still needed for subsequent ABS operation.
  • For HSM, identify volumes to go offsite based on the last access date. If a volume has not been accessed for a long period of time, there has been no need to unshelve the files stored on it. Set the offsite date based for any time after the last access.

    If multiple archive classes are used, the secondary archive class(es) can be removed off site as soon as a volume is filled.

    Set the onsite date for any time you might want to archive or delete the files on the volume.
  1. 2.

Identify the volumes or magazines to be moved offsite by selecting the offsite schedule option. You can use the MDMS report or show volume features, or the show magazine feature. The following CLI examples illustrate this:

$MDMS SHOW VOLUME/SCHEDULE=OFFSITE

$MDMS SHOW MAGAZINE/SCHEDULE=OFFSITE

  1. 3.

Move the volumes offsite. With the GUI, you can move the volumes selected from the display.

With the CLI, (interactive or command procedure) use the MDMS MOVE command with the /SCHEDULE qualifier. For example:

$MDMS MOVE VOLUME /SCHEDULE=OFFSITE [location_name]

$MDMS MOVE MAGAZINE /SCHEDULE=OFFSITE [location_name]

MDMS communicates with operators through OPCOM, providing a list of volume identifiers for the volumes to be gathered and moved.

  1. 4.

If you need to retrieve volumes or magazines to service a restore or unshelve request, you must physically move them back to the onsite location.

Use the MDMS GUI move feature for the selected volumes or magazines or use the CLI MOVE command. For example:

$MDMS MOVE VOLUME volume_id location_name

$MDMS MOVE MAGAZINE magazine_id location_name

  1. 5.

To return volumes to the onsite location based on their scheduled return date, use the GUI to select and move volumes and magazines based on their onsite schedule. With the GUI, you can move the volumes selected from the display.

With the CLI, (interactive or command procedure) use the MDMS MOVE command with the /SCHEDULE qualifier. For example:

$MDMS MOVE VOLUME /SCHEDULE=ONSITE volume_id location_name

$MDMS MOVE MAGAZINE /SCHEDULE=ONSITE -
$_ magazine_name location_name

  1. 6.

Once the volumes and magazines arrive at the onsite location, negate the offsite and onsite schedules. This prevents the volumes from showing up in subsequent reports. With the GUI, remove the location date values associated with the offsite and onsite attributes.

With the CLI, use the /NOONSITE and /NOOFFSITE qualifiers. For example:

SET VOLUME volume_id /NOONSITE /NOOFFSITE

12.5 Scheduled Activities

MDMS starts three scheduled activities at 1AM, by default, to do the following:

These three activities are controlled by a logical, are separate jobs with names, generate log files, and notify users when volumes are deallocated. These things are described in the sections below.

12.5.1 Logical Controlling Scheduled Activities

The start time for scheduled activities is controlled by the logical:

MDMS$SCHEDULED_ACTIVITIES_START_HOUR

By default, the scheduled activities start a 1AM which is defined as:

$ DEFINE/SYSTEM/NOLOG MDMS$SCHEDULED_ACTIVITIES_START_HOUR 1

You can change when the scheduled activities start by changing this logical in SYS$STARTUP:MDMS$SYSTARTUP.COM. The hour must be an integer between 0 and 23.

12.5.2 Job Names of Scheduled Activities

When these scheduled activities jobs start up, they have the following names:

If any volumes are deallocated, the users in the Mail attribute of the Domain object will receive notification by VMS mail.

Operators will receive Opcom requests to move the volumes or magazines.

12.5.3 Log Files for Scheduled Activities

These scheduled activities generate log files. These log files are located in MDMS$LOGFILE_LOCATION and are named:

These log files do not show which volumes or magazines were acted upon. They show the command that was executed and whether it was successful or not.

If the Opcom message is not replied to by the time the next scheduled activities is started, the activity is cancel and a new activity is scheduled. For example, nobody replied to the message from Saturday at 1AM, so on Sunday MDMS canceled the request and generated a new request. The log file for Saturday night would look like this:

$ SET VERIFY
$ SET ON
$ MDMS MOVE VOL */SCHEDULE
%MDMS-E-CANCELED, request canceled by user
MDMS$SERVER job terminated at 07-Jan-2004 01:01:30.48

Nothing is lost because the database did not change, but this new request could require more volumes or magazines to be moved.

The following shows an example that completed successfully after deallocating and releasing the volumes:

$ SET VERIFY
$ SET ON
$ MDMS DEALLOCATE VOLUME /SCHEDULE/VOLSET
MDMS$SERVER job terminated at 07-Jan-2004 01:03:31.66

The number of these log files could grow to a large number. You may want to set the version on these scheduled activities to 10 or so.

12.5.4 Notify Users When Volumes are Deallocated

To notify users when the volumes are deallocated, place the user names in the Mail attribute of the Domain object. For example:

$ MDMS show domain
Description: Smith's Special Domain
Mail: SYSTEM,OPERATOR1,SMITH
Offsite Location: JOHNNY_OFFSITE_TAPE_STORAGE
Onsite Location: OFFICE_65
Def. Media Type: TLZ09M
Deallocate State: TRANSITION
Opcom Class: TAPES
Request ID: 496778
Protection: S:RW,O:RW,G:R,W
DB Server Node: DEBBY
DB Server Date: 07-Jan-2004 14:20:08
Max Scratch Time: NONE
Scratch Time: 365 00:00:00
Transition Time: 1 00:00:00
Network Timeout: NONE
$

In the above example, users SYSTEM, OPERATOR1, and SMITH will receive VMS mail when any volumes are deallocated during scheduled activities or when some one issues the following command:

$ MDMS DEALLOCATE VOLUME /SCHEDULE/VOLSET

If you delete all users in the Mail attribute, nobody will receive mail when volumes are deallocated by the scheduled activities or the DEALLOCATE VOLUME /SCHEDULE command.

13

MDMS High Level Tasks

MDMS GUI users have access to features that guide them through complex tasks. These features conduct a dialog with users, asking them about their particular configuration and needs, and then provide the appropriate object screens with information about setting specific attribute values.

The features support tasks that accomplish the following:

The procedures outlined in this section include command examples with recommended qualifier settings shown. If you choose to perform these tasks with the command line interface, use the MDMS command reference for complete command details.

13.1 Creating Jukeboxes, Drives, and Volumes

This task offers the complete set of steps for configuring a drive or jukebox to an MDMS domain and adding new volumes used by those drives. This task can be performed to configure a new drive or jukebox that can use managed volumes.

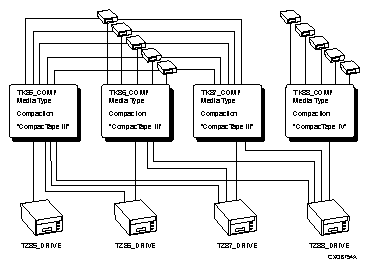

Figure 13-1 Configuring Volumes and Drives

This task can also be performed to add new volumes into management that can use managed drives and jukeboxes.

Table 13-1 Creating Devices and Volumes

Step

Action

Create Jukebox and/or Drive

1.

Verify that the drive is on-line and available.

$SHOW DEVICE device_name /FULL


Verify that the jukebox is online and available.

$SHOW DEVICE device_name /FULL

  1. 2.

If you are connecting the jukebox or drive to a set of nodes which do not already share access to a common device, then create a group object record.

$MDMS CREATE GROUP group_name /NODES=(node_1,...)

  1. 3.

If you are configuring a new jukebox into management, then create a jukebox object record.

$MDMS CREATE JUKEBOX jukebox_name /DISABLED

  1. 4.

If the drive you are configuring uses a new type of volume, then create a media type object record.

$MDMS CREATE MEDIA_TYPE media_type

  1. 5.

If you need to identify a new place for volume storage near the drive, then create a location object record.

$MDMS CREATE LOCATION location_name

  1. 6.

Create the drive object record for the drive you are configuring into MDMS management.

$MDMS CREATE DRIVE drive_name /DISABLED

  1. 7.

Enable the drive (and if you just added a jukebox, enable it too).

$MDMS SET DRIVE drive_name /ENABLED
$MDMS SET JUKEBOX jukebox_name /ENABLED

  1. 8.

If you are adding new volumes into MDMS management, then continue with See .

  1. 9.

If you have added a new media type to complement a new type of drive, and you plan to use managed volumes, set the volumes to use the new media type.

$MDMS SET VOLUME /MEDIA_TYPE=media_type_name

Process New Volumes

  1. 10.

Make sure all new volumes have labels.

  1. 11.

If the volumes you are processing are of a type you do not presently manage, complete the actions in this step. Otherwise, continue with See .

Create a media type object record.

$MDMS CREATE MEDIA_TYPE media_type

If the drives you manage do not accept the new media type, then set the drives to accept volumes of the new media type.

$MDMS SET DRIVE /MEDIA_TYPE=media_type

  1. 12.

If you are using a jukebox with a vision system to create volume object records, then continue with See . Otherwise, continue with See to create volume records.

Jukebox Inventory to Create Volume Object Records

  1. 13.

If you use magazines in your operation, then continue with this step. Otherwise, continue with See .

If you do not have a managed magazine that is compatible with the jukebox, then create a magazine object record.
$MDMS CREATE MAGAZINE magazine_name



Place the volumes in the magazine.
Move the magazine into the jukebox.

$MDMS MOVE MAGAZINE magazine_name jukebox_name /START_SLOT=n
or
$MDMS MOVE MAGAZINE magazine_name jukebox_name/START_SLOT=(n,n,n)

  1. 14.

Place the volumes in the jukebox. If you are not using all the slots in the jukebox, note the slots you are using for this operation.

Inventory the jukebox, or just the slots that contain the new volumes.

If you are processing pre-initialized volumes, use the /PREINITIALIZED qualifier, then your volumes are ready for use.

$MDMS INVENTORY JUKEBOX jukebox_name /CREATE /VOLUME_RANGE=range

  1. 15.

Initialize the volumes in the jukebox if they were not created as preinitialized.

$MDMS INITIALIZE VOLUME /JUKEBOX=jukebox_name /SLOTS=range



After you initialize volumes, you are done with this procedure.

Create Volume Object Records Explicitly

  1. 16.

Create volume object records for the volumes you are going to manage.

If you are processing preinitialized volumes, use the /PREINITIALIZED qualifier, then your volumes are ready for use.

$MDMS CREATE VOLUME volume_id

  1. 17.

Initialize the volumes. This operation will direct the operator when to load and unload the volumes from the drive.

$MDMS INITIALIZE VOLUME volume_range /ASSIST

13.2 Deleting Jukeboxes, Drives, and Volumes

This task describes the complete set of decisions and actions you could take in the case of removing a drive from management. That is, when you have to remove the last drives of a particular kind, and take with it all associated volumes, then update any remaining MDMS object records that reference the object records you delete. Any other task of removing just a drive (one of many to remain) or removing and discarding volumes involves a subset of the activities described in this procedure.

Table 13-2 Deleting Devices and Volumes

Step

Action

1.

If there is a volume in the drive you are about to remove from management, then unload the volume from the drive.

$MDMS UNLOAD DRIVE drive_name

  1. 2.

Delete the drive from management.

$MDMS DELETE DRIVE drive_name

  1. 3.

If you have media type object records to service only the drive you just deleted, then complete the actions in this step. Otherwise, continue with See .

Delete the media type object record.

$MDMS DELETE MEDIA TYPE media_type



If volumes remaining in management reference the media type, then set the volume attribute value for those volumes to reference a different media type value. Use the following command for uninitialized volumes:

$MDMS SET VOLUME /MEDIA_TYPE=media_type /REMOVE

Use the following command for initialized volumes:

$MDMS SET VOLUME /MEDIA TYPE=media_type

  1. 4.

If the drives you have deleted belonged to a jukebox, then complete the actions in this step. Otherwise, continue with See .

If the jukebox still contains volumes, move the volumes (or magazines, if you manage the jukebox with magazines) from the jukebox to a location that you plan to keep under MDMS management.

$MDMS MOVE VOLUME volume_id location



or

$MDMS MOVE MAGAZINE magazine_name location

  1. 5.

If a particular location served the drives or jukebox, and you no longer have a need to manage it, then delete the location.

$MDMS DELETE LOCATION location_name

  1. 6.

Move all volumes, the records of which you are going to delete, to a managed location.

$MDMS MOVE VOLUME volume_id location

  1. 7.

If the volumes to be deleted exclusively use a particular media type, and that media type has a record in the MDMS database, then take the actions in this step. Otherwise, continue with See .

Delete the media type object record.

$MDMS DELETE MEDIA_TYPE media_type



If drives remaining under MDMS management reference the media type you just deleted, then update the drives' media type list accordingly.

$MDMS SET DRIVE /MEDIA_TYPE media_type /REMOVE

  1. 8.

If the volumes to be deleted are the only volumes to belong to a volume pool, and there is no longer a need for the pool, then delete the volume pool.

$MDMS DELETE POOL pool_name

  1. 9.

If the volumes to be deleted exclusively used certain managed magazines, then delete the magazines.

$MDMS DELETE MAGAZINE magazine_name

  1. 10.

Delete the volumes.

$MDMS DELETE VOLUME volume_id

13.3 Rotating Volumes Between Sites

This procedure describes how to gather and rotate volumes from the onsite location to an offsite location. Use this procedure in accordance with your data center site rotation schedule to move backup copies of data (or data destined for archival) to an offsite location. Additionally, this procedure processes volumes from the offsite location into the onsite location.

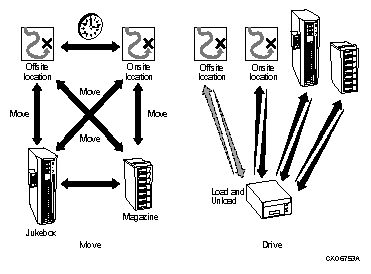

Figure 13-2 Volume Rotation



Table 13-3 Rotating Volumes Between Sites

Step

Action

1.

Prepare a report listing the offsite volumes or magazines due for rotation to your onsite location.

$MDMS REPORT VOLUME/SCHEDULE=ONSITE



or,

$MDMS SHOW MAGAZINE/SCHEDULE=ONSITE



Provide this information to the people responsible for shuttling volumes and magazines.

  1. 2.

Identify the volumes and/or magazines to move offsite.

$MDMS SHOW VOLUME /SCHEDULE=OFFSITE



or,

$MDMS SHOW MAGAZINE /SCHEDULE=OFFSITE

  1. 3.

Gather the volumes into your location. If you have to retrieve magazines and/or volumes from a jukebox, then move those volumes and/or magazines out of the jukebox. Move them to an onsite location from which they will be shipped offsite.

$MDMS MOVE VOLUME /SCHEDULE=OFFSITE location



or,

$MDMS MOVE MAGAZINE /SCHEDULE=OFFSITE location

  1. 4.

As the volumes are picked up for transportation, or when otherwise convenient, update the volume and/or magazine records in the database. Specify the offsite location name in this command.

$MDMS MOVE VOLUME /SCHEDULE=OFFSITE location



or,

$MDMS MOVE MAGAZINE /SCHEDULE=OFFSITE location

  1. 5.

With MDMS, move the volumes and/or magazines to the onsite location.

$MDMS MOVE VOLUME /SCHEDULE=ONSITE location



or,

$MDMS MOVE MAGAZINE /SCHEDULE=ONSITE location

  1. 6.

Prepare spaces for the incoming volumes and magazines. This can be accomplished by moving volumes and magazines into jukeboxes, or placing them in other locations to support operations.

13.4 Servicing Jukeboxes Used for Backup Operations

This procedure describes the steps you take to move allocated volumes from a jukebox and replace them with scratch volumes. This procedure is aimed at supporting backup operations, not operations that involve the use of managed media for hierarchical storage management.

Figure 13-3 Magazine Placement



This procedure supports backup operations. Do not remove volumes allocated to HSM unless a response to a load request can be tolerated when moving the volume to the jukebox.

Table 13-4 Servicing Jukeboxes

Step

Action

1.

Report on the volumes to remove from the jukebox.

$MDMS REPORT VOLUME ALLOCATED /USER=ABS

  1. 2.

If you manage the jukebox on a volume basis, perform this step with each volume, otherwise proceed with See with instructions for magazine management.

$MDMS MOVE VOLUME volume_id location

  1. 3.

Identify the magazines to which the volumes belong, then move the magazines from the jukebox.

$MDMS SHOW VOLUME /MAGAZINE volume_id



then

$MDMS MOVE MAGAZINE magazine_name location_name

  1. 4.

If you manage the jukebox on a volume basis, perform this step, otherwise proceed with See for magazine management.

$MDMS MOVE MAGAZINE magazine_name location

  1. 5.

Move free volumes to the magazine, and move the magazine to the jukebox.

$MDMS MOVE VOLUME volume_id magazine_name



then

$MDMS MOVE MAGAZINE magazine_name jukebox_name

14

Remote Devices

This chapter explains how to configure and manage remote devices using the Remote Device Facility (RDF). RDF is used for devices remotely connected over a wide-area network, and DECnet is still a requirement for access to these remote devices. RDF is not required for devices connected remotely via Fibre Channel, as these are considered local devices.

14.1 The RDF Installation

When you install ABS (non-standard installation) or MDMS, you are asked whether you want to install the RDF software. With the ABS standard installation, the RDF client and server software is installed by default.

During the installation you place the RDF client software on the nodes with disks you want to access for ABS or HSM. You place the RDF server software on the systems to which the tape devices (jukeboxes and drives) are connected. This means that when using RDF, you serve the tape device to the systems with the client disks.

All of the files for RDF are placed in SYS$COMMON:[MDMS.TTI_RDF] for your system. There are separate locations for VAX or Alpha.

RDF is not available with ABS/MDMS with the ABS-OMT license. RDF is not available with OpenVMS Alpha V8.2 and OpenVMS I64 V8.2 operating systems.

14.2 Configuring RDF

After installing RDF you should check the TTI_RDEV:CONFIG_nodename.DAT file to make sure it has correct entries.

This file:

Example:

Device $1$MIA0 MIAO

Verify:

Check this file to make sure that all RDF characteristic names are unique to this node.





14.3 Using RDF with MDMS

The following sections describe how to use RDF with MDMS.

14.3.1 Starting Up and Shutting Down RDF Software

Starting up RDF software:

RDF software is automatically started up along with then MDMS software when you enter the following command:

$ @SYS$STARTUP:MDMS$STARTUP

Shutting down RDF software:

To shut down the RDF software, enter the following command:

$ @SYS$STARTUP:MDMS$SHUTDOWN

14.3.2 The RDSHOW Procedure

Required privileges:

The following privileges are required to execute the RDSHOW procedure: NETMBX, TMPMBX.

In addition, the following privileges are required to show information on remote devices allocated by other processes: SYSPRV, WORLD.

14.3.3 Command Overview

You can run the RDSHOW procedure any time after the MDMS software has been started. RDF software is automatically started at this time.

Use the following procedures:

$ @TTI_RDEV:RDSHOW CLIENT
$ @TTI_RDEV:RDSHOW SERVER node_name
$ @TTI_RDEV:RDSHOW DEVICES

node_name is the node name of any node on which the RDF server software is running.

14.3.4 Showing Your Allocated Remote Devices

To show remote devices that you have allocated, enter the following command from the RDF client node:

$ @TTI_RDEV:RDSHOW CLIENT

Result:

RDALLOCATED devices for pid 20200294, user DJ, on node OMAHA::
Local logical Rmt node Remote device
TAPE01 MIAMI:: MIAMI$MUC0

DJ is the user name and OMAHA is the current RDF client node.



14.3.5 Showing Available Remote Devices on the Server Node

The RDSHOW SERVER procedure shows the available devices on a specific SERVER node. To execute this procedure, enter the following command from any RDF client or RDF server node:

$ @TTI_RDEV:RDSHOW SERVER MIAMI

MIAMI is the name of the server node whose devices you want shown.

Result:

Available devices on node MIAMI::
Name Status Characteristics/Comments
MIAMI$MSA0 in use msa0
...by pid 20200246, user CATHY (local)
MIAMI$MUA0 in use mua0
...by pid 202001B6, user CATHY, on node OMAHA::
MIAMI$MUB0 -free- mub0
MIAMI$MUC0 in use muc0
...by pid 2020014C, user DJ, on node OMAHA::

This RDSHOW SERVER command shows any available devices on the server node MIAMI, including any device characteristics. In addition, each allocated device shows the process PID, username, and RDF client node name.

The text (local) is shown if the device is locally allocated.

14.3.6 Showing All Remote Devices Allocated on the RDF Client Node

To show all allocated remote devices on an RDF client node, enter the following command from the RDF client node:

$ @TTI_RDEV:RDSHOW DEVICES

Result:

Devices RDALLOCATED on node OMAHA::
RDdevice Rmt node Remote device User name PID
RDEVA0: MIAMI:: MIAMI$MUC0 DJ 2020014C
RDEVB0: MIAMI:: MIAMI$MUA0 CATHY 202001B6

This command shows all allocated devices on the RDF client node OMAHA. Use this command to determine which devices are allocated on which nodes.

14.4 Monitoring and Tuning Network Performance

This section describes network issues that are especially important when working with remote devices.

14.4.1 DECnet Phase IV

The Network Control Program (NCP) is used to change various network parameters. RDF (and the rest of your network as a whole) benefits from changing two NCP parameters on all nodes in your network. These parameters are:

Pipeline quota

The pipeline quota is used to send data packets at an even rate. It can be tuned for specific network configurations. For example, in an Ethernet network, the number of packet buffers represented by the pipeline quota can be calculated as approximately:

buffers = pipeline_quota / 1498

Default:

The default pipeline quota is 10000. At this value, only six packets can be sent before acknowledgment of a packet from the receiving node is required. The sending node stops after the sixth packet is sent if an acknowledgment is not received.

Recommendation:

The PIPELINE QUOTA can be increased to 45,000 allowing 30 packets to be sent before a packet is acknowledged (in an Ethernet network). However, performance improvements have not been verified for values higher than 23,000. It is important to know that increasing the value of PIPELINE QUOTA improves the performance of RDF, but may negatively impact performance of other applications running concurrently with RDF.

Line receive buffers

Similar to the pipeline quota, line receive buffers are used to receive data at a constant rate.

Default:

The default setting for the number of line receive buffers is 6.

Recommendation:

The number of line receive buffers can be increased to 30 allowing 30 packets to be received at a time. However, performance improvements have not been verified for values greater than 15 and as stated above, tuning changes may improve RDF performance while negatively impacting other applications running on the system.

14.4.2 DECnet-Plus (Phase V)

As stated in DECnet-Plus(Phase V), (DECnet/OSI V6.1) Release Notes, a pipeline quota is not used directly. Users may influence packet transmission rates by adjusting the values for the transport's characteristics MAXIMUM TRANSPORT CONNECTIONS, MAXIMUM RECEIVE BUFFERS, and MAXIMUM WINDOW. The value for the transmit quota is determined by MAXIMUM RECEIVE BUFFERS divided by Actual TRANSPORT CONNECTIONS.
This will be used for the transmit window, unless MAXIMUM WINDOW is less than this quota. In that case, MAXIMUM WINDOW will be used for the transmitter window.

The DECnet-Plus defaults (MAXIMUM TRANSPORT CONNECTIONS = 200 and MAXIMUM RECEIVE BUFFERS = 4000) produce a MAXIMUM WINDOW of 20. Decreasing MAXIMUM TRANSPORT CONNECTIONS with a corresponding increase of MAXIMUM WINDO may improve RDF performance, but also may negatively impact other applications running on the system.

14.4.3 Changing Network Parameters

This section describes how to change the network parameters for DECnet Phase IV and DECnet-PLUS.

14.4.4 Changing Network Parameters for DECnet (Phase IV)

The pipeline quota is an NCP executor parameter. The line receive buffers setting is an NCP line parameter.

The following procedure shows how to display and change these parameters in the permanent DECnet database. These changes should be made on each node of the network.

Table 14-1 How to Change Network Parameters

Step

Action

1

Enter:

$ run sys$system:NCP
NCP>show executor characteristics

Result:

Node Permanent Characteristics as of 24-MAY-1991 10:10:58
Executor node = 20.1 (DENVER)
Management version = V4.3.0
.
.
.
Pipeline quota = 10000

2

Enter:

NCP>define executor pipeline quota 45000
NCP>show known lines

Result:

Known line Volatile Summary as of 24-MAY-1991 10:11:13
Line State
SVA-0 on

3

Enter:

NCP>show line sva-0 characteristics

Result:

Line Permanent Characteristics as of 24-MAY-1991 10:11:31
Line = SVA-0
Receive buffers = 6 <-- value to change
Controller = normal
Protocol = Ethernet
Service timer = 4000
Hardware address = 08-00-2B-0D-D0-5F
Device buffer size = 1498

4

Enter:

NCP>define line sva-0 receive buffers 30
NCP>exit

Requirement:

For the changed parameters to take effect, the node must be rebooted or DECnet must be shut down.

14.4.5 Changing Network Parameters for DECnet-Plus(Phase V)

The Network Control Language (NCL) is used to change DECnet-Plus network parameters. The transport parameters MAXIMUM RECEIVE BUFFERS, MAXIMUM TRANSPORT CONNECTIONS and MAXIMUM WINDOW can be adjusted by using NCL's SET OSI TRANSPORT command. For example:

NCL> SET OSI TRANSPORT MAXIMUM RECEIVE BUFFERS = 4000 !default value
NCL> SET OSI TRANSPORT MAXIMUM TRANSPORT CONNECTIONS = 200 !default value
NCL> SET OSI TRANSPORT MAXIMUM WINDOWS = 20 !default value

To make the parameter change permanent, add the NCL command(s) to the SYS$MANAGER:NET$OSI_TRANSPORT_STARTUP.NCL file. Refer to the DENET-Plus (DECnet/OSI) Network Management manual for detailed information.

14.4.6 Resource Considerations

Changing the default values of line receive buffers and the pipeline quota to the values of 30 and 45000 consumes less than 140 pages of nonpaged dynamic memory.

In addition, you may need to increase the number of large request packets (LRPs) and raise the default value of NETACP BYTLM.

Large request packets

LRPs are used by DECnet to send and receive messages. The number of LRPs is governed by the SYSGEN parameters LRPCOUNT and LRPCOUNTV.

Recommendation:

A minimum of 30 free LRPs is recommended during peak times. Show these parameters and the number of free LRPs by entering the following DCL command:

$ SHOW MEMORY/POOL/FULL

Result:

System Memory Resources on 24-JUN-1991 08:13:57.66
Large Packet (LRP) Lookaside List Packets Bytes
Current Total Size 36 59328
Initial Size (LRPCOUNT) 25 41200
Maximum Size (LRPCOUNTV) 200 329600
Free Space 20 32960

In the LRP lookaside list, this system has:

The SYSGEN parameter LRPCOUNT (LRP Count) has been set to 25. The Current Size is not the same as the Initial Size. This means that OpenVMS software has to allocate more LRPs. This causes system performance degradation while OpenVMS is expanding the LRP lookaside list.

The LRPCOUNT should have been raised to at least 36 so OpenVMS does not have to allocate more LRPs.

Recommendation:

Raise the LRPCOUNT parameter to a minimum of 50. Because the LRPCOUNT parameter is set to only 25, the
