D.1.2 Conventions for Specifying Arguments to System Services

You must specify the arguments according to the VAX MACRO assembler rules for specifying and addressing operands.

The way to specify a particular argument depends on the following factors:

If you are unsure whether you specified a value or an address argument correctly, you can assemble the program with the .LIST MEB directive to check the macro expansion. See the VAX MACRO and Instruction Set Reference Manual for details.

D.1.3 Defining Symbolic Names for Argument List Offsets: $name and $nameDEF

You can refer symbolically to arguments in the argument list. Each argument in an argument list has an offset from the beginning of the list; a symbolic name is defined for the numeric offset of each argument. If you use the symbolic names to refer to the arguments in a list, you do not have to remember the numeric offset (which is based on the position of the argument shown in the macro format).

There are two additional advantages to referring to arguments by their symbolic names:

You form the offset names for all system service argument lists by following the service macro name with $_ and the keyword name of the argument. In the following example, name is the name for the system service macro and keyword is the keyword argument:

name$_keyword

Similarly, you can define a symbolic name for the number of arguments a particular macro requires, as follows:

name$_NARGS

You can define symbolic names for argument list offsets automatically whenever you use the $name macro for a particular system service. You can also define symbolic names for system service argument lists using the $nameDEF macro. This macro does not generate any executable code; it merely defines the symbolic names so they can be used later in the program. For example:


$QIODEF

This macro defines the symbol QIO$_NARGS and the symbolic names for the $QIO argument list offsets.

You may need to use the $nameDEF macro either if you specify an argument list to a system service without using the $name macro or if a program refers to an argument list in a separately assembled module.

For example, the $READEF and $READEFDEF macros define the values listed in the following table.
Symbolic Name Meaning
READEF$_NARGS Number of arguments in the list (2)
READEF$_EFN Offset of EFN argument (4)
READEF$_STATE Offset of STATE argument (8)

Thus, you can specify the $READEF macro to build an argument list for a $READEF system service call, as follows:


READLST:   $READEF  EFN=1,STATE=TEST1

Later, the program may want to use a different value for the state argument to call the service. The following lines show how you can do this with a call to the $name_G macro.


     MOVAL   TEST2,READLST+READEF$_STATE
     $READEF_G READLST

The MOVAL instruction replaces the address TEST1 in the $READEF argument list with the address TEST2; the $READEF_G macro calls the system service with the modified list.

D.2 Using Macros to Call System Services

You can use two generic macros for writing calls to system services:

$name_S
$name_G

Which macro you use depends on how the argument list for the system service is constructed.

The $name_S macro generates a CALLS instruction; the $name_G macro generates a CALLG instruction. The services are called according to the standard procedure-calling conventions. System services save all registers except R0 and R1, and restore the saved registers before returning control to the caller.

The following sections describe how to code system service calls using each of these macros.

D.2.1 The $name_S Macro

The $name_S macro call has the following format:

$name_S arg1, ..., argn

The macro generates code to push the arguments on the stack in reverse order. The actual instructions used to place the arguments on the stack are determined as follows:

The macro then generates a call to the system service in the following format:

CALLS #n,@#SYS$name

In this format, n is the number of arguments on the stack.

D.2.1.1 Example of $name_S Macro Call

Because a $name_S macro constructs the argument list at execution time, you can supply addresses and values by using register addressing modes. You can use the following line to execute the $READEF_S macro:


$READEF_S EFN=#1,STATE=(R10)

R10 contains the address of the longword that will receive the status of the flags.

This macro instruction is expanded as follows.


     PUSHAL  (R10)
     PUSHL   #1
     CALLS   #2,@#SYS$READEF

D.2.2 The $name_G Macro

The $name_G macro requires a single operand:

$name_G label

In this format, label is the address of the argument list.

D.2.3 The $name Macro

Macros are provided to create argument lists for the $name_G macro. The $name_G macro (used with the $name macro) is especially useful for doing the following:

The format of the macros is as follows:

label: $name arg1,...,argn

label

Symbolic address of the generated argument list. This is the label given as an argument in the $name_G macro.

$name

The service macro name.

arg1,...,argn

Arguments to be placed in successive longwords in the argument list.

D.2.4 Example of $name and $name_G Macro Calls

The example that follows shows how you can write a call to the Read Event Flags ($READEF) system service using an argument list created by $name.

The $READEF system service has the following macro format:

$READEF efn ,state

The efn argument must specify the number of an event flag cluster, and the state argument must supply the address of a longword that will receive the contents of the cluster.

You can specify these arguments using the $name macro, as follows:


READLST:
        $READEF EFN=1, -          ; Argument list for $READEF
                STATE=TESTFLAG

This $READEF macro generates the following code:


READLST:
        .LONG   2                 ; Argument list for $READEF
        .ADDRESS 1
        .ADDRESS -
                TESTFLAG

Executing the $READEF macro requires only the following line:


$READEF_G READLST

The macro generates the following code to call the Read Event Flags system service:


CALLG  READLST,@#SYS$READEF

SYS$READEF is the name of a vector to the entry point of the Read Event Flags system service. The linker automatically resolves the entry point addresses for all system services.


Appendix E
OpenVMS Data Types

As part of the OpenVMS common language environment, the OpenVMS system routine data types provide compatibility between procedure calls that support many different high-level languages. Specifically, the OpenVMS data types apply to the Alpha, I64, and VAX architectures as the mechanism for passing argument data between procedures. This appendix describes the context and structure of the OpenVMS system routine data types and identifies the associated declarations to each of the specific high-level language implementations.

E.1 OpenVMS Data Types

The OpenVMS usage entry in the documentation format for system routines indicates the OpenVMS data type of the argument. Most data types can be considered conceptual types; that is, their meaning is unique in the context of the OpenVMS operating system. The OpenVMS data type access_mode is one example. The storage representation of this OpenVMS type is an unsigned byte, and the conceptual content of this unsigned byte is the fact that it designates a hardware access mode and therefore has only four valid values: 0, kernel mode; 1, executive mode; 2, supervisor mode; and 3, user mode. However, some OpenVMS data types are not conceptual types; that is, they specify a storage representation but carry no other semantic content in the OpenVMS context. For example, the data type byte_signed is not a conceptual type.

Note

The OpenVMS usage entry is not a traditional data type such as the OpenVMS standard data types---byte, word, longword, and so on. It is significant only within the OpenVMS operating system environment and is intended solely to expedite data declarations within application programs.

To use the OpenVMS usage entry, perform the following steps:

  1. Find the data type in Table E-1 and read its definition.
  2. Find the same OpenVMS data type in the appropriate high-level language implementation table (Tables B--2 through B--13) and its corresponding source-language type declaration.
  3. Use this code as your type declaration in your application program. Note that, in some instances, you might have to modify the declaration.

For Alpha, I64, and VAX, Table E-1 lists and describes the standard OpenVMS data type declarations for the OpenVMS usage entry of any system routine call.

Table E-1 OpenVMS Usage Data Type Entries
Data Type Definition
access_bit_names Homogeneous array of 32 quadword descriptors; each descriptor defines the name of one of the 32 bits in an access mask. The first descriptor names bit <0>, the second descriptor names bit <1>, and so on.
access_mode Unsigned byte denoting a hardware access mode. This unsigned byte can contain one of four values: 0, kernel mode; 1, executive mode; 2, supervisor mode; and 3, user mode.
address Unsigned value denoting a position in virtual memory. On VAX systems the value is an unsigned longword. On Alpha and I64 systems the value is an unsigned quadword that can either be a 32-bit, sign extended value (the high-order 33 bits are the same) to represent 32-bit addresses or a 64-bit value to represent 64-bit addresses.
address_range Unsigned quadword denoting a range of virtual addresses that identifies an area of memory. The first longword specifies the beginning address in the range; the second longword specifies the ending address in the range.

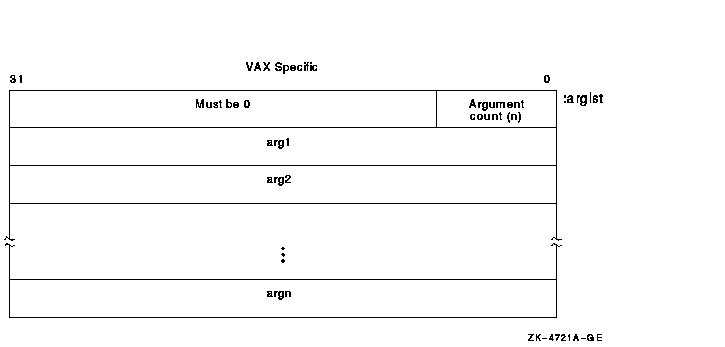

arg_list Vector in memory representing a procedure call argument list containing a sequence of entries together with a count of the number of argument entries.

On VAX systems, and Alpha and I64 systems when passing 32-bit arguments, an argument list (shown in the following figure) is represented as a vector of longwords, where the first longword contains the count and each remaining longword contains one argument. On Alpha and I64 systems when passing 64-bit arguments, an argument list is represented as a vector of quadwords, where the first quadword contains the count and each remaining quadword contains one argument.

ast_procedure The procedure value of a procedure to be called at asynchronous system trap (AST) level. (Procedures that are not to be called at AST level are of type procedure.)
boolean Unsigned longword denoting a Boolean truth value flag. This longword can have one of two values: 1 ( true) or 0 ( false).
buffer Generic term for temporary memory.
buffer_length Generic term for temporary memory that indicates the size of a buffer.
byte_signed Same as the data type byte integer (signed) in Table 17-3.
byte_unsigned Same as the data type byte (unsigned) in Table 17-3.
channel Unsigned word integer that is an index to an I/O channel.
char_string String of from 0 to 65535 eight-bit characters. This OpenVMS data type is the same as the data type character string in Table 17-3. The following diagram shows the character string XYZ:

complex_number One of the OpenVMS standard complex floating-point data types. The six complex floating point numbers are F_floating complex, D_floating complex, G_floating complex, S_floating, T_floating, and X_floating.

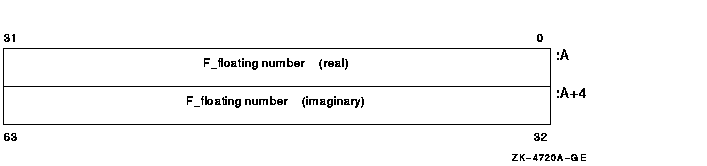

As shown in the following figure, an F_floating point complex number (real, imaginary) is composed of two F_floating point numbers: the first is the real part of the complex number; the second is the imaginary part. For more structure detail, see floating_point described later in this table.

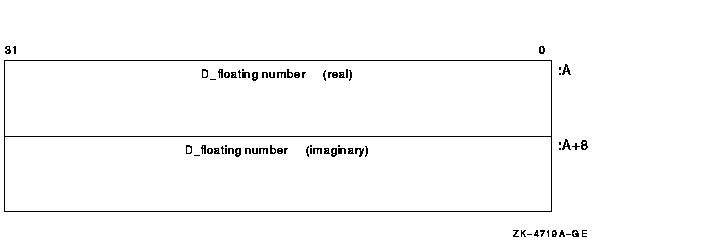

As shown in the following figure, a D_floating point complex number (real, imaginary) is composed of two D_floating point numbers: the first is the real part of the complex number; the second is the imaginary part.

For more structure detail, see floating_point described later in this table.

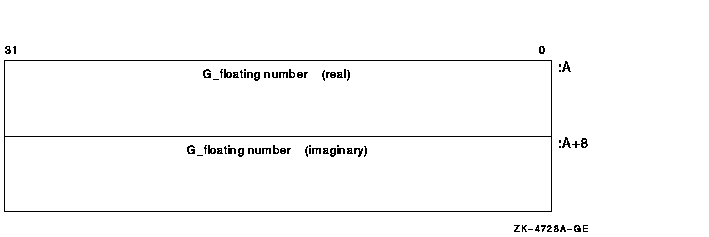

As shown in the following figure, a G_floating point complex number (real, imaginary) is composed of two G_floating point numbers: the first is the real part of the complex number; the second is the imaginary part.

For more structure detail, see floating_point described later in this table.

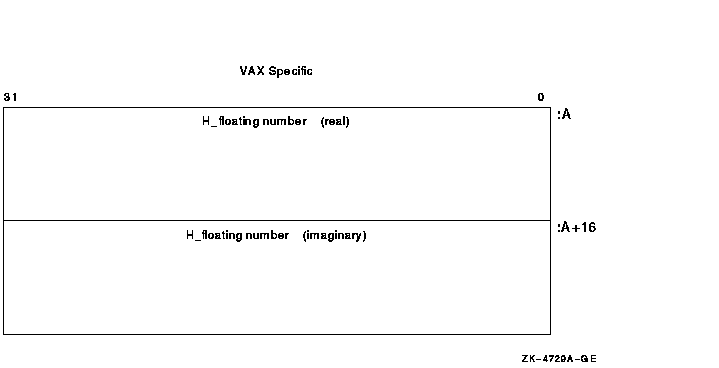

On VAX systems only, as shown in the following figure, an H_floating complex number (real, imaginary) is composed of two H_floating point numbers: the first is the real part of the complex number; the second is the imaginary part. Note that H_float numbers apply to VAX environments only.

For more structure detail, see floating_point described later in this table.

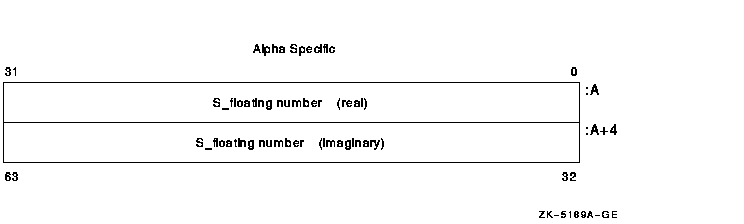

On Alpha and I64 systems only, as shown in the following figure, an S_floating point complex number (real, imaginary) is composed of two S_floating point numbers: the first is the real part of the complex number; the second is the imaginary part.

For more structure detail, see floating_point described later in this table.

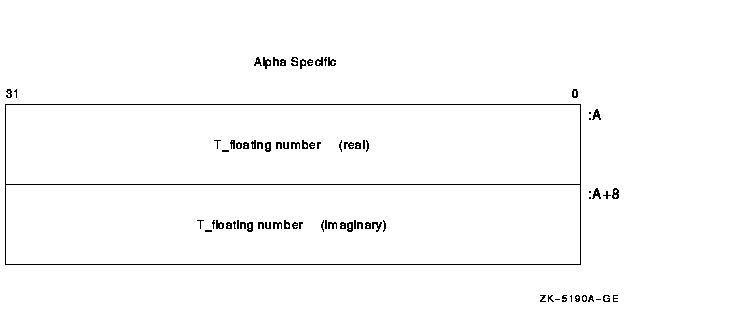

On Alpha and I64 systems only, as shown in the following figure, a T_floating complex number (real, imaginary) is composed of two T_floating point numbers: the first is the real part of the complex number; the second is the imaginary part.

For more structure detail, see floating_point described later in this table.

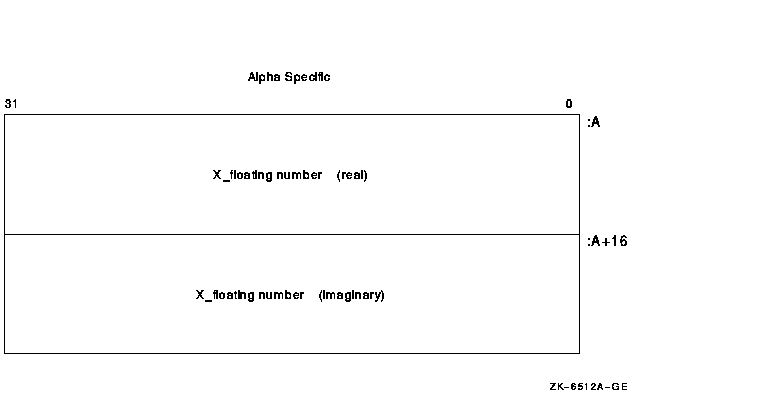

On Alpha and I64 systems only, as shown in the following figure, an X_floating complex number (real, imaginary) is composed of two X_floating point numbers: the first is the real part of the complex number; the second is the imaginary part.

For more structure detail, see floating_point described later in this table.

cond_value Longword integer for VAX or quadword sign-extended integer for Alpha and I64 denoting a condition value (a return status or system condition code) that is typically returned by a procedure in R0 on VAX and Alpha and R8 on I64. Each numeric condition value has a unique symbolic name in the following format, where the severity condition code is a mnemonic describing the return condition:

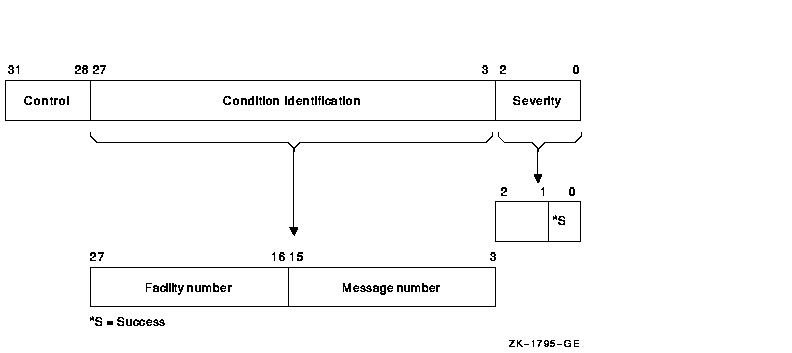

  Depending on your specific needs, you can test just the low-order bit, the low-order three bits, or the entire value.
  • The low-order bit indicates successful (1) or unsuccessful (0) completion of the service.
  • The low-order 3 bits taken together represent the severity of the error.
  • The remaining bits <31:3> classify the particular return condition and the operating system component that issued the condition value.
context Unsigned longword used by a called procedure to maintain position over an iterative sequence of calls. The data type is usually initialized by the caller but thereafter is manipulated by the called procedure.
date_time Unsigned 64-bit binary integer denoting a date and time as the number of elapsed 100-nanosecond units since 00:00 o'clock, November 17, 1858. This OpenVMS data type is the same as the data type absolute date and time in Table 17-3.
device_name Character string denoting the 1- to 15-character name of a device. This string can be a logical name, but if it is, it must translate to a valid device name. If the device name contains a colon (:), the colon and the characters following it are ignored. An underscore (_) preceding the device name string indicates that the string is a physical device name.
ef_cluster_name Character string denoting the 1- to 15-character name of an event flag cluster. This string can be a logical name, but if it is, it must translate to a valid event-flag cluster name.
ef_number Unsigned longword integer denoting the number of an event flag. Local event flags numbered 32 to 63 are available to your programs.

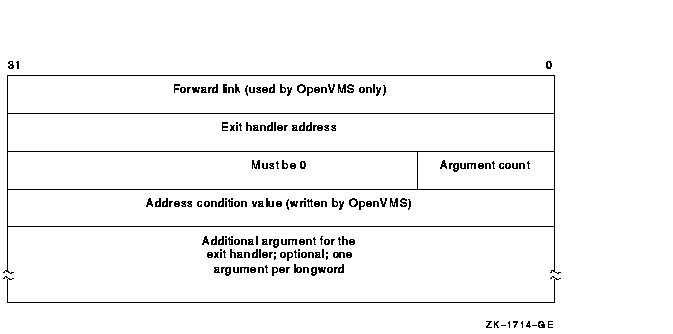

exit_handler_block Variable-length structure denoting an exit-handler control block. This control block, which describes the exit handler, is depicted in the following diagram:



fab Structure denoting an RMS file access block.
file_protection Unsigned word that is a 16-bit mask that specifies file protection. The mask contains four 4-bit fields, each of which specifies the protection (access protected when a bit is 1) to be applied to file access attempts by one of the four categories of users, from rightmost field to leftmost field: (1) system users, (2) file owner, (3) users in the same UIC group as the owner, and (4) all other users (the world). Each field specifies, from rightmost bit to leftmost bit: (1) read access, (2) write access, (3) execute access, (4) delete access. Set bits indicate that access is denied.

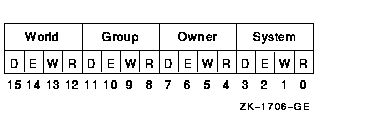

The following diagram depicts the 16-bit file-protection mask:

floating_point One of the Alpha, I64, or VAX standard floating-point data types. VAX systems support F_floating, D_floating, G_floating, or H_floating data types. In addition, Alpha systems support S_floating, T_floating, or X_floating types. IPF systems support S_floating and T_floating in hardware but the compilers can generate code to support F_floating, D_floating, and G_floating data types. See the "OpenVMS Floating Point White Paper" for more information. The following paragraphs briefly describe these data types:

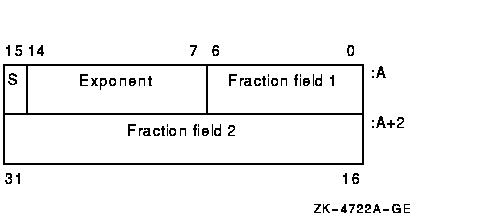

The structure of an F_floating datum follows. It contains two fraction fields. Note that the field 2 extension holds the least significant portion of the fractional number.

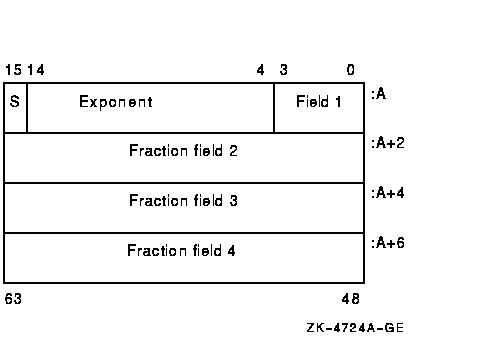

The structure of a D_floating datum follows. It contains four fraction fields. Note that the field 4 extension holds the least significant portion of the fractional number.

While OpenVMS Alpha and I64 support the manipulation of D_floating and D_floating complex data, compiled-code support invokes conversion from D_floating to G_floating for Alpha and I64 arithmetic operations. Also, the conversion of G_floating intermediate results are converted back to D_floating when needed either for stores to memory or for passing parameters. However, use of D_floating data in arithmetic operations on Alpha and I64 produces results that are limited to G_float precision.

The structure of a G_floating datum follows. It contains four fraction fields. Note that the field 4 extension holds the least significant portion of the fractional number.

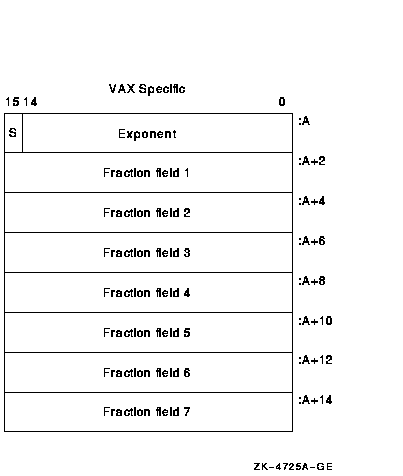

The structure of an H_floating datum follows (VAX systems only). It contains seven fraction fields. Note that the field 7 extension holds the least significant portion of the fractional number.

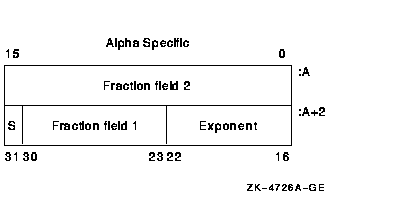

The structure of an S_floating datum follows (Alpha and I64 systems only). It contains two fraction fields. Note that the field 2 extension holds the least significant portion of the fractional number.

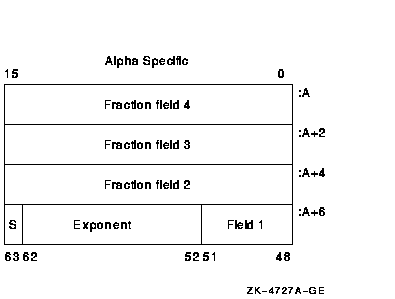

The structure of a T_floating datum follows (Alpha and I64 systems only). It contains four fraction fields. Note that fraction field 1 holds the most significant bits, and the field 4 extension holds the least significant portion of the fractional number.

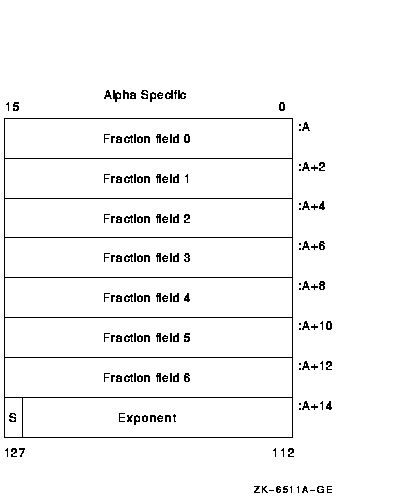

The structure of an X_floating datum follows (Alpha and I64 systems only). An X_floating datum occupies 16 contiguous bytes in memory or two consecutive floating-point registers. It contains seven fraction fields (0--6). Note that fraction field 6 holds the most significant bits and the field 0 extension holds the least significant portion of the fractional number.

function_code Unsigned longword specifying the exact operations a procedure is to perform. This longword has two word-length fields: the first field is a number specifying the major operation; the second field is a mask or bit vector specifying various suboperations within the major operation.

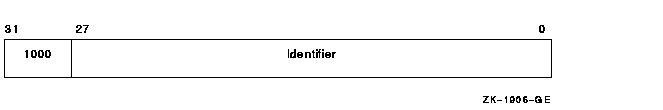

identifier Unsigned longword that identifies an object returned by the system.
invo_context_blk 2 Structure that contains the context information of a specific procedure invocation in a call chain. For information describing the invocation context block, see the HP OpenVMS Calling Standard.
invo_handle 2 Unsigned longword that refers to a specific procedure invocation at run time. The invo_handle longword defines the invocation handle of a procedure in a call chain.
io_status_block Quadword structure containing information returned by a procedure that completes asynchronously. The information returned varies depending on the procedure.

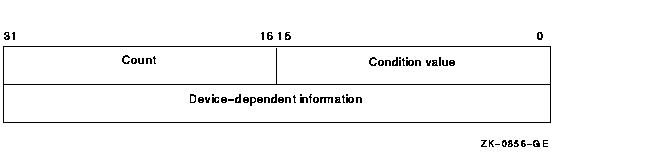

  The following figure illustrates the format of the information written in the IOSB for SYS$QIO:



  The first word contains a condition value indicating the success or failure of the operation. The condition values used are the same as for all returns from system services; for example, SS$_NORMAL indicates successful completion.

The second word contains the number of bytes actually transferred in the I/O operation. Note that for some devices this word contains only the low-order word of the count.

The second longword contains device-dependent return information.

To ensure successful I/O completion and the integrity of data transfers, you should check the IOSB following I/O requests, particularly for device-dependent I/O functions.

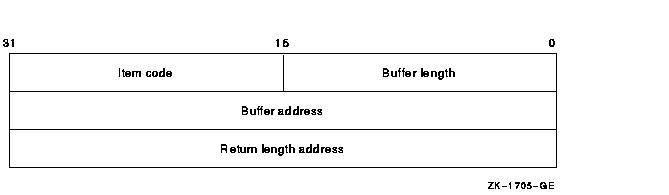

item_list_2 Structure that consists of one or more item descriptors and is terminated by a longword containing 0. Each item descriptor is a 2-longword structure that contains three fields.

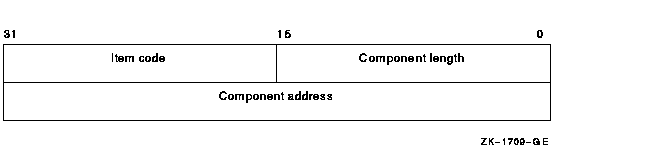

The following diagram depicts a single-item descriptor:

  The first field is a word in which the service writes the length (in characters) of the requested component. If the service does not locate the component, it returns the value 0 in this field and in the component address field.

The second field contains a user-supplied, word-length symbolic code that specifies the component desired. The item codes are defined by the macros specific to the service.

The third field is a longword in which the service writes the starting address of the component. This address is within the input string itself.

item_list_3 Structure that consists of one or more item descriptors and is terminated by a longword containing 0. Each item descriptor is a 3-longword structure that contains four fields.
  The following diagram depicts the format of a single-item descriptor:



  The first field is a word containing a user-supplied integer specifying the length (in bytes) of the buffer in which the service writes the information. The length of the buffer needed depends on the item code specified in the item code field of the item descriptor. If the value of buffer length is too small, the service truncates the data.

The second field is a word containing a user-supplied symbolic code specifying the item of information that the service is to return. These codes are defined by macros specific to the service.

The third field is a longword containing the user-supplied address of the buffer in which the service writes the information.

The fourth field is a longword containing the user-supplied address of a word in which the service writes the length in bytes of the information it actually returned.

item_list_pair Structure that consists of one or more longword pairs, or doublets, and is terminated by a longword containing 0. Typically, the first longword contains an integer value such as a code. The second longword can contain a real or integer value.
item_quota_list Structure that consists of one or more quota descriptors and is terminated by a byte containing a value defined by the symbolic name PQL$_LISTEND. Each quota descriptor consists of a 1-byte quota name followed by an unsigned longword containing the value for that quota.

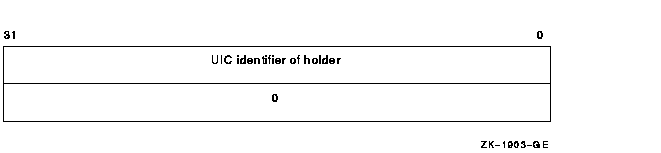

lock_id Unsigned longword integer denoting a lock identifier. This lock identifier is assigned to a lock by the lock manager when the lock is granted.
lock_status_block Structure into which the lock manager writes status information about a lock. A lock status block always contains at least two longwords: the first word of the first longword contains a condition value; the second word of the first longword is reserved by HP. The second longword contains the lock identifier.

The lock status block receives the final condition value plus the lock identification, and optionally contains a lock value block. When a request is queued, the lock identification is stored in the lock status block even if the lock has not been granted. This allows a procedure to dequeue locks that have not been granted.

The condition value is placed in the lock status block only when the lock is granted (or when errors occur in granting the lock).

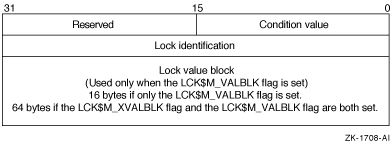

  The following diagram depicts a lock status block that includes the optional 16-byte (VAX or Alpha) or 64-byte (Alpha or I64) lock value block:



lock_value_block A 16-byte block (VAX and Alpha) or a 64-byte block (Alpha and I64) that the lock manager includes in a lock status block if the user requests it. The contents of the lock value block are user-defined and are not interpreted by the lock manager.
logical_name Character string of from 1 to 255 characters that identifies a logical name or equivalence name to be manipulated by OpenVMS logical name system services. Logical names that denote specific OpenVMS objects have their own OpenVMS types; for example, a logical name identifying a device has the OpenVMS type device_name.
longword_signed Same as the data type longword integer (signed) in Table 17-3.
longword_unsigned Same as the data type longword (unsigned) in Table 17-3.
mask_byte Unsigned byte in which each bit is interpreted by the called procedure. A mask is also referred to as a set of flags or as a bit mask.
mask_longword Unsigned longword in which each bit is interpreted by the called procedure. A mask is also referred to as a set of flags or as a bit mask.
mask_quadword Unsigned quadword in which each bit is interpreted by the called procedure. A mask is also referred to as a set of flags or as a bit mask.
mask_word Unsigned word in which each bit is interpreted by the called procedure. A mask is also referred to as a set of flags or as a bit mask.
mechanism_args Structure (array) of mechanism argument vectors that contain information about the machine state when an exception occurs or when a condition is signaled. For more information concerning mechanism argument vectors, see the HP OpenVMS Calling Standard.
null_arg Unsigned longword denoting a null argument. (A null argument is one whose only purpose is to hold a place in the argument list.)
octaword_signed Same as the data type octaword integer (signed) in Table 17-3.
octaword_unsigned Same as the data type octaword (unsigned) in Table 17-3.
page_protection Unsigned longword specifying page protection to be applied by the Alpha and I64 or VAX hardware. Protection values are specified using bits <3:0>; bits <31:4> are ignored. If you specify the protection as 0, the protection defaults to kernel read only.

The $PRTDEF macro defines the following symbolic names for the protection codes:
Symbol Description
PRT$C_NA No access
PRT$C_KR Kernel read only
PRT$C_KW Kernel write
PRT$C_ER Executive read only
PRT$C_EW Executive write
PRT$C_SR Supervisor read only
PRT$C_SW Supervisor write
PRT$C_UR User read only
PRT$C_UW User write
PRT$C_ERKW Executive read; kernel write
PRT$C_SRKW Supervisor read; kernel write
PRT$C_SREW Supervisor read; executive write
PRT$C_URKW User read; kernel write
PRT$C_UREW User read; executive write
PRT$C_URSW User read; supervisor write

procedure Procedure value of a procedure that is not to be called at AST level. (Arguments specifying procedures to be called at AST level have the OpenVMS type ast_procedure.)

A procedure value is an address that represents a procedure. On VAX systems, a procedure value is the address of the procedure entry mask. On Alpha and I64 systems, a procedure value is the address of the procedure descriptor for the procedure. For more information, see the HP OpenVMS Calling Standard.

process_id Unsigned longword integer denoting a process identification (PID). This process identification is assigned to a process by the operating system when the process is created.
process_name Character string containing 1 to 15 characters that specifies the name of a process.
quadword_signed Same as the data type quadword integer (signed) in Table 17-3.
quadword_unsigned Same as the data type quadword (unsigned) in Table 17-3.
rights_holder Unsigned quadword specifying a user's access rights to a system object. This quadword consists of two fields: the first is an unsigned longword identifier (OpenVMS type rights_id), and the second is a longword bit mask in which each bit specifies an access right. The following diagram depicts the format of a rights holder:



rights_id Unsigned longword denoting a rights identifier, which identifies an interest group in the context of the OpenVMS security environment. This rights environment might consist of all or part of a user's user identification code (UIC).

Identifiers have two formats in the rights database: UIC format (OpenVMS type uic) and ID format. The high-order bits of the identifier value specify the format of the identifier. Two high-order zero bits identify a UIC format identifier; bit <31>, set to 1, identifies an ID format identifier. Bits <30:28> are reserved by HP. The remaining bits specify the identifier value. The following diagram depicts the ID format of a rights identifier:

  To the system, an identifier is a binary value; however, to make identifiers easy to use, the system translates the binary identifier value into an identifier name. The binary value and the identifier name are associated in the rights database.
  An identifier name consists of 1 to 31 alphanumeric characters and contains at least one nonnumeric character. An identifier name cannot consist entirely of numeric characters. It can include the characters A through Z, dollar signs ($), and underscores (_), as well as the numbers 0 through 9. Any lowercase characters are automatically converted to uppercase.
rab Structure denoting an RMS record access block.
section_id Unsigned quadword denoting a global section identifier. This identifier specifies the version of a global section and the criteria to be used in matching that global section.
section_name Character string denoting a 1- to 43-character global-section name. This character string can be a logical name, but it must translate to a valid global section name.
system_access_id Unsigned quadword that denotes a system identification value to be associated with a rights database.
time_name Character string specifying a time value in an OpenVMS format.
transaction_id Unsigned octaword that denotes a unique transaction identifier.

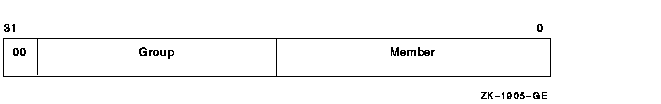

uic Unsigned longword denoting a user identification code (UIC). Each UIC is unique and represents a system user. The UIC identifier contains two high-order bits that designate format, a member field, and a group field. Member numbers range from 0 to 65534; group numbers range from 1 to 16382. The following diagram depicts the UIC format:



user_arg On VAX systems, an unsigned longword, and on Alpha and I64 systems, an unsigned quadword denoting a user-defined argument. The longword (VAX) or quadword (Alpha and I64) is passed to a procedure as an argument, but the contents of the longword or quadword are defined and interpreted by the user.
varying_arg On VAX systems, an unsigned longword, and on Alpha and I64 systems, an unsigned quadword denoting a varying argument. A variable argument can have variable types, depending on specifications made for other arguments in the call.
vector_byte_signed Homogeneous array whose elements are all signed bytes.
vector_byte_unsigned Homogeneous array whose elements are all unsigned bytes.
vector_longword_signed Homogeneous array whose elements are all signed longwords.
vector_longword_unsigned Homogeneous array whose elements are all unsigned longwords.
vector_quadword_signed Homogeneous array whose elements are all signed quadwords.
vector_quadword_unsigned Homogeneous array whose elements are all unsigned quadwords.
vector_word_signed Homogeneous array whose elements are all signed words.
vector_word_unsigned Homogeneous array whose elements are all unsigned words.
word_signed Same as the data type word integer (signed) in Table 17-3.
word_unsigned Same as the data type word (unsigned) in Table 17-3.


1VAX specific.
2Alpha and I64 specific.


Previous Next Contents Index
