HP OpenVMS Programming Concepts Manual

HP OpenVMS Programming Concepts Manual


Previous Contents Index


Chapter 31
Creating User-Written System Services

This chapter describes how to create user-written system services. It contains the following sections:

Section 31.1 describes privileged routines and privileged shareable images.

Section 31.2 describes how to write a privileged routine.

Section 31.3 describes how to create a privileged shareable image on VAX systems.

Section 31.4 describes how to create a privileged shareable image on Alpha and I64 systems.

31.1 Overview

Your application may contain certain routines that perform privileged functions, called user-written system services. To create these routines, put them in a privileged shareable image. User-mode routines in other modules can call the routines in the privileged shareable image to perform functions in a more privileged mode.

You create a privileged shareable image as you would any other shareable image, using the /SHAREABLE qualifier with the linker. (For more information about how to create a shareable image, see the HP OpenVMS Linker Utility Manual.) However, because a call to a routine in a more privileged mode must be vectored through the system service dispatch routine, you must perform some additional steps. The following steps outline the basic procedure. Section 31.3 provides more detail about requirements specific to VAX systems. Section 31.4 describes the necessary steps for Alpha and I64 systems.

  1. Create the source file. The source file for a privileged shareable image contains the routines that perform privileged functions. In addition, because user-written system services are called using the system service dispatcher, you must include a privileged library vector (PLV) in your shareable image. A PLV is an operating-system-defined data structure that communicates the location of the privileged routines to the operating system.
    On VAX systems, the PLV contains the addresses of dispatch routines for each access mode used in the image. You must write these dispatch routines and include them in your shareable image. Section 31.3.1 provides more information.
    On Alpha and I64 systems, you list the names of the privileged routines in the PLV, sorted by access mode. You do not need to create dispatch routines; the image activator creates them for you automatically.
    Section 31.2 provides guidelines for creating privileged routines.
  2. Compile or assemble the source file.
  3. Create the shareable image. You create a privileged shareable image as you would any other shareable image: by specifying the /SHAREABLE qualifier to the LINK command. Note, however, that creating privileged shareable images has some additional requirements. The following list summarizes these requirements. See the HP OpenVMS Linker Utility Manual for additional information about linker qualifiers and options.
    If your privileged application requires that you link against the system executive, see the HP OpenVMS Linker Utility Manual for more information.
  4. Install the privileged shareable image as a protected permanent global section. Privileged shareable images must be installed to be available to nonprivileged programs. The following procedure is recommended:
    1. Move the privileged shareable image to a protected directory, such as SYS$SHARE.
    2. Invoke the Install utility, specifying the /PROTECT, /OPEN, and /SHARED qualifiers. You can also specify the /HEADER_RESIDENT qualifier. The following entry could be used to install a user-written system service whose image name is MY_PRIV_SHARE:


      $ INSTALL
      INSTALL> ADD SYS$SHARE:MY_PRIV_SHARE/PROTECT/OPEN/SHARED/HEADER_RES


To use a privileged shareable image, you include it in a link operation as you would any other shareable image: specifying the shareable image in a linker options file with the /SHAREABLE qualifier appended to the file specification to identify it as a shareable image.

31.2 Writing a Privileged Routine (User-Written System Service)

On VAX, Alpha, and I64 systems, the routines that implement user-written system services must enable any privileges they need that the nonprivileged user of the user-written system service lacks. The user-written system service must also disable any such privileges before the nonprivileged user receives control again. To enable or disable a set of privileges, use the Set Privileges ($SETPRV) system service. The following example shows the operator (OPER) and physical I/O (PHY_IO) privileges being enabled. (Any code executing in executive or kernel mode is granted an implicit SETPRV privilege so it can enable any privileges it needs.)


PRVMSK:  .LONG   <1@PRV$V_OPER>!<1@PRV$V_PHY_IO> ;OPER and PHY_IO
         .LONG   0     ;quadword mask required.  No bits set in
                       ;high-order longword for these privileges.
           .
           .
           .
        $SETPRV_S  ENBFLG=#1,-       ;1=enable, 0=disable
                   PRVADR=PRVMSK     ;Identifies the privileges

When you design your system service, you must carefully define the boundaries between the protected subsystem and the user who calls the service. A protected image has privileges to perform tasks on its own behalf. When your image performs tasks on behalf of users, you must ensure that your image performs only those tasks the users could not have done on their own. Always keep the following coding principles in mind:

On VAX systems, refer to SYS$EXAMPLES:USSDISP.MAR and USSTEST.MAR for listings of modules in a user-written system service and of a module that calls the user-written system service.

On Alpha and I64 systems, for C examples refer to SYS$EXAMPLES:UWSS.C and SYS$EXAMPLES:UWSS_TEST.C.

31.3 Creating a Privileged Shareable Image (VAX Only)

On VAX systems, you must create dispatch routines that transfer control to the privileged routines in your shareable image. You then put the addresses of these dispatch routines in a privileged library vector (PLV). Section 31.3.1 describes how to create a dispatch routine. Section 31.3.2 describes how to create a PLV.

31.3.1 Creating User-Written Dispatch Routines on VAX Systems

On VAX systems, you must create kernel-mode and executive-mode dispatching routines that transfer control to the routine entry points. You must supply one dispatch routine for all your kernel mode routines and a separate routine for all the executive mode routines. The dispatcher is usually written using the CASE construct, with each routine identified by a code number. Make sure that the identification code you use in the dispatch routine and the code specified in the transfer vector identify the same routine.

The image activator, when it activates a privileged shareable image, obtains the addresses of the dispatch routines from the PLV and stores these addresses at a location known to the system service dispatcher. When a call to a privileged routine is initiated by a CHME or CHMK instruction, the system service dispatcher attempts to match the code number with a system service code. If there is no match, it transfers control to the location where the image activator has stored the address of your dispatch routines.

A dispatch routine must validate the CHMK or CHME operand identification code number, handling any invalid operands. In addition, the dispatching routine must transfer control to the appropriate routine for each identification code if the user-written system service contains functionally separate coding segments. The CASE instruction in VAX MACRO or a computed GOTO-type statement in a high-level language provides a convenient mechanism for determining where to transfer control.

Note

Users of your privileged shareable image must specify the same code number to identify a privileged routine as you used to identify it in the dispatch routine. Users specify the code number in their CHMK or CHME instruction. See Section 31.3.3 for information about transfer vectors.

In your source file, a dispatch routine must precede the routines that implement the user-written system service.

Example 31-1 illustrates a sample dispatching routine, taken from the sample privileged shareable image in SYS$EXAMPLES named USSDISP.MAR.

Example 31-1 Sample Dispatching Routine

KERNEL_DISPATCH::                       ; Entry to dispatcher
        MOVAB   W^-KCODE_BASE(R0),R1    ; Normalize dispatch code value
        BLSS    KNOTME                  ; Branch if code value too low
        CMPW    R1,#KERNEL_COUNTER      ; Check high limit
        BGEQU   KNOTME                  ; Branch if out of range
;
; The dispatch code has now been verified as being handled by this dispatcher,
; now the argument list will be probed and the required number of arguments
; verified.
;
        MOVZBL  W^KERNEL_NARG[R1],R1    ; Get required argument count
        MOVAL   @#4[R1],R1              ; Compute byte count including argcount
        IFNORD  R1,(AP),KACCVIO         ; Branch if arglist not readable
        CMPB    (AP),W^<KERNEL_NARG-KCODE_BASE>[R0] ; Check for required number
        BLSSU   KINSFARG                ;  of arguments
        MOVL    FP,SP                   ; Reset stack for service routine
        CASEW   R0,-                    ; Case on change mode
        .
        .
        .

31.3.2 Creating a PLV on VAX Systems

On VAX systems, a call to a privileged routine goes to the transfer vector that executes a change mode instruction (CHMx) specifying the identification code of the privileged routine as the operand to the instruction. The operating system routes the change mode instruction to the system service dispatch routine, which attempts to locate the system service with the code specified. Because the code is a negative number, the system service dispatcher drops through its list of known services and transfers control to a user-written dispatch routine, if any have been specified.

The image activator has already placed at this location the address of whatever user-written dispatch routines it found in the privileged shareable image's PLV when it activated the PLV. The dispatch routine transfers control to the routine in the shareable image identified by the code. (You must ensure that the code used in the transfer vector and the code specified in the dispatch routine both identify the same routine.) Figure 31-1 illustrates this flow of control.

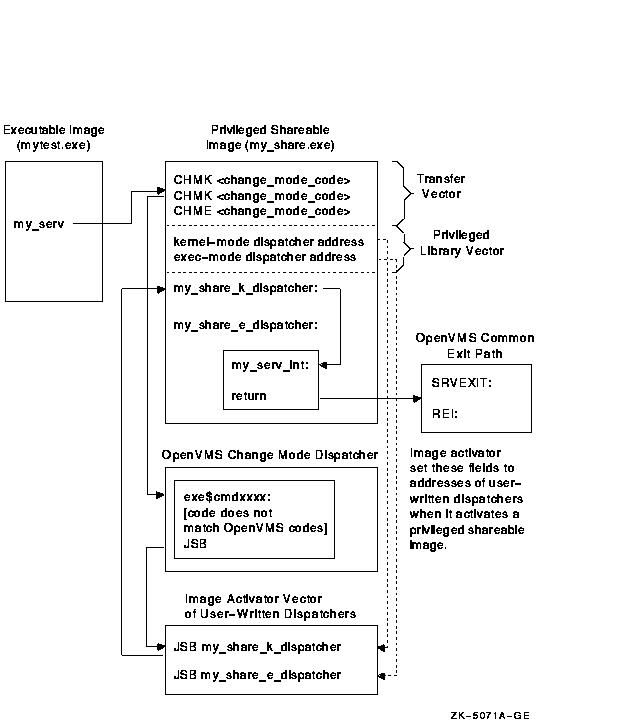

Figure 31-1 Flow of Control Accessing a Privileged Routine on VAX Systems

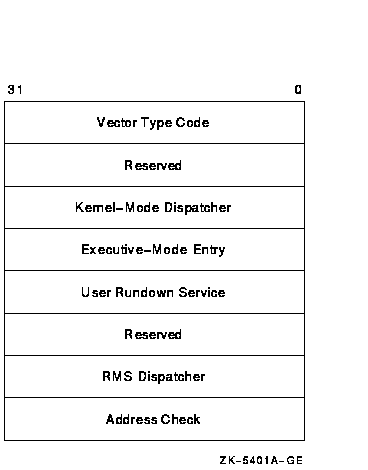

Figure 31-2 shows the components of the PLV in VAX shareable images.

Figure 31-2 Components of the Privileged Library Vector on VAX Systems


Table 31-1 describes each field in the PLV on a VAX processor, including the symbolic names the operating system defines to access each field. These names are defined by the $PLVDEF macro in SYS$LIBRARY:STARLET.MLB.

Table 31-1 Components of the VAX Privileged Library Vector
Component Symbol Description
Vector type code PLV$L_TYPE Identifies the type of vector. For PLVs, you must specify the symbolic constant defined by the operating system, PLV$C_TYP_CMOD, which identifies a privileged library vector.
Kernel-mode dispatcher PLV$L_KERNEL Contains the address of the user-supplied kernel-mode dispatching routine if your privileged library contains routines that run in kernel mode. The address is expressed as an offset relative to the start of the data structure (self-relative pointer). A value of 0 indicates that a kernel-mode dispatcher does not exist.
Executive-mode dispatcher PLV$L_EXEC Contains the address of the user-supplied executive-mode dispatching routine if your privileged library contains routines that run in executive mode. The address is expressed as an offset relative to the start of the data structure (self-relative pointer). A value of 0 indicates that a kernel-mode dispatcher does not exist.
User-supplied rundown routine PLV$L_USRUNDWN Contains the address of a user-supplied rundown routine that performs image-specific cleanup and resource deallocation if your privileged library contains such a routine. When the image linked against the user-written system service is run down by the system, this run-time routine is invoked. Unlike exit handlers, the routine is always called when a process or image exits. (The image rundown code calls this routine with a JSB instruction; it returns with an RSB instruction called in kernel mode at IPL 0.)
RMS dispatcher PLV$L_RMS Contains the address of a user-supplied dispatcher for OpenVMS RMS services. A value of 0 indicates that a user-supplied OpenVMS RMS dispatcher does not exist. Only one user-written system service should specify the OpenVMS RMS vector, because only the last value is used. This field is intended for use only by HP.
Address check PLV$L_CHECK Contains a value to verify that a user-written system service that is not position independent is located at the proper virtual address. If the image is position independent, this field should contain a zero. If the image is not position independent, this field should contain its own address.

Example 31-2 illustrates how the sample privileged shareable image in SYS$EXAMPLES assigns values to the PLV.

Example 31-2 Assigning Values to a PLV on a VAX System

        .PAGE
        $PLVDEF                         ; Define PLV fields
        .SBTTL  Change Mode Dispatcher Vector Block
(1)      .PSECT  USER_SERVICES,PAGE,VEC,PIC,NOWRT,EXE

(2)    .LONG   PLV$C_TYP_CMOD          ; Set type of vector to change mode
        .LONG   0                       ; Reserved
        .LONG   KERNEL_DISPATCH-.       ; Offset to kernel mode dispatcher
        .LONG   EXEC_DISPATCH-.         ; Offset to executive mode dispatcher
        .LONG   USER_RUNDOWN-.          ; Offset to user rundown service
        .LONG   0                       ; Reserved.
        .LONG   0                       ; No RMS dispatcher
        .LONG   0                       ; Address check - PIC image

  1. The sample program sets the VEC attribute of the program section containing the PLV.
  2. Values are assigned to each field of the PLV.

31.3.3 Declaring Privileged Routines as Universal Symbols Using Transfer Vectors on VAX Systems

On VAX systems, you use the transfer vector mechanism to declare universal symbols (described in the HP OpenVMS Linker Utility Manual). However, for privileged shareable images, the transfer vector must also contain a CHMx instruction because the target routine operates in a more privileged mode. You identify the privileged routine by its identification code, supplied as the only operand to the CHMx instruction. Note that the code number used must match the code used to identify the routine in the dispatch routine. The following example illustrates a typical transfer vector for a privileged routine:


.TRANSFER  my_serv
.MASK      my_serv
CHMK  <code_number>
RET

Because the OpenVMS system services codes are all positive numbers and because the call to a privileged routine is initially handled by the system service dispatcher, you should assign negative code numbers to identify your privileged routines so they do not conflict with system services identification codes.

31.4 Creating a User-Written System Service (Alpha and I64 Only)

On Alpha and I64 systems, in addition to the routines that perform privileged functions, you must also include a PLV in your source file. However, on Alpha and I64 systems, you list the privileged routines by name in the PLV. You do not need to create a dispatch routine that transfers control to the routine; the routine is identified by a special code.

31.4.1 Creating a PLV on Alpha and I64 Systems

On Alpha and I64 systems, the PLV contains a list of the actual addresses of the privileged routines. The image activator creates the dispatch routines. Figure 31-3 illustrates the linkage for a privileged routine on Alpha and I64 systems.

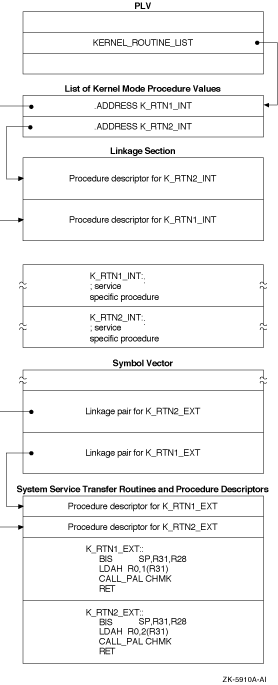

Figure 31-3 Linkage for a Privileged Routine After Image Activation


Table 31-2 describes the components of the privileged library vector on Alpha and I64 systems.

Table 31-2 Components of the Alpha and I64 Privileged Library Vector
Component Symbol Description
Vector type code PLV$L_TYPE Identifies the type of vector. You must specify the symbolic constant, PLV$C_TYP_CMOD, to identify a privileged library vector.
System version number PLV$L_VERSION Specifies the system version number (unused).
Kernel-mode routine count PLV$L_KERNEL_ROUTINE_COUNT Specifies the number of user-supplied kernel-mode routines listed in the kernel-mode routine list. The address of this list is specified in PLV$PS_KERNEL_ROUTINE_LIST.
Executive-mode routine count PLV$L_EXEC_ROUTINE_COUNT Specifies the number of user-supplied executive-mode routines listed in the executive-mode routine list. The address of this list is specified in PLV$PS_EXEC_ROUTINE_LIST.
Kernel-mode routine list PLV$PS_KERNEL_ROUTINE_LIST Specifies the address of a list of user-supplied kernel-mode routines.
Executive-mode routine list PLV$PS_EXEC_ROUTINE_LIST Specifies the address of a list of user-supplied executive-mode routines.
User-supplied rundown routine PLV$PS_KERNEL_RUNDOWN_HANDLER May contain the address of a user-supplied rundown routine that performs image-specific cleanup and resource deallocation. When the image linked against the user-written system service is run down by the system, this run-time routine is invoked. Unlike exit handlers, the routine is always called when a process or image exits. (Image rundown code calls this routine with a JSB instruction; it returns with an RSB instruction called in kernel mode at IPL 0.)
Thread-safe system service PLV$M_THREAD_SAFE Flags the system service dispatcher that the service requires no explicit synchronization. It is assumed by the dispatcher that the service provides its own internal data synchronization and that multiple kernel threads can safely execute the service in parallel.
RMS dispatcher PLV$PS_RMS_DISPATCHER Specifies the address of an alternative RMS dispatching routine.
Kernel Routine Flags Vector PLV$PS_KERNEL_ROUTINE_FLAGS Contains either the address of an array of quadwords that contains the defined flags associated with each kernel system service, or a zero. If a flag is set, the kernel mode service may return the status SS$_WAIT_CALLERS_MODE.
Executive Routine Flags Vector PLV$PS_EXEC_ROUTINE_FLAGS Contains a zero value, because there are no defined flags for executive mode.

Example 31-3 illustrates how to create a PLV on Alpha and I64 systems.

Example 31-3 Creating a PLV on Alpha and I64 Systems



! What follows is the definition of the PLV. The PLV lives
! in its own PSECT, which must have the VEC attribute. The
! VEC attribute is forced in the linker. The PLV looks like
! this:
!
!   +-------------------------------------+
!   |         Vector Type Code            | PLV$L_TYPE
!   |         (PLV$C_TYP_CMOD)            |
!   +-------------------------------------+
!   |       System Version Number         | PLV$L_VERSION
!   |             (unused)                |
!   +-------------------------------------+
!   |     Count of Kernel Mode Services   | PLV$L_KERNEL_ROUTINE_COUNT
!   |                                     |
!   +-------------------------------------+
!   |     Count of Exec Mode Services     | PLV$L_EXEC_ROUTINE_COUNT
!   |                                     |
!   +-------------------------------------+
!   |  Address of a List of Entry Points  | PLV$PS_KERNEL_ROUTINE_LIST
!   |       for Kernel Mode Services      |
!   +-------------------------------------+
!   |  Address of a List of Entry Points  | PLV$PS_EXEC_ROUTINE_LIST
!   |         for Exec Mode Services      |
!   +-------------------------------------+
!   |        Address of Kernel Mode       | PLV$PS_KERNEL_RUNDOWN_HANDLER
!   |             Rundown Routine         |
!   +-------------------------------------+
!   |                                     | PLV$M_THREAD_SAFE
!   |                                     |
!   +-------------------------------------+
!   |      Address of Alternative RMS     | PLV$PS_RMS_DISPATCHER
!   |          Dispatching Routine        |
!   +-------------------------------------+
!   |      Kernel Routine Flags Vector    | PLV$PS_KERNEL_ROUTINE_FLAGS
!   |                                     |
!   +-------------------------------------+
!   |      Exec Routine Flags Vector      | PLV$PS_EXEC_ROUTINE_FLAGS
!   |                                     |
!   +-------------------------------------+
!
PSECT OWN = USER_SERVICES (NOWRITE, NOEXECUTE);

OWN PLV_STRUCT : $BBLOCK[PLV$C_LENGTH] INITIAL (LONG (PLV$C_TYP_CMOD,! Type
                                                    ! of vector
0,                                                  ! System version number
(KERNEL_TABLE_END - KERNEL_TABLE_START) / %UPVAL,   ! Number of kernel mode
                                                    ! services
(EXEC_TABLE_END - EXEC_TABLE_START) / %UPVAL,       ! Number of exec mode
                                                    ! services
KERNEL_TABLE_START,   ! Address of list of kernel mode service routine
EXEC_TABLE_START,     ! Address of list of exec mode service routine
RUNDOWN_HANDLER,      ! Address of list of kernel mode rundown routine
0,                    ! Reserved longword
0,                    ! Address of alternate RMS dispatcher
0,                    ! reserved
0));                  ! reserved

PSECT OWN = $OWN$;
