HP OpenVMS License Management Utility Manual

HP OpenVMS License Management Utility Manual


Previous Contents Index

4.2.2 History Records

Your system maintains history records. Each history record contains an exact copy of the license record before modification, the LICENSE command used to modify the record, the issuing username, and the date and time of modification.

History records accumulate over time and provide a comprehensive audit trail of all modifications you make to the License Database. Most software issuers, including HP, require that you retain this information to demonstrate that you are complying with license terms and conditions.

To display history information, enter the following command:


$  LICENSE LIST /HISTORY

To create a hard copy, enter the following command:


$  LICENSE LIST /HISTORY /OUTPUT=LICENSE.LIS$  PRINT LICENSE.LIS

Over time, LICENSE commands, including the LICENSE START command issued automatically during system startup, might take longer than usual to execute. This could be due to an accumulation of license history records in the License Database.

If you notice delays, HP recommends that you purge the history records in your active License Databases, but only after first preserving this information in one or more backup locations. Use the DCL command COPY or the Backup utility to make a copy of the License Database, thereby preserving the current version of the License Database, including history records.

To purge history records, enter the following command:


$  LICENSE DELETE /STATUS=EXTINCT *

Caution

Ensure that you do not omit the /STATUS=EXTINCT qualifier in the above command. If you do, all license records are deleted, leaving your License Database empty.

LICENSE DELETE deletes all history records, making them invisible to subsequent LICENSE commands.

Creating a new, compressed version of the License Database reclaims the disk space formerly occupied by the now deleted history records. To create a compressed License Database, use the DCL Convert utility (CONVERT).

4.3 Getting a Product Authorization Key (PAK)

Generally, you obtain both a PAK and the product from a representative of a company that distributes software. You order a PAK just as you order another product from HP or another company. HP provides PAKs on paper certificates, traditional media, compact disc read-only memory (CD-ROM), or by telephone or network so that you can register product data in the License Database. LMF needs specific values from a PAK to identify the source of the PAK and the source of a product.

A PAK comes from a PAK issuer---the LMF name for the entity that supplies the PAK.Currently, licenses for Alpha and VAX systems specify DEC for the PAK issuer, and currently DEC is the default character string when you register a PAK with VMSLICENSE.COM. A PAK issuer string can also be DEC-USA or DEC-EUROPE to differentiate regions or departments within HP. For I64 systems, licenses specify HP for the PAK issuer. Other software vendors provide their own PAK issuer strings with their licenses. LMF uses the string to differentiate between different sources of licenses.

HP may distribute and issue a PAK for a product that it does not produce. Thus, LMF also uses a string that identifies a software producer. A producer is the company that supplies the software product. Generally, a producer and a PAK issuer are the same. The current default producer name when you register a PAK with VMSLICENSE.COM is DEC.

The OpenVMS operating system and LMF use PAKs to authorize most products for use. For example, after you install OpenVMS, you may have all the software required to use the System Integrated Products (SIPs) such as networking, RMS Journaling, and Volume Shadowing. To enable a SIP, register its PAK and load the license (there is no separate installation media). Even when you receive multiple software products on one HP CD-ROM, register a PAK for each product to enable the software.

Some products follow the older product distribution and license approach, providing installation kits that include distribution media and documentation. If a kit does not include the PAK, order it separately.

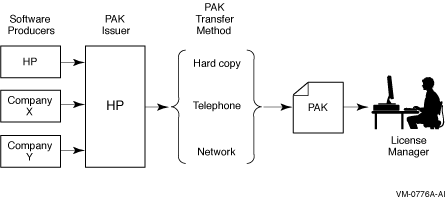

Figure 4-1 illustrates the PAK transfer process.

Figure 4-1 PAK Transfer Methods


4.4 Registering Licenses

To run most HP software products, including the OpenVMS operating system, you must first register the product license in the License Database and then load the registered license. In addition, many third-party vendors of OpenVMS layered software also require you to use LMF to complete the same licensing tasks for their products.

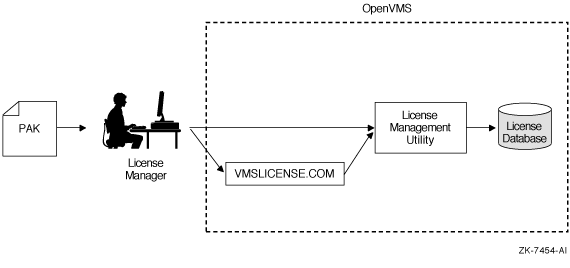

Section 4.1 describes the registration options and presents examples of registration. Figure 4-2 illustrates the routes from a PAK to the License Database.

Figure 4-2 From a PAK to the License Database


4.4.1 When To Perform Registration

Most HP software that runs on OpenVMS systems and many third-party software layered products use LMF. To check a product's licensing requirements, see its installation manual or release notes. These documents explain which products use LMF registration.

If a product uses LMF, you must obtain a PAK, which includes the appropriate data for you to enter. Example 4-1 show a typical PAK for an Alpha system.

Example 4-1 Typical PAK Information

                         ISSUER: DEC            AUTHORIZATION NUMBER: USA126087                    PRODUCT NAME: CRYPTICALMENT                        PRODUCER: DEC                 NUMBER OF UNITS: 460                         VERSION: 8.2            PRODUCT RELEASE DATE:            KEY TERMINATION DATE: 31-DEC-2004         AVAILABILITY TABLE CODE: E             ACTIVITY TABLE CODE:                     KEY OPTIONS: MOD_UNITS                   PRODUCT TOKEN:                   HARDWARE I.D.:                        CHECKSUM: 1-BGON-IAMA-GNOL-AIKO

4.4.2 Registration and Installation

Follow the licensing and installation procedure provided with each product. You can save time if you consider the following variations and consequences for product installation and license registration:

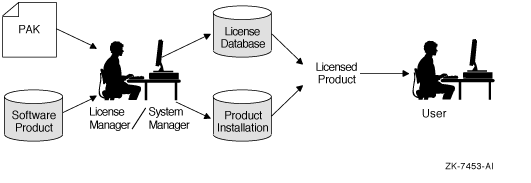

Figure 4-3 illustrates the license registration and product installation route both for processors running the OpenVMS operating system and for layered products.

Figure 4-3 The PAK and Software Routes to a License


4.4.3 Registration Methods

Before you install a product,1 register licenses in the License Database by entering PAK information in one of the following ways:

Some products register their licenses during their own installation procedure. Unless you have a special circumstance, choose the registration method you prefer or the one recommended by your installation guide.

After a license is registered, it must be loaded to make it known on the current system. Section 4.1 describes the primary methods for registering and loading your licenses.

4.4.4 Using VMSLICENSE.COM

The following steps show how to use the VMSLICENSE.COM procedure to register a license for a product called CRYPTICALMENT. The PAK information is shown in Example 4-1.

  1. Log in to the system manager's account, SYSTEM.
  2. Enter the following command and press Return:


    $ @SYS$UPDATE:VMSLICENSE

    The procedure displays the following menu:


        VMS License Management Utility Options:          1. REGISTER a Product Authorization Key         2. AMEND an existing Product Authorization Key         3. CANCEL an existing Product Authorization Key         4. LIST the Product Authorization Keys         5. MODIFY an existing Product Authorization Key         6. DISABLE an existing Product Authorization Key         7. DELETE an existing Product Authorization Key         8. COPY an existing Product Authorization Key         9. MOVE an existing Product Authorization Key        10. ENABLE an existing Product Authorization Key        11. SHOW the licenses loaded on this node        12. SHOW the unit requirements for this node         99. EXIT this procedure      Type '?' at any prompt for a description of the information     requested.  Press Ctrl/Z at any prompt to return to this menu.  Enter one of the above choices [1]

  3. Enter 1. The procedure displays the following message:


    * Do you have your Product Authorization Key? [YES]:

  4. Enter Y. The procedure displays the following information and prompts:


       Use the REGISTER option to add a new license to a license    database.  A Product Authorization Key (PAK) provides the product    name and information you need to register the license.  You must    enter all the information provided by your PAK exactly as it    appears.


                           Issuer [DEC]:              Authorization Number []:

  5. Press Return to specify DEC1
    Enter USA126087 for the authorization number that appears on the PAK. The procedure prompts for the product name:


                     Product Name []:

  6. Enter CRYPTICALMENT for the product name string that appears on the PAK. The procedure prompts for the producer:


                     Producer [DEC]:

  7. Press Return to specify DEC as the producer. If the product you are registering is for I64 OpenVMS, your PAK will list HP as the producer. Type HP, then Return. The procedure prompts for the number of units:


                  Number of Units []:

  8. Enter 460 for the number of units. Note that you need to enter the number of units specified on your PAK. On I64 systems, the number of units will be much smaller as units are counted differently (as described in Chapter 3. The procedure prompts for the version:


                          Version []:

  9. Enter 8.2 for the version number from the PAK. The procedure prompts for the key termination date:


             Key Termination Date []:

  10. Enter 31-DEC-2004 for the key termination date. The procedure prompts for the following information:


          Availability Table Code []:                                      Activity Table Code []:

  11. Enter E for the Availability Table Code. Press Return after the Activity Table Code prompt. The procedure prompts for the following information:


                      Key Options []:                 Product Token []:                   Hardware-Id []:

  12. Enter MOD_UNITS for the option after the Key Options prompt. Press Return after the Product Token Prompt and the Hardware-ID prompt. The procedure prompts for the checksum:


                         Checksum []:

  13. Enter 1-BGON-IAMA-GNOL-AIKO for the checksum.

    Note

    The checksum string always begins with a number. The other 16 characters are always alphabetic characters from A through P.

    The procedure displays the information you entered. For example:


    Here is a list of the license information just entered:                       Issuer:  DEC               Authorization:  USA126087                    Producer:  DEC                Product Name:  CRYPTICALMENT                       Units:  460                Release Date:                     Version:  8.2            Termination Date:  31-DEC-2004                Availability:  E                    Activity:                     Options:  MOD_UNITS                       Token:                 Hardware ID:                    Checksum:  1-BGON-IAMA-GNOL-AIKO                                           Is that correct? [YES]:

  14. Compare the information on the screen with the information on the PAK. If the information is correct, enter Y.

    Note

    If you enter PAK information incorrectly, you receive an error message, and the license is not registered. A checksum error can result when you enter incorrect information for the other items on the PAK. If you get an error, carefully check all the data that you entered.

    If the information is incorrect, enter N.
    When the procedure displays the following question, enter Y:


    Do you wish to make corrections? [YES]:

  15. To make corrections, the procedure asks all of the questions again but supplies the data just entered as defaults for each data field.
    If you entered all the information correctly, the procedure displays the following message:


    Registering CRYPTICALMENT license in SYS$COMMON:[SYSEXE]LMF$LICENSE.LDB...

    If you entered some information incorrectly but did not choose YES to make corrections, the procedure may display the following message:


    Registering CRYPTICALMENT license in SYS$COMMON:[SYSEXE]LMF$LICENSE.LDB... %LICENSE-F-BADCHK, checksum does not validate for CRYPTICALMENT Please review all entered PAK data, including the checksum. Do you wish to make corrections? [YES]:
    To correct the data, enter Y.
    If you enter an incorrect checksum string, the procedure responds as follows:


     1-BGON-IAMA-GNOL-AIKO is not a valid license checksum string.  Press RETURN for more information      The license checksum is a 17-character verification string created by     the PAK issuer for each PAK.  The checksum string is presented in     the format n-cccc-cccc-cccc-cccc, where n is an integer and c is a     character from A through P.  A PAK presents the checksum string with     hyphen (-) characters for readability.  Because the LMF does not count     them for authorization, you can leave them out.  Otherwise, you must     enter the checksum string exactly as specified on your PAK.      If a default value is displayed and you wish to use it just press     the RETURN key.   To cancel the use of default data without     entering new data, enter the backslash (\) character. The     license checksum is a required field for the REGISTER and AMEND     options.                        Checksum []:

    Enter the correct checksum at the prompt.

  16. After the license is successfully registered, the procedure asks if you want to load the license on the current node, as follows:


    Do you want to LOAD this license on this system? [YES]:

    If you registered the PAK on a standalone system and you want to make the software available (active) immediately, enter Y. If you registered the license in an OpenVMS Cluster environment but do not want to make it available (active) on the current node, enter N. After you exit this procedure, you can enter the LICENSE LOAD command to load the license on the desired node.
    If you enter Y and the license is successfully loaded, the procedure displays the following informational message and prompt:


     %LICENSE-I-LOADED, DEC CRYPTICALMENT was successfully loaded with 460 units      VMS License Management Utility Options:          1. REGISTER a Product Authorization Key         2. AMEND an existing Product Authorization Key         3. CANCEL an existing Product Authorization Key         4. LIST the Product Authorization Keys         5. MODIFY an existing Product Authorization Key         6. DISABLE an existing Product Authorization Key         7. DELETE an existing Product Authorization Key         8. COPY an existing Product Authorization Key         9. MOVE an existing Product Authorization Key        10. ENABLE an existing Product Authorization Key        11. SHOW the licenses loaded on this node        12. SHOW the unit requirements for this node         99. EXIT this procedure      Type '?' at any prompt for a description of the information     requested.  Press Ctrl/Z at any prompt to return to the main menu.  Enter one of the above choices [1]

  17. To register another PAK, enter 1. Then respond to the questions, again entering information from a license PAK.
  18. Enter 99 to exit the procedure. You have registered the license for this product. The system may display an error message when the procedure attempts to load the license. This does not affect the license registration. Exit the procedure, and read the sections of this manual that describe loading a license. For example, read the LICENSE LOAD, LICENSE UNLOAD, and LICENSE MODIFY command descriptions.

4.4.4.1 Using Data Files with VMSLICENSE.COM

You can use VMSLICENSE.COM in batch mode as well as interactively. Instead of entering the PAK data interactively from your terminal or workstation, you can create a VMSLICENSE data file with an editor and enter data obtained from your product PAKs (Example 4-2 shows sample PAK data). You can then invoke VMSLICENSE.COM, specifying the name of the new VMSLICENSE data file as a parameter on the same command line. The procedure displays the license data and performs the requested operation or operations using data only from the VMSLICENSE data file.

You can create a file that registers multiple licenses. VMSLICENSE.COM exits only when it reaches the end of the VMSLICENSE data file.

4.4.4.2 Invoking VMSLICENSE.COM with a VMSLICENSE Data File

To pass a VMSLICENSE data file to VMSLICENSE.COM, use the following format:


$ @VMSLICENSE [license-option] vmslicense-data-file [license-database]

When you invoke VMSLICENSE with a data file, you must specify REGISTER as the license-option. You cannot use data files with any of the other options that are available when using VMSLICENSE interactively.

You can specify a License Database on the command line or in the data file. Any License Database you specify in the data file overrides a License Database you specify on the command line.

For example, you can pass the data in the sample VMSLICENSE data file, shown in Example 4-2, with the following command line:


$ @VMSLICENSE REGISTER NODES_A_AND_B_VMS_LICENSE.DAT

Example 4-2 Sample VMSLICENSE Data File

! ! License for COBOL on NODEA !         DATABASE_FILE   = SYS$COMMON:[SYSEXE]LMF$LICENSE.LDB ISSUER          = DEC PRODUCT_NAME    = COBOL AUTHORIZATION   = USA00326 UNITS           = 1200 VERSION         = 7.3 AVAILABILITY    = A OPTIONS         = MOD_UNITS,NO_SHARE CHECKSUM        = 1-DELM-EAHF-ONIH-MBAH INCLUDE_NODE    = NODEA           ! <NEXT> ! ! License for COBOL on NODEB ! AUTHORIZATION   = USA00327 UNITS           = 800 CHECKSUM        = 1-PATC-IDOH-EPOF-MOHG INCLUDE_NODE    = NODEB !

Note

1 With the OpenVMS operating system, you start the installation first. Although HP does not recommend it, you can install some software products first and license them later. See your software product's documentation for details.

1 Although the License Management Facility software is now produced by HP, DEC is still listed as the default issuer of the license on Alpha and VAX systems. On I64 systems, HP is listed as the default issuer.
