The following HP C++ examples demonstrate how symbols are resolved when you link with compiler-generated UNIX-style weak and group symbols.

The examples apply a user-written function template called myswap . Note that you can also use class templates, which are implemented in a similar manner. If you are an experienced C++ programmer, you will also recognize that there is a "swap" function in the HP C++ standard library, which you should use instead of writing your own function.

In the examples, the compiler combines code sections (and other required data) into a group, giving it a unique group name derived from the template instantiation.

The linker includes the first occurrence of this group in the image. All UNIX-style weak definitions obtained from that group are now defined by the module providing this group. All subsequent groups with the same name do not contribute code or data; that is, the linker ignores all subsequent sections. The UNIX-style weak definitions from these ignored sections become references, which are resolved by the definition from the designated instance (that is, first-encountered instance) of the group. In this manner, code (and data) from templates are included only once for the image.

Example 2-3 shows UNIX-Style weak symbols and group symbols.

Example 2-3 UNIX-Style Weak and Group Symbols

// file: my_asc.cxx template <typename T> (1) void myswap (T &v1, T &v2) { (2) T tmp; tmp = v1; v1 = v2; v2 = tmp; } void ascending (int &v1, int &v2) { if (v2<v1) myswap (v1,v2); (3) } // file: my_desc.cxx template <typename T> (1) void myswap (T &v1, T &v2) { (2) T tmp; tmp = v1; v1 = v2; v2 = tmp; } void descending (int &v1, int &v2) { if (v1<v2) myswap (v1,v2); (3) } // file: my_main.cxx #include <cstdlib> #include <iostream> using namespace std; static int m = 47; static int n = 11; template <typename T> void myswap (T &v1, T &v2); extern void ascending (int &v1, int &v2); extern void descending (int &v1, int &v2); int main (void) { cout << "original: " << m << " " << n << endl; myswap (m,n); (4) cout << "swapped: " << m << " " << n << endl; ascending (m,n); cout << "ascending: " << m << " " << n << endl; descending (m,n); cout << "descending: " << m << " " << n << endl; return EXIT_SUCCESS; }

Example 2-4 shows the compile and link commands.

Example 2-4 Compile and Link Commands

$ CXX/OPTIMIZE=NOINLINE/STANDARD=STRICT_ANSI MY_MAIN (5) $ CXX/OPTIMIZE=NOINLINE/STANDARD=STRICT_ANSI MY_ASC (6) $ CXX/OPTIMIZE=NOINLINE/STANDARD=STRICT_ANSI MY_DESC (6) $ CXXLINK MY_MAIN, MY_ASC, MY_DESC (7)

In the examples, the compiler combines code sections (and other required data) into a group, giving it a unique group name derived from the template instantiation.

The linker includes the first occurrence of this group in the image. All UNIX-style weak definitions obtained from that group are now defined by the module providing this group. All subsequent groups with the same name do not contribute code or data; that is, the subsequent sections are ignored. The UNIX-style weak definitions from these ignored sections become references, which are resolved by the definition from the designated instance (first-encountered) of the group. In this manner, code (and data) from templates are included only once for the image.

1. To keep the examples simple, the template definitions are included in the sources, usually templates are defined in include files.
2. C++ mangles symbol names to guarantee unique names for overloaded functions. Therefore, in the linker map or in the output from ANALYZE/OBJECT utility, the string MYSWAP may be part of a longer symbol name and may not be easily identified. Further, the compiler creates more names using the string MYSWAP: the unique group name, code section names, and so on.
3. The functions "ascending" and "descending" sort a pair of numbers. If necessary the contents are swapped. Swapping is implemented as a function template, which is automatically instantiated with the call inside of the functions "ascending" and "descending".
4. In the main function, "myswap" is used to demonstrate a strong reference to a UNIX-style weak definition. (As previously mentioned, this is not common practice. Usually, templates are defined in include files and included in all sources.) Note that there is only a reference to the function and that there is no definition. That is, the compiler does not create a group. When compiling the main module, a reference to "myswap<int>" is automatically generated for the call to myswap inside the main function. This strong reference will be resolved by the first UNIX-style weak definition from either MY_ASC.OBJ or MY_DESC.OBJ which define "myswap<int>".
5. To see the effects of this example, the compiler should not inline code. Because inlining is an optimization, this feature is demonstrated only by omitting optimization.
6. When both source modules are compiled, both object modules contain the definition of the "myswap<int>" function. The compiler groups the code (and other required data) sections into a group with a unique group name derived from the template instantiation. The compiler generates UNIX-style weak symbols and adds them to the group.
7. For linking, the CXXLINK command is used in the examples. This command invokes the C++ linker driver, which in turn calls the OpenVMS linker to perform the actual link operation

To create a VMS shareable image, you must define the interface in a symbol vector at link time with a SYMBOL_VECTOR option. HP C++ generated objects contain mangled symbols and may contain compiler-generated data, which belongs to a public interface. In the SYMBOL_VECTOR option, the interface is describe with the names from the object modules. Because they contain mangled names, such a relationship may not be obvious from the source code and the symbols as seen in an object module.

If you do not export all parts of an interface, code that is intended to update one data cell may be duplicated in the executable and the shareable image along with the data cell. That is, data can become inconsistent at run-time, producing a severe error condition. This error condition can not be detected at link time nor at image activation time. Conversely, if you export all symbols from an object module, you may export the same symbol which is already public from other shareable images.

A conflict arises when an application is linked with two shareable images that export the same symbol name. In this case, the linker flags the multiple definitions with a MULDEF warning that should not be ignored. This type of error most often results when using templates defined in the C++ standard library but instantiated by the user with common data types. Therefore, HP recommends that you only create a shareable image when you know exactly what belongs to the public interface. In all other cases, use object libraries and let applications link against these libraries.

The HP C++ run-time library contains pre-instantiated templates. The public interfaces for these are known and therefore, the HP C++ run-time library ships as a shareable image. The universal symbols from the HP C++ run-time library and the group symbols take precedence over user instantiated templates with the same data types. As with other shareable images, this design is upwardly compatible and does not require you to recompile or relink to make use of the improved HP C++ run-time library.

2.7 Understanding and Fixing DIFTYPE and RELODIFTYPE Linker Conditions

On OpenVMS I64 systems, if a module defines a variable as data (OBJECT), it must be referenced as data by all other modules. If a module defines a variable as a procedure (FUNC), it must be referenced as a procedure by all other modules.

When data is referenced as a procedure, the linker displays the following informational message:

%ILINK-I-DIFTYPE, symbol symbol-name of type OBJECT cannot be referenced as type FUNC

When a procedure is referenced as data, the following informational message is displayed:

%ILINK-I-DIFTYPE, symbol symbol-name of type FUNC cannot be referenced as type OBJECT

Type checking is performed by the linker on OpenVMS I64 because the linker must create function descriptors. The equivalent procedure descriptor was created by the compiler on OpenVMS Alpha, so this informational message is new for the linker on OpenVMS I64.

This message is informational only and does not require user action. However, if the linker detects data referenced as a procedure, it might issue the following warning message in addition to the DIFTYPE message:

%ILINK-W-RELODIFTYPE, relocation requests the linker to build a function descriptor for a non-function type of symbol

The following example of two modules demonstrates how to fix these conditions:

TYPE1.C #include <stdio> int status ; // Defines status as data. extern int sub(); main () { printf ("Hello World\n"); sub(); } TYPE2.C extern int status (int x) ; // Refers to status as a procedure. sub () { int x; x = (int)status; return status (x); }

When these modules are linked, you get an informational message and a warning message, as follows:

$ CC/EXTERN_MODEL=STRICT_REFDEF TYPE1 $ CC/EXTERN_MODEL=STRICT_REFDEF TYPE2 $ LINK TYPE1,TYPE2 %ILINK-I-DIFTYPE, symbol STATUS of type OBJECT cannot be referenced as type FUNC module: TYPE2 file: NODE1$:[SMITH]TYPE2.OBJ;6 %ILINK-W-RELODIFTYPE, relocation requests the linker to build a function descriptor for a non-function type of symbol symbol: STATUS relocation section: .rela$CODE$ (section header entry: 18) relocation type: RELA$K_R_IA_64_LTOFF_FPTR22 relocation entry: 0 module: TYPE2 file: NODE1$:[SMITH]TYPE2.OBJ;6

To correct the problem and avoid the informational and warning messages, correct TYPE1.C to define status as a procedure:

TYPE1.C #include <stdio> int status (int x); // Defines status as a procedure. extern int sub(); main () { printf ("Hello World\n"); sub(); } nt status (int x) { return 1; } $ CC/EXTERN_MODEL=STRICT_REFDEF TYPE1 $ CC/EXTERN_MODEL=STRICT_REFDEF TYPE2 $ LINK TYPE1,TYPE2

This chapter describes how the linker creates an image on OpenVMS I64 systems. The linker creates images from the input files you specify in a link operaton. You can control image file creation by using linker qualifiers and options.

3.1 Overview

After the linker has resolved all symbolic references between the input files specified in the LINK command (described in Chapter 2), the linker knows all the object modules and shareable images that are required to create the image. For example, the linker has extracted from libraries specified in the LINK command those modules that contain the definitions of symbols required to resolve symbolic references in other modules. The linker must now combine all these modules into an image.

To create an image, the linker must perform the following processing:

• Determine the memory requirements of the image
  The memory requirements of an image are the sum of the memory requirements of each object module included in the link operation, together with the memory the linker created to support code and data. The language processors that create the object modules specify the memory requirements of an object module as section definitions. A section represents an area of memory that has a name, a length, and other characteristics, called attributes, which describe the intended or permitted usage of that portion of memory. Section 3.2 describes sections.
  The linker processes the section definitions in each object module, combining sections with similar attributes into a segment, which on I64 systems is analogous to an image section on Alpha and VAX systems (see Chapter 7). Each segment specifies the size and attributes of a portion of the virtual memory of an image. The image activator uses the segment attributes to determine the characteristics of the physical memory pages into which it loads the image, such as protection.

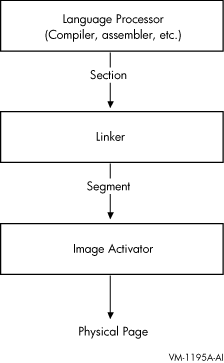

  Figure 3-1 illustrates how memory requirements are communicated from the language processor to the linker and from the linker to the image activator. Section 3.3 provides more information about this process.

  Figure 3-1 Communication of Image Memory Requirements on I64 Systems

  ---


  Note that shareable images included in link operations have already been processed by the linker. These images are separate images with their own memory requirements, as specified by their own segments. The image activator activates these shareable images at run time.
• Initialize the image
  When segments are first created, they are empty. In this step of linker processing, the linker copies the code and data sections from the object modules into the image's segments. Section 3.4 provides more information about this process.
  In the process of initializing the image, the linker may encounter sections that have the type SHT_NOBITS. This section type indicates that the section occupies no space in the file - a demand-zero section. The linker combines these sections together into demand-zero segments. The linker also trims the zeros off the end of segments when the qualifier /DEMAND_ZERO=PER_PAGE is used. Note that this is not the default. The operating system initializes demand-zero segments at run time, when a reference to a segment requires the operating system to move the pages into memory. Section 3.4.4 describes how the linker creates demand-zero segments.

After creating segments and filling them with binary code and data, the linker writes the image to an image file. Section 3.4.2 describes this process.

3.2 Creating Sections

Language processors create sections and define their attributes. The number of sections created by a language processor and the attributes of these sections are dependent upon language semantics. For example, some programming languages implement global variables as separate sections with a particular set of attributes. Programmers working in high-level languages typically have little direct control over the sections created by the language processor. Medium- and low-level languages provide programmers with more control over section creation. For more information about the section creation features of a particular programming language, see the language processor documentation.

The I64 linker also creates sections that are combined with the compiler sections to create segments (see Section 3.2.1).

Section Attributes

The language processors define the attributes of the sections they create and communicate these attributes to the linker in the section header table.

Section attributes define various characteristics of the area of memory described by the section, such as the following:

• Access
  Using section attributes, compilers can prohibit some types of access, such as write access. Using other section attributes, compilers can allow access to the section by more than one process.
• Positioning
  By specifying certain section attributes, compilers can specify to the linker how it should position the section in memory.

Section attributes are Boolean values, that is, they are either on or off. Table 3-2 lists all section attributes with the keyword you can use to set or clear the attribute, using the PSECT_ATTR= option. (For more information about using the PSECT_ATTR= option, see Section 3.3.7.)

For example, to specify that a section should have write access, specify the writability attribute as WRT. To turn off an attribute, specify the negative keyword. Some attributes have separate keywords that express the negation of the attribute. For example, to turn off the global attribute (GBL), you must specify the local attribute (LCL). Note that the alignment of a section is not strictly considered an attribute of the section. However, because you can set it using the PSECT_ATTR= option, it is included in the table.

To be compatible with Alpha and VAX linkers, the I64 linker retains the user interfaces as much as possible. This information includes the traditional OpenVMS section attribute names (WRT, EXE, and so on) that are used in the PSECT_ATTR= option. However, on I64, the underlying object conforms to the ELF standard. When processing the object module, the linker maps the ELF terms to the OpenVMS terms. For compatibility, only OpenVMS terms are written to the map file. In contrast, other tools, such as the ANALYZE/OBJECT utility, do not use OpenVMS terms; they simply format the contents of the object file and therefore display the ELF terms.

Table 3-1 maps the traditional OpenVMS section attribute names to the ELF names and vice versa.

Table 3-1 Mapping ELF Section Terms to OpenVMS Attributes

ELF Section Attribute1	Traditional OpenVMS Section Attribute
SHF_WRITE	WRT
SHF_EXECINSTR	EXE
SHF_VMS_GLOBAL	GBL
SHF_VMS_OVERLAID	OVR
-- 2	REL
SHF_VMS_SHARED	SHR
SHF_VMS_VECTOR	VEC
SHF_VMS_ALLOC_64BIT	ALLOC_64BIT
SHF_IA_64_SHORT	SHORT 3
SHT_NOBITS 4	NOMOD 5

Table 3-2 lists all section attributes with the keyword you can use to set or clear the attribute, using the PSECT_ATTR= option.

Table 3-2 Section Attributes on I64

Attribute	Keyword	Description
Alignment	--	Specifies the alignment of the section as an integer that represents the power of 2 required to generate the desired alignment. For certain alignments, the linker supports keywords to express the alignment. The following table lists all the alignments supported by the linker with their keywords: Power of 2 Keyword Meaning 0 BYTE Alignment on byte boundaries. 1 WORD Alignment on word boundaries. 2 LONG Alignment on longword boundaries. 3 QUAD Alignment on quadword (8-byte) boundaries. 4 OCTA Alignment on octaword (16-byte) boundaries. 5 HEXA Alignment on hexadecimal word (32-byte) boundaries. 6 -- Alignment on 64-byte boundaries. 7 -- Alignment on 128-byte boundaries. 8 -- Alignment on 256-byte boundaries. 9 -- Alignment on 512-byte boundaries. 13 -- Alignment on 8 KB boundaries. 14 -- Alignment on 16 KB boundaries. 15 -- Alignment on 32 KB boundaries. 16 -- Alignment on 64 KB boundaries. -- PAGE Alignment on the default target page size, which is 64 KB for I64 linking. You can override this default by specifying the /BPAGE qualifier.
Position Independence	PIC/NOPIC	This keyword is ignored by the I64 linker.
Overlaid/Concatenated	OVR/CON	When set to OVR, specifies that the linker will overlay this section with other sections with the same name and attribute settings. Sections that are overlaid are assigned the same base address. When set to CON, the linker concatenates the sections.
Relocatable/Absolute	REL/ABS	When set to REL, specifies that the linker can place the section anywhere in virtual memory. Absolute sections are used by compilers primarily to define constants, but in the ELF object language they are not put into an actual section. Setting the section to ABS on I64 is not meaningful, and the ABS keyword is ignored by the I64 linker.
Global/Local	GBL/LCL	When set to GBL, specifies that the linker should gather contributions to the section from all clusters and place them in the same segment. When set to LCL, the linker gathers sections into the same segment only if they are in the same cluster. The memory for a global section is allocated in the cluster that contains the first contributing module.
Shareability	SHR/NOSHR	Specifies that the section can be shared between several processes. Only used to sort sections in shareable images.
Executability	EXE/NOEXE	Specifies that the section contains executable code.
Writability	WRT/NOWRT	Specifies that the contents of a section can be modified at run time.
Protected Vectors	VEC/NOVEC	Specifies that the section contains privileged change-mode vectors or message vectors. In shareable images, segments with the VEC attribute are automatically protected.
Solitary	SOLITARY	Specifies that the linker should place this section in its own segment. Useful for programs that map data into specific locations in their virtual memory space. Note that compilers do not set this attribute. You can set this attribute using the PSECT_ATTR= option.
Unmodified	NOMOD/MOD	When set, specifies that the section has not been initialized (NOMOD). The I64 linker uses this attribute to create demand zero segments; see Section 3.4.4. Only compilers can set this attribute (in ELF objects, the section type SHT_NOBITS). You can clear this attribute only by specifying the MOD keyword in the PSECT_ATTR= option.
Readability	RD	This keyword is ignored by the I64 linker.
User/Library	USR/LIB	This keyword is ignored by the I64 linker.
Short Data	SHORT	When set this indicates that a data section should be put in one of the short sections. Compilers can set this attribute, in which case the user can not alter it.
Allocate section in P2 space	ALLOC_64BIT/NOALLOC_64BIT	When set this indicates that the section should be allocated in P2 space instead of P0 space. The program may run but not execute correctly when initialized data is put in P2 space. Code and demand zero data do work properly.
