Chapter 3
Coding Modular Procedures

This chapter describes how to code modular procedures. Specifically, it covers the following topics:

Appendix A summarizes many of these guidelines. Refer to the appendix to review the guidelines, or use it as a checklist.

3.1 Coding Guidelines

The coding guidelines discussed in this section are of two types: required and recommended. You must follow the sections marked required to ensure that your application is modular. Compaq highly recommends that you adhere to the guidelines presented in the sections marked recommended. Following these additional rules will help you produce consistent, uniform applications.

3.1.1 Adhering to the Naming Conventions

The following guidelines apply to the naming of facilities, procedures, files, modules, and program sections. You must follow these conventions when choosing names for modules, PSECTs, and status codes. Facility Naming Conventions (Recommended)

To make it easy to locate a set of related procedures, Compaq recommends that you group your procedures into facilities. Providing related procedures with a common facility prefix is a convenient method for organizing procedures. The facility prefix is the first part of any procedure name.

As shown in Figure 3-1, the first three (or sometimes four) characters of a procedure name are used to indicate the facility of a run-time library (RTL) procedure.

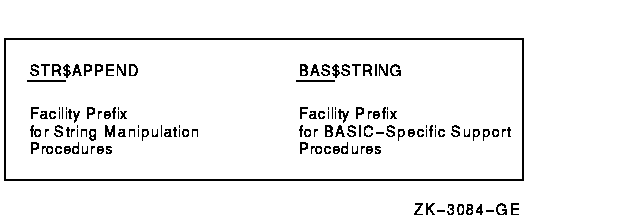

Figure 3-1 Examples of Facility Prefixes As Used in Procedure Names

Facility names represent library facilities. A procedure is characterized as belonging to a particular facility according to the types of operations it performs. Facilities may differ in the conventions they use for handling errors and receiving arguments, as well as in primary function. Table 3-1 lists some common Compaq facility prefixes.

Table 3-1 Common Library Facilities --- Prefixes and Content
Prefix Content
ADA Ada Run-Time Library procedures
APL APL Run-Time Library procedures
BAS BASIC Run-Time Library procedures
B32 BLISS-32 Run-Time Library procedures
CDU Command Definition Utility
CLI Command language interpreter
COB COBOL Run-Time Library procedures
COR CORAL Run-Time Library procedures
C74 COBOL-74 Run-Time Library procedures
DBG Debugger
DBL DIBOL Run-Time Library procedures
ERF Error Log Report Formatter
FDV FMS Forms Driver Library procedures
FOR FORTRAN Run-Time Library procedures
LBR Librarian utility procedures
LIB RTL General-Purpose procedures
MATH Portable Math Library
MTH RTL Mathematics procedures
OTS RTL language-independent procedures
PAS PASCAL Run-Time Library procedures
PLI PL/I Run-Time Library procedures
RMS Record Management Services
RPG RPG II Run-Time Library procedures
SMG RTL screen management procedures
SOR Sort utility procedures
STR RTL string manipulation procedures
VAX VAX Architecture Emulation

You can create your own facilities by defining a unique facility name and facility number. The name for your facility should be a unique name between 1 and 27 characters. Facility names supplied by Compaq all contain a dollar sign ($) after the prefix. User-supplied facility names should use an underscore (_) rather than a dollar sign ($) to avoid any name conflicts.

The facility number is used in defining condition values for the facility. Bit 27 (STS$V_CUST_DEF) of a condition value indicates whether the value is supplied by Compaq or by the user. This bit must be 1 if the facility number is created by the user. For more information, use the Help Message utility (MSGHLP) to access online descriptions of system messages from the DCL ($) prompt. For more information about using MSGHLP, refer to the OpenVMS System Messages: Companion Guide for Help Message Users. Procedure Naming Conventions (Recommended)

When you create a procedure and make its name global, you allow other procedures in the same image to call that procedure. The common RTL procedures are examples of procedures with global names. In such an environment, a naming convention is required to prevent any name conflict between global procedures in the same image.

The rules for naming entry points to procedures have the following general form:


fac is a two- to four-character facility name.
symbol is a symbol from 1 to 27 characters long. (The entire procedure name may not exceed 31 characters in length.)

The facility name and symbol name are separated by a dollar sign ($) if the procedure is supplied by Compaq and by an underscore (_) if the procedure is supplied by the user. This convention should be used to avoid conflict between Compaq and user procedure names.

The procedure name usually consists of a verb and an object that together describe the action of the procedure. For example, the Run-Time Library procedure intended to get virtual memory is called LIB$GET_VM.

Some procedures, even though they have global names, are not intended to be called from outside the facility in which they are located. These procedures are only available internally, within a set of procedures, and do not by themselves provide any functionality for the facility. The names for these procedures contain a double dollar sign ($$) if they are supplied by Compaq or a triple underscore (_ <double_uscore>) if they are supplied by the user. (Three underscores are necessary to avoid conflict with user-defined condition value symbols, which use two underscores.)

Table 3-2 shows examples of procedure entry point names.

Table 3-2 Naming Procedure Entry Points
Procedure Name Description
LIB$GET_VM Compaq supplied global procedure
LIB_PRINT_REPORT User-supplied global procedure
OTS$$INTERNAL Compaq supplied internal procedure
LIB_ <double_uscore>ADD_TAX User-supplied internal procedure File Naming Conventions (Recommended)

You should derive your file name from the names of the procedures contained in the module that comprises the file.

If a module contains a single procedure, the file name consists of the procedure name. You can remove dollar signs and underscores, but this is not required. File types are the standard default file types for the source language. For example, the file containing the RTL procedure MTH$EXP is named MTHEXP.MAR. This name makes it obvious that the file MTHEXP.MAR contains the procedure MTH$EXP and is written in VAX MACRO.

Sometimes, the module comprising the file will contain more than one procedure. For example, the RTL procedures LIB$GET_VM and LIB$FREE_VM are contained in the same module and thus in the same file. In this case, a more general file name is used, composed of the facility prefix (LIB) and the first nouns common to all procedure names in the module (VM). Thus, the name for the file containing procedures LIB$GET_VM and LIB$FREE_VM is LIBVM.B32. (The file type B32 indicates that the module is written in VAX BLISS-32.) Module Naming Conventions (Required)

Module names are identical to file names except that module names do not have extensions, and the dollar sign ($) or underscore (_), which separates the facility prefix and symbol name, is not removed.

For example, the MTH$EXP procedure is contained in module MTH$EXP and the file MTHEXP.MAR. The LIB$GET_VM and LIB$FREE_VM procedures are contained in the module LIB$VM and the file LIBVM.B32. PSECT Naming Conventions (Required)

The code and data sections of a customer library procedure have two separate program sections (PSECTs), named _fac_CODE and _fac_DATA, where fac is the facility name. Compaq uses _fac$CODE and _fac$DATA as PSECT names.

Position-independent constant data is in the PSECT named _fac_CODE (_fac$CODE for Compaq) to shorten the references. For example,_LIB$CODE and _LIB$DATA are the only two PSECT names used by LIB$ procedures.

The collating sequence for leading underscores causes the linker to place all library procedures after the user program in the executable image. This prevents a library procedure from being placed between two user modules and adversely affecting any byte or word displacement addressing contained in the user programs.

Not all languages give you control over PSECT names. In VAX BASIC and VAX Pascal, it is not possible to control PSECT names except through use of COMMON. However, using COMMON is not recommended.

For additional information about declaring PSECTs, see the appropriate language reference manual. Lock Resource Naming Conventions (Recommended)

When using the lock manager, the resource names of root-level locks (locks without a parent) should be derived from the facility name. The naming convention used is:

Following this convention will prevent unintended resource conflicts. Global Variable Naming Conventions (Recommended)

Global variables should be named using the following format:


The letter t indicates the contents and usage of the global variable. The possible values of t are listed in Table 3-3.

Likewise, the format for addressable global arrays is as follows:


The letter t indicates the contents and usage of the addressable global array. The possible values of t are listed in Table 3-3.

Table 3-3 Code for the Content and Usage of Global Variables
Value of t Content and Usage of Global Variable
A Address
B Byte integer
C Single character
D D_floating
E Reserved for Compaq
F F_floating
FS S_floating
FT T_floating
G G_floating
H 1 H_floating
I Reserved for integer extensions
J Reserved for customers for escape to other codes
K Constant
L Longword integer
M Field mask
N Numeric string (all byte forms)
O Octaword
P Packed string
Q Quadword integer
R Records (structure)
S Field size
T Text (character) string
U Smallest unit of addressable storage
V Bit field
W Word integer
X Context dependent (generic)
Y Context dependent (generic)
Z Unspecified or nonstandard

1VAX specific Status Code and Condition Value Naming Conventions (Required)

The format of status codes and condition values is as follows:

3.1.2 Using Common Source Files (Recommended)

For some applications, you may need to make identical argument declarations in several modules. Languages supported by the OpenVMS operating system let you centralize these declarations in one place by using common source files. Table 3-4 summarizes the common source file declarations for languages supported by the OpenVMS operating system.

Table 3-4 How to Declare Common Source Files
Language Common Source File Declaration
Compaq Ada To share common declarations among DEC Ada programs, you include the declarations in a package (as a separate compilation unit) and provide visibility to the package by using a WITH clause in programs you want to share the common declarations.
BASIC You can use the BASIC directive %INCLUDE in your program to include the common source file, or a Common Data Dictionary (CDD) record.
BLISS-32 Your source program can contain a REQUIRE or LIBRARY list option that specifies a file to be included at the point of the declaration.
C Include a preprocessor directive to include a file or a dictionary.
COBOL The COPY statement specifies source text from a COBOL library file, a Librarian file, or a CDD record description that is to be included in the source program.
DIBOL The INCLUDE directive includes a common source from a separate file, text library, or CDD record.
FORTRAN The INCLUDE statement specifies a file or library module to be included at the point of the statement. You can also use a CDD record.
Assembly language An auxiliary source file or macro library can be specified in the command line or by using a CDD record.
Pascal The %INCLUDE directive and INHERIT attribute specify files to be included at the point of the declarations. You can also use a CDD record.
PL/I The %INCLUDE preprocessor statement specifies a file to be inserted as source. You can also use a CDD record.
RPG II An auxiliary source file can be specified in the command line.

3.1.3 Using OpenVMS System Services

Not all OpenVMS system services are modular, according to the definitions in this manual. Procedures that call nonmodular system services are nonmodular themselves. If your procedure uses a nonmodular system service, you should list the system service in the Side Effects section of the procedure description. (For information about the procedure description, see Section 2.6.2.) For more information about specific system services and modularity, see the OpenVMS System Services Reference Manual.

3.1.4 Invoking Optional User-Action Routines

An optional user-action routine is a useful way to let the calling program gain control at a critical point in your procedure's algorithm. Success routines and error routines are the most common user-action routines. Control is passed from your procedure to the optional error routine if the specified error is encountered within your procedure. To transfer control, the calling program must pass the user-action routine as an argument to the called procedure. To make it easy for the calling program to pass information to its action routine, your procedure should supply an optional user-arg argument that the calling program can pass to its action routine. Your procedure merely copies the argument list entry of the user argument, if present, to the argument list it passes to the action routine. This achieves the same effect as up-level addressing. Bound Procedure Value (VAX Only)

On VAX systems, the bound procedure value (DSC$K_DTYPE_BPV) is used by Compaq Pascal and other languages where context of the procedure must be known. The procedure might do up-level addressing of a variable defined in a syntactically outer block and allocated in another frame. (If you use a procedure entry mask, this context is specified in the user-arg argument.)

For a bound procedure value passed by reference, the argument list entry contains the address of two longwords. The first longword contains the address of the procedure, and the second contains the environment pointer to be loaded into R1 before the procedure is called. This environment pointer allows you to specify the context of your action routine enabling you to do up-level addressing. To provide a user-action routine using the bound procedure value passed by reference, the calling sequence is as follows:

CALL myproc [action-routine [,user-arg]]

In this example, action-routine is a function call of the bound procedure value type that is passed by reference, and user-arg is unspecified.

If you want to use the bound procedure value data type to pass access to a user routine specified as a procedure entry mask, you must pass the first longword by value and omit the second longword. Then, the user-action routine would have this calling sequence:

status = action-routine (...[,user-arg])

In this example, status is a longword condition value that is passed by value, and user-arg is unspecified. Your procedure copies the 32-bit argument list entry passed by the calling program to the argument list provided to the action routine. Therefore, the calling program and its action routine can communicate using any data type, access type, passing mechanism, or OpenVMS usage.

3.2 Initializing Modular Procedures

Some modular procedures must initialize themselves before they can execute correctly. Examples of initialization include the following:

You must perform initialization carefully to maintain modularity.

Initialization must not affect the calling program. Therefore, avoid initializing by providing an entry point that must be called before any other entry point is called. Providing an entry point that must be called first forces the calling program to provide an initialization entry point to its caller, and so forth. Also, you would have to rewrite your calling programs if you needed to substitute a procedure with an initialization call for one without an initialization call.

If your procedure uses LIB$INITIALIZE, you must preserve a modular environment that does not conflict with the environment set by any other procedure using LIB$INITIALIZE. (For more information, see OpenVMS Programming Interfaces: Calling a System Routine1.

Several ways to initialize a procedure are as follows:

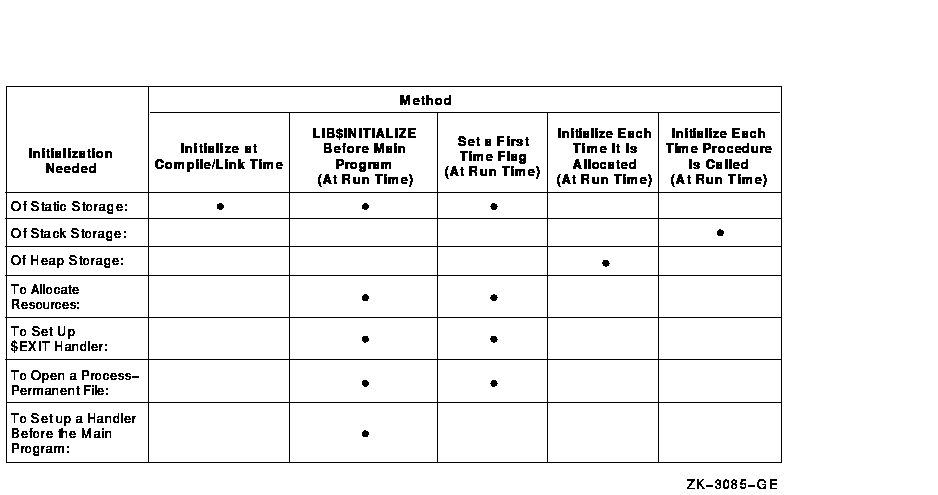

The use of each method is explained in the following sections. Figure 3-2 summarizes these methods.

Figure 3-2 Methods of Initializing


1 This manual has been archived but is available on the OpenVMS Documentation CD-ROM.
