In the late 1960s, a great deal of research and development
was dedicated to the problem of achieving security in multiuser
computer systems. Much of the development work involved attempts
to find all the things that could go wrong with a system's security
and then to correct those flaws one by one. It became apparent to
the researchers that this process was ineffective; effective system
security could result only from a basic model of the structure of
a secure computer system. The reference monitor concept was proposed
as such a model and gained wide acceptance.
Reference Monitor Concept According to the reference monitor concept, a computer system
can be depicted in terms of subjects, objects, an authorization
database, an audit trail, and a reference monitor, as shown in
Reference Monitor. The reference monitor is
the control center that authenticates subjects and implements and
enforces the security policy for every access to an object by a
subject.

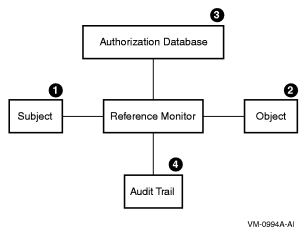

Figure 1 Reference
Monitor
The following table describes the elements shown in
Reference Monitor:
Item
Element
Description
1
Subjects
Active entities, such as
user processes, that gain access to information on behalf of people.
2
Objects
Passive repositories of
information to be protected, such as files.
3
Authorization
database
Repository for the security
attributes of subjects and objects. From these attributes, the reference
monitor determines what kind of access (if any) is authorized.
4
Audit trail
Record of all security-relevant events,
such as access attempts, successful or not.
How the Reference Monitor Enforces Security
Rules The reference monitor enforces the security policy by authorizing
the creation of subjects, by granting subjects access to objects
based on the information in a dynamic authorization database, and
by recording events, as necessary, in the audit trail. In an ideal
system, the reference monitor must meet the following three requirements:
Mediate every attempt by a subject
to gain access to an object
Provide a tamperproof database and audit trail that
are thoroughly protected from unauthorized observation and modification
Remain a small, simple, and well-structured piece
of software so that it is effective in enforcing security requirements
These are the requirements proposed for systems that are secure
even against penetration. In such systems, the reference monitor
is implemented by a security-related subset, or security kernel,
of the operating system.
