This chapter describes the SDA extension commands for the Extended File
Cache (XFC).
9.1 Overview of SDA XFC Extensions
The SDA extension commands for Extended File Cache (XFC) enable you to perform the following tasks:
The section describes the SDA XFC extension commands:
EXIT
LOAD DSF
SHOW CONTEXT
SHOW EXTENT
SHOW FILE
SHOW MEMORY
SHOW SUMMARY
SHOW TABLES
SHOW TRACE
SHOW VOLUME
Commands can be entered at the SDA prompt. For example:
SDA> XFC SHOW SUMMARY |
Alternatively, the XFC extension can be invoked without a command, in which case the XFC extension prompts for commands. For example:
SDA> XFC> SHOW SUMMARY XFC> EXIT SDA> |
Note that if this alternative approach is used and the output from a command does not fit on one screen, the screen overflow prompt remains an SDA prompt and accepts SDA commands, not XFC commands. See Section 2.6.2 for an explanation of the screen overflow prompt.
Exits the XFC SDA extension.
EXIT
None.
None.
The EXIT command issued from the SDA> prompt exits you from SDA to the DCL ($) prompt. If you invoke XFC at the SDA> prompt, you receive an XFC> prompt, from which you can then invoke a specific command, for example, SHOW SUMMARY. If you invoke EXIT at the XFC> prompt, you are returned to the SDA> prompt.
SDA> XFC XFC> SHOW SUMMARY XFC Summary ----------- Extended File Cache V1.0 (May 6 2002 11:33:46) Anchor Block Address: FFFFFFFF80D30410 Build Id: Cache State: 0000A010 Cache in no-cache state: False . . . XFC>EXIT SDA>
This command shows the procedure for exiting from the XFC extension.
Loads the symbols in the specified debug symbol file (DSF) for use with the SDA FORMAT command.
LOAD DSF filename
filename
The name of the symbol file.
None.
The LOAD DSF command loads the symbol tables for the XFC internal data structures. The XFC symbol tables are contained in a file SYS$XFCACHE.DSF, which is located in the system directory, SYS$LOADABLE_IMAGES. This command is not available on OpenVMS I64.
SDA> XFC SHOW FILE/BRIEF
XFC Cache File Block brief listing
----------------------------------
CFB Address CVB Address Volume Name File ID Access
FFFFFFFD83120D40 FFFFFFFD831FA080 DISK$FRROOG_RUBY (541,5,0) 0
.
.
.
SDA> FORMAT FFFFFFFD83120D40
%SDA-E-NOSYMBOLS, no "VCC_CFB" symbols found to format this block
DA> xfc load dsf sys$loadable_images:sys$xfcache
Reading symbols from SYS$SYSROOT:[SYS$LDR]SYS$XFCACHE.DSF;21
Loaded 825 symbols>
SDA> FORMAT FFFFFFFD83120D40
FFFFFFFD.83120D40 CFB$R_PSNOLDHEADER 00000001
FFFFFFFD.83120D44 00000001
FFFFFFFD.83120D48 CFB$W_UWMUSTBEONE 0001
FFFFFFFD.83120D4A CFB$B_BTYPE 6F
FFFFFFFD.83120D4B CFB$B_BSUBTYPE 40
FFFFFFFD.83120D4C CFB$R_PFCBFILE 81935900
FFFFFFFD.83120D50 CFB$Q_UQSIZE 0000021C
FFFFFFFD.83120D54 00000000
FFFFFFFD.83120D58 CFB$R_PCVBCACHEVOLUME 831FA080
FFFFFFFD.83120D5C FFFFFFFD
FFFFFFFD.83120D60 CFB$R_QHDQUEUEHEAD 83120B40
FFFFFFFD.83120D64 FFFFFFFD
FFFFFFFD.83120D68 83121800
FFFFFFFD.83120D6C FFFFFFFD
.
.
.
|
This example shows the output of loading symbols from the XFC debug symbols file, and using those symbols to format a CFB structure.
Displays the contents of an XFC context block (CTX).
SHOW CONTEXT [address][/STALLING|/FULL|/BRIEF]
address
The address of the CTX. If no address is supplied, then all the context structures are displayed.
/BRIEF
Displays a brief summary for each context; for example, the I/O type, start virtual block number (VBN), and length of I/O./FULL
Displays the complete context structure. This is the default./STALLING
Displays only contexts that are stalling; for example, those that have a stall reason code other than estrNotStalling.
The SHOW CONTEXT command displays the contents of an active context block. The state of each active operation within XFC is maintained in a data structure called a context block.

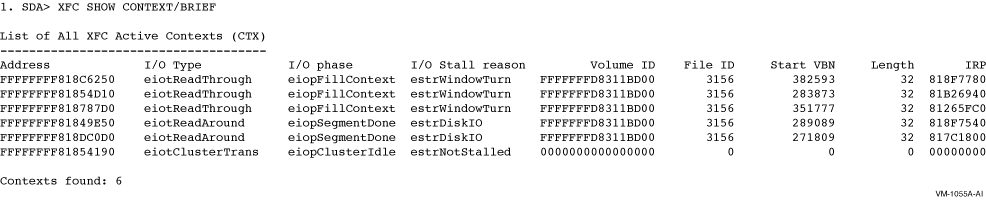

This example shows the address of the context block, I/O type (the type of operation), I/O phase (what phase the operation is in), I/O stall (reason for its stalling), volume ID (address of the control volume block), start VBN (starting VBN of the I/O), length of the I/O, and I/O request packet (the address of the IRP).
2. SDA> XFC SHOW CONTEXT FFFFFFFF8190D690 List of All XFC Active Contexts (CTX) ------------------------------------- Context (CTX) Address: FFFFFFFF8190D690 I/O Phase: eiopFillContext I/O Type: eiotReadThrough Operation started: 17-APR-2002 11:23:29.00 Stall Reason: estrWindowTurn Stall Extent: 0000000000000000 Stall Op (IRP): FFFFFFFF81267A40 Saved AST Parameter: 0000000000000000 Restart Routine: 0000000000000000 Context state flags 00000000 Cache Hit: False HWM Checked: False Fork Restarted False AST Required (flush) False Buffer locked False Stalled converting False Fork Block in use False Override resource checks False Restart cluster trans False Restart cluster flush False MV volumes skipped False Depose pending False Ignore CFB Quiesce False Delete CFB False Read-ahead hit False ECB Count: 0 Index: 00000000 ( 0) Start VBN: 000107C1 ( 67521) Length in Blocks: 00000020 ( 32) Next VBN: 000107C1 ( 67521) I/O Extent Count: 0 Disk I/O Length: 00000020 ( 32) Bytes Copied: 0 Bytes Zeroed: 0 Bytes Requested: 16384 Volume (CVB): 0000000000000000 Volume Id: FFFFFFFD8311BD00 File Id: 0000000000000C54 Cache File Block: FFFFFFFD82CEA2A0 Process (PCB): FFFFFFFF818FA500 |
This example shows output of a full display of a context block for a read I/O.
Displays the contents of an extent control block (ECB).
SHOW EXTENT address
address
The address of the ECB.
None.
The SHOW EXTENT command diplays the contents of an extent control block (ECB). The data in the cache is divided into groups of VBNs called extents. Each extent is maintained in a data structure called an extent control block.
SDA> XFC SHOW EXTENT FFFFFFFD82A58A20
Cache Extent Address: FFFFFFFD82A58A20
Type: Primary
Flink: FFFFFFFF7F880350
Blink: FFFFFFFF7F880350
Start VBN: 00000001 ( 1)
Start LBN: 00BA711C ( 12218652)
Length in Blocks: 00000006 ( 6)
Data State: Clean
Pin: None
Buffer Address: FFFFFFFDB0996000
Secondary ECB Queue: FFFFFFFD82A58A60
Flink: FFFFFFFD83199A20
Blink: FFFFFFFD83199A20
Primary ECB: 0000000000000000
LRU Queue: FFFFFFFD82A58AAC
Flink: FFFFFFFD82A5A26C
Blink: FFFFFFFD82A5344C
Waiters Queue: FFFFFFFD82A58A50
Flink: FFFFFFFD82A58A50
Blink: FFFFFFFD82A58A50
Lock Id: 00000000
Parent CFB: FFFFFFFD82A61180
ECB delete pending False
ECB on LRU queue True
ECB depose pending False
ECB read ahead False
LRU priority: 1
|
This example shows the contents of an extent control block.
Displays the contents of the cache file block (CFB).
SHOW FILE [address] [/EXTENTS|/ID=file-id
|/CVB=address |/OPEN|/CLOSED|/STATISTICS |/FULL
|/BRIEF]
address
The address of the CFB. The /OPEN and /CLOSED qualifiers, if present, are ignored. If no address is supplied, then all the CFBs are displayed.
/BRIEF
Displays summary information for each cache file block (CFB), such as the CFB address, cache volume block (CVB) address, access count, active I/O count, and file ID./CLOSED
Displays only CFBs whose access count is zero./CVB=address
Displays only information about any files matching the given cache volume block address./EXTENTS
Displays the cache extents held in cache for any displayed files. This shows the primary and secondary cache extents along with their data state and virtual block numbers (VBNs). It also shows a summary of memory usage (pagelets used and pagelets valid) for any displayed files. The /EXTENTS qualifier is incompatible with the /BRIEF qualifier./FULL
Displays all fields for each cache file block. This is the default./ID=file-id
Displays only information about any files matching the given file-identification (FID). The file identification (FID) is the hexadecimal file number component in a format file ID (file number, sequence number, relative volume number)./OPEN
Displays only CFBs whose access count is greater than zero./STATISTICS
Displays more statistics about the specified file. The /STATISTICS qualifier is incompatible with the /BRIEF qualifier.
The SHOW FILE command displays the contents of the XFC cache file block. The state of any file in the cache is maintained in a data structure called a cache file block (CFB). There is a CFB for every open file on a system and a CFB for each closed file that is still being cached.

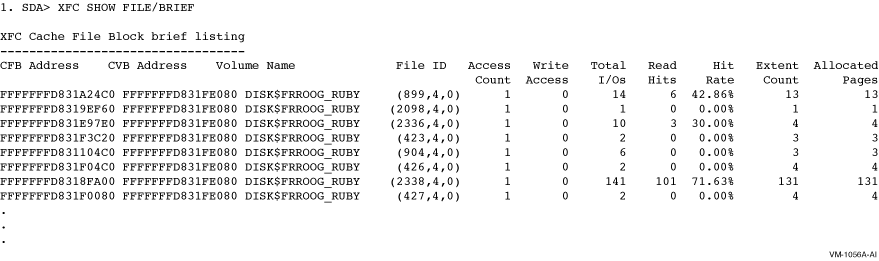

This example shows the brief output from this command.
2. SDA> XFC SHOW FILE/STATISTICS FFFFFFFD831A24C0
Full Cache File Block (CFB) Details
-----------------------------------
CFB Address: FFFFFFFD831A24C0
CFB Address: FFFFFFFD831A24C0
Flink: FFFFFFFD831A22C0
Blink: FFFFFFFD831A2700
Access Count: 1
Write Access Count: 0
Volume (CVB): FFFFFFFD831FE080
Quiescing: False
File (FCB): FFFFFFFF81943D80
Volume Id: FFFFFFFD831FE080
File Id: 0000000000000383
External FID: (899,4,0)
Predicted Next VBN: 000000FB ( 251)
Active Caching Mode: Write Through
Active I/O count: 0
Flush Fail Status: 00000000 ( 0)
No Readahead Reasons: 0
Active Readaheads: 0
File Bad: False
Caching disabled: False
File deleted on close: False
File Quiescing: False
File Deposing: False
File Deleting: False
File BlkASTInProg: False
File IgnoreBlkAST False
File Readahead EOF False
PECBs Allocated: 13 ( 13 pages)
PECBs Deallocated: 0
PECBs Deallocated: 0
SECBs Allocated: 3
SECBs Deallocated: 19
Lock Id: 0C00037F
Granted Lock mode: PRMode
Conversion phase: Illegal
Conversion phase count: 1
Hash Bucket Queue: FFFFFFFD831A2520
Flink: FFFFFFFF7FF819B0
Blink: FFFFFFFF7FF819B0
PECB Queue: FFFFFFFD831A2530
Flink: FFFFFFFD8311888C
Blink: FFFFFFFD831A072C
Stalled IOs Queue: FFFFFFFD831A24F0
Flink: FFFFFFFD831A24F0
Blink: FFFFFFFD831A24F0
FAL transition Queue: FFFFFFFD831A2500
Flink: FFFFFFFD831A2500
Blink: FFFFFFFD831A2500
Contexts Waiting: FFFFFFFD831A2510
Flink: FFFFFFFD831A2510
Blink: FFFFFFFD831A2510
BlkASTs Waiting: FFFFFFFD831A2540
Flink: FFFFFFFD831A2540
Blink: FFFFFFFD831A2540
Deaccess Wait List: FFFFFFFD831A2600
Flink: 0000000000000000
Quiesce context: 0000000000000000
Up convert context: 0000000000000000
File IO Statistics - all in decimal
-----------------------------------
Statistics Valid From: 19-APR-2002 07:10:32.77
Total QIOs to this file: 14
Read IOs to this file: 14
Write IOs to this file: 0
Write IOs to this file: 0
Read Hits: 6
Hit Rate: 42.86 %
Average Overall I/O response time to this file
in milliseconds: 0.9525
Average Cache Hit I/O response time to this file
in milliseconds: 0.0702
Average Disk I/O response time to this file
in milliseconds: 1.6141
Accuracy of I/O resp time: 65 %
Read Ahead Count: 0
Read Through Count: 14
Write Through Count: 0
Read Around Count: 0
Write Around Count: 0
CFB FAL stalls: 1
CFB Operation stalls: 0
FAL Blocking ASTs: 0
Quiesce Depose: 0
Quiesce depose Stalls: 0
(I/O size statistics not collected for this file)
Files found: 1
|
This example shows a collection of performance statistics for a file.
Displays information about memory used by the cache.
SHOW MEMORY [/BRIEF|/FULL]
None.
/BRIEF
Displays summary statistics on XFC memory use./FULL
Displays full statistics on XFC memory use. This is the default.
| #1 |
|---|
SDA> XFC SHOW MEMORY
XFC Memory Statistics
---------------------
Pool allocation calls : 430
Pool allocation failures : 0
Pool deallocation calls : 0
Page allocation calls : 2745
Page deallocation calls : 6
Cache VA Regions and Limits
---------------------------
Cache VA region from FFFFFFFD80000000 to FFFFFFFF80000000 ( 1048576 pages)
permanent area : FFFFFFFD80000000 to FFFFFFFDBE800000 ( 128000 pages)
pool : FFFFFFFD80000000 to FFFFFFFD83200000 ( 6400 pages)
data : FFFFFFFD83200000 to FFFFFFFDBE800000 ( 121600 pages)
dynamic area : FFFFFFFDBE800000 to FFFFFFFF7F780000 ( 919488 pages)
pool : FFFFFFFDBE800000 to FFFFFFFDD4F2C000 ( 45974 pages)
data : FFFFFFFDD4F2C000 to FFFFFFFF7F780000 ( 873514 pages)
extent hash table: FFFFFFFF7F780000 to FFFFFFFF7FF80000 ( 1024 pages)
file hash table : FFFFFFFF7FF80000 to FFFFFFFF80000000 ( 64 pages)
file hash table : FFFFFFFF7FF80000 to FFFFFFFF80000000 ( 64 pages)
qhdPermanentPoolFreePages : FFFFFFFF80D305B8
qhdPermanentDataFreePages : FFFFFFFF80D305C8
Non-Paged Pool allocated : 45248 (44.1 KB)
Non-Paged Pool number of - FKBs : 403
Non-Paged Pool number of - DBMs : 3
Non-Paged Pool number of - CTXs : 10
Current Maximum Cache Size : 8589934592 (8.0 GB)
Boottime Maximum Cache Size : -1
Permanent Data Pages: Allocated : 121600
In use : 2739
Pool Pages: Allocated : 6400
In use : 128
Dynamic Pages: Max Allowed : 919488
Allocated : 0
In use : 0
Min Allowed : 20971
Data Pages: Allowed : 873514
In use : 0
Pool Pages: Allowed : 45974
In use : 0
PFN List : 0
Non PFN List : 0
Total Cache Memory (bytes) : 1048621248 (1000.0 MB)
Private PFN List Stats
----------------------
Dynamic Area PFN List : FFFFFFFF818EB340
Free physical pages on list : 0
Pages attributed to this list : 0
Pages being requested for return: 0
List priority : 0
Callback routine : 80DF8A40
Free PFN queue head : FFFFFFFF818EB350
First free page : 0000000000000000
Last free page : 0000000000000000
MMG Callback Counters
---------------------
MMG callback active : 0
MMG callback count : 0
MMG callback requeues : 0
MMG callback requeue again : 0
Expand attempts callback active : 0
Pages reclaimed : 0
Trim reclaim attempts : 0
LRU depose calls TrimWorkingSet : 0
Zone Purges: Permanent : 0
Dynamic PFNLST : 0
Dynamic No PFNLST : 0
Pool Zone Stats (S2 Space) Permanent Dynamic
SECB: Size 112, PerPage 71
Pages / MaxPages 12 / 6400 ||| 0 / 45974
FreePkts / TotalPkts 64 / 852 ||| 0 / 0
Hits 5499 ||| 0
Not first page 0 ||| 0
Misses (expns/fails) 12 ( 12 /0) ||| 0 ( 0 / 0)
PECB: Size 176, PerPage 45
Pages / MaxPages 85 / 6400 ||| 0 / 45974
FreePkts / TotalPkts 6 / 3825 ||| 0 / 0
Hits 3740 ||| 0
Not first page 0 ||| 0
Misses (expns/fails) 85 ( 85 /0) ||| 0 ( 0 / 0)
CFB: Size 544, PerPage 14
Pages / MaxPages 29 / 6400 ||| 0 / 45974
FreePkts / TotalPkts 3 / 406 ||| 0 / 0
Hits 488 ||| 0
Not first page 0 ||| 0
Misses (expns/fails) 29 ( 29 /0) ||| 0 ( 0 / 0)
CVB: Size 608, PerPage 13
Pages / MaxPages 2 / 6400 ||| 0 / 45974
FreePkts / TotalPkts 12 / 26 ||| 0 / 0
Hits 12 ||| 0
Not first page 0 ||| 0
Misses (expns/fails) 2 ( 2 /0) ||| 0 ( 0 / 0)
IOSIZE: Size 3120, PerPage 2
Pages / MaxPages 0 / 6400 ||| 0 / 45974
FreePkts / TotalPkts 0 / 0 ||| 0 / 0
Hits 0 ||| 0
Not first page 0 ||| 0
Misses (expns/fails) 0 ( 0 /0) ||| 0 ( 0 / 0)
|
This example shows the full output from this command.
| #2 |
|---|
SDA> XFC SHOW MEMORY/BRIEF
XFC Memory Summary
------------------
Current Maximum Cache Size : 8589934592 (8.0 GB)
Boottime Maximum Cache Size : -1
Permanent Data Pages: Allocated : 121600
In use : 2739
Pool Pages: Allocated : 6400
In use : 128
Dynamic Pages: Max Allowed : 919488
Allocated : 0
In use : 0
Min Allowed : 20971
Data Pages: Allowed : 873514
In use : 0
Pool Pages: Allowed : 45974
In use : 0
PFN List : 0
Non PFN List : 0
Total Cache Memory (bytes) : 1048621248 (1000.0 MB)
|
This example shows the brief output from this command.
Displays general information about the Extended File Cache.
SHOW SUMMARY [/STATISTICS]
None.
/STATISTICS
Additionally, displays read and write activity arranged by I/O size.
SDA> XFC SHOW SUMMARY
XFC Summary
-----------
Extended File Cache V1.0 Let unk I/Os through (Apr 18 2002 15:01:16)
Anchor Block Address: FFFFFFFF80D30210
Build Id:
Cache State: 0000A010
Cache in no-cache state: False
MaxAllowedCacheMode: eNodeFullXFC
Minimum cache size in Pages: 0001F400 ( 128000)
General
-------
Extent Hash Table Address: FFFFFFFF7F780000
Extent Hash Table Buckets: 524287
File Hash Table Address: FFFFFFFF7FF80000
File Hash Table Buckets: 32767
Count of private CTXs: 10
Count of private FKBs: 403
Count of private DIOBMs: 3
LRU
---
LRU Priority 0 Queue Address: FFFFFFFF80D30288
Queue Length: 00000446 ( 1094)
LRU Priority 1 Queue Address: FFFFFFFF80D30298
Queue Length: 00000AA5 ( 2725)
qhdContexts Address FFFFFFFF80D302B0
qhdIRPs Address FFFFFFFF80D302C0
Spinlock
--------
Cache Spinlock: 8125E780
Last Acquiring Module: ROOT$:[XFC.TMPSRC]XFC_SYS.C;4
Acquiring Line: 2887
Acquiring IPL: 0
Cache Tracing
-------------
Number of trace entries: 10000
Size of trace buffer: 800000
Current trace level: 4
Lost trace entrys: 0
Current trace sequence number: 318768
System Wide I/O Statistics since last reset
-------------------------------------------
Time of Last System-Wide Reset: 19-APR-2002 07:10:23.43
Total cache calls: 4505
Total cache calls: 4505
- Sum of Paging I/Os: 2493
- and other QIOs: 2012
- and NoCVB or PermNoCache QIOs: 0
Total Virtual Reads: 4197
Total Virtual Writes: 112
Total PageIOs not cached: 196
Total Logical I/Os: 0
Total Physical I/Os: 0
Total bypass write I/Os: 0
Synchronous I/O completions: 598
Physical I/O completions: 0
Total PID completion I/Os: 0
Total num IOs on reserved files: 1606
Total num IOs on global sections: 247
Count of stalls performed: 13
System Wide Read Percentage: 97.40 %
System Wide Cache Hit ratio: 57.90 %
System-Wide Read Statistics since last reset
--------------------------------------------
Virtual Reads: 4197
Sum of Read Around Count: 179
and Read Through Count: 4018
Reads Completed: 4197
Read Hits: 2495
Read Cache Hit Percentage: 59.45 %
Total Synch Completion Count: 598
Read Around due to Het. Cluster: 0
Read Around due to Modifiers: 0
Read Around due to Size: 16
Total reads past EOF: 1
Total I/Os with read-ahead: 239
Read Hits due to read-ahead: 307
Paging I/Os: 2493
System-Wide Write Statistics since last reset
---------------------------------------------
Virtual Writes: 112
Sum of Write Around Count: 0
and Write Through Count: 112
Write Around due to Het. Cluster: 0
Writes Completed: 112
Write Around due to Modifiers: 0
Write Around due to Size: 0
Total writes past EOF: 0
File/Volume Statistics
----------------------
Open Files: 239
Closed Files in the Cache: 164
Number of files truncated: 3
Volumes in Full XFC Mode: 0
Volumes in VIOC Compatible Mode: 13
Volumes in No Caching Mode: 1
Volumes in Perm. No Caching Mode: 0
Volume Queue: FFFFFFFF80D30238
File/Volume Statistics
----------------------
FAL locks currently held: 370
FAL locks chosen to skip: 0
FAL locks acquired since boot: 374
FAL locks released since boot: 4
FAL locks converted: 55
I/Os that have stalled for FAL 0
CACHE$ACCESS stalls for CFB 0
ulStallOpQStalls 1
Read-thro->Read-around conv. 0
Writes converted to write-around 0
ulLockResourceExhaustionRetries: 0
ulFALLocksEverInContention: 3
ulFALUpConversionRequests: 3
ulFALLocksConvertedToPR: 0
ulFALLocksConvertedToNL: 0
FAL BlkASTs received: 1
FAL BlkASTs ignored: 0
ECBs Split Right: 2229
ECBs Split Left: 1710
ECBs Split Three Ways: 786
ECBs Requiring no splits: 5802
Volume Lock Statistics
----------------------
VIL Blocking ASTs received 0
VIL Blocking ASTs stalled 0
VIL Blocking ASTs started 0
VIL Blocking ASTs completed 0
VIL Up-conversion requests made 0
VIL Up-conversion grants 0
VCML Blocking ASTs received 0
VCML Blocking ASTs stalled 0
VCML Blocking ASTs started 0
VCML Blocking ASTs completed 0
VCML Up-conversion requests made 0
VCML Up-conversion grants 0
Stalls on VCML up-conversion 0
Restarts on VCML up-conversion 0
Quiesce and Depose Statistics
-----------------------------
Quiesce and Depose files Stalled: 0
File Quiesce and Deposes Started: 114
File Quiesce and Deposes Cmpltd: 114
File Quiesce and Deposes Cmpltd: 114
Q&D CTX used count: 0
Q&D CTX in use: False
Most recent Depose time 0.0005 msec.
Most recent Depose ECB count 0
Maximum Depose time 0.1125 msec.
Maximum ECBs deposed 3
Total Depose time 0.0002 seconds
Total ECBs deposed 6
Pending Lock Up-conversion Statistics
-------------------------------------
Up-conversions stalled: 0
Up-conversions started: 0
|
Previous Next Contents Index
