HP OpenVMS RTL General Purpose (OTS$) Manual

HP OpenVMS RTL General Purpose (OTS$) Manual


Previous Contents Index


OTS$CVT_L_TU

The Convert Unsigned Integer to Decimal Text routine converts an unsigned integer value to its unsigned decimal representation in an ASCII text string.

Format

OTS$CVT_L_TU varying-input-value ,fixed-length-resultant-string [,number-of-digits] [,input-value-size]


RETURNS


OpenVMS usage: cond_value
type: longword (unsigned)
access: write only
mechanism: by value


Arguments

varying-input-value


OpenVMS usage: varying_arg
type: unspecified
access: read only
mechanism: by reference

An unsigned integer that OTS$CVT_L_TU converts to an unsigned decimal representation in an ASCII text string. The varying-input-value argument is the address of the unsigned integer.

On VAX systems, the integer can be an unsigned byte, word, or longword. (The value of the input-value-size argument determines whether varying-input-value is a byte, word, or longword.)

On Alpha and I64 systems, the integer can be an unsigned byte, word, longword, or quadword. (The value of the input-value-size argument determines whether varying-input-value is a byte, word, longword, or quadword.)

fixed-length-resultant-string


OpenVMS usage: char_string
type: character string
access: write only
mechanism: by descriptor, fixed length

Output string that OTS$CVT_L_TU creates when it converts the integer value to unsigned decimal representation in an ASCII text string. The fixed-length-resultant-string argument is the address of a descriptor pointing to this ASCII text string.

number-of-digits


OpenVMS usage: longword_signed
type: longword (signed)
access: read only
mechanism: by value

Minimum number of digits in the ASCII text string that OTS$CVT_L_TU creates. The number-of-digits argument is a signed longword containing the minimum number. If the minimum number of digits is omitted, the default is 1.

If the actual number of significant digits in the output string created is less than the minimum number, OTS$CVT_L_TU inserts leading zeros into the output string. If the minimum number of digits is zero and the integer value to be converted is also zero, OTS$CVT_L_TU writes a blank string to the output string.

input-value-size


OpenVMS usage: longword_signed
type: longword (signed)
access: read only
mechanism: by value

Size of the integer to be converted, in bytes. The input-value-size argument is a signed longword containing this value size. If the size is omitted, the default is 4 (longword).

On VAX systems, the value size must be 1, 2, or 4.

On Alpha and I64 systems, the value size must be 1, 2, 4, or 8.


Condition Values Returned

SS$_NORMAL Normal successful completion.
OTS$_OUTCONERR Output conversion error. Either the result would have exceeded the fixed-length string or the input-value-size is not a valid value. The output string is filled with asterisks (*).

OTS$CVT_L_TZ

The Convert Integer to Hexadecimal Text routine converts an unsigned integer to a hexadecimal ASCII text string. OTS$CVT_L_TZ supports Fortran Zw and Zw.m output conversion formats.

Format

OTS$CVT_L_TZ varying-input-value ,fixed-length-resultant-string [,number-of-digits] [,input-value-size]


RETURNS


OpenVMS usage: cond_value
type: longword (unsigned)
access: write only
mechanism: by value


Arguments

varying-input-value


OpenVMS usage: varying_arg
type: unspecified
access: read only
mechanism: by reference

Unsigned byte, word, or longword that OTS$CVT_L_TZ converts to an unsigned decimal representation in an ASCII text string. (The value of the input-value-size argument determines whether varying-input-value is a byte, word, or longword.) The varying-input-value argument is the address of the unsigned integer.

fixed-length-resultant-string


OpenVMS usage: char_string
type: character string
access: write only
mechanism: by descriptor, fixed length

Output string that OTS$CVT_L_TZ creates when it converts the integer value to a hexadecimal ASCII text string. The fixed-length-resultant-string argument is the address of a descriptor pointing to this ASCII text string. The string is assumed to be of fixed length (CLASS_S descriptor).

number-of-digits


OpenVMS usage: longword_signed
type: longword (signed)
access: read only
mechanism: by value

Minimum number of digits in the ASCII text string that OTS$CVT_L_TZ creates when it converts the integer. The number-of-digits argument is a signed longword containing this minimum number. If it is omitted, the default is 1. If the actual number of significant digits in the text string that OTS$CVT_L_TZ creates is less than this minimum number, OTS$CVT_L_TZ inserts leading zeros in the output string. If the minimum number of digits is zero and the integer value to be converted is also zero, OTS$CVT_L_TZ writes a blank string to the output string.

input-value-size


OpenVMS usage: longword_signed
type: longword (signed)
access: read only
mechanism: by value

Size of the integer that OTS$CVT_L_TZ converts, in bytes. The input-value-size argument is a signed longword containing the value size. If the size is omitted, the default is 4 (longword).

Condition Values Returned

SS$_NORMAL Normal successful completion.
OTS$_OUTCONERR Output conversion error. The result would have exceeded the fixed-length string; the output string is filled with asterisks (*).

Example


with TEXT_IO; use TEXT_IO;
procedure SHOW_CONVERT is

   type INPUT_INT is new INTEGER range 0..INTEGER'LAST;

   INTVALUE : INPUT_INT := 256;
   HEXSTRING : STRING(1..11);

   procedure CONVERT_TO_HEX (I : in INPUT_INT; HS : out STRING);
   pragma INTERFACE (RTL, CONVERT_TO_HEX);
   pragma IMPORT_routine (INTERNAL => CONVERT_TO_HEX,
                            EXTERNAL => "OTS$CVT_L_TZ",
                            MECHANISM =>(REFERENCE,
                                         DESCRIPTOR (CLASS => S)));

begin
   CONVERT_TO_HEX (INTVALUE, HEXSTRING);
   PUT_LINE("This is the value of HEXSTRING");
   PUT_LINE(HEXSTRING);
end;



This Ada example uses OTS$CVT_L_TZ to convert a longword integer to hexadecimal text.


OTS$CVT_T_x

The Convert Numeric Text to D-, F-, G-, H-, IEEE S-, or IEEE T-Floating routines convert an ASCII text string representation of a numeric value to a D-floating, F-floating, G-floating, H-floating, IEEE S-floating, or IEEE T-floating value.

Format

OTS$CVT_T_D fixed-or-dynamic-input-string ,floating-point-value [,digits-in-fraction] [,scale-factor] [,flags-value] [,extension-bits]

OTS$CVT_T_F fixed-or-dynamic-input-string ,floating-point-value [,digits-in-fraction] [,scale-factor] [,flags-value] [,extension-bits]

OTS$CVT_T_G fixed-or-dynamic-input-string ,floating-point-value [,digits-in-fraction] [,scale-factor] [,flags-value] [,extension-bits]

OTS$CVT_T_H fixed-or-dynamic-input-string ,floating-point-value [,digits-in-fraction] [,scale-factor] [,flags-value] [,extension-bits]

OTS$CVT_T_S fixed-or-dynamic-input-string ,floating-point-value [,digits-in-fraction] [,scale-factor] [,flags-value] [,extension-bits]

OTS$CVT_T_T fixed-or-dynamic-input-string ,floating-point-value [,digits-in-fraction] [,scale-factor] [,flags-value] [,extension-bits]


RETURNS


OpenVMS usage: cond_value
type: longword (unsigned)
access: write only
mechanism: by value


Arguments

fixed-or-dynamic-input-string


OpenVMS usage: char_string
type: character string
access: read only
mechanism: by descriptor, fixed-length or dynamic string

Input string containing an ASCII text string representation of a numeric value that OTS$CVT_T_x converts to a D-floating, F-floating, G-floating, H-floating, IEEE S-floating, or IEEE T-floating value. The fixed-or-dynamic-input-string argument is the address of a descriptor pointing to the input string.

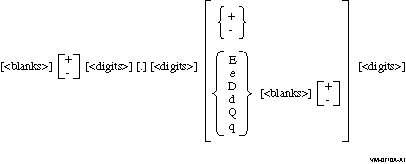

The syntax of a valid input string is as follows:


E, e, D, d, Q, and q are the possible exponent letters. They are semantically equivalent. Other elements in the preceding syntax are defined as follows:
Term Description
blanks One or more blanks
digits One or more decimal digits

floating-point-value


OpenVMS usage: floating_point
type: D_floating, F_floating, G_floating, H_floating, IEEE S_floating, IEEE T_floating
access: write only
mechanism: by reference

Floating-point value that OTS$CVT_T_x creates when it converts the input string. The floating-point-value argument is the address of the floating-point value. The data type of floating-point-value depends on the called routine as shown in the following table:
Routine floating-point-value Data Type
OTS$CVT_T_D D-floating
OTS$CVT_T_F F-floating
OTS$CVT_T_G G-floating
OTS$CVT_T_H H-floating
OTS$CVT_T_S IEEE S-floating
OTS$CVT_T_T IEEE T-floating

digits-in-fraction


OpenVMS usage: longword_unsigned
type: longword (unsigned)
access: read only
mechanism: by value

Number of digits in the fraction if no decimal point is included in the input string. The digits-in-fraction argument contains the number of digits. If the number of digits is omitted, the default is zero.

scale-factor


OpenVMS usage: longword_signed
type: longword (signed)
access: read only
mechanism: by value

Scale factor. The scale-factor argument contains the value of the scale factor. If bit 6 of the flags-value argument is clear, the resultant value is divided by 10scale-factor unless the exponent is present. If bit 6 of flags-value is set, the scale factor is always applied. If the scale factor is omitted, the default is zero.

flags-value


OpenVMS usage: mask_longword
type: longword (unsigned)
access: read only
mechanism: by value

User-supplied flags. The flags-value argument contains the user-supplied flags described in the following table:
Bit Action if Set Action if Clear
0 Ignore blanks. Interpret blanks as zeros.
1 Allow only E or e exponents. (This is consistent with Fortran semantics.) Allow E, e, D, d, Q and q exponents. (This is consistent with BASIC semantics.)
2 Interpret an underflow as an error. Do not interpret an underflow as an error.
3 Truncate the value. Round the value.
4 Ignore tabs. Interpret tabs as invalid characters.
5 An exponent must begin with a valid exponent letter. The exponent letter can be omitted.
6 Always apply the scale factor. Apply the scale factor only if there is no exponent present in the string.

If you omit the flags-value argument, OTS$CVT_T_x defaults all flags to clear.

extension-bits (D-, F-floating, IEEE S-floating)


OpenVMS usage: byte_unsigned
type: byte (unsigned)
access: write only
mechanism: by reference

extension-bits (G-, H-floating, IEEE T-floating)


OpenVMS usage: word_unsigned
type: word (unsigned)
access: write only
mechanism: by reference

Extra precision bits. The extension-bits argument is the address of a word containing the extra precision bits. If extension-bits is present, floating-point-value is not rounded, and the first n bits after truncation are returned left-justified in this argument, as follows:
Routine Number of Bits Returned Data Type
OTS$CVT_T_D 8 Byte (unsigned)
OTS$CVT_T_F 8 Byte (unsigned)
OTS$CVT_T_G 11 Word (unsigned)
OTS$CVT_T_H 15 Word (unsigned)
OTS$CVT_T_S 8 Byte (unsigned)
OTS$CVT_T_T 11 Word (unsigned)

A value represented by extension bits is suitable for use as the extension operand in an EMOD instruction.

The extra precision bits returned for H-floating may not be precise because OTS$CVT_T_H carries its calculations to only 128 bits. However the error should be small.


Description

The OTS$CVT_T_D, OTS$CVT_T_F, OTS$CVT_T_G, OTS$CVT_T_H, OTS$CVT_T_S, and OTS$CVT_T_T routines support Fortran D, E, F, and G input type conversion as well as similar types for other languages.

These routines provide run-time support for BASIC and Fortran input statements.

Although Alpha and I64 systems do not generally support H-floating operations, you can use OTS$CVT_T_H to convert a text string to an H-floating value on an Alpha or I64 system.


Condition Values Returned

SS$_NORMAL Normal successful completion.
OTS$_INPCONERR Input conversion error; an invalid character in the input string, or the value is outside the range that can be represented. The floating-point-value and extension-bits arguments, if present, are set to +0.0 (not reserved operand --0.0).

Example


C+
C This is a Fortran program demonstrating the use of
C OTS$CVT_T_F.
C-

        REAL*4 A
        CHARACTER*10 T(5)
        DATA T/'1234567+23','8.786534+3','-983476E-3','-23.734532','45'/
        DO 2 I = 1, 5
        TYPE 1,I,T(I)
 1      FORMAT(' Input string ',I1,' is ',A10)

C+
C B is the return status.
C T(I) is the string to be converted to an
C F-floating point value.  A is the F-floating
C point conversion of T(I).  %VAL(5) means 5 digits
C are in the fraction if no decimal point is in
C the input string T(I).
C-
        B = OTS$CVT_T_F(T(I),A,%VAL(5),,)
        TYPE *,' Output of OTSCVT_T_F is     ',A
        TYPE *,'  '
 2      CONTINUE
        END





This Fortran example demonstrates the use of OTS$CVT_T_F. The output generated by this program is as follows:


Input string 1 is 1234567+23
 Output of OTSCVT_T_F is       1.2345669E+24
Input string 2 is 8.786534+3
 Output of OTSCVT_T_F is        8786.534
Input string 3 is -983476E-3
 Output of OTSCVT_T_F is      -9.8347599E-03
Input string 4 is -23.734532
 Output of OTSCVT_T_F is       -23.73453
Input string 5 is 45
 Output of OTSCVT_T_F is        45000.00


OTS$CVT_TB_L

The Convert Binary Text to Unsigned Integer routine converts an ASCII text string representation of an unsigned binary value to an unsigned integer value. The integer value can be of arbitrary length but is typically a byte, word, longword, or quadword. The default size of the result is a longword.

Format

OTS$CVT_TB_L fixed-or-dynamic-input-string ,varying-output-value [,output-value-size] [,flags-value]


RETURNS


OpenVMS usage: cond_value
type: longword (unsigned)
access: write only
mechanism: by value


Arguments

fixed-or-dynamic-input-string


OpenVMS usage: char_string
type: character string
access: read only
mechanism: by descriptor

Input string containing the string representation of an unsigned binary value that OTS$CVT_TB_L converts to an unsigned integer value. The fixed-or-dynamic-input-string argument is the address of a descriptor pointing to the input string. The valid input characters are blanks and the digits 0 and 1. No sign is permitted.

varying-output-value


OpenVMS usage: varying_arg
type: unspecified
access: write only
mechanism: by reference

Unsigned integer of specified size that OTS$CVT_TB_L creates when it converts the ASCII text string. The varying-output-value argument is the address of the integer. The value of the output-value-size argument determines the size in bytes of the output value.

output-value-size


OpenVMS usage: longword_signed
type: longword (signed)
access: read only
mechanism: by value

Arbitrary number of bytes to be occupied by the unsigned integer output value. The output-value-size argument contains a value that equals the size in bytes of the output value. If the value of output-value-size is zero or a negative number, OTS$CVT_TB_L returns an input conversion error. If you omit the output-value-size argument, the default is 4 (longword).

flags-value


OpenVMS usage: mask_longword
type: longword (unsigned)
access: read only
mechanism: by value

User-supplied flag that OTS$CVT_TB_L uses to determine how to interpret blanks within the input string. The flags-value argument contains this user-supplied flag.

OTS$CVT_TB_L defines the flag as follows:
Bit Action if Set Action if Clear
0 Ignore blanks. Interpret blanks as zeros.

If you omit the flags-value argument, OTS$CVT_TB_L defaults all flags to clear.


Condition Values Returned

SS$_NORMAL Normal successful completion.
OTS$_INPCONERR Input conversion error. OTS$CVT_TB_L encountered an invalid character in the fixed-or-dynamic-input-string, an overflow of varying-output-value, or an invalid output-value-size. In the case of an invalid character or of an overflow, varying-output-value is set to zero.

Example


    OPTION                              &
        TYPE = EXPLICIT

    !+
    !   This program demonstrates the use of OTS$CVT_TB_L from BASIC.
    !   Several binary numbers are read and then converted to their
    !   integer equivalents.
    !-

    !+
    !   DECLARATIONS
    !-

    DECLARE STRING BIN_STR
    DECLARE LONG BIN_VAL, I, RET_STATUS
    DECLARE LONG CONSTANT FLAGS = 17        ! 2^0 + 2^4
    EXTERNAL LONG FUNCTION OTS$CVT_TB_L (STRING, LONG, &
        LONG BY VALUE, LONG BY VALUE)

    !+
    !   MAIN PROGRAM
    !-

    !+
    !   Read the data, convert it to binary, and print the result.
    !-

FOR I = 1 TO 5 READ BIN_STR RET_STATUS = OTS$CVT_TB_L( BIN_STR, BIN_VAL, '4'L, FLAGS) PRINT BIN_STR;" treated as a binary number equals";BIN_VAL NEXT I !+ ! Done, end the program. !- GOTO 32767 999 Data "1111", "1 111", "1011011", "11111111", "00000000" 32767 END

This BASIC example program demonstrates how to call OTS$CVT_TB_L to convert binary text to a longword integer.

The output generated by this BASIC program is as follows:


1111 treated as a binary number equals 15
1 111 treated as a binary number equals 15
1011011 treated as a binary number equals 91
11111111 treated as a binary number equals 255
00000000 treated as a binary number equals 0
